Generator frequency fluctuation
- BY BISON
Table of Contents
Reliable electricity is the cornerstone of modern life—it powers industries, hospitals, data centers, and critical infrastructure. Even brief power outages in these settings can have serious consequences, making a stable power supply crucial for continuous operation, protecting sensitive equipment, and maintaining overall system efficiency.
A continuously running generator must match the frequency required by the equipment it supplies. Similarly, a standby generator must operate at the same frequency as the main power supply. Generator frequency fluctuation occurs when the frequency deviates from its set value due to changes in load, mechanical issues, or grid instability.
In this blog, BISON explores the causes, detection, and prevention of generator frequency fluctuations to help ensure consistent and reliable power performance.
Understanding generator frequency
Generator frequency refers to the electrical frequency of alternating current (AC), indicating the number of times the current alternates per second. It is measured in hertz (Hz) and is represented as a sine wave on an oscilloscope, with each complete wave produced by one full rotation of the generator’s magnets. For example, when a sine wave completes 50 cycles per second, the frequency is 50 Hz—the more cycles per second, the higher the frequency.
Most regions operate at a standard frequency of either 50 Hz, commonly used in Europe, Asia, and Africa, or 60 Hz, which is standard in North America. This fixed frequency ensures smooth operation of electrical equipment and keeps power systems synchronized.
A generator’s frequency is directly linked to its rotational speed according to the synchronous speed principle. The faster the rotor spins, the higher the frequency produced. This relationship is expressed by the formula:
f = (N × P) / 120
Where:
- f is the electrical frequency (Hz).
- N is the rotational speed in revolutions per minute (RPM).
- P is the number of magnetic poles in the generator.
For example, a 4-pole generator running at 1,500 RPM produces a frequency of 50 Hz, while operating at 1,800 RPM produces 60 Hz. To achieve the desired frequency, the generator must run at the correct speed.
The formula can also be rearranged to calculate the required speed:
N = (f × 120) / P
Causes of frequency fluctuation
1. Demand-side factors
- Load variations: Sudden increases or decreases in power demand, such as starting heavy industrial machinery, can cause the generator to slow down and result in a temporary frequency drop. Unbalanced load sharing between generators and equipment malfunctions can also contribute to fluctuations.
- Cyclical load changes: Daily or seasonal demand changes, such as increased air-conditioning use during hot weather, can cause small but continuous frequency variations.
- Fault clearing: When electrical faults are cleared or protective devices activate, sudden load changes may temporarily disrupt frequency.
2. Supply-side factors
- Generator tripping: When a generator unexpectedly goes offline, remaining generators must absorb the load, often causing frequency dips.
- Renewable energy intermittency: Fluctuations in solar and wind output due to environmental conditions can affect system frequency.
- Governor’s response delays: Delays in automatic speed control systems may allow short-term frequency deviations before correction occurs.
3. Engine-related problems
The engine determines generator frequency, as alternator output frequency is proportional to engine speed. Any engine issue can cause frequency fluctuations.
- Fuel-related problems: Malfunctioning fuel pumps or clogged fuel filters can cause the engine to run lean, reducing frequency.
- Cooling system problems: Cooling system failure can lead to engine overheating, resulting in frequency drops.
- Air intake problems: Blocked or damaged air filters restrict airflow, causing inefficient combustion and lower frequency.
4. Mechanical and control issues
Mechanical problems—such as damaged components, worn bearings, belts, or pulleys—reduce the generator’s ability to maintain stable frequency by hindering smooth rotor rotation and power transmission.
Faulty control systems: Malfunctioning control panels or protective relays can lead to improper frequency regulation.
5. Electrical problems
- Overloading: When demand exceeds generator capacity, the engine slows down, causing a frequency drop.
- Voltage fluctuations: Unstable voltage forces the generator to work harder, which can reduce frequency.
- Bad Wiring: Poor wiring can cause voltage drops, leading to frequency instability.
- Reactive power imbalance: An imbalance between reactive and active power can create frequency fluctuations.
6. Fuel quality issues
Poor fuel quality can lead to incomplete combustion, engine damage, and frequency instability. Common problems include water contamination, microbial growth, and impurities such as sulfur or sediment. These issues can damage injectors, block fuel lines, and reduce combustion efficiency, causing frequency fluctuations.
7. External factors
Grid instability: Frequency disturbances in the larger power network can affect individual generators.
Environmental impacts: Extreme weather, temperature changes, and natural events can disrupt generator operation or fuel supply, indirectly affecting frequency.
Effects of frequency fluctuation
Equipment damage
- Turbines and motors: Frequency variations can cause overheating, vibration, and premature wear.
- Transformers: Instability may lead to insulation stress, reduced efficiency, and long-term damage.
- Sensitive electronics: Computers, control systems, and other electronic devices may malfunction or fail due to frequency deviations.
Operational efficiency losses
Fluctuating frequency reduces the efficiency of industrial processes and machinery. Production systems may slow down or require frequent adjustments, increasing downtime.
Power quality issues
- Flickering lights: Minor frequency deviations can cause visible lighting flicker
- Voltage instability: Frequency changes often occur alongside voltage fluctuations, affecting equipment performance.
- Protective relay actions: Large or frequent deviations may trigger protective devices unnecessarily, leading to power interruptions.
Economic impact
Equipment damage and unnecessary shutdowns increase repair costs and downtime. Reduced efficiency and interruptions in production can result in significant financial losses.
Generator frequency detection and measurement

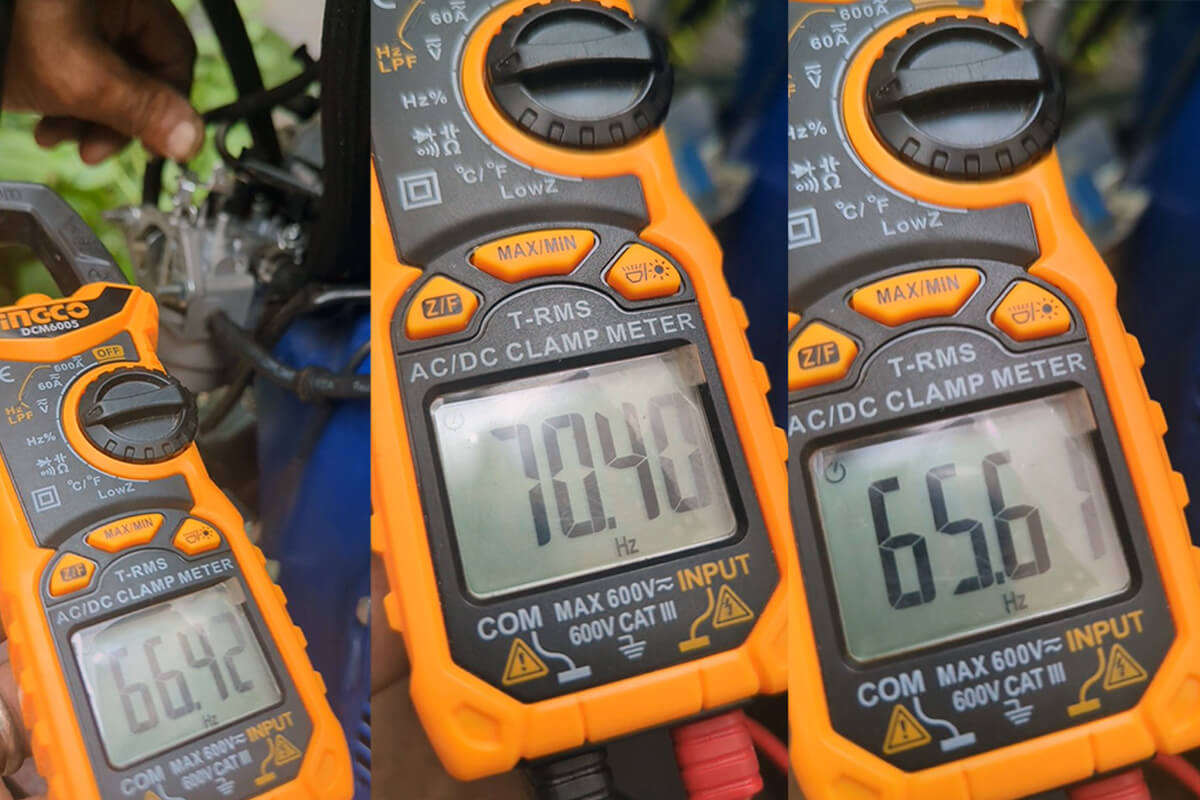

Frequency meters
Traditional instruments that continuously monitor electrical frequency and provide real-time readings, allowing operators to quickly detect deviations.
SCADA systems
Supervisory Control and Data Acquisition systems enable centralized monitoring of generators and the power network. They allow operators to track frequency trends and respond to imbalances efficiently.
IoT monitoring solutions
Modern sensors and IoT-enabled devices offer remote, real-time monitoring. These systems can send alerts for abnormal frequency deviations and integrate with automated control systems for faster response.
Common signs of frequency fluctuation
- Unusual humming or whistling sounds from generators or motors
- Excessive heat or vibration in turbines, engines, or rotating equipment
- Irregular operation of sensitive machinery and electronic devices
Solutions and prevention

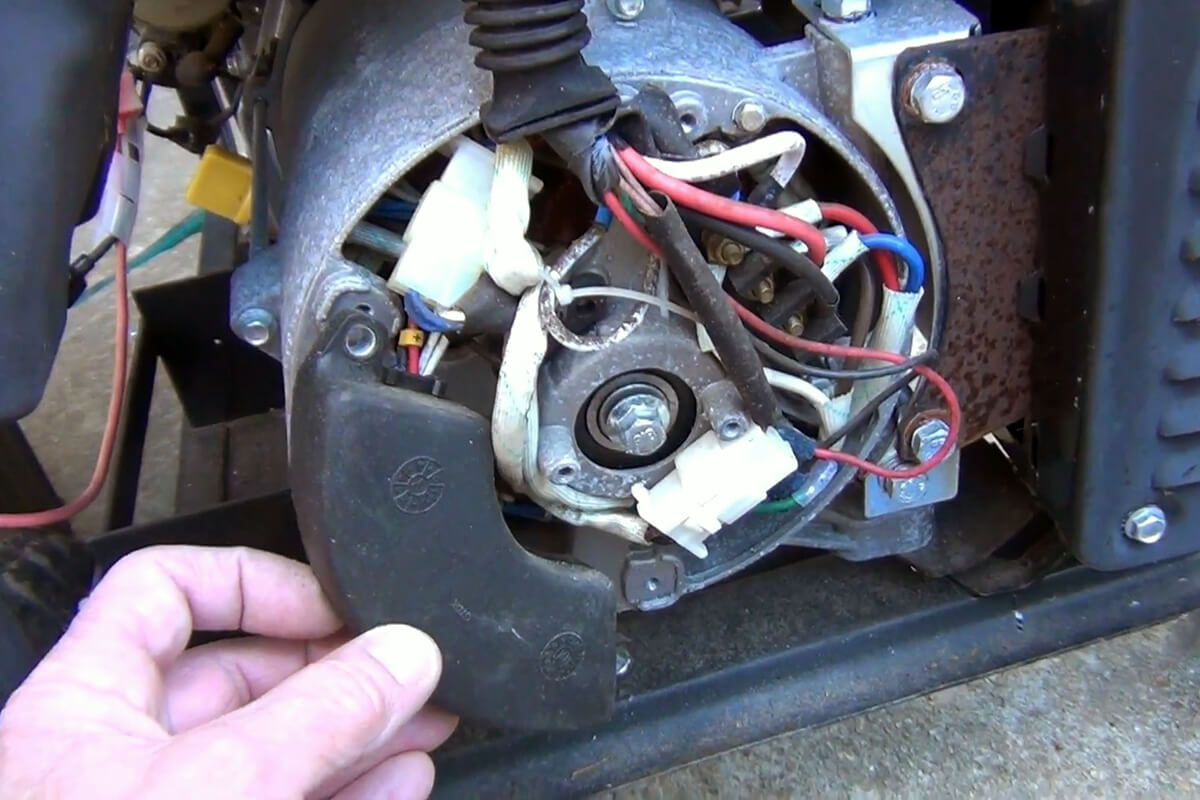

Automatic voltage and frequency regulation (AVR & AFR)
Automatic voltage regulators (AVR) control generator voltage, while Automatic Frequency Regulators (AFR) stabilize frequency. These regulators help maintain steady electrical output under varying load conditions. If an AVR is outdated or unable to handle load requirements, upgrading to a more capable model may be necessary.
Proper load management
Generators should be correctly sized for expected loads, and loads should be balanced across multiple generators when applicable. Reducing excessive power demand helps prevent overloading and frequency drops. Strategic scheduling of high-demand equipment further minimizes sudden frequency changes. Load banks may be used to test generator capacity and verify performance under changing demand.
Voltage regulation
Maintaining steady system voltage helps prevent frequency fluctuations caused by voltage instability.
Regular maintenance practices
Routine servicing of generators, engines, turbines, and control systems ensures optimal performance and early fault detection. Electrical system inspections help identify faulty wiring or other issues contributing to frequency fluctuations.
Engine maintenance supports a stable frequency by identifying problems early. Fuel system components such as filters, pumps, and fuel lines should be inspected regularly. Cooling systems must be checked to prevent overheating, while air intake systems should be inspected to avoid lean engine operation.
Mechanical components, including bearings, belts, and pulleys, require regular inspection, proper lubrication, and correct tensioning. Loose or worn components can cause slippage and frequency drops. Early detection of mechanical wear helps prevent unexpected frequency deviations.
Power factor correction
Correcting imbalances between reactive and active power helps prevent frequency fluctuations related to reactive power issues.
Advanced technologies
Smart controllers automatically adjust generator operation to maintain a stable frequency. IoT-based monitoring enables real-time detection of deviations, while predictive maintenance tools use analytics to identify potential failures before they affect frequency stability.
Fuel quality management
High-quality diesel fuel that meets engine standards should be used, supported by regular fuel testing to identify contamination or degradation. Proper fuel storage and handling help prevent water and microbial contamination.
Fuel filtration systems remove impurities, while fuel additives help prevent microbial growth and reduce sulfur-related damage. Regular inspection, cleaning, and replacement of fuel filters are necessary to maintain fuel system reliability.
Summary
Generator frequency fluctuations can result from sudden load changes, mechanical faults, control system delays, external grid disturbances, or electrical issues like overloading, voltage instability, bad wiring, and reactive power imbalances. Even small deviations can cause equipment damage, operational losses, or downtime.
Effective solutions include high-quality generators, automatic voltage and frequency regulators, smart controllers, IoT monitoring, predictive maintenance, and energy storage systems to prevent fluctuations and optimize performance.
As a professional generator supplier in China, BISON is committed to providing reliable generators, advanced control systems, and expert support to help you and your customers maintain stable frequency and uninterrupted power supply. Importing high-quality BISON generators from China ensures your customers have a stable and continuous power supply, enhancing your reputation in the industry.
