Generator voltage too high/Generator over voltage

Understanding the reasons is crucial. Generator over voltage can cause serious damage to machinery, shorten equipment lifespan, and create safety hazards.

November 12, 2025
BY BISON

Have you ever wondered what happens if a generator produces too much electricity? Imagine plugging in your home appliances only to find that instead of powering them safely, the generator sends out more voltage than they can handle. This situation is called generator over voltage.

A generator producing too high voltage can put your entire electrical system at risk. Generator over voltage occurs when a generator delivers electrical output beyond its safe operating limits — meaning the voltage is higher than what connected equipment and circuits are designed to handle.

This is not just a technical issue — it can damage sensitive equipment, shorten machine life, and even put people at risk of electric shock or fire. Understanding the reasons is crucial. Generator over voltage can cause serious damage to machinery, shorten equipment lifespan, and create safety hazards.

Understanding generator voltage regulation

For most small to medium-sized units, the normal output is around 220–240v for single-phase and 380–415v for 3-phase generators. Staying within these ranges ensures that connected appliances and equipment run safely and efficiently.

Automatic voltage regulators (AVRs) play a key role in keeping generator voltage stable. It senses the generator’s output and automatically adjusts the excitation to the windings to maintain a steady voltage. This helps prevent both over voltage and under voltage conditions.

Voltage output is also influenced by engine speed and load. When the engine runs faster, the voltage increases; when it slows down, the voltage drops. Likewise, adding more electrical devices (a higher load) can cause the voltage to fall if not properly controlled.

Common causes of generator over voltage

1. Excitation system problems

The excitation system supplies energy to the generator’s magnetic field. If this system malfunctions, the magnetic field can become too strong, causing the generator’s voltage to rise higher than normal.

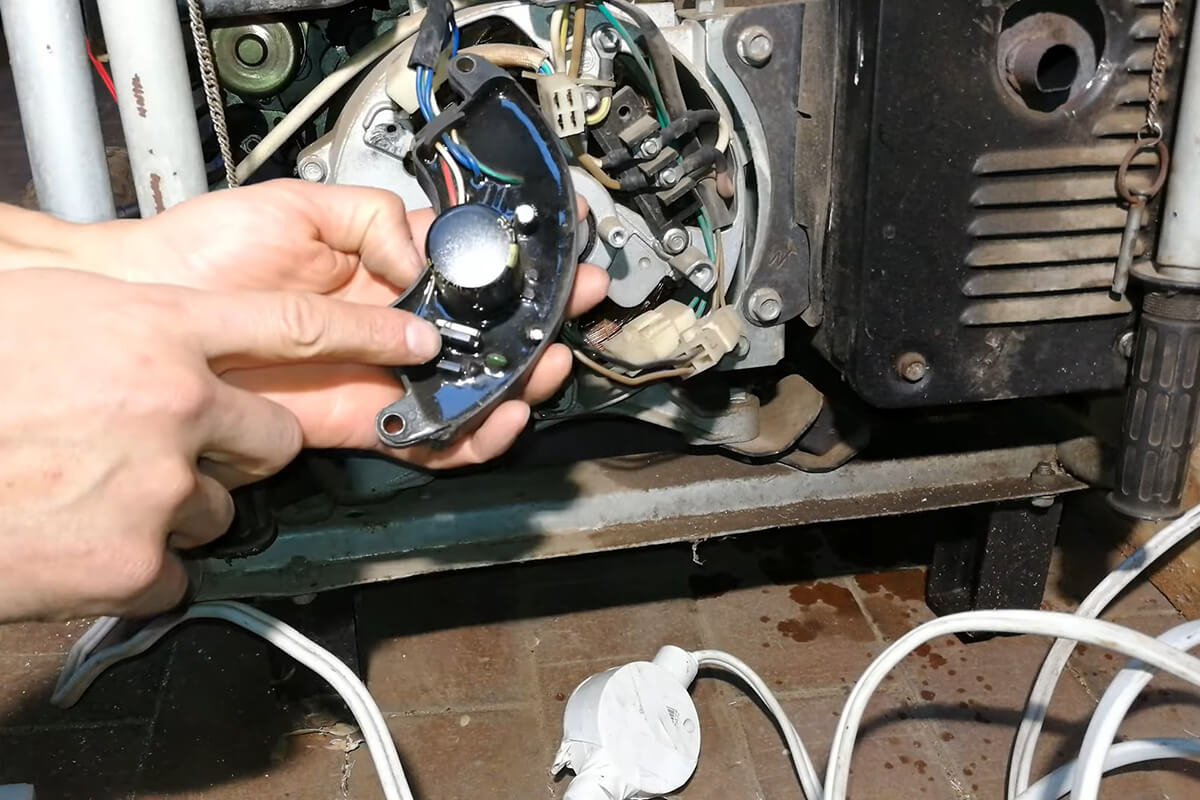

2. AVR failure

Most generators use an automatic voltage regulator (AVR) to maintain a steady voltage. If the AVR is faulty or damaged, it cannot control the voltage properly, which can lead to overvoltage or under voltage.

3. Manual voltage regulator errors

Some generators use manual regulators, where a person adjusts the voltage settings. Incorrect adjustments can cause the generator to produce unsafe voltage levels.

4. Load changes

Sudden load changes can make the generator voltage fluctuate. For example, when a large load is disconnected, voltage may spike briefly. It’s also normal for a generator’s voltage to be slightly higher with no load connected. However, if the voltage exceeds the limits specified in the manual, you should investigate further.

5. Component faults

Internal component failures can lead to voltage problems. These include short circuits in field windings, damaged sensing circuits, or other control issues that cause voltage to climb too high.

Faulty cables: Damaged output cables or loose connections can increase resistance and affect voltage output. Check cables and terminals regularly.
Bad capacitor: A damaged capacitor can cause unstable or high voltage output. Inspect the capacitor with a multimeter and replace it if the readings are abnormal.
Faulty rotor or stator: Cracked, burnt, or overheated windings in the rotor or stator can lead to excessive voltage. Inspect windings visually and test with a multimeter—high or infinite resistance often indicates damage.

6. Prime mover speed issues

The prime mover (engine or turbine) must maintain proper speed. If the governor fails, the generator may spin too fast, raising the voltage. Unstable rpms caused by dirty fuel filters, poor fuel quality, or incorrect frequency settings can also lead to fluctuating voltage. Listen for changes in generator noise — it often indicates unstable engine speed.

7. Environmental factors

External conditions like high temperature, humidity, or corrosion can weaken generator components, making voltage control unreliable. Lightning strikes or power surges can also affect generator performance. Always check for recent electrical disturbances, ensure proper grounding, and clear any alarms on the control panel.

Generator over voltage symptoms and detection methods

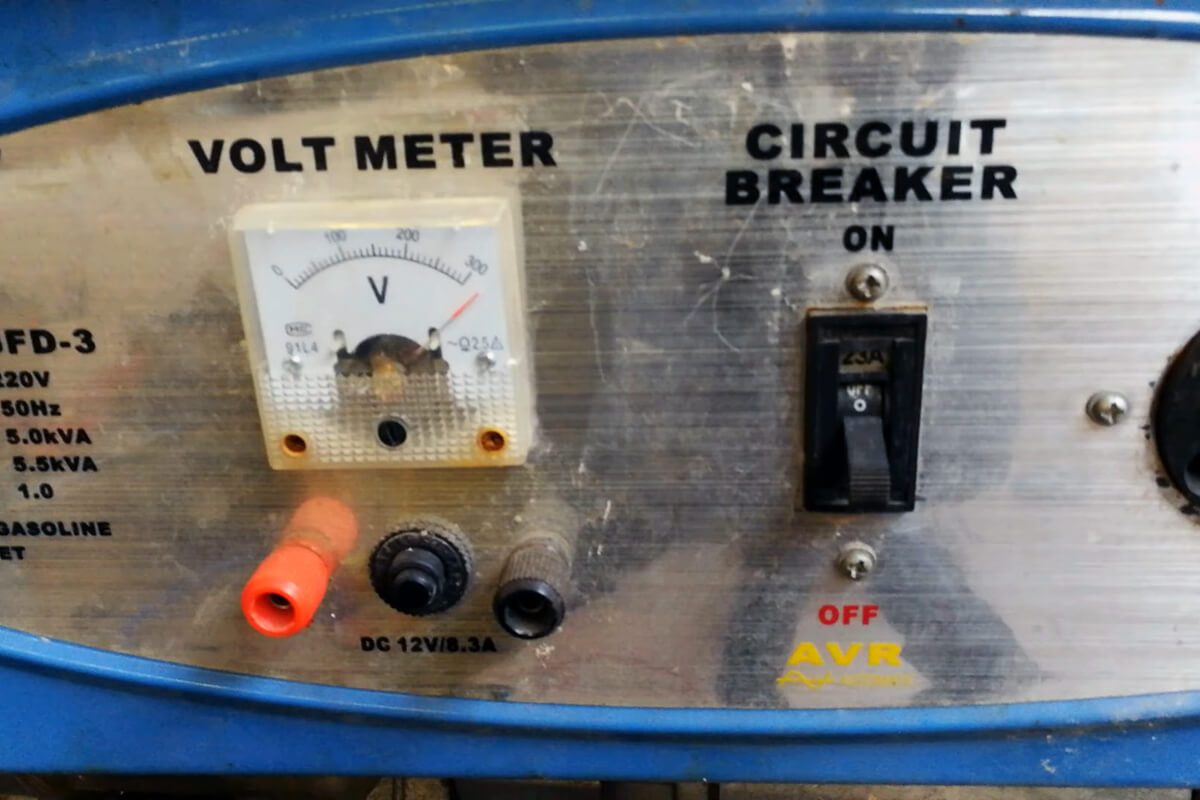

Visual indicators and warning signs are often the first clues. Watch for warning lights on the generator control panel or unusual appliance behavior, such as flickering lights, overheating, or malfunctioning equipment. A burning smell or strange humming noise can also signal excessive voltage.

Using monitoring equipment like voltmeters, multimeters, or generator monitoring panels provides real-time voltage readings. Consistently high readings above the generator’s rated output clearly indicate an over voltage condition.

Electrical measurements and basic testing offer accurate confirmation. Measure the generator’s output voltage under normal load conditions, checking both single-phase and three-phase outputs to see if the issue affects all lines. Regular testing under varying loads can help detect voltage spikes or fluctuations early.

Impact on connected equipment is another warning sign. Generator over voltage can damage motors, electronics, and appliances by overheating components or breaking down insulation. Frequent equipment failures or reduced lifespan often point to ongoing overvoltage problems.

The dangers and consequences of a voltage too high

Damage to equipment is one of the most immediate effects. A generator voltage too high can break down insulation in windings, cables, and other components, resulting in short circuits and permanent damage. Motors, transformers, and electronic devices may also overheat due to increased current flow, causing premature failure.

Safety risks are equally critical. Over voltage raises the likelihood of electric shock, which can be severe or even fatal. It can also trigger arc flashes and electrical fires—dangerous explosions that may cause burns or ignite nearby materials.

Operational disruptions can severely impact productivity and reliability. Generators or connected equipment may shut down automatically to prevent further damage, causing costly downtime. Sensitive electronics can also experience data loss or corruption, disrupting business operations and reducing efficiency.

Generator over voltage – Immediate response and repair

Immediate response

Emergency shutdown: Safely turn off the generator using its main switch or breaker. Avoid touching any exposed wires or terminals.
Protective equipment engagement: Always wear insulated gloves, safety goggles, and use properly rated tools when working near the generator. This minimizes the risk of electrical shock or burns from sudden voltage surges.
Safety protocols for personnel: Only trained personnel should approach or assess the generator during an overvoltage incident.
Damage assessment: Checking connected equipment and circuits for signs of voltage-related damage. Inspect appliances, motors, and electronics for overheating, burning odors, or abnormal operation. Record any affected devices and schedule repairs before restarting the generator.

How to repair generator over voltage

AVR adjustment and calibration: The automatic voltage regulator (AVR) controls the generator’s output voltage and must be accurately calibrated. Follow the manufacturer’s guidelines to adjust the voltage gradually while monitoring the output with a voltmeter. Avoid large or sudden adjustments, as they can worsen the issue or cause new imbalances.
Replace faulty or worn parts: Replace damaged avrs, wiring, sensors, or other voltage control components using manufacturer-approved parts.
Load balancing techniques: Distribute electrical loads evenly across all phases and circuits, and avoid overloading a single phase. When operating large motors or heavy equipment, start them sequentially to reduce sudden demand changes that can affect voltage stability.

How to prevent and mitigate over voltage

Test connections, inspect components, and check the AVR and excitation system according to the manufacturer’s recommendations—or at least once a year. And replace the damaged parts.
Clean and maintain the fuel system regularly to prevent unstable rpms.
Check each cable and connection regularly and replace any that show signs of wear.
Proper sizing and load management.
Use load-shedding systems to automatically disconnect non-essential loads during sudden changes.
Over voltage relays can detect abnormal voltage and trip the main breaker to safeguard equipment.
Surge arresters absorb voltage spikes and transients, reducing the risk of component damage.
Educate personnel to recognize signs of over voltage and respond appropriately.

Summary

Generator over voltage occurs when a generator produces electrical output beyond its safe operating limits. Common causes include AVR or excitation system failures, manual regulator errors, sudden load changes, and unstable engine speed. Immediate action is essential if your generator shows signs of over voltage.

For stable, reliable performance and a worry-free user experience, choose to partner with BISON. Our high-quality generators are designed to provide you with stable, safe, and reliable power to meet all your needs. As a renowned generator manufacturer in China, we offer professional service processes and a wide range of generators with diverse performance levels, ensuring you can find the perfect model for your application.

FAQs

How can I check the voltage of my generator?

Use a voltmeter set to the AC voltage setting. Connect the black lead to the generator frame for grounding, and the red lead to the generator output plug. The voltmeter will display the generator’s output voltage. If the reading exceeds the voltage rating specified in the manual, the generator is producing too much voltage.
