How to fix piston and rings in generator
- BY BISON
Table of Contents
Generators are essential for reliable power generation in industrial sites, commercial operations, and emergency backup systems. Pistons and piston rings are critical generator engine components that maintain compression, support efficient combustion, and prevent oil from entering the combustion chamber. Over time, wear and tear can reduce their performance, leading to lower efficiency, increased fuel consumption, and possible engine damage.
Learn how to fix pistons and rings in a generator in this guide: spot wear symptoms, troubleshoot issues, and repair them to restore performance.
What are pistons and piston rings
The piston is one of the most critical components in a generator engine. Connected to the crankshaft via a connecting rod, it performs four key functions — suction, compression, power stroke, and exhaust — driving the crankshaft to keep the engine running. If the piston fails, the crankshaft stops, and the engine shuts down.
Fitted around the piston are two to four piston rings, which seal the combustion chamber to maintain compression, discharge burnt gases, retain lubricating oil between the piston and cylinder walls, and prevent overheating. Their constant exposure to heat and friction makes them more prone to wear than most engine components.
Common causes of damage to pistons and piston rings
Piston failure
Piston damage is typically caused by engine overheating, incorrect spark plug sizing, improper piston materials, or inadequate cooling — all of which lead to excessive thermal expansion, knocking, and accelerated wear.
Piston ring failure
Piston rings are most commonly damaged by overheating or engine knock. As temperatures rise, rings expand and lose clearance against the cylinder wall, causing them to stick.
Additional causes include improper installation, incorrect ring sizing, and pre-ignition. For more details, see “Understanding common causes of piston ring failures“.
Common symptoms of piston and ring problems
- Colored exhaust smoke: When piston rings fail, oil seeps into the combustion chamber and burns with the fuel mixture, producing thick gray or blue exhaust with a distinct burning oil smell.
- Excessive oil consumption: If oil levels drop quickly between changes or leaks are visible around the engine, damaged piston rings may be allowing oil to escape into the combustion chamber.
- Decreased engine performance: Worn piston rings reduce combustion efficiency, causing the generator to stutter, lose power, or shut down unexpectedly under load.
- Oil in the intake manifold: Failed piston rings can allow combustion pressure to force oil into the intake system, a process known as blow-by. Oil accumulation in the intake manifold is a serious fire hazard, as it can ignite from a static discharge.
- Low compression test result: Warm the engine, disable the ignition, remove the spark plug, and attach a compression gauge. A dry test with low readings suggests worn rings or valves. Perform a wet test by adding a small amount of oil into the cylinder — if compression improves significantly, the piston rings are likely worn.
Disassembling the generator engine
1. Essential tools and materials
Compression tester, torque wrench, socket set, screwdrivers, pliers, clean rags, degreaser, engine assembly lubricant, replacement piston rings, gaskets, and seals.
2. Initial preparation and safety
Turn off the generator, disconnect it from any power load, and remove the spark plug to prevent accidental starting.
Drain all engine fluids, including engine oil and coolant if applicable, into suitable containers for disposal or reuse. Allow the engine to cool completely.
Clean the exterior to prevent contamination, and work in a well-ventilated area with gloves and safety glasses.
Keep all fasteners organized by location using labeled containers or masking tape.
3. Removing external components
Start by removing the air filter cover and filter element, then inspect them for damage. Drain the fuel tank and carefully detach it.
Next, unbolt the muffler and exhaust assembly, then remove all engine covers and shrouds to expose the cylinder and cylinder head.
4. Cylinder head removal
Loosen the cylinder head bolts gradually in a crisscross pattern to prevent warping. Carefully lift the cylinder head from the engine.

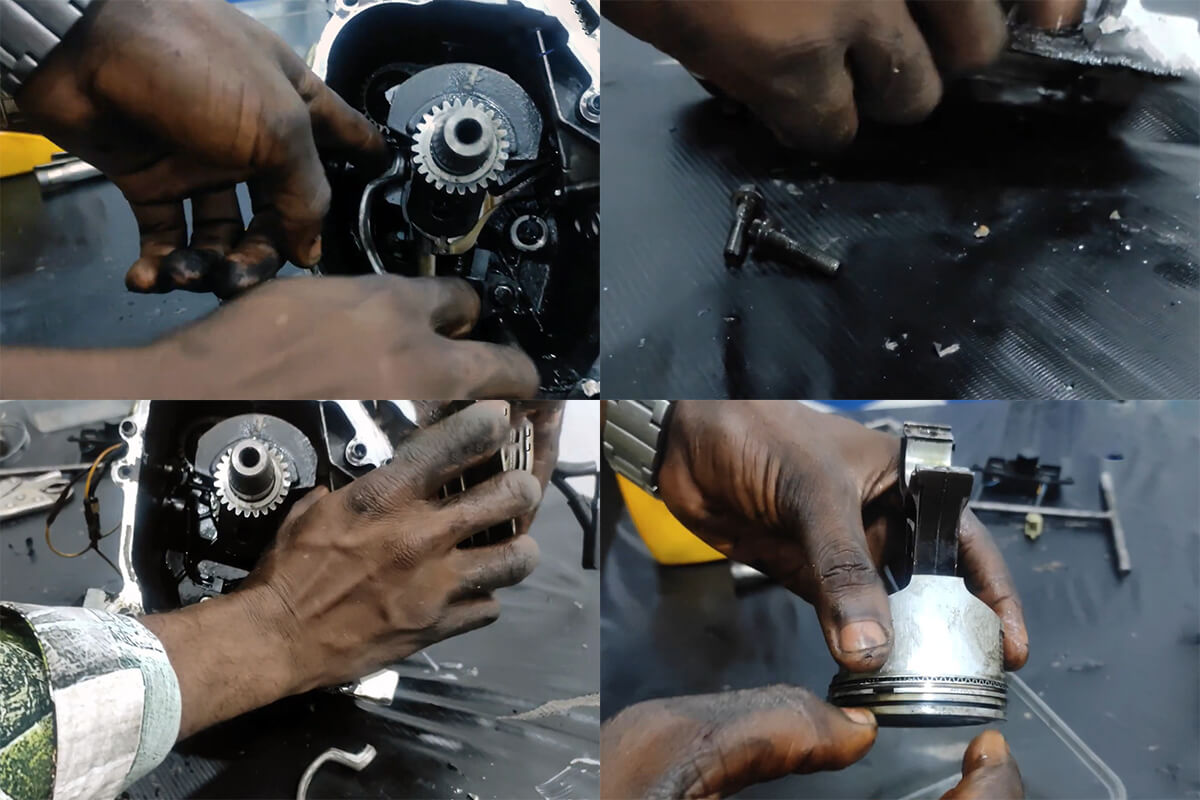

5. Piston removal
Rotate the crankshaft to bottom dead center (BDC) to reduce connecting rod stress. Clear any carbon deposits from the cylinder with a plastic scraper. Unbolt the connecting rod caps, keeping each cap paired with its rod, then remove the piston and connecting rod, handling the piston by the skirt to avoid ring damage.
Pistons and piston rings – cleaning, inspection, and preparation
1. Cleaning procedures
Piston tops
Remove carbon deposits from the piston tops using a soft nylon brush or plastic scraper. Clean away oil and residue with a lint-free cloth and degreaser.
Mating surfaces
Remove all remaining gasket material from mating surfaces using a plastic scraper to prevent leaks during reassembly.
2. Cylinder wall inspection
Inspecting the cylinder walls is important for proper piston ring sealing and engine compression.
Minor scratches may still be acceptable, but deep scoring or a worn cross-hatch pattern indicates excessive wear. In either case, use a cylinder hone to restore the surface finish and cross-hatch pattern according to the manufacturer’s specifications.
3. Piston inspection
Cracks and skirt damage
Inspect the piston for cracks, chips, or deformation around the skirt area. Any damaged piston should be replaced immediately.
Ring grooves
Check the piston ring grooves for wear, carbon buildup, or rounded edges. The grooves must be clean and within the manufacturer’s tolerance to ensure proper ring installation and sealing.
4. Connecting rod and bearing inspection
Inspect the connecting rod bearings for scoring, pitting, or excessive clearance, and check for any blue discoloration or heat marks on the connecting rods, as these may indicate overheating. Replace the bearings if there are visible signs of wear or damage. For more on generator crankshaft failure, see “Diesel generator crankshaft failure“.

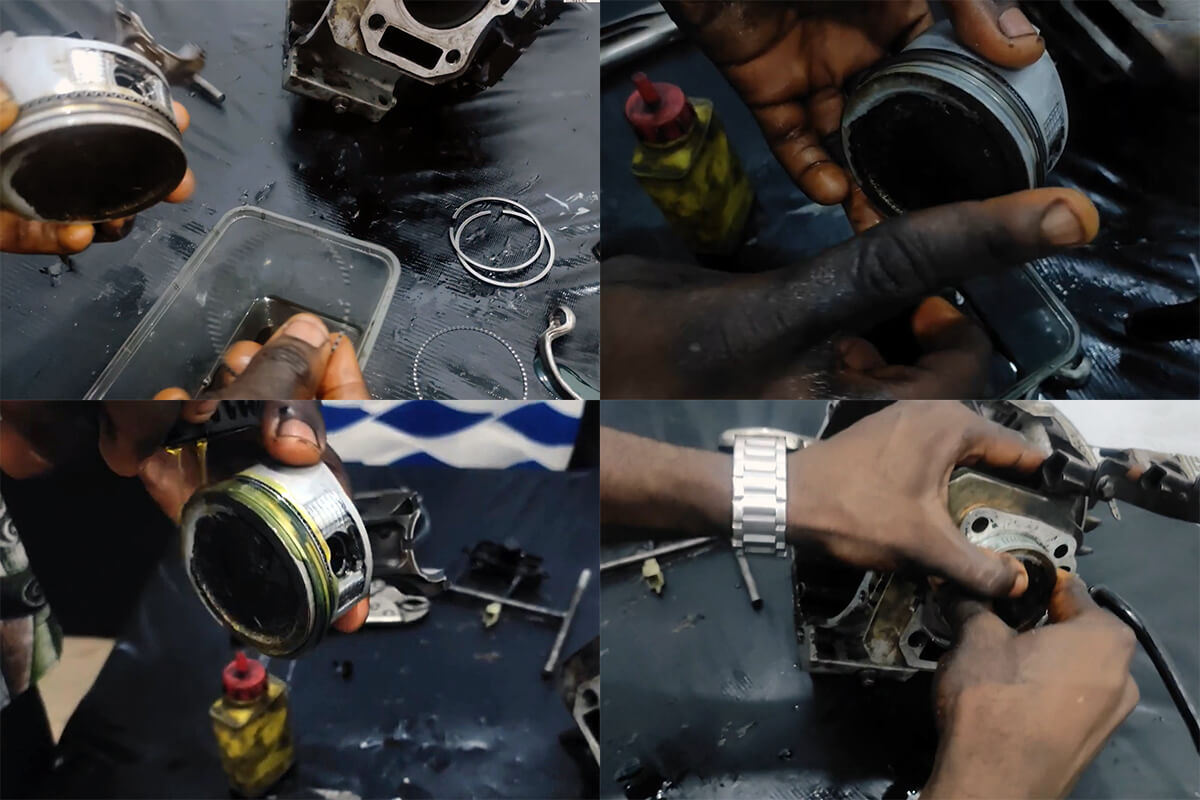

Installing new pistons and rings
1. Identifying piston rings
Compression rings: There are usually the top one or two rings on the piston. Their main function is to seal combustion pressure inside the cylinder. Often marked with a dot or bevel, the marking should face upward.
Oil control rings: Located below the compression rings, these regulate oil film on the cylinder wall.
2. Preparing the rings
Staggering ring gaps: Position the ring end gaps around the piston (typically 120° apart) so they are not aligned.
Checking ring end gap: Use a feeler gauge to measure the ring end gap inside the cylinder. Compare the measurement with the manufacturer’s specifications. Adjust by carefully filing if necessary — never force a ring into a cylinder if the gap is too small.
3. Lubricating and installing pistons
Apply a thin layer of engine oil to the cylinder walls. Carefully install the piston rings onto the piston and use a ring compressor to compress the rings evenly. Align all piston markings, such as arrows or directional marks, according to the service manual.
Insert the piston and connecting rod assembly carefully into the cylinder. If necessary, gently tap the piston using a wooden or rubber mallet while ensuring the rings remain compressed and properly aligned.
Reattach the connecting rod to the crankshaft and torque the rod bolts to the manufacturer-specified value.
4. Reassembling the engine
Reassemble the engine in the reverse order of disassembly. Install a new head gasket before refitting the cylinder head, and tighten all head bolts in a crisscross pattern to the specified torque. Refer to labels or photos taken during disassembly to ensure all components are correctly reconnected.
First start and break-in
1. Final checks before starting
Refill engine oil and fuel, reconnect the spark plug and all electrical connections, and confirm all fasteners are torqued to specification with no tools or debris left in the engine area.
2. Initial start-up
Start the generator at low to medium RPM with minimal electrical load and allow the engine to warm up gradually. A small amount of smoke during startup is normal as the new rings seat. Listen for unusual noises such as knocking or grinding, and check for oil, fuel, or coolant leaks.
3. Break-in procedure
Proper break-in ensures pistons and rings form an effective seal. Run the engine under no load for the first 30 to 60 minutes to allow internal components to seat evenly. Gradually apply a light electrical load over the following hours while monitoring temperature and performance. After the initial break-in period, perform an oil change as specified in the service manual to remove metal particles generated during seating. Avoid heavy loads until the break-in period is fully complete.
Summary
This guide covered the complete procedure, including diagnosing engine problems, disassembling the engine, inspecting and cleaning components, installing new pistons and rings, and performing the first start and break-in procedure. Proper maintenance and timely repairs help ensure dependable power whenever it is needed.
When it comes to replacement parts, choosing the right piston rings makes all the difference. As a trusted generator parts supplier, BISON generator piston rings are engineered for precision fit, durability, and long-term performance — giving your generator the reliability it deserves. Partner with BISON and offer your customers a complete power solution they can count on.
FAQs
What is the lifespan of a piston ring?
In general, small generator engines can expect piston rings to last between 1,000 and 2,000 operating hours under normal conditions, with proper maintenance extending this further. Larger or lower-speed engines typically outlast smaller high-speed four-stroke engines due to reduced thermal and mechanical stress.
Will thick oil help with damaged piston rings?
Excessive oil burning usually occurs because worn piston rings allow oil to enter the combustion chamber, and thicker oil only temporarily reduces symptoms without fixing the actual problem.
