How to replace a small engine on generator

Learn how to replace a small engine on a generator to restore performance and save money instead of buying a new unit — in this complete step-by-step guide.

June 25, 2026
BY BISON

Small generator engines naturally wear out over time because of continuous use, poor maintenance, overheating, contaminated fuel, or internal component failure. When a generator no longer performs as expected, many owners think the entire unit must be replaced. However, if the generator head and other major parts are still in good condition, replacing only the engine can be a more practical option.

Installing a new engine can bring the machine back to life at a fraction of the cost of buying a new generator. A new engine can restore reliable performance, improve fuel efficiency, and extend the generator’s service life. Learn how to replace a small engine on a generator to restore performance and save money instead of buying a new unit — in this complete step-by-step guide.

Understanding when to replace a small engine

1. Excessive smoke

White smoke: White smoke from small engines typically indicates oil burning in the combustion chamber, often caused by worn piston rings or a damaged valve stem seal.
Blue smoke: Blue smoke indicates the engine is burning oil, typically due to worn piston rings or damaged valve seals. If the condition persists after inspection, engine replacement may be necessary.
Black smoke: Black smoke indicates an overly rich fuel mixture. If the problem persists after carburetor service, engine replacement may be warranted.

2. Loss of power

A noticeable drop in performance or difficulty handling normal loads may indicate internal engine wear. If the fuel and air systems check out, the engine itself may be failing.

3. Unusual noises

Knocking: worn bearings, a loose connecting rod, or low oil pressure.
Grinding: metal-to-metal contact due to lubrication failure or debris ingestion.
Rattling: loose fasteners or failing internal components, such as a worn camshaft.

4. Difficulty starting

If the issue persists after standard maintenance (spark plug, carburetor, compression check), replacement may be warranted.

5. Oil leakage

Frequent or severe oil leaks may indicate serious internal damage, such as a cracked block or failed gaskets.

6. Excessive vibration

Unusual or worsening vibration may indicate an imbalanced crankshaft, misfiring cylinder, or significant internal wear. If repairs do not resolve the issue, replacement should be considered.

7. Age and hours of use

As an engine approaches the end of its rated service life, replacement is often more cost-effective and reliable than continued repair.

8. Repair cost vs. replacement cost

The repair costs approach or exceed the cost of replacing the engine with a new one, or the engine exhibits multiple simultaneous faults.

Understanding your generator and engine

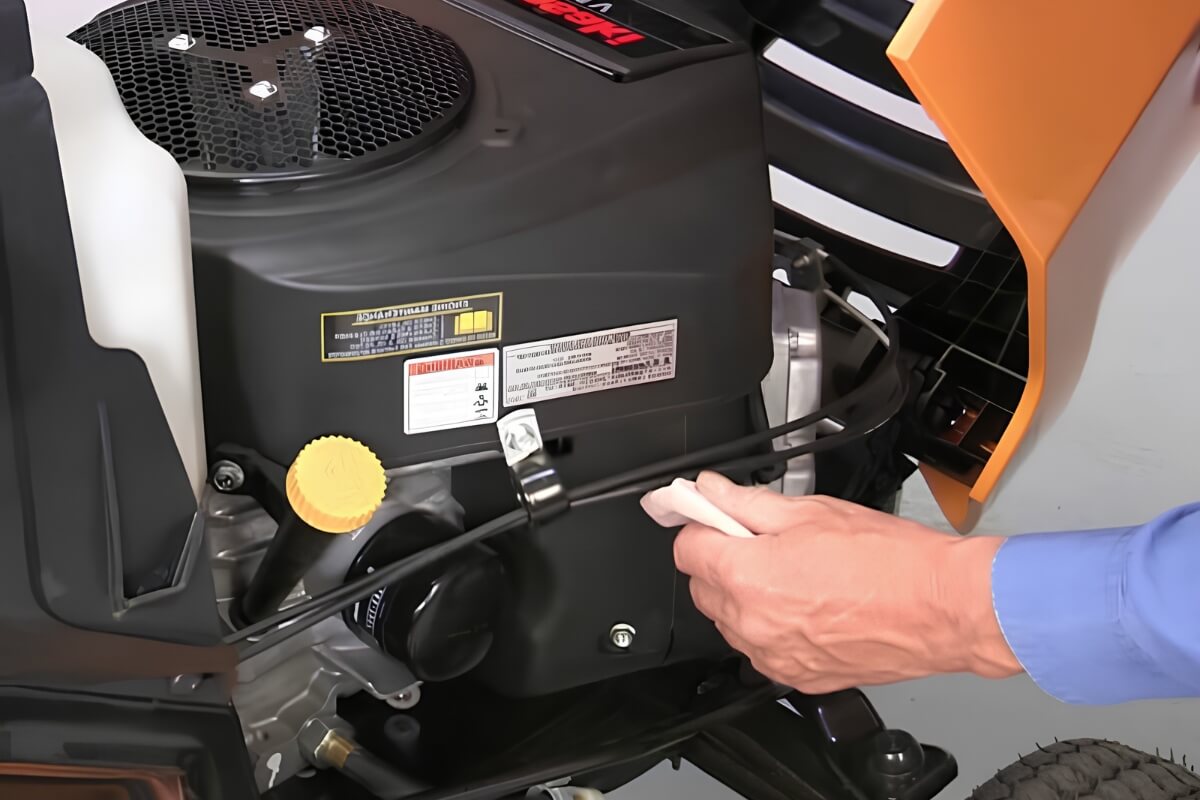

Identify the generator model

Locate the model and serial number on the data plate or sticker on the frame or engine housing. Use this information along with the owner’s manual or specification sheet to confirm the original engine’s power output, mounting setup, and other key details.

Match the horsepower (HP) or engine displacement (CC)

The replacement engine should have a similar power rating to the original to maintain performance and avoid system strain. Match the horsepower as closely as possible, or compare engine displacement if horsepower data is not available. Avoid engines that are significantly underpowered or oversized.

Verify the shaft size, type, and orientation

The crankshaft must be compatible with the generator head. Check the shaft diameter, length, keyway size and position, shaft type (straight, tapered, or threaded), and orientation (horizontal or vertical).

Confirm the mounting bolt pattern

The engine base must align with the generator frame for a secure fit. Check the bolt-hole spacing and mounting-base dimensions to minimize the need for modifications.

Tools, Materials, and Component Inspection

Wrenches and hand tools: Screwdrivers (flathead and Phillips), socket set, torque wrench, and engine hoist or lift. Some generators may require specialized tools to separate the engine from the generator head, such as a rotor puller or wheel puller.
Replacement parts and supplies: Ensure the correct replacement engine is on hand, along with engine oil and grease for reassembly. Keep penetrating oil, clean rags, zip ties, masking tape, a permanent marker, and a brush readily available.
Inspecting and preparing components: Before disassembly, inspect the generator head for cracks, damaged wiring, loose hardware, or signs of overheating and corrosion. Check couplings, mounting brackets, vibration isolators, and fasteners for wear or deformation. Replace any damaged components and clean all mounting surfaces.

How to remove a small engine from a generator

Step 1: Prepare the generator

Turn off the generator and disconnect all power loads. Disconnect the spark plug wire and drain fuel and engine oil into proper containers. Work in a clean, well-ventilated area.

Step 2: Disconnect the fuel lines

Disconnect the fuel line, loosen any hose clamps, and catch remaining fuel in a container. Cap the fuel line to prevent spills.

Step 3: Remove the throttle and choke linkages

Disconnect throttle and choke linkages. Disconnect ignition, charging, and control panel wiring. Label parts for easier reassembly

Step 4: Remove obstructing components

Remove any parts blocking engine access, such as the fuel tank, muffler, heat shields, or protective covers.

Step 5: Remove the alternator end cover

Remove retaining bolts, carefully lift off the cover, and set aside with hardware.

Step 6: Remove the rotor

Remove the rotor through-bolt and washers. Use a rotor removal tool or wheel puller if needed, and apply penetrating oil if the rotor is stuck.

Step 7: Remove the engine

Remove all mounting bolts, nuts, and washers. Support the engine, check for hidden fasteners, then carefully lift the engine out using proper techniques or a hoist. Place it on a stable surface.

How to replace a small engine on a generator: step-by-step

Step 1: Position the new engine on the frame

Carefully place the replacement engine onto the generator frame.

Align the engine mounting holes with the frame mounting points.

Install mounting bolts, washers, and nuts, leaving them slightly loose for final alignment.

Step 2: Align the crankshaft with the generator head

Align the crankshaft with the generator rotor opening and ensure all mating surfaces fit correctly. Confirm the rotor can slide onto the crankshaft without force.

Step 3: Install the rotor onto the crankshaft

Slide the rotor onto the crankshaft.

Align the key and keyway if applicable.

Push the rotor fully into position.

Ensure proper seating against the crankshaft surface.

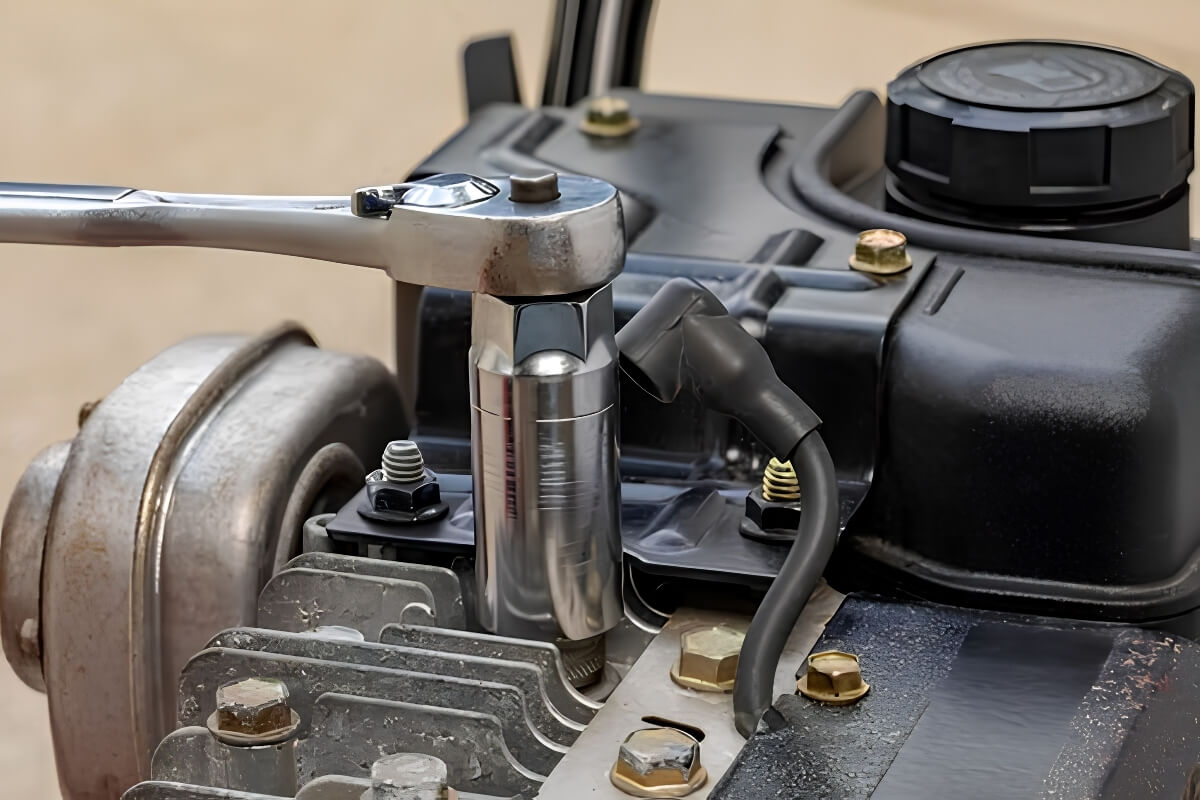

Step 4: Tighten the rotor through-bolt

Install the through-bolt and washers.

Tighten using the manufacturer’s torque specifications.

Use a torque wrench for accuracy.

Step 5: Reconnect the fuel system

Attach the fuel line to the engine.

Secure hose clamps

Check routing and clearance.

Inspect for leaks

Step 6: Reconnect throttle controls and linkages

Reinstall throttle and choke linkages. Confirm smooth control movement and proper governor operation.

Step 7: Reconnect wiring and ground connections

Reconnect ignition, charging, control panel, and ground wiring. Reconnect the spark plug wire and ensure a secure connection. Secure all wiring with zip ties away from heat and moving parts.

Step 8: Add engine oil and fuel

Add the recommended engine oil and check the level. Fill the fuel tank with clean fuel and inspect for leaks.

Step 9: Perform a final inspection

Check that all mounting bolts are tight.
Confirm fuel lines are secure.
All wiring and ground connections are correct.
Linkages move freely
Spark plug wire is connected.
Oil and fuel levels are correct.

Testing the generator

Distribute oil before initial startup: Disconnect the spark plug wire and pull the recoil starter rope 5–10 times to circulate oil through internal components before ignition.
Start the engine: Start the engine and let it idle for a few minutes.
Warm up and observe: Allow the engine to reach operating temperature. Observe smooth and stable operation. Check throttle response.
Connect a light electrical load: Connect a small load such as a light bulb, fan, or small tool. Gradually add devices one at a time while monitoring voltage, frequency, engine stability, and signs of vibration or overheating.

A successful test confirms that the replacement engine is properly installed.

Summary

Replacing a small engine on a generator is a practical and cost-effective way to restore performance when the alternator and main components are still in good condition. Among these steps, careful disassembly, proper inspection of relevant components, and correct installation are crucial for ensuring safe and reliable operation.

As a professional generator supplier, BISON engineers every unit with standardized engine mounting designs and widely available replacement parts — making future servicing straightforward for dealers and end users alike. Partner with BISON to offer your customers a generator built for the long run.

FAQs

Can I replace the engine or hire a professional?

Replacing a small engine can be done as a DIY project if you have the proper tools, experience, and safety precautions. If issues continue, it is best to seek professional help. However, if you are unsure or not confident with the process, hiring a professional mechanic is recommended to ensure safe and correct installation.

Can I use the old engine for anything?

An old engine may still be useful depending on its condition. It can be repaired, used for spare parts, sold, recycled, or checked by a professional for possible reuse.
