model: BS160i-SP

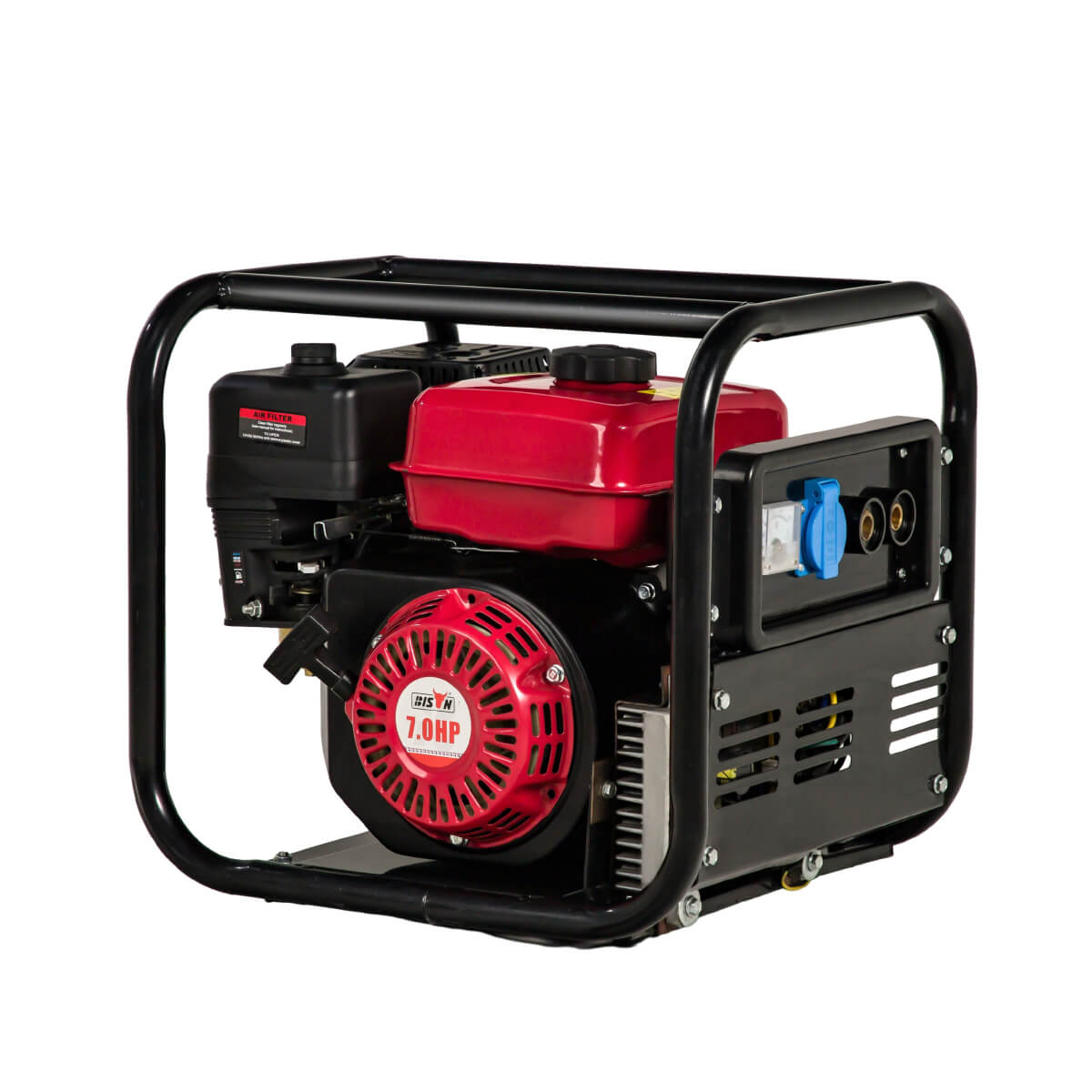

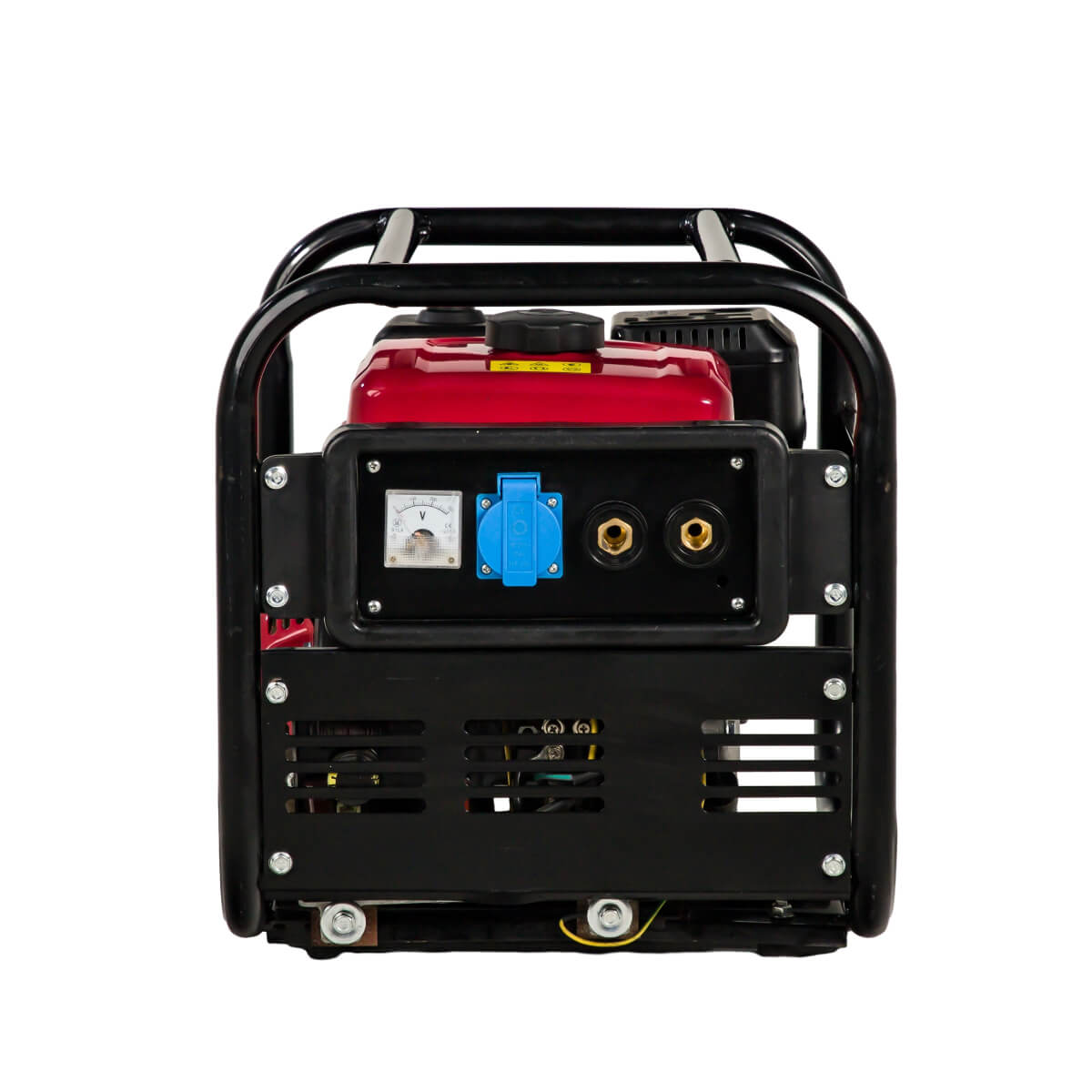

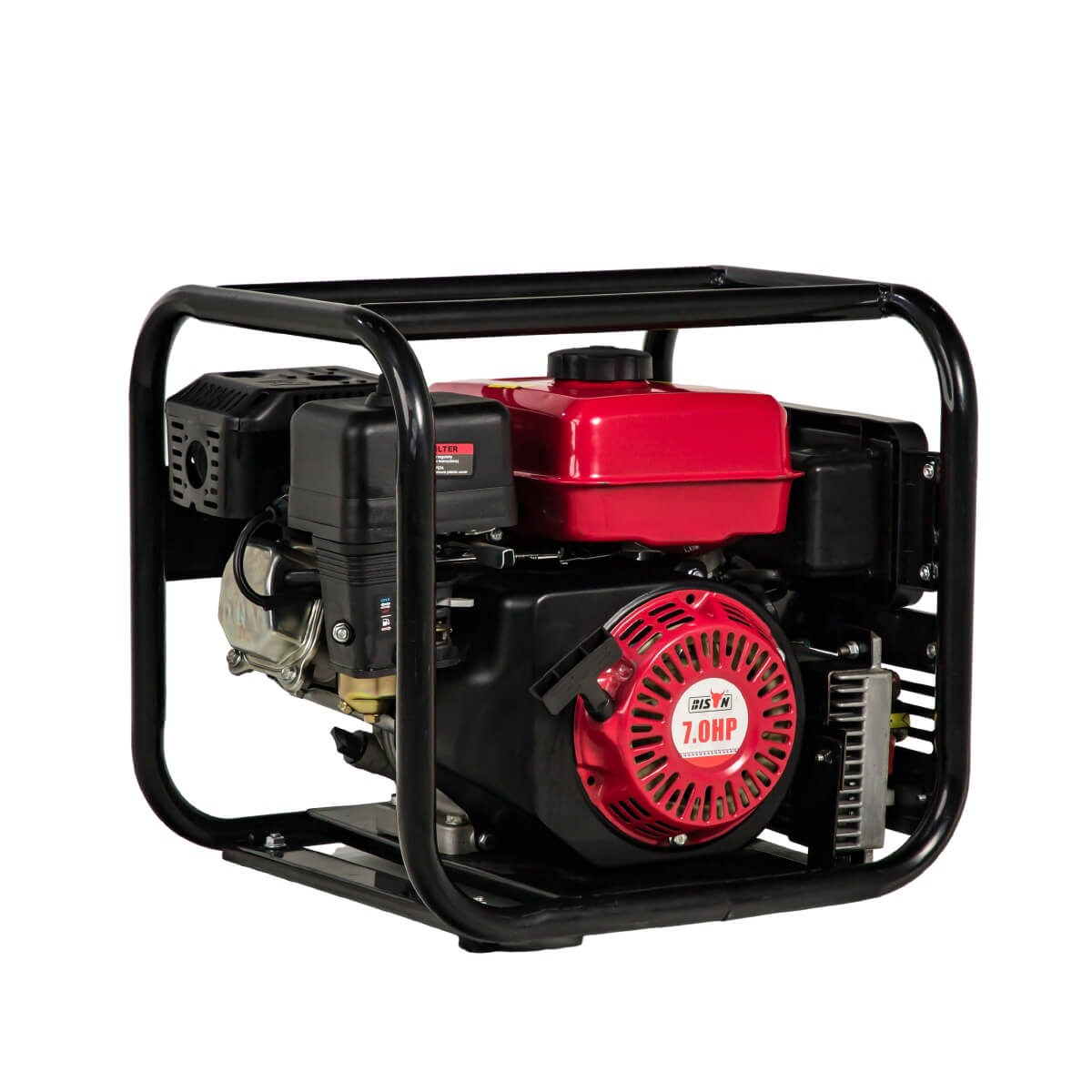

120A small engine driven welder generator
within 25 days delivery time after receiving the deposit！
Introducing the BISON 120A small engine-driven welder generator built for welders, contractors, and industries by BISON, a leading welder generator factory. Whether you are looking for factory direct solutions, bulk orders, or custom manufacturing services, BISON can provide it all.
features
A 120A engine-driven welder generator is a portable welding machine with an integrated power generator, designed to provide both welding capability and auxiliary electricity in remote locations or job sites. Powered by a gasoline or diesel engine, it delivers 120A welding output, making it suitable for light to medium-duty welding tasks. The 120A small welder generator features a compact 470 × 405 × 430 mm design and weighs only 27.5 kg, ensuring easy transportation and fast deployment.
Remarkable qualities
Powered by BISON’s high-performance BS170F engine, this engine driven welder generator unit delivers exceptional durability and stable performance at 3000 rpm for 50 hz or 3600 rpm for 60 hz applications.
The BS160i-SP is typically used in construction, manufacturing, maintenance, and industrial applications where electrical power supply is limited.
Designed for extended use, the engine-driven welder generator features a 3.6-liter fuel tank that allows for up to 1.8 hours of continuous full use.
specifications
| OUTPUT | |
| Rated Power | 1.0 KW |
| Maximum Power | 1.1 KW |
| Phase | Single-Phase |
| AC Voltage | Depends On Your Country’s Voltage |
| Single-Phase AC Amperage | Running Power ÷ Using Voltage |
| Rated Welding Current | 24V DC/120A |
| Frequency | 50 / 60 HZ |
| 100% Load Continuous Operating Time | 1.8 H |
| ENGINE & EMISSION | |
| Engine Type | 1-Cylinder, 4-Stroke, Air-cooled, Veritical |
| Engine Model Name | BS170F |
| Bore × Stroke | 70 × 55 MM |
| Engine Displacement | 212 CC |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil Start | Yes |
| ALTERNATOR | |
| Winding Material | 100% Copper Winding |
| Power Factor | 1.0 (Single-Phase) |
| FUEL SYSTEM | |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.6 L |
| Oil Capacity | 0.6 L |
| PACKAGING | |
| Carton Dimensions | 470 × 405 × 430 MM |
| Generator Net Weight | 27.5 KGS |
| Carton Gross Weight | 30 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the welder generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
