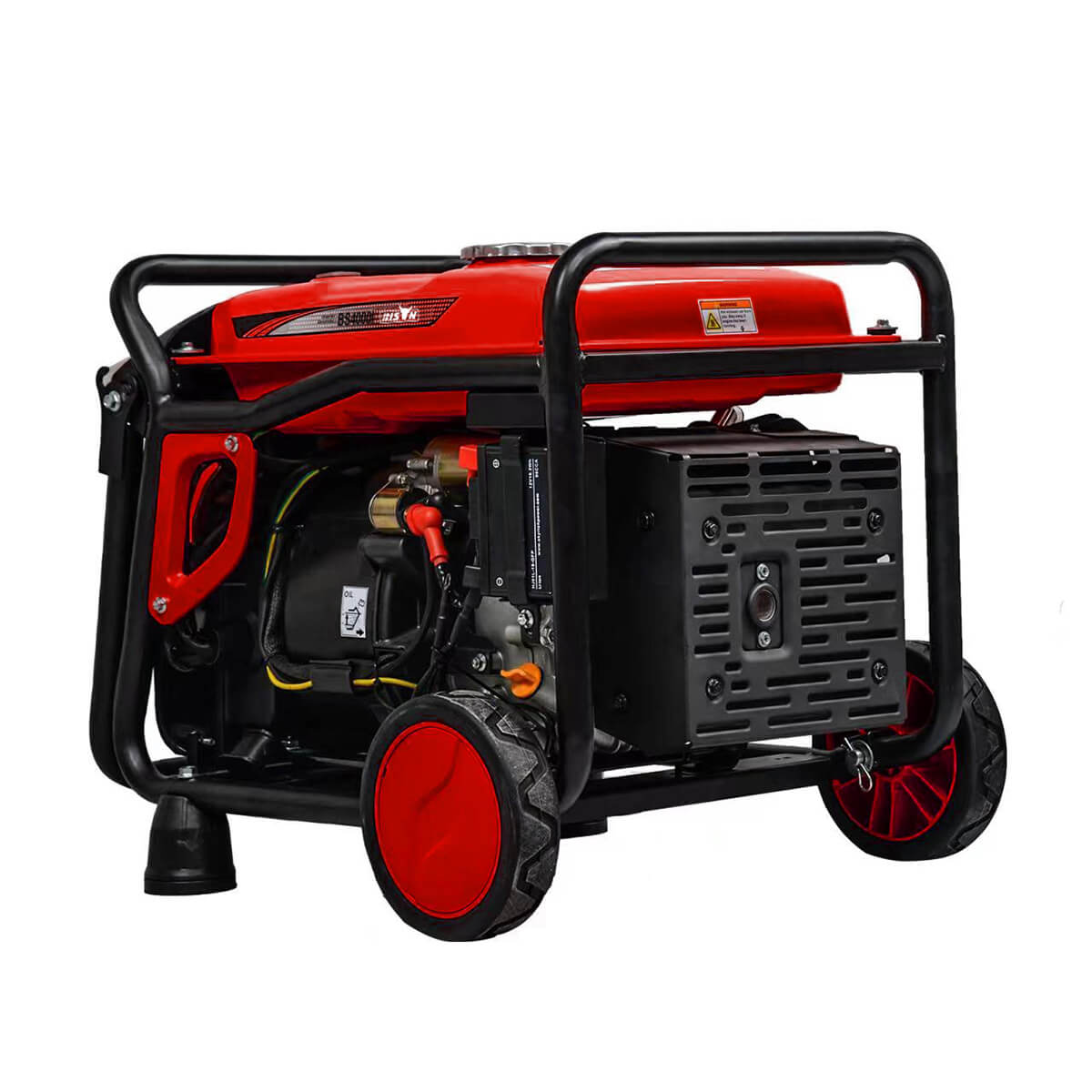

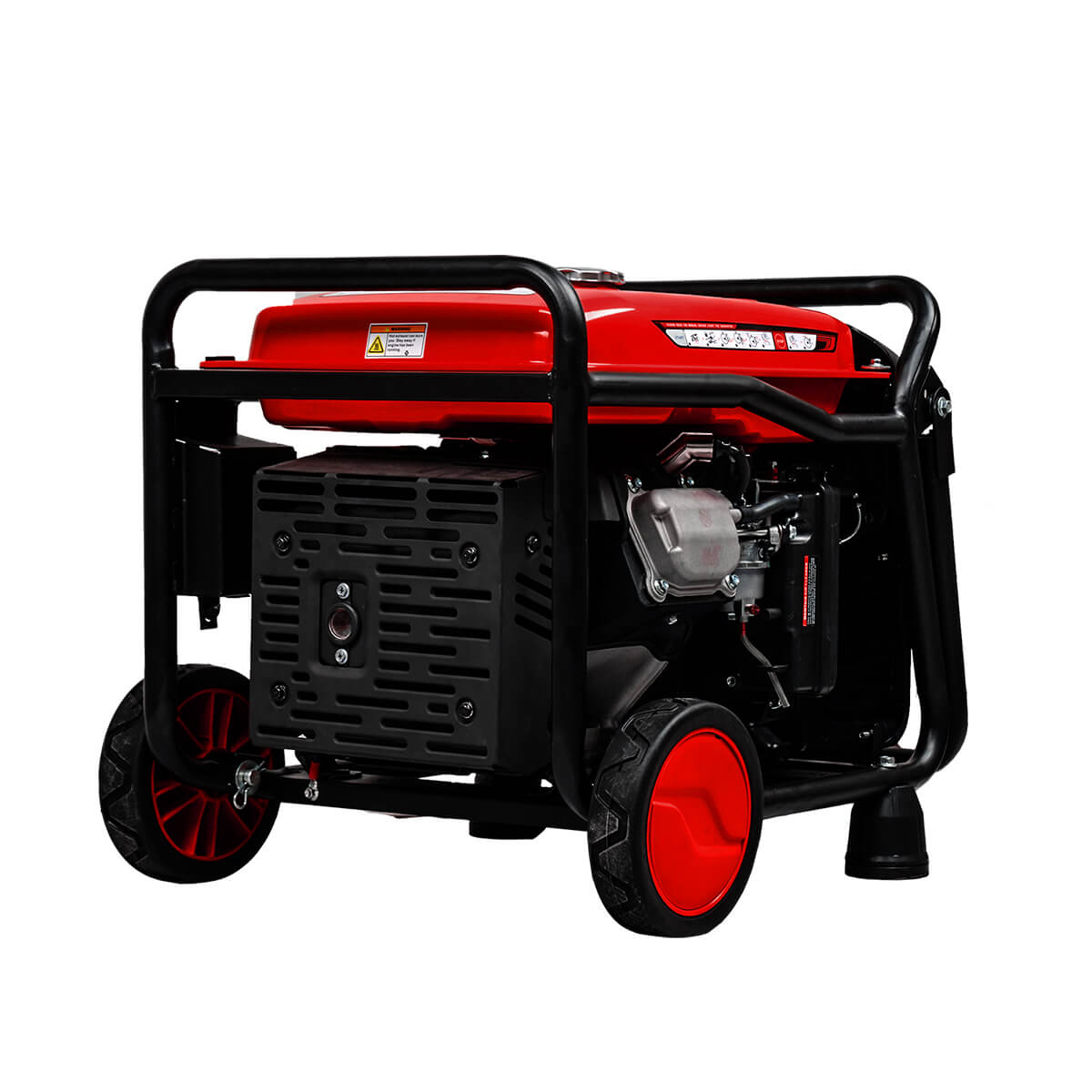

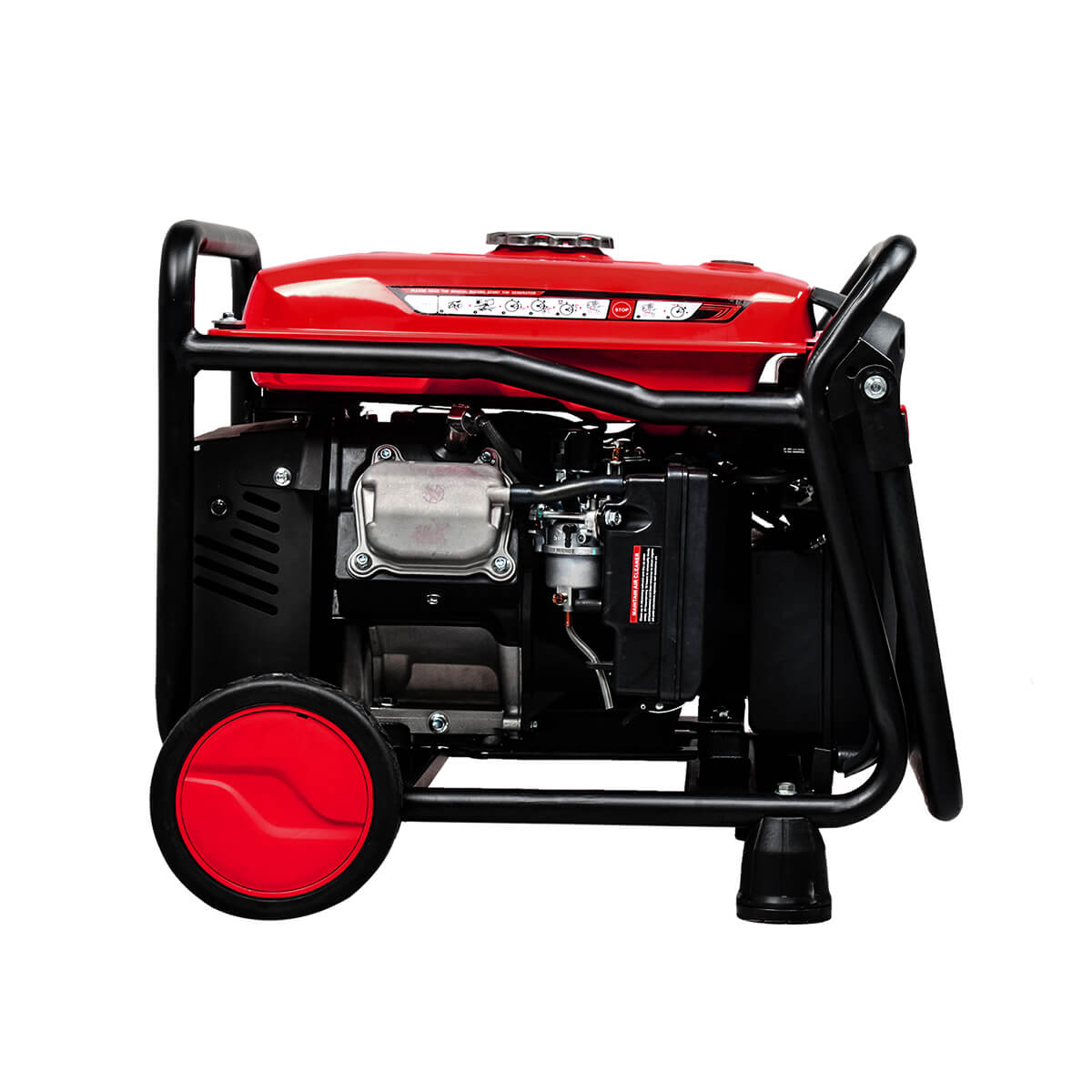

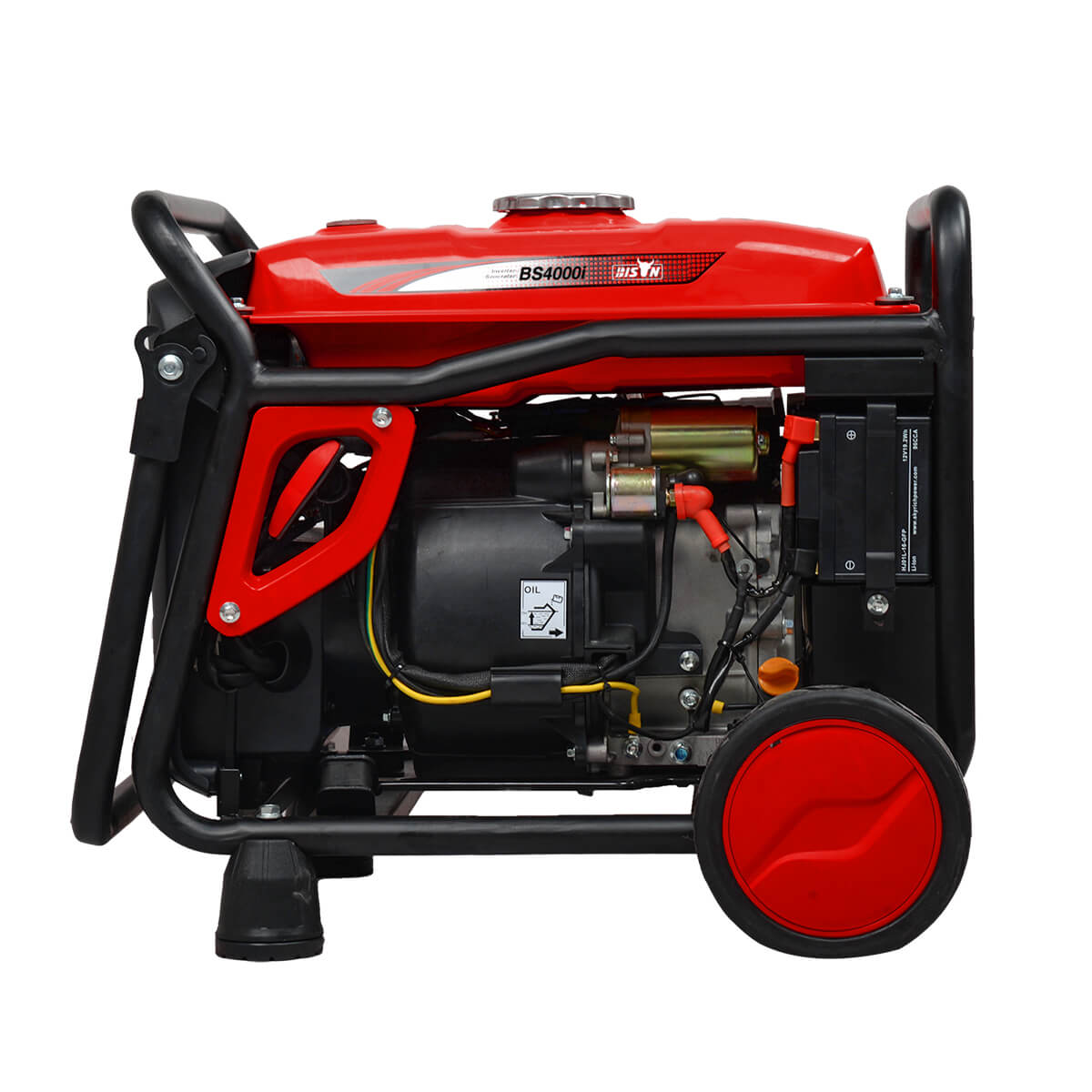

model: BS4000i
3.6kw single phase inverter generator
within 25 days delivery time after receiving the deposit！
BS4000i is a 3.6kw single phase inverter generator designed by BISON generator manufacturing, it provides stable power needs and is supported by our factory in China. The BS4000i generator provides a powerful output with a rated power of 3.6kw and a maximum power of 4.0kw. This ensures a strong performance.
features
Fuel efficiency
The BS4000i is designed with fuel efficiency in mind, and the inverter system adjusts the engine speed to match the load, maximizing efficiency and performance. It can run continuously for 5 hours at 100% load. The large 12.5l gasoline tank can reduce the number of refueling and extend the running time, ensuring uninterrupted power supply during long-term use.
Advanced inverter technology
With inverter technology, it provides a smoother and more reliable power output, ensuring minimal fluctuations and preventing damage to connected devices. Ideal for powering sensitive electronic devices and various appliances such as laptops, smartphones, and small machinery.
specifications
| output | |
| Rated power | 3.6 KW |
| Maximum power | 4.0 KW |
| Phase | Single-phase |
| AC voltage | Depends on your country’s voltage |
| Single-phase AC amperage | Running power ÷ Using voltage |
| DC USB output | 5V/2.1A |
| Frequency | 50 / 60 HZ |
| 100% load continuous operating time | 5.0H |
| engine & emission | |
| Engine type | 1-Cylinder, 4-Stroke, Air-cooled, Veritical |
| Engine model name | BS225i |
| Bore × stroke | 70 × 58 MM |
| Engine displacement | 223 CC |
| Engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil start | Yes |
| Electric start | Yes |
| alternator | |
| Winding material | 100% copper winding |
| Power factor | 1.0 (Single-phase) |
| fuel system | |
| Fuel Type | Gasoline |
| Fuel tank capacity | 12.5 L |
| Oil capacity | 0.6L |
| packagine | |
| Carton dimensions | 620 × 430 × 440 MM |
| Generator net weight | 39 KGS |
| Carton gross weight | 40 KGS |
optional
The open type inverter generators above 3 kilowatts should choose this option.
electric & remote start
easy to start the generator
The generators above 5 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
When you would like the generators use gasoline or LPG that you can choose this optional
Dual fuel
Double fuel with ECO
When you would like the power more than 10 kilowatts, you could choose this. It is not necessary for small kilowatts.
parallel connection
Bigger power more than 10.0 kilowatts
factory
overview
how we test the inverter generator
Ensure all raw material good quality.
raw material checking
Ensure no air leak from cylinder head.
cylinder head checking
Ensure the crankshaft installation with correct angle.
crankshaft torque
Ensure the correct gap between intake and exhaust valves.
intake & exhaust valves gap
Ensure the sealing of the engine is stable.
air tightness test
Ensure the correct speed of engine and alternator.
testing speed
Ensure the gap between alternator and igniter.
gap Of alternator
Ensure the recoil start smoothly working.
testing recoil start
Ensure the rated power output.
power testing
Ensure sockets has rated current output
sockets current
Ensure all generators working powerful before the package.
strengthen testing
Ensure no oil & fuel in the engine.
take out testing oil
Ensure perfect cleaning shape before the package.
cleaning
Ensure no parts miss before the package
checking weight
Ensure stable package with carton.
double packing belt
support
BISON’s commitment to customer satisfaction is reflected in our comprehensive support. From personalized support and maintenance solutions to power solutions tailored to your specific needs, our manufacturing company goes the extra mile to ensure your complete satisfaction.
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time → We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free → We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy BISON brand within warranty time: You give your customer a new generator for free firstly → We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly → We would compensate you in batches in future orders.
OEM service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
agent service
※ How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.
※ What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……
※ At the same time, enjoy the supreme VIP warranty experience and service!
customs services
※ We can find the cheapest sea shipping price for you.
※ We can find a local customs clearance agent for you.
※ In some special cases, we can save you import tariff costs.
If you are interested in becoming a BISON dealer and offering the BS4000i generator to your customers, we invite you to contact us today. Let us help you expand your product offerings and provide exceptional solutions to your customers.
