model: BS4500i
4500w open frame inverter generator
within 25 days delivery time after receiving the deposit！

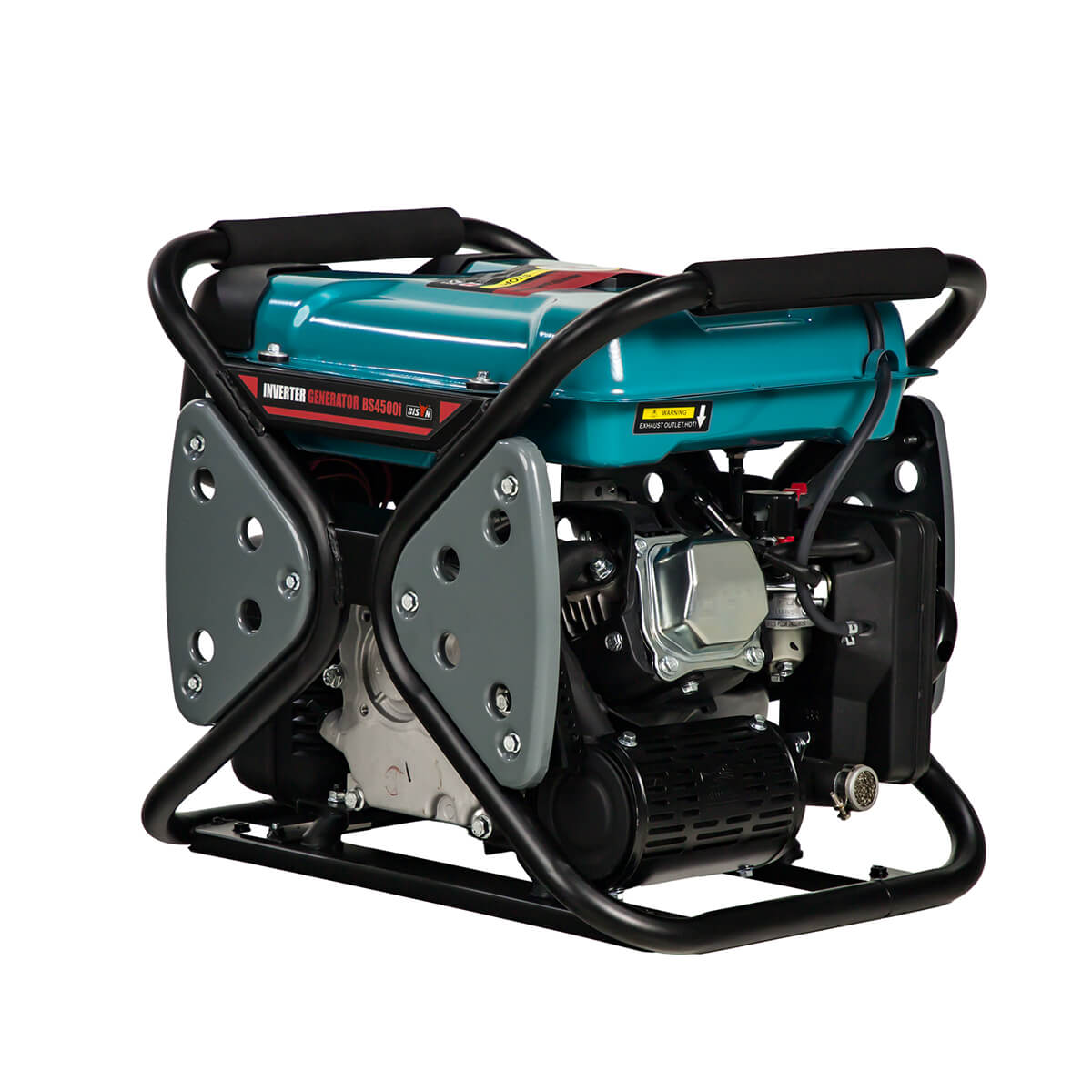

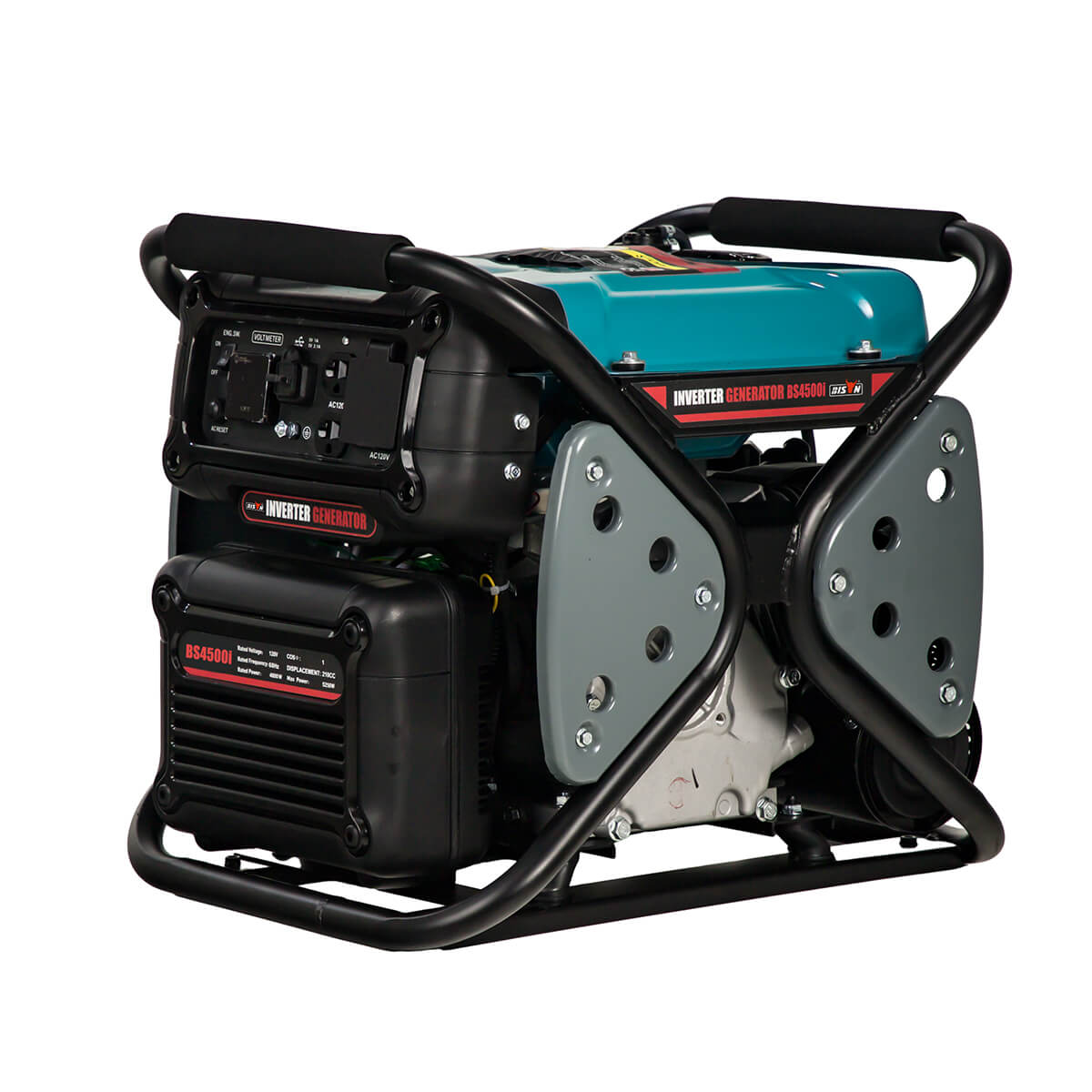

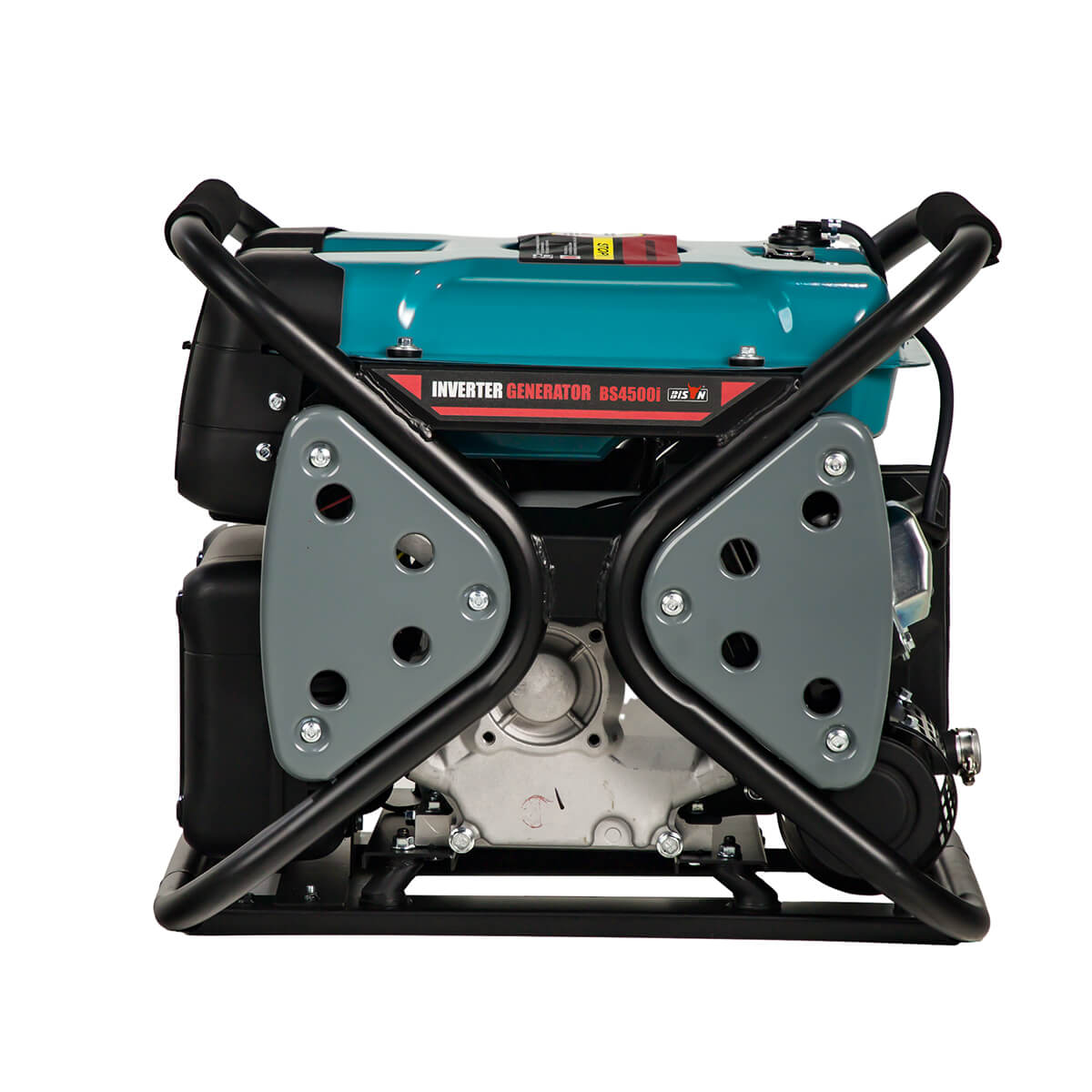

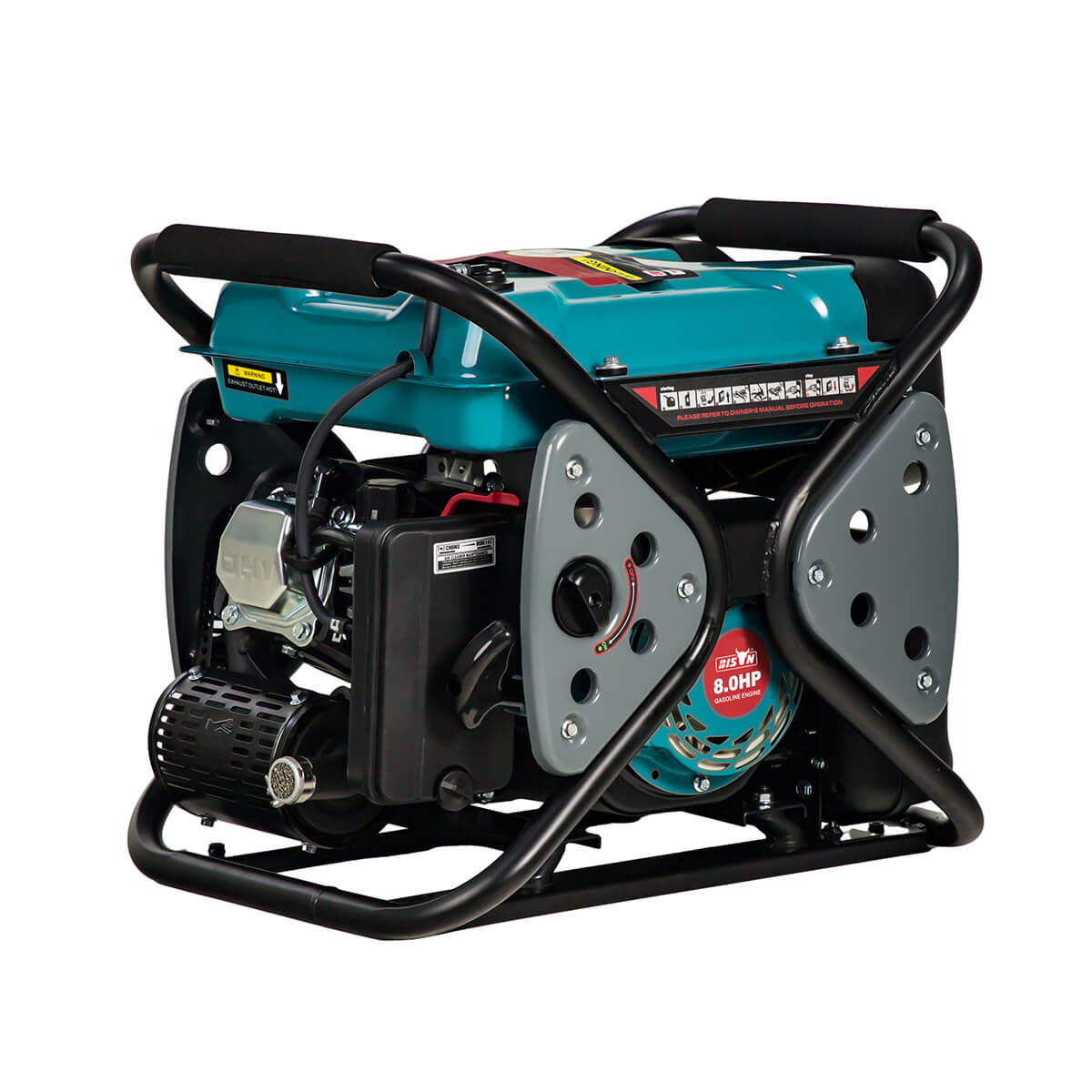

4500w open frame inverter generator is a portable, reliable power solution. Its open frame features a sturdy structure and provides better airflow for better cooling. The BS4500I provides a strong power output, providing 4500 watts of starting power and 4000 watts of running power, which is perfect for powering multiple devices in outdoor environments.
features
This generator is compact and quiet, and is equipped with safety features such as low oil shutdown and overload protection. A choice of electric start or standard recoil start allows you to choose the method that suits your preference.
In terms of fuel efficiency, the generator is equipped with an economical engine and smart throttle control to extend operating time while minimizing fuel consumption. This not only reduces operating costs, but also makes the generator more sustainable for continuous use.
As a generator manufacturing company with many years of experience, BISON offers competitive solutions for all power needs. Our factory is equipped with advanced technology and skilled workers to ensure that each product meets the highest quality standards. Choosing BISON, you are able to effectively meet customer needs while maintaining strong performance and cost-effectiveness.
specifications
| output | |
| Rated power | 4.0 KW |
| Maximum power | 4.5 KW |
| Phase | Single-phase |
| AC voltage | Depends on your country’s voltage |
| Single-phase AC amperage | Running power ÷ Using voltage |
| DC USB output | 5V/2.1A |
| Frequency | 50 / 60 HZ |
| 100% load continuous operating time | 5.33 H |
| engine & emission | |
| Engine type | 1-Cylinder, 4-Stroke, Air-cooled, Veritical |
| Engine model name | BS172Fi |
| Bore × stroke | 72 × 58 MM |
| Engine displacement | 224 CC |
| Engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil start | Yes |
| Electric start | (Optional) |
| alternator | |
| Winding material | 100% copper winding |
| Power factor | 1.0 (Single-phase) |
| fuel system | |
| Fuel Type | Gasoline |
| Fuel tank capacity | 12.8 L |
| Oil capacity | 0.6L |
| packagine | |
| Carton dimensions | 540 × 400 × 450 MM |
| Generator net weight | 29 KGS |
| Carton gross weight | 31 KGS |
optional
The open type inverter generators above 3 kilowatts should choose this option.
electric & remote start
easy to start the generator
The generators above 5 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
When you would like the generators use gasoline or LPG that you can choose this optional
Dual fuel
Double fuel with ECO
When you would like the power more than 10 kilowatts, you could choose this. It is not necessary for small kilowatts.
parallel connection
Bigger power more than 10.0 kilowatts
factory
overview
how we test the inverter generator
Ensure all raw material good quality.
raw material checking
Ensure the tracking details as the laser inscription.
laser inscription
Ensure the crankshaft installation with correct angle.
crankshaft torque
Ensure the valve tappet with correct piston.
valve tappet rectification
Ensure the gap between alternator and igniter.
gap of alternator
Ensure the sealing of the engine is stable.
air tightness test
Ensure the speed regulating spring will not fall off.
speed governing
Ensure the correct speed of engine and alternator.
testing speed
Ensure the engine and alternator with stable piston.
frame installation
Ensure the recoil start smoothly working.
testing recoil start
Ensure the rated power output.
power testing
Ensure all generators working powerful before the package.
strengthen testing
Ensure no oil & fuel in the engine.
takeout testing oil
Ensure no parts miss before the package
checking weight
Ensure the products with double safe.
plastic film packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time → We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free → We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy BISON brand within warranty time: You give your customer a new generator for free firstly → We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly → We would compensate you in batches in future orders.
OEM service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
agent service
※ How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.
※ What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……
※ At the same time, enjoy the supreme VIP warranty experience and service!
Contact us today to learn more about becoming a BISON agent and provide your customers with this powerful, versatile and reliable generator.
customs services
※ We can find the cheapest sea shipping price for you.
※ We can find a local customs clearance agent for you.
※ In some special cases, we can save you import tariff costs.
parts services
