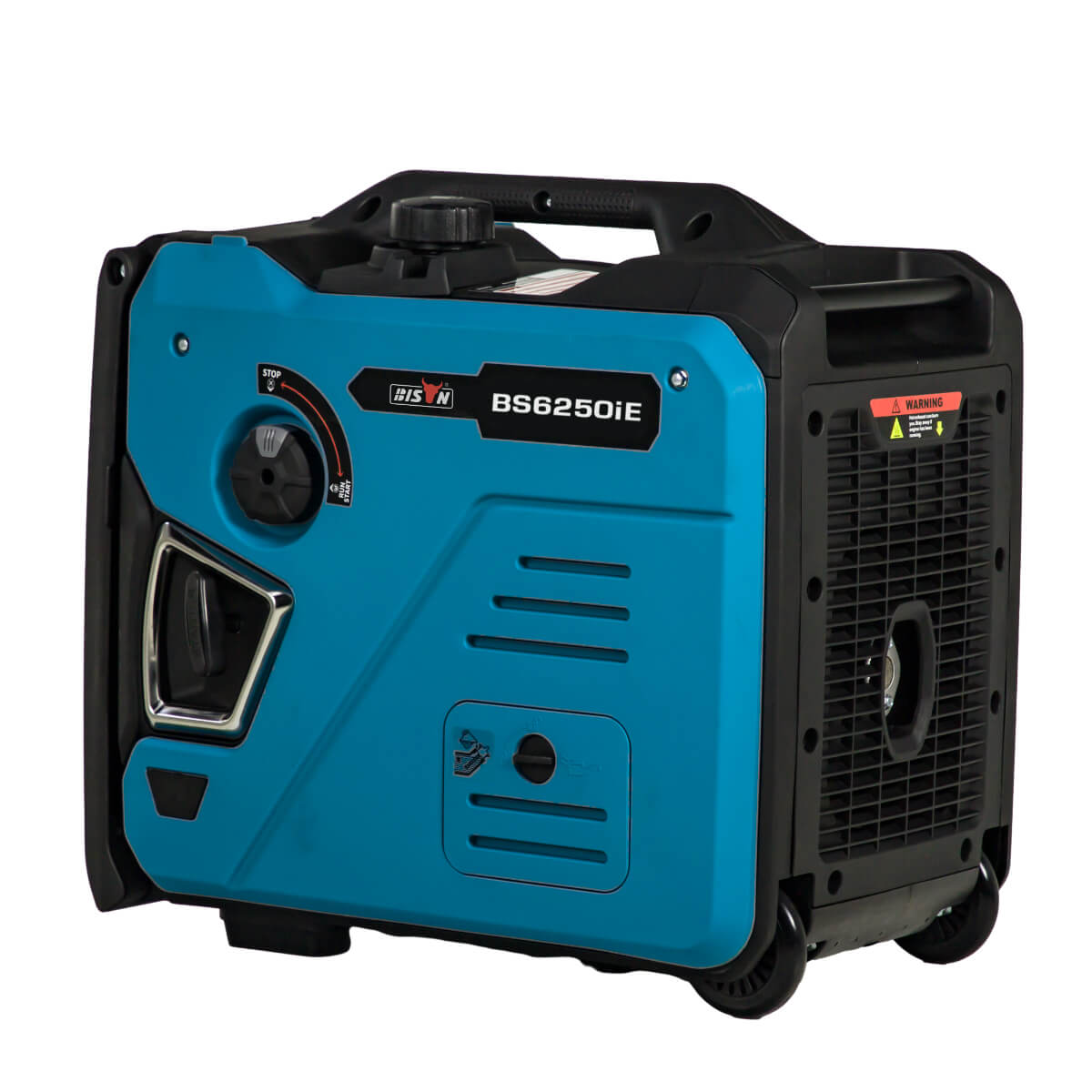

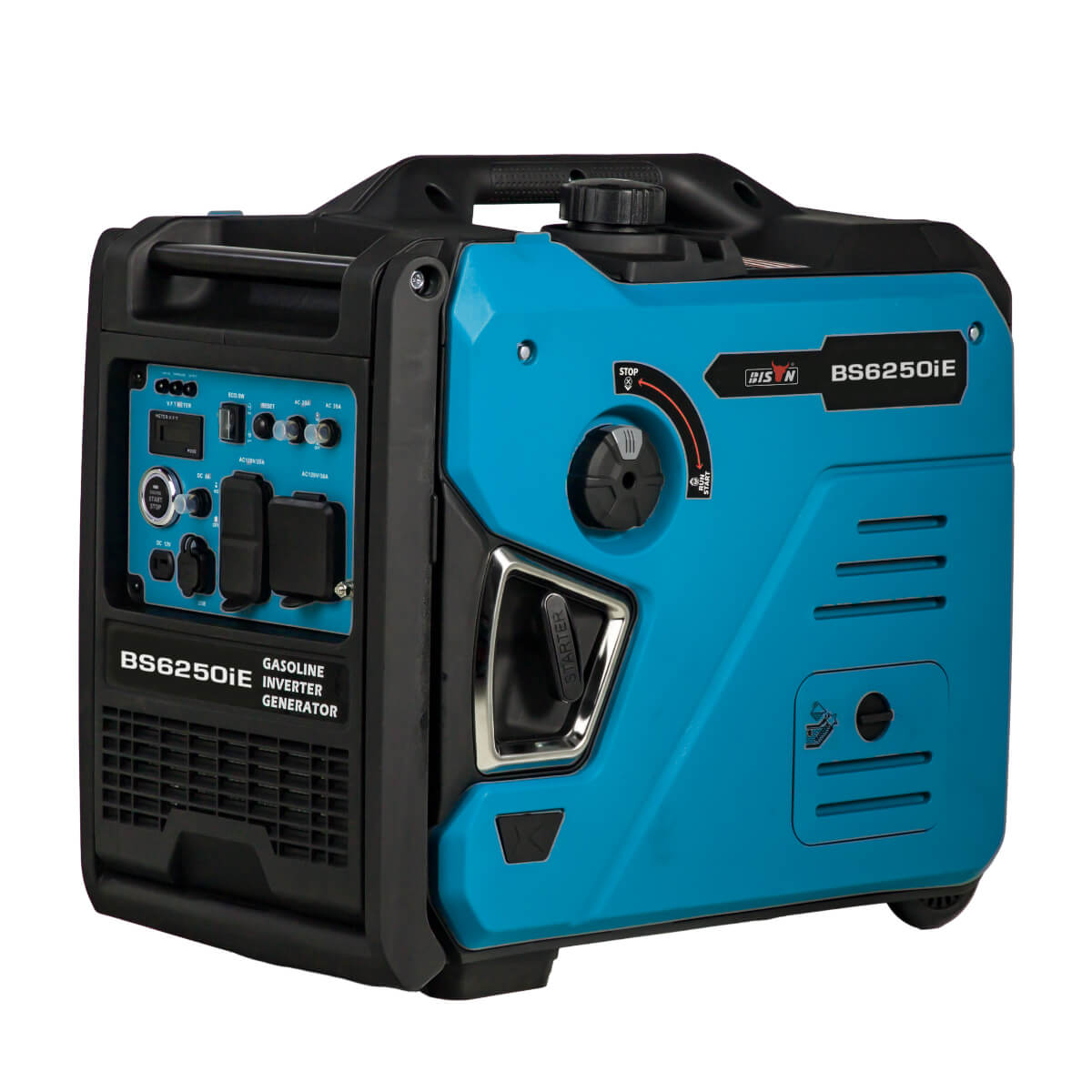

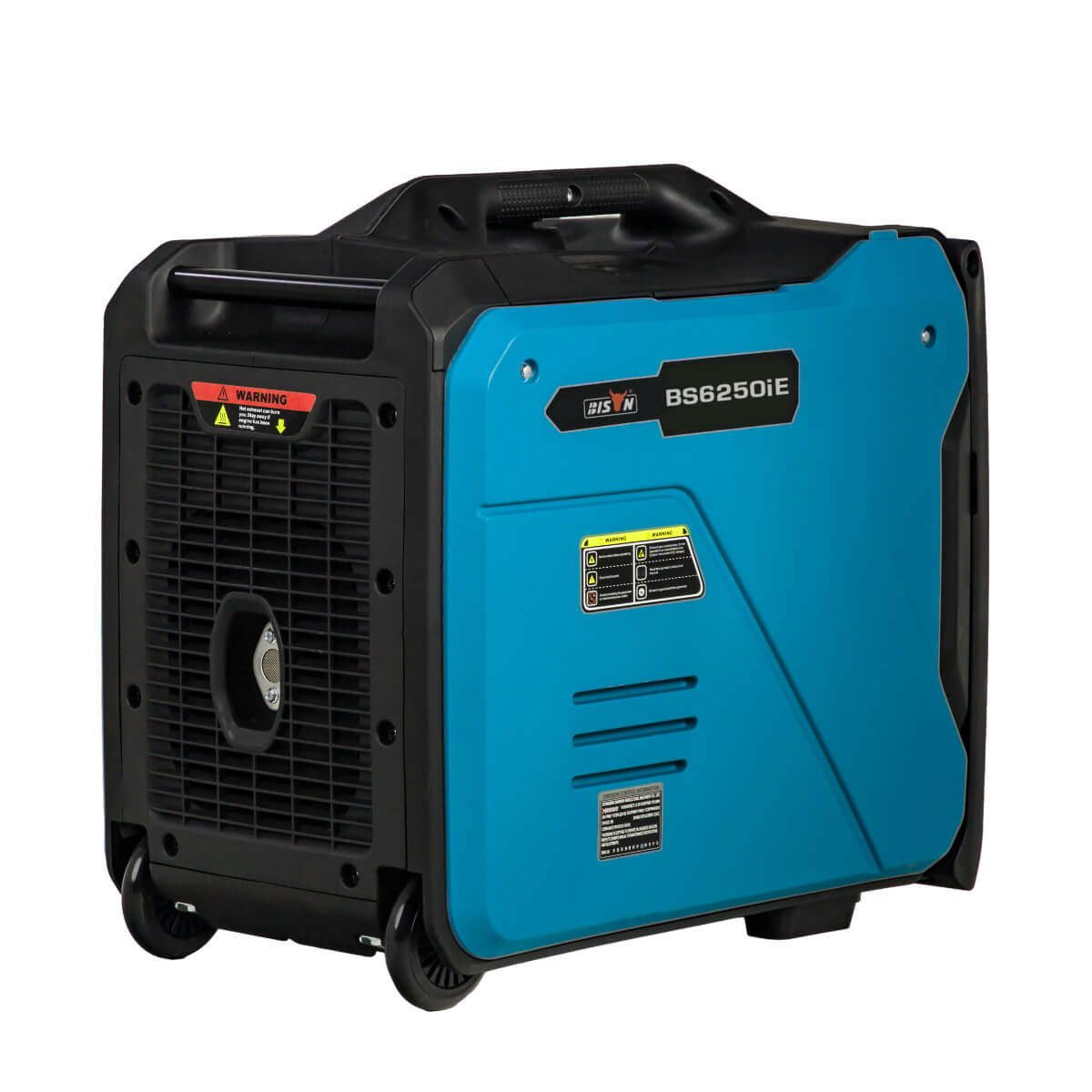

model: BS6250iE
5500 watt gasoline inverter generator
within 25 days delivery time after receiving the deposit！
BISON 5500 watt gasoline inverter generator provides reliable, clean power for electronic devices and equipment. It uses gasoline as fuel and features inverter technology. The inverter technology reduces total harmonic distortion (THD), ensuring the power provided is of the highest quality. These generators are compact, fuel-efficient, and quieter than conventional generators, while also causing less wear on the engine.
features
5500 watts of power is able to smoothly handle sudden power demands, whether for domestic use, outdoor activities or workplaces.
The generator is designed with user-friendly features, including recoil and electric start options, for quick and easy operation.
It operates at only 67 decibels at 7 meters, ensuring minimal noise disturbance

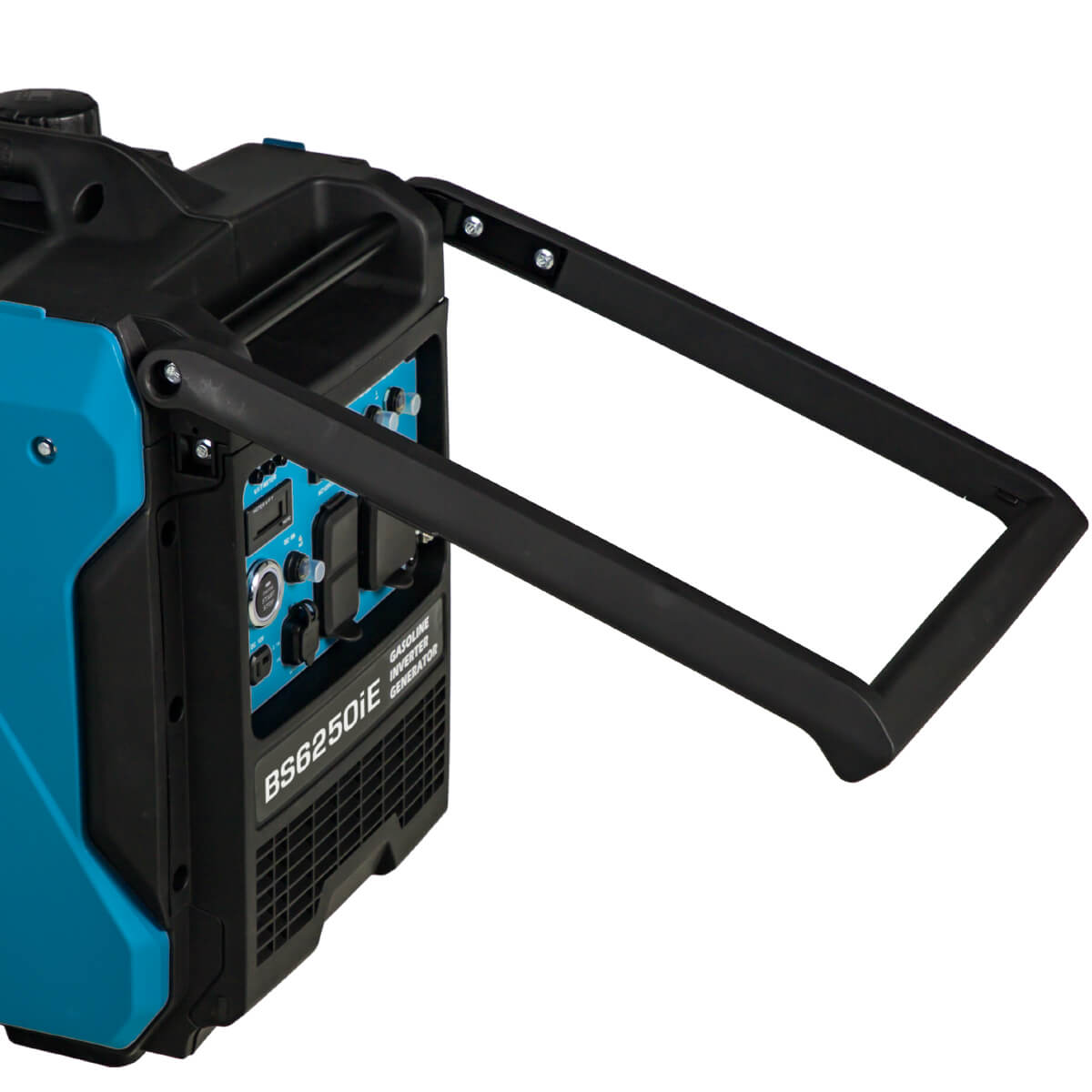

Its compact design makes it easy to transport, whether for outdoor adventures or on the go.
It has an 11-liter fuel tank and a half-load running time of up to 8 hours, thanks to the eco-throttle system that optimizes fuel utilization.
specifications
| output | |
| Rated power | 5.0 KW |
| Maximum power | 5.5 KW |
| Phase | Single-phase |
| AC voltage | Depends on your country’s voltage |
| Single-phase AC amperage | Running power ÷ Using voltage |
| DC USB output | 5V/1A/2.1A |
| Frequency | 50 / 60 HZ |
| Noise level | 67dB with 7M |
| 100% load continuous operating time | 4.0 H |
| engine & emission | |
| Engine type | 1-cylinder, 4-stroke, air-cooled, veritical |
| Engine model name | BS225i-3 |
| Bore × stroke | 70 × 58MM |
| Engine displacement | 223 CC |
| Engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil start | Yes |
| Electric start | Yes |
| Remote control | Yes |
| alternator | |
| Winding material | 100% copper winding |
| Power factor | 1.0 (Single-phase) |
| fuel system | |
| Fuel tank capacity | 11 L |
| Oil capacity | 0.7 L |
| package | |
| Carton dimensions | 715 × 480 × 640 MM |
| Generator net weight | 42.5 KGS |
| Carton gross weight | 46.7 KGS |
optional
The open type inverter generators above 3 kilowatts should choose this option.
electric & remote start
easy to start the generator
The generators above 5 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
When you would like the generators use gasoline or LPG that you can choose this optional
Dual fuel
Double fuel with ECO
When you would like the power more than 10 kilowatts, you could choose this. It is not necessary for small kilowatts.
parallel connection
Bigger power more than 10.0 kilowatts
factory
overview
how we test the inverter generator
Ensure no air leaks from cylinder head.
cylinder head checking
Ensure the crankshaft installation with correct angle.
crankshaft torque
Ensure correct operation with next step.
remarks for camshaft
Ensure crankcase with strong thickness.
crankcase quality testing
Ensure the correct gap between intake and exhaust valves.
intake & exhaust valves gap
Ensure the sealing of the engine is stable.
air tightness test
Ensure the inverter is in correct position.
checking & adjustment the inverter position
Ensure the correct speed and power of engine.
testing speed
Ensure the gap between alternator and igniter.
gap of alternator
Ensure no mistake with inside and smoothly with recoil starter.
checking and recoil starter testing
Ensure no other spare parts inside silent box.
installing silent box and checking inside again
Ensure the rated power output.
power testing
Ensure sockets has rated current output
sockets current
Ensure all generators are working powerful before the package.
strengthen testing
Ensure no parts miss before the package
checking weight
