model: BS10000iE

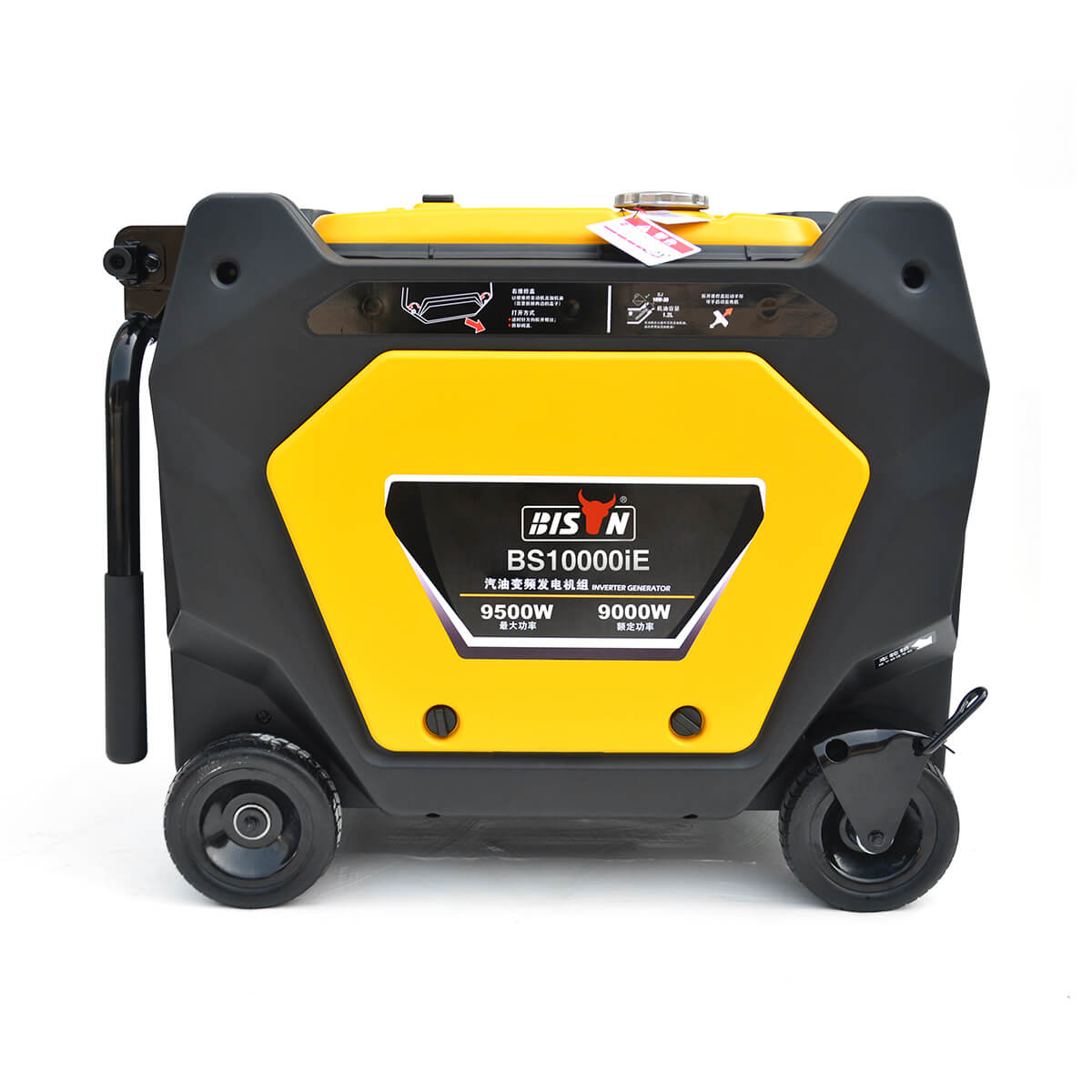

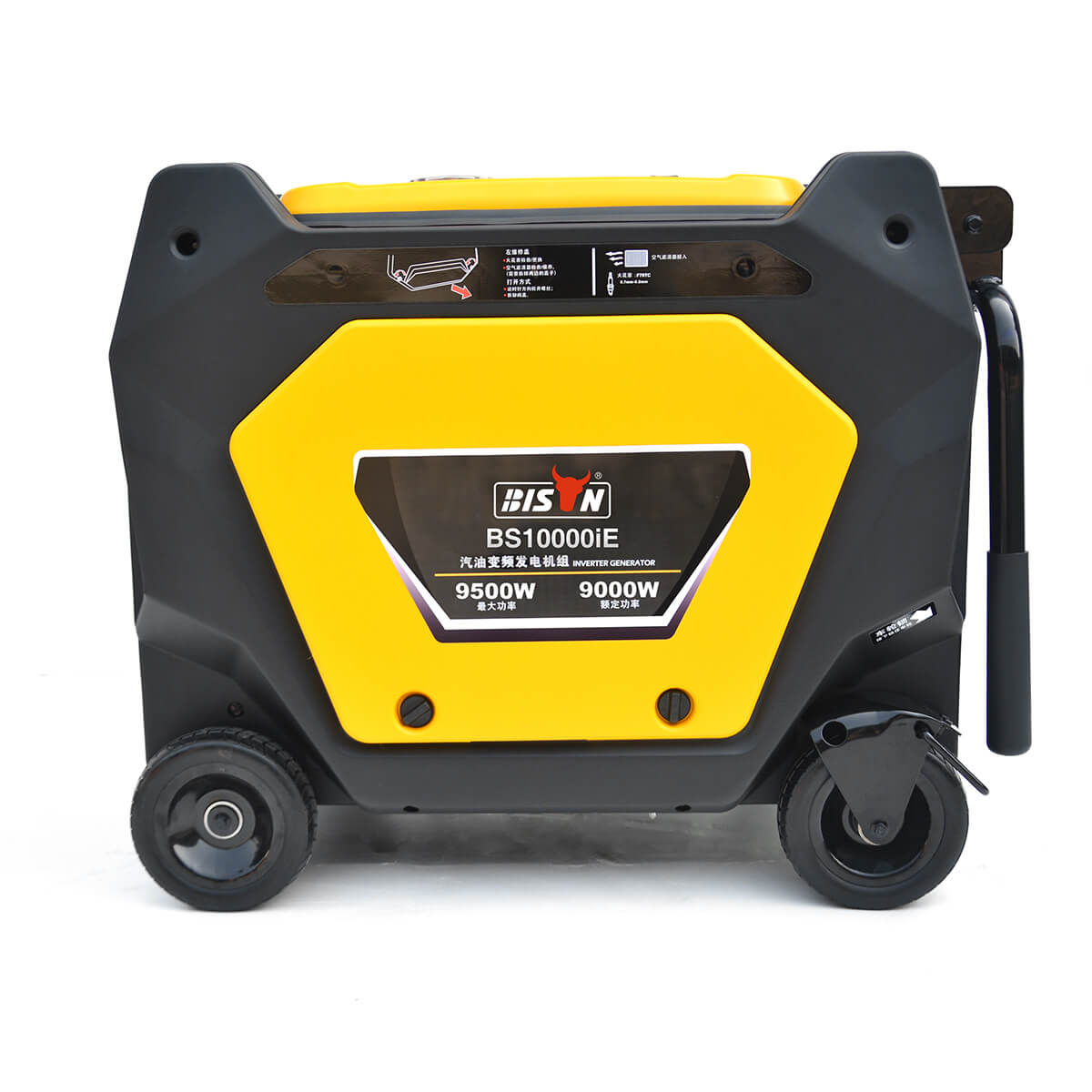

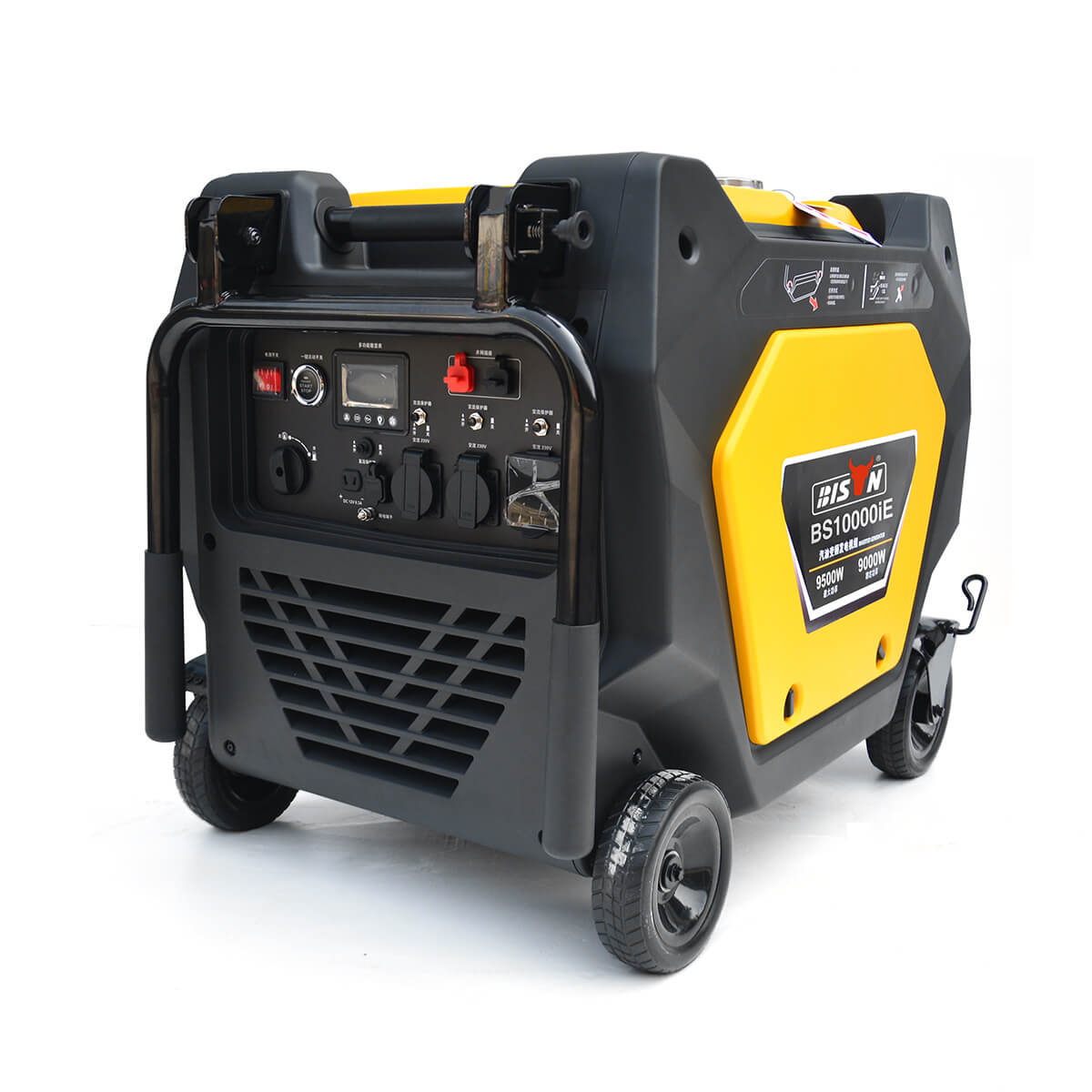

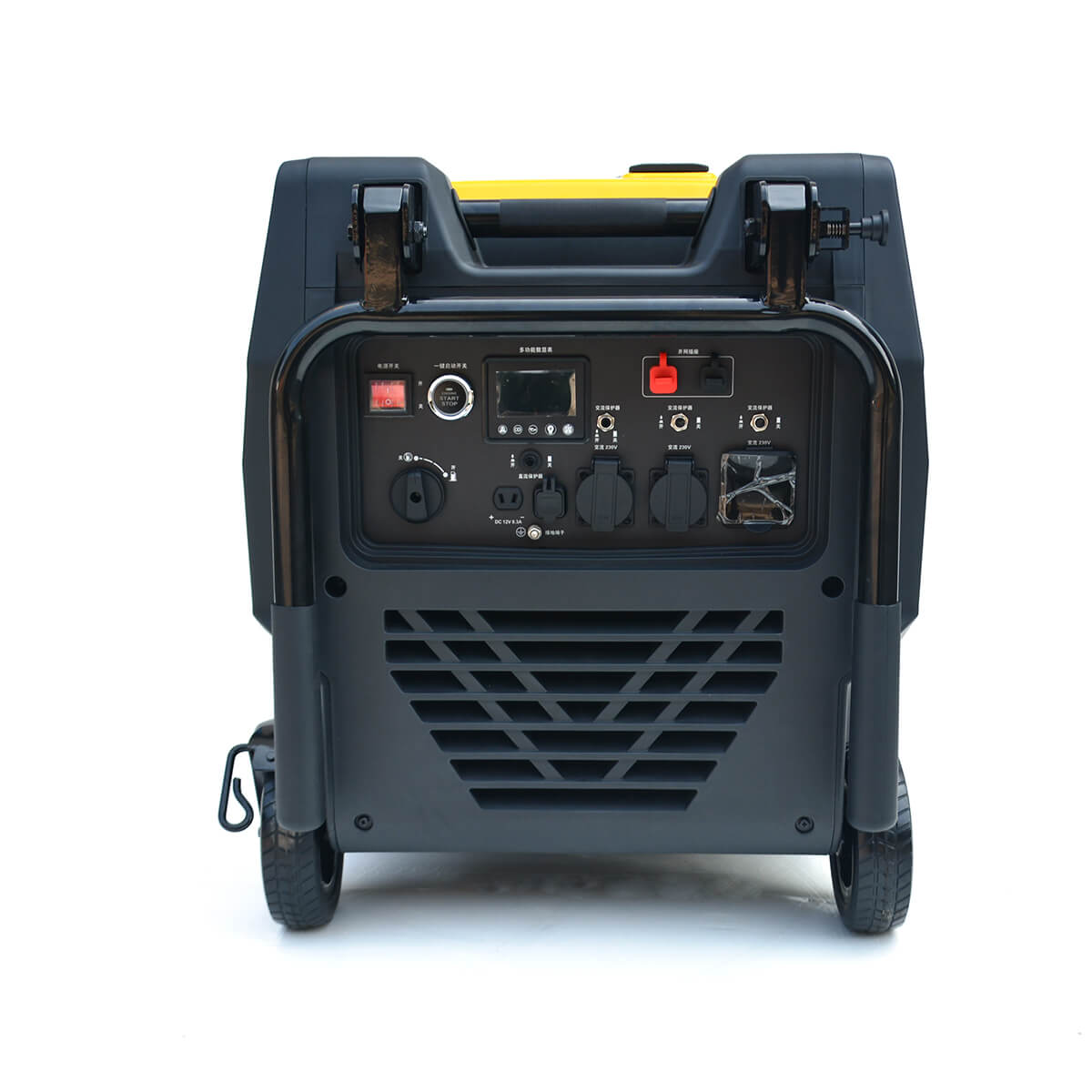

9kw closed frame inverter generator
within 25 days delivery time after receiving the deposit！
BISON is a leading manufacturer and factory of high-performance power solutions in China, upgrade your inventory with our 9kw closed frame inverter generator. The BS10000iE is engineered to provide reliable, efficient and stable power for a variety of applications, making it an ideal choice for dealers, distributors and businesses seeking a quality inverter generator.
features
BS10000iE generator uses advanced inverter technology to convert raw electricity into a stable pure sine wave output, with an output power of 9kw, which can meet a large amount of power needs and is suitable for large-scale operations, construction sites and backup power scenarios.
Its automatic voltage regulation and load sensing functions ensure seamless load management, preventing surges by dynamically adjusting output, and providing consistent performance for a variety of applications.
At the same time, this function can improve fuel efficiency, optimize fuel consumption to reduce operating costs, while reducing environmental impact – this feature is particularly attractive to environmentally conscious users.
The term “closed” refers to its protective housing, a design that protects internal components from dust, moisture and debris, ensuring stable performance and longer service life even in harsh conditions. In addition, advanced sound insulation materials within the closed frame significantly reduce operating noise compared to open generators.
specifications
| output | |
| Rated power | 9.0 KW |
| Maximum power | 9.5 KW |
| Phase | Single-phase |
| AC voltage | Depends on your country’s voltage |
| Single-phase AC amperage | Running power ÷ Using voltage |
| DC USB output | 5V/1A/2.1A |
| Frequency | 50 / 60 HZ |
| Noise level | 70dB with 7M |
| 100% load continuous operating time | 5.5 H |
| engine & emission | |
| Engine type | 1-cylinder, 4-stroke, air-cooled, veritical |
| Engine model name | BS500D-Vi |
| Bore × stroke | 94 × 72 MM |
| Engine displacement | 500 CC |
| Engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil start | Yes |
| ELectric Start | Yes |
| Remote Control | Yes |
| alternator | |
| Winding material | 100% Copper Winding |
| Power factor | 1.0 (Single-Phase) |
| fuel system | |
| Fuel tank capacity | 33.0 L |
| Oil capacity | 1.3 L |
| package | |
| Carton dimensions | 925 × 690 × 775 MM |
| Generator net weight | 106 KGS |
| Carton gross weight | 113 KGS |
optional
The open type inverter generators above 3 kilowatts should choose this option.
electric & remote start
easy to start the generator
The generators above 5 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
When you would like the generators use gasoline or LPG that you can choose this optional
Dual fuel
Double fuel with ECO
When you would like the power more than 10 kilowatts, you could choose this. It is not necessary for small kilowatts.
parallel connection
Bigger power more than 10.0 kilowatts
factory
overview
how we test the inverter generator
Ensure the material with good quality before assembly.
raw material hardness checking
Ensure the crankshaft installation with correct angle.
crankshaft torque
Ensure correct operation with nest step.
remarks for camshaft
Ensure the engine oil with suitable capacity.
CNC refueling
Ensure the correct speed and power of engine.
testing speed
Ensure the alternator with stable current and strong power before assembly.
alternator quality checking
Ensure the alternator has a suitable angle.
assembly alternator by corrective drill
Ensure the gap between alternator and igniter.
gap of alternator
support customer with OEM service.
OEM sticker
Ensure no mistake with inside and smoothly with recoil starter.
checking and recoil starter testing
Ensure no problem with all parts.
handle and appearance checking
Ensure the rated power output.
power testing
Ensure all generators are working powerfully before the package.
strengthen testing
protect the whole machine with good quality.
built-in foam packaging
Ensure stable package with carton.
double packing belt
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time → We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free → We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy BISON brand within warranty time: You give your customer a new generator for free firstly → We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly → We would compensate you in batches in future orders.
OEM service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
agent service
※ How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.
※ What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……
※ At the same time, enjoy the supreme VIP warranty experience and service!
customs services
※ We can find the cheapest sea shipping price for you.
※ We can find a local customs clearance agent for you.
※ In some special cases, we can save you import tariff costs.
