How to polarize a portable generator

Why do you need to polarize a portable generator?

What is residual magnetism?

Residual magnetism is the small magnetic force left in the iron core after the engine stops. It provides the alternator with a starting reference, allowing the voltage regulator to build the output voltage. This magnetism is usually stored in the generator’s pole pieces and helps maintain the correct direction of current flow.

In some cases, the remaining magnetism is enough for the generator to operate normally. If residual magnetism is lost, the generator may run but produce little or no electricity.

Common causes of magnetism loss

• Long periods of storage without use.
• Stopping the generator abruptly while under a heavy load.
• External magnetic fields, vibration, or rough transportation.
• Replacing or servicing components such as the voltage regulator, brushes, battery, or internal wiring.
• Moving or relocating the generator after servicing.

What does polarity mean in generator power?

Polarity determines the correct path for voltage and return current, ensuring that the hot, neutral, and ground connections function properly. Correct polarity helps reduce the risk of electrical shock and allows protection devices to operate correctly during faults. Although a generator may still produce voltage, incorrect polarity can cause problems when connected to an electrical system.

Why is it essential to polarize a portable generator?

A portable generator converts mechanical energy into electrical power. When it is turned off, a small amount of residual magnetism remains in the alternator. When restarted, this stored magnetism helps restore the correct direction of current flow and enables the voltage regulator to build electrical output.

If the residual magnetism is lost or its direction is reversed, the generator may fail to produce electricity and could damage important components, including the voltage regulator. Polarizing the generator restores the residual magnetism, allowing it to generate usable electricity safely.

What happens if you don’t polarize your generator?

The generator may stop producing electricity, damage the voltage regulator and other internal components, burn electrical contacts, or cause battery failure. Incorrect polarization can also damage connected equipment and the electrical system itself.

Method 2: electric drill technique

The electric drill technique uses a corded drill to provide temporary mechanical excitation through the generator’s 120V outlet, helping restore residual magnetism without opening the generator.

1. Prepare the drill

Plug a corded drill into the 120V outlet.

Set the drill to the forward position.

2. Restore the magnetic field

Start the generator and allow it to reach normal operating speed.

Hold the drill trigger while rapidly spinning the chuck by hand in reverse.

Release the trigger once the drill begins running under generator power.

3.Verify the results

Confirm the generator is producing stable output voltage before returning it to service.

Testing and verification

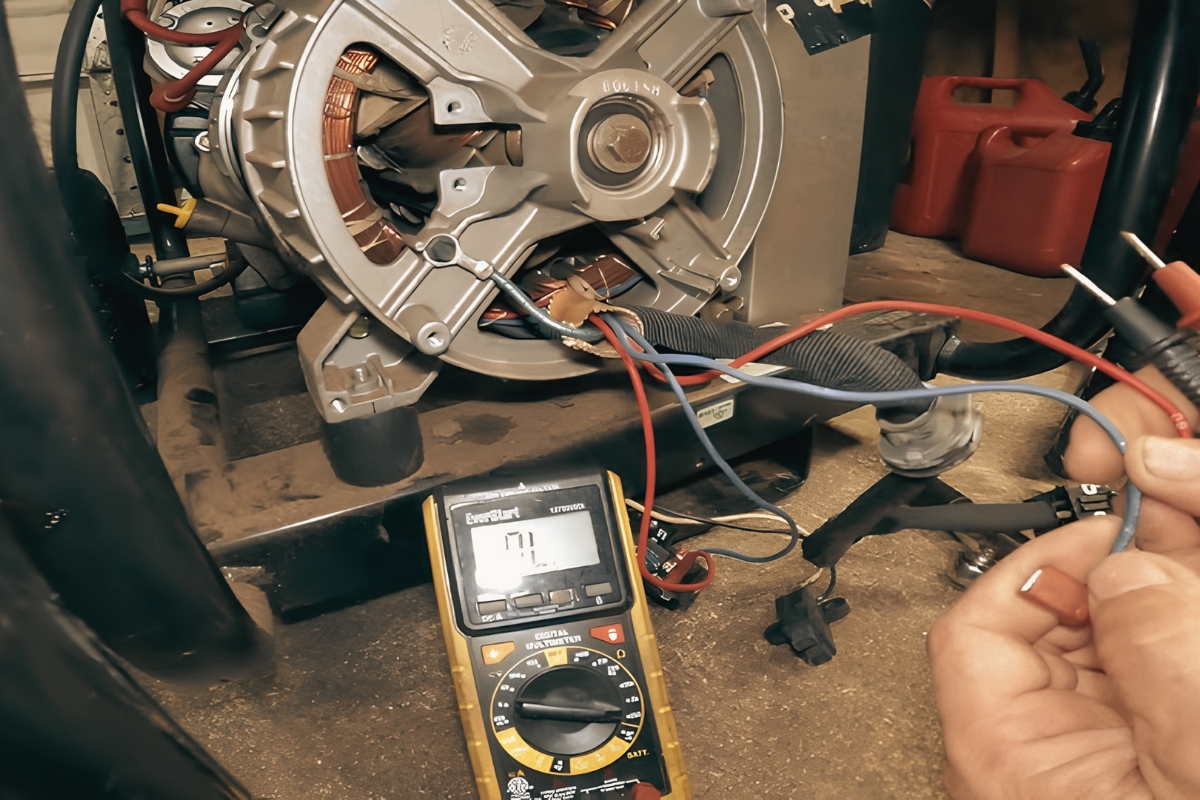

After completing Method 1 or Method 2, confirm the field flash was successful.

Methods for verifying generator wiring and power output

• Use a plug-in outlet tester to quickly check standard 120V outlets. For generators with a floating neutral, use a multimeter instead, as outlet tester results may be inaccurate.
• Use a multimeter to check hot-to-neutral, hot-to-ground, and neutral-to-ground readings to verify the wiring.
• Perform a load test using a resistive device, such as a work light, to confirm stable output under load.

A properly functioning generator should:

• Produce a stable output voltage.
• Maintain consistent readings during operation.
• Remain stable when a load is applied, without significant voltage fluctuations.

Troubleshooting: if power output remains unresolved

• AVR issues: Inspect the Automatic Voltage Regulator for burn marks or a “burnt” smell. Replace if damaged.
• Carbon brushes: Check for excessive wear or poor contact. Replace if below the service limit and clean slip rings with fine-grit sandpaper.
• Windings: Use a multimeter to test stator and rotor windings for continuity, open circuits, or shorts.
• Reversed polarity: If an outlet is reversed, inspect the receptacle wiring and test with different cords to isolate the failure.
• Grounding problems: Check for loose terminals or open ground readings. Test the outlet directly (no load) to verify.
• GFCI tripping: If the GFCI won’t reset, disconnect all loads and inspect for moisture or insulation damage in cords/connected equipment.
• Inconsistent output: If voltage fluctuates, check for poor grounding or a voltage drop caused by undersized/long extension cords.
