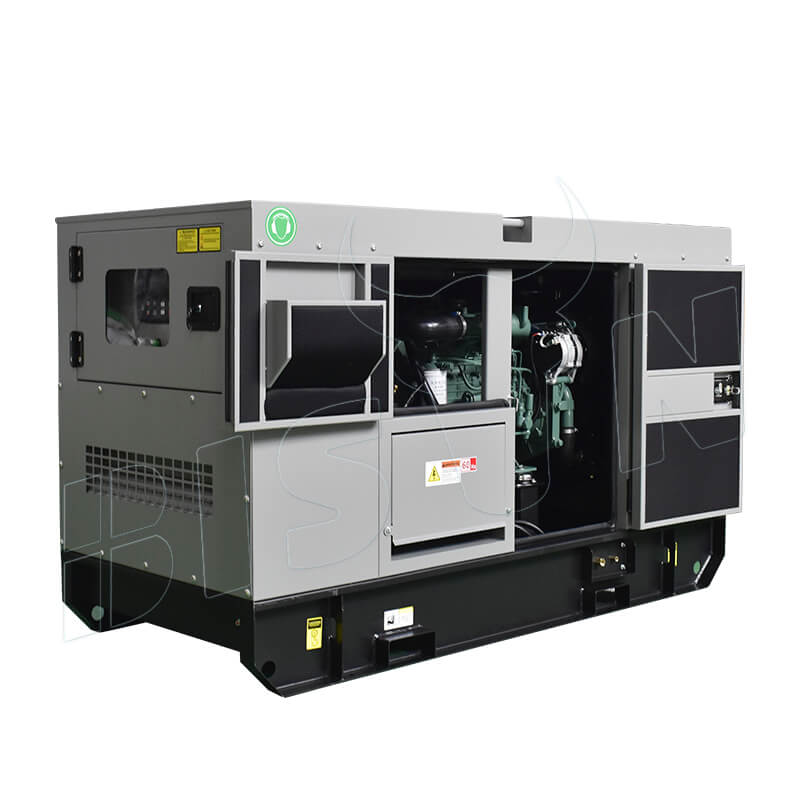

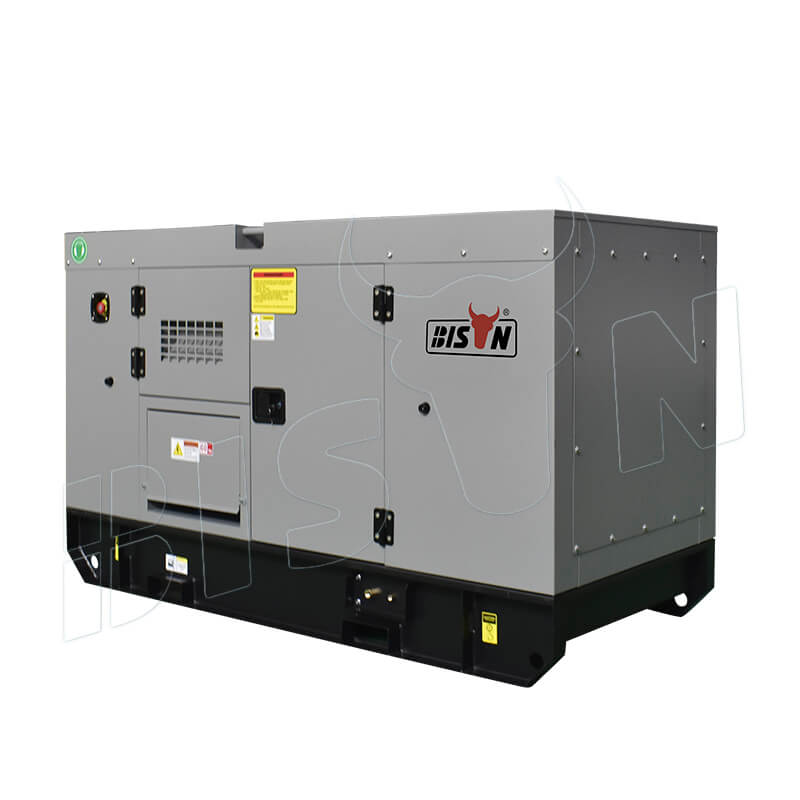

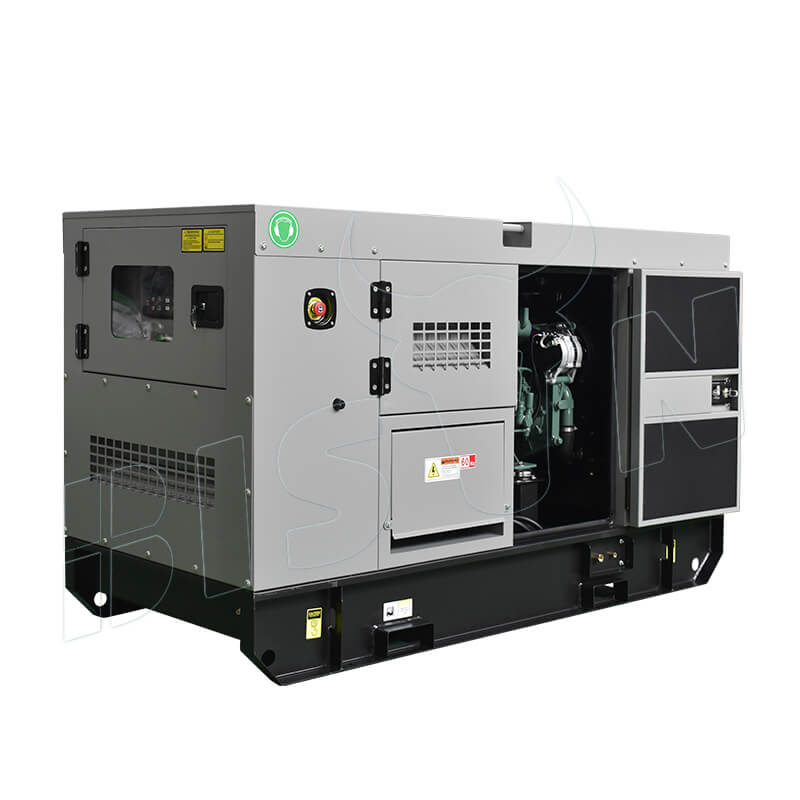

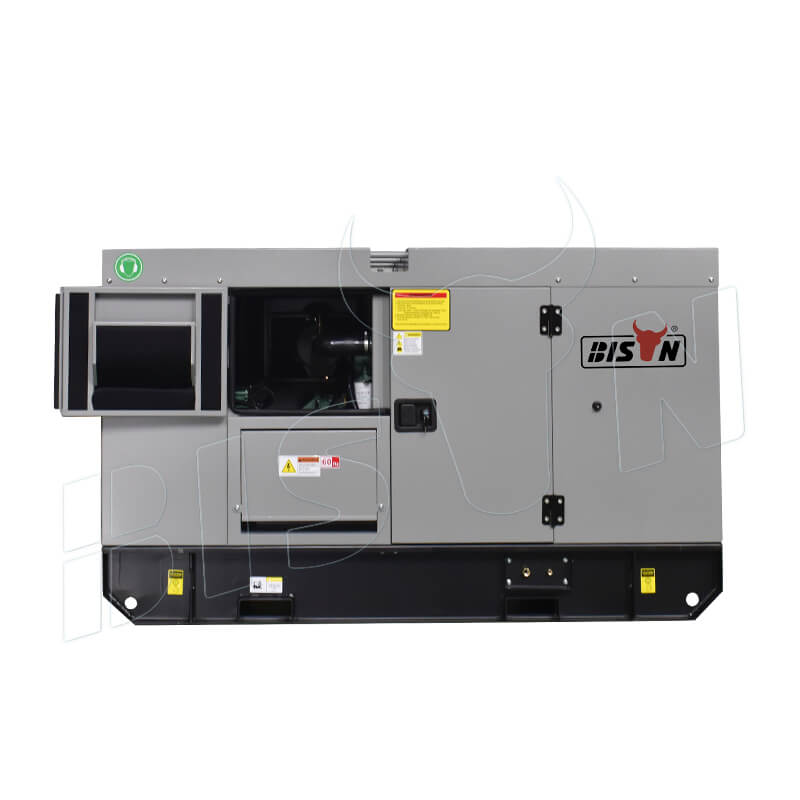

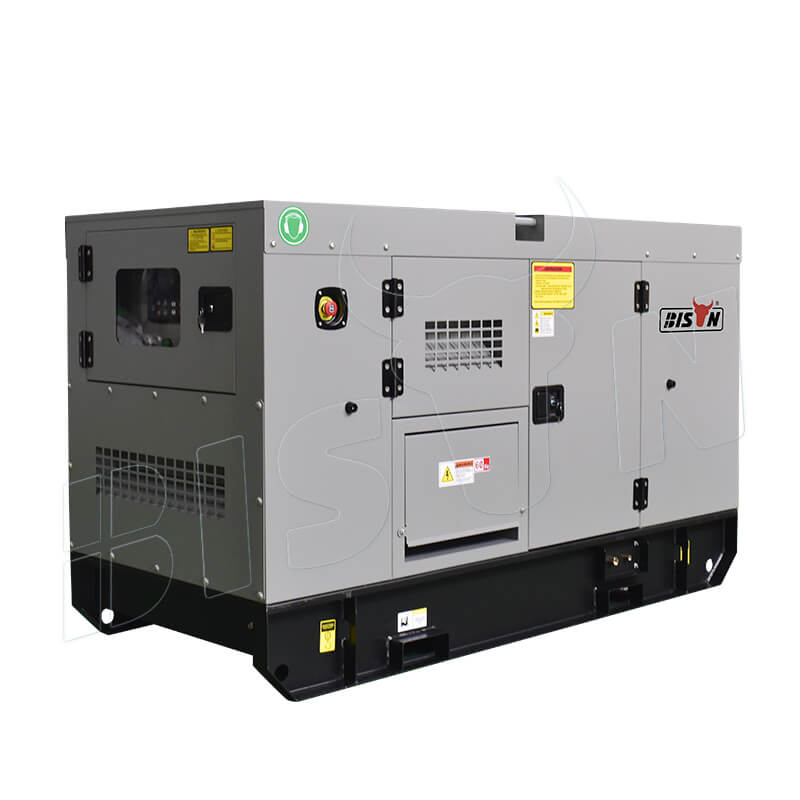

hotel use automatic start power 25kva diesel genset
The one-stop solution for reliable standby power in the hospitality industry. The self-starting 25 kVA diesel genset is powered by the renowned FAWDE engines to ensure seamless operations for hotel guests even during power outages.
The BS-FS25 is ideal for hotels looking for a reliable, user-friendly standby power solution. Contact China BISON today to discuss becoming a distributor and providing uninterruptible power supplies to the hospitality industry!
features
uninterrupted guest experience
The BS-FS25’s auto-start feature ensures a smooth transition to backup power, preventing interruptions and maintaining guest comfort.
Designed for quiet operation, the FAWDE 25kva diesel genset minimises noise pollution, allowing guests to relax in a peaceful environment.
The powerful 25 kVA output capacity provides ample power to support essential hotel functions such as lighting, lifts, security systems and critical appliances.
manufacturer’s expertise
As a professional genset manufacturer, BISON offers you the combined benefits of quality, reliability and expert support.
The 3-phase/4-wire configuration provides versatile power distribution for a wide range of hospitality equipment and electrical needs.
Proven performance! The BS-FS25 is powered by a FAWDE diesel engine, known for its durability, fuel efficiency and long service life.
specifications
| output | |
|---|---|
| rated power | 20 KW / 25 KVA |
| voltage | 220 V / 380 V |
| frequency | 50 HZ |
| Phase / Wire | 3 Phase / 4 Wire |
| Power Factor | 0.8 |
| engine & emission | |
|---|---|
| engine type | 4DW92-35D |
| type | Water-cooled, inline, 4-stroke, direct injection |
| prime power | 26 KW |
| intake type | Turbocharged |
| no.cylinders | 4 |
| bore × stroke | 90 × 100 MM |
| displacement | 2.54 L |
| 100% prime power fuel consumption | 5.21 L/H |
| alternator | |
|---|---|
| brand model | BS184F |
| prime power | 20 KW / 25 KVA |
| power efficiency | 88.50% |
| voltage regulation | ≤ ±1 |
| excitation type | brushless |
| insulation class | h |
| controller | |
|---|---|
| band | SMARTGEN |
| model | HGM6120 |
| packaging | |
|---|---|
| dimension | 2250 × 900 × 1250 MM |
| weight | 920 KGS |
optional
When you take genset as backup power, you could choose this.
ATS
automatically start without human intervention required.
You should choose this option when the lowest temperature of the year in which the gensets are used is below 0 ℃.
preheater
helps start genset in low temperature.
If you don’t have specific needs for a controller brand, we would make our recommendations.
controller brand
to control all functions of genset.
You should choose this option if you need more convenient output for a genset below 30kw.
sockets
make genset output more convenient.
If you need to use genset for more than 8 hours a day, you should choose to increase the fuel tank of genset.
larger fuel tank
increase genset’s one-time use time.
If you require more convenient use of the fuel tank, you should choose this option.
separate fuel tank
replaces the bottom fuel tank and is more convenient to use
If the fuel you are using is not of good enough quality, you should choose this option.
fuel-water-separator
remove moisture from fuel and extend engine life
factory
overview
how we test the diesel gensets
We always get genuine and original engines from regular channels.
purchase engine
We always use the most sophisticated cutting instruments to cut sheet metal.
sheet metal cutting
The welding workers have 20+ years of experience and the welding points are flawless.
welding
Professional spray and baking booths are used to color the silent covers.
spray paint
Paste sound insulation cotton with a thickness greater than 3cm on the silent cover.
paste silent cotton
BISON brand brushless AC alternator is made by ourselves
alternator assembly
Connect engine and alternator.
semi finished genset
Establish a connection between the line and the controller.
install controller
Check whether the internal wiring is intact and working.
wiring
Assembling the silent cover after cutting and painting.
soundproof producing
Every genset would be tested in the testing center.
test center
Every genset would be tested for more than 30 minutes.
genset testing
Stick BISON or OEM logo lable.
stick logo
Packed with pearl cotton and stretch film.
packing
Loading is carried out by experienced forklift workers to ensure that every machine is in good condition.
loading
