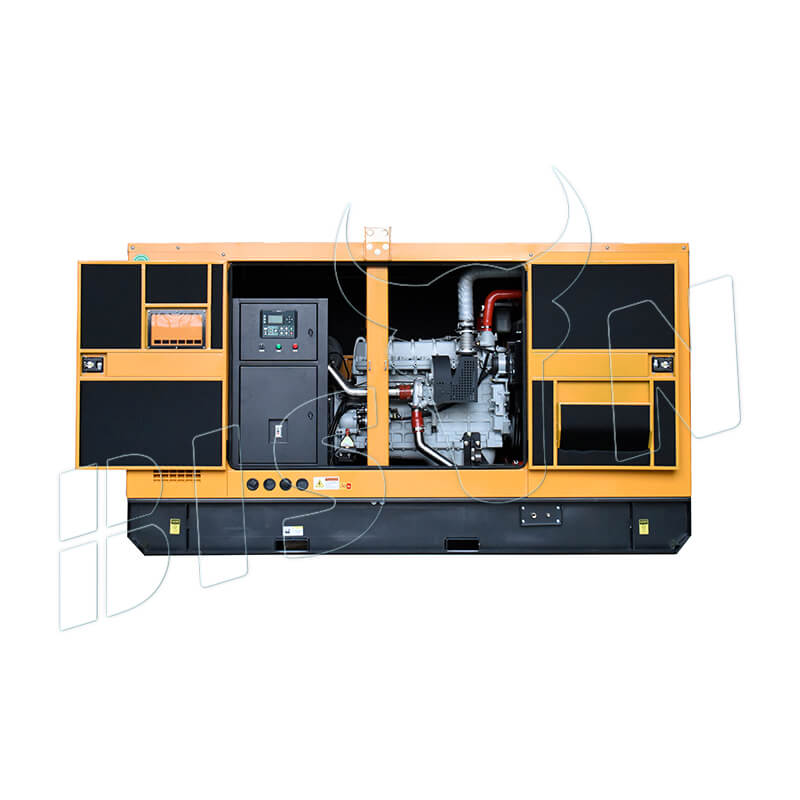

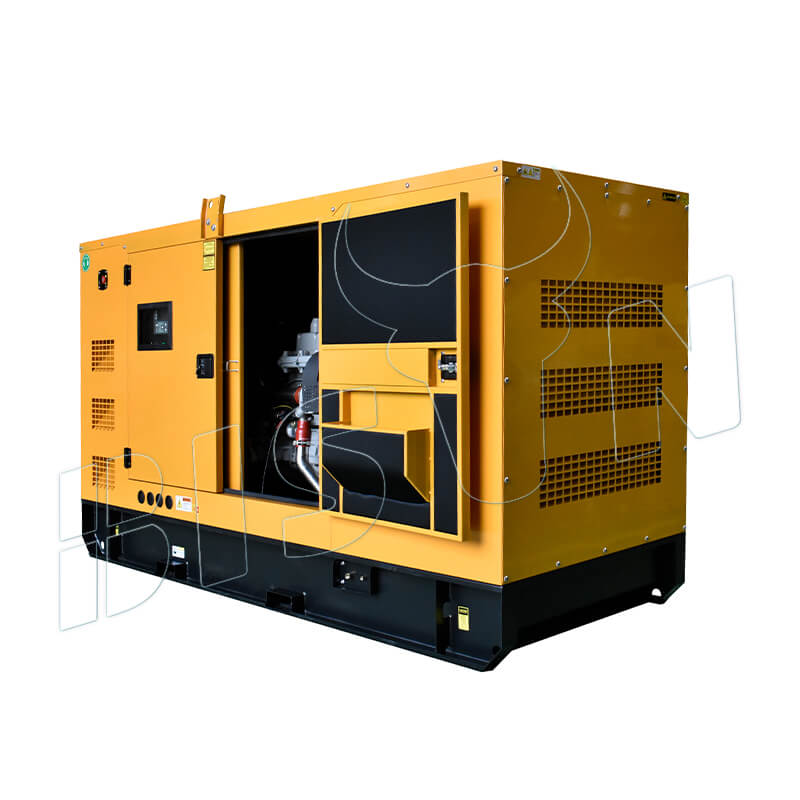

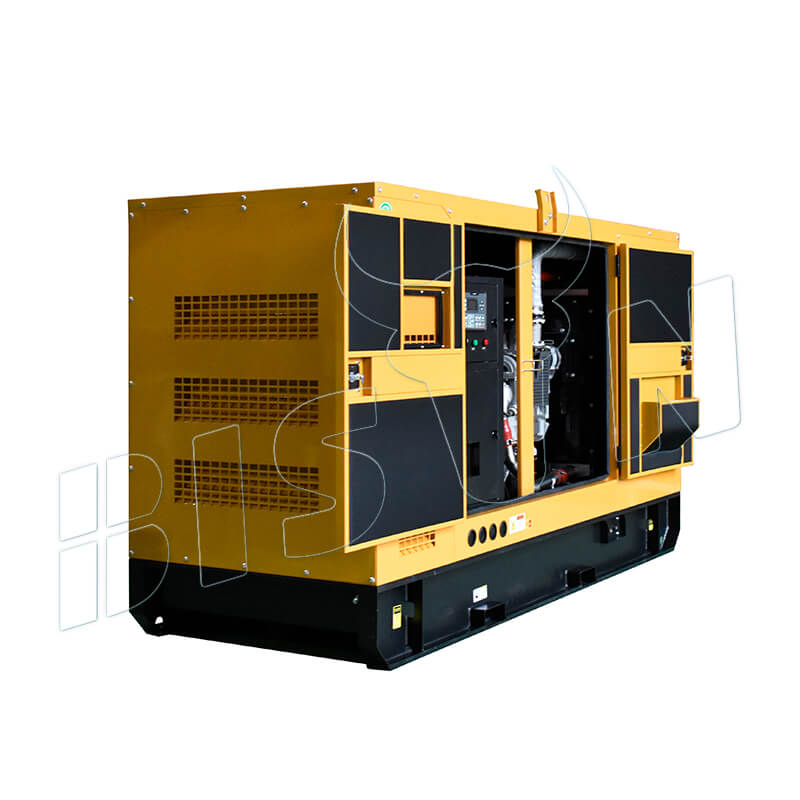

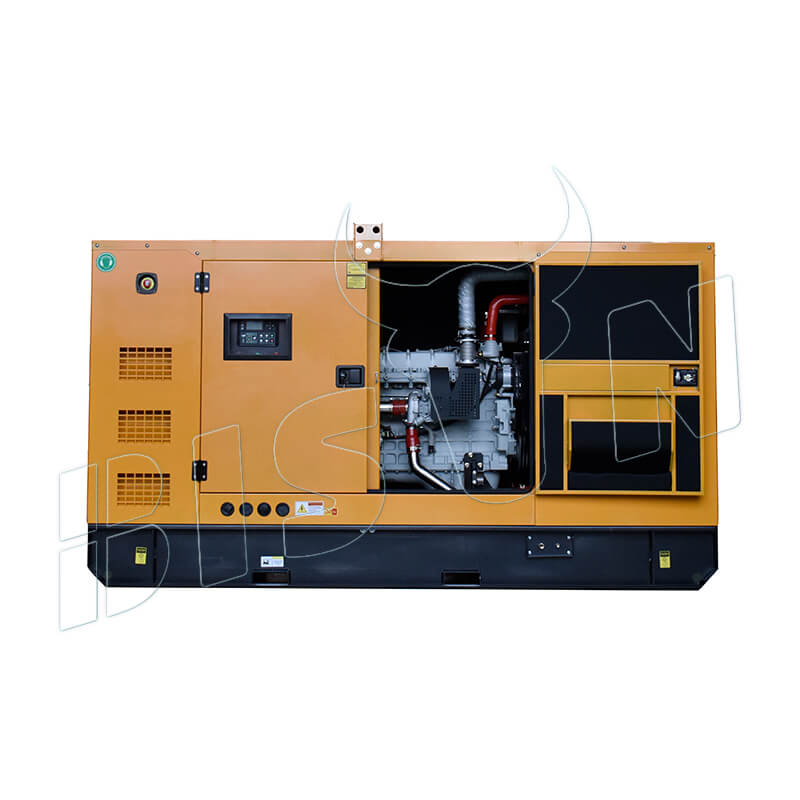

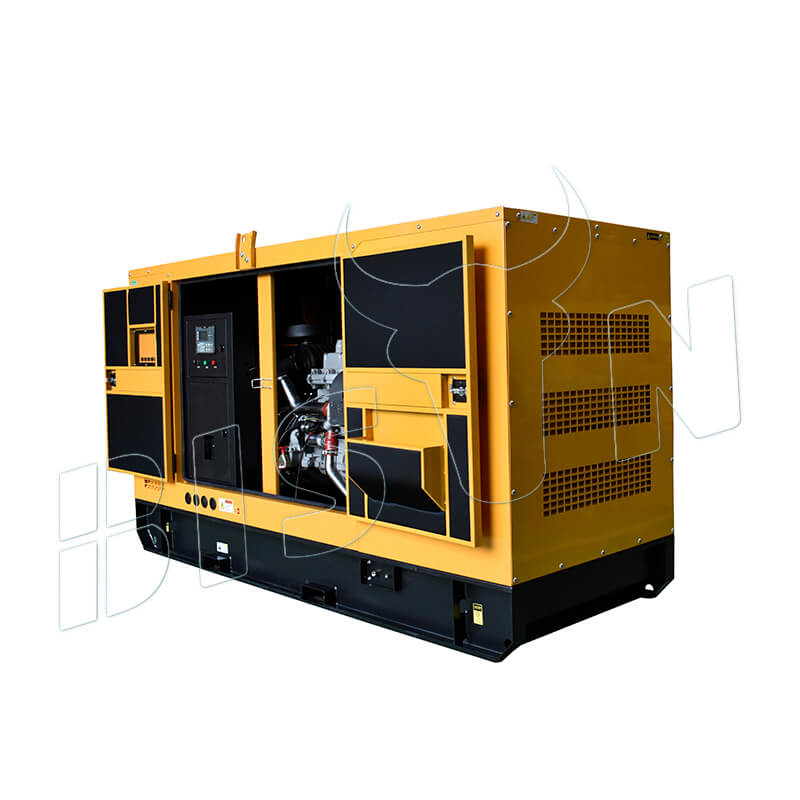

PERKINS diesel low fuel consumption genset
Fuel efficiency meets power performance! Diesel low fuel consumption gensets are powered by advanced PERKINS engines, renowned for their exceptional fuel efficiency.
Genset manufacturer, BISON delivers superior power output without compromising operating costs, making it the perfect choice for cost-conscious businesses and dealers.
features
PERKINS diesel engine
It is equipped with a sturdy PERKINS diesel engine, a 6-cylinder turbocharged engine with a displacement of 7.01L, which can provide 178.9kw of main power and excellent fuel efficiency. The fuel consumption at 100% main power is only 45.8L/. H.
Lower your fuel bills with a PERKINS engine designed for optimal fuel efficiency.
Experience unparalleled performance and reliability you can count on, even in demanding applications.
emission reduction
PERKINS low fuel consumption genset has a rated output power of 160kw/200kva and an optional voltage of 220V/380V, ensuring continuous and stable power supply and is very suitable for a variety of applications.
Minimize environmental impact with clean-burning PERKINS technology.
PERKINS engines are designed for extended service intervals, resulting in lower maintenance costs.
specifications
| output | |
|---|---|
| rated power | 160 KW / 200 KVA |
| voltage | 230 V / 400 V |
| frequency | 50 HZ |
| Phase / Wire | 3 Phase / 4 Wire |
| Power Factor | 0.8 |
| engine & emission | |
|---|---|
| engine type | 1106A-70TAG4 |
| type | Water-cooled, inline, 4-stroke, direct injection |
| prime power | 178.9 KW |
| intake type | turbocharged aftercooled |
| no.cylinders | 6 |
| bore × stroke | 105 × 135 MM |
| displacement | 7.01 L |
| 100% prime power fuel consumption | 45.8 L/H |
| alternator | |
|---|---|
| brand model | UCDI274H |
| prime power | 160 KW / 200 KVA |
| power efficiency | 88.50% |
| voltage regulation | ≤ ±1 |
| excitation type | brushless |
| insulation class | h |
| controller | |
|---|---|
| band | deepsea |
| model | DSE6120 |
| packaging | |
|---|---|
| dimension | 3000 × 1150 × 1750 MM |
| weight | 2100 KGS |
optional
When you take genset as backup power, you could choose this.
ATS
automatically start without human intervention required.
You should choose this option when the lowest temperature of the year in which the gensets are used is below 0 ℃.
preheater
helps start genset in low temperature.
If you don’t have specific needs for a controller brand, we would make our recommendations.
controller brand
to control all functions of genset.
You should choose this option if you need more convenient output for a genset below 30kw.
sockets
make genset output more convenient.
If you need to use genset for more than 8 hours a day, you should choose to increase the fuel tank of genset.
larger fuel tank
increase genset’s one-time use time.
If you require more convenient use of the fuel tank, you should choose this option.
separate fuel tank
replaces the bottom fuel tank and is more convenient to use
If the fuel you are using is not of good enough quality, you should choose this option.
fuel-water-separator
remove moisture from fuel and extend engine life
factory
overview
how we test the diesel gensets
We always get genuine and original engines from regular channels.
purchase engine
We always use the most sophisticated cutting instruments to cut sheet metal.
sheet metal cutting
The welding workers have 20+ years of experience and the welding points are flawless.
welding
Professional spray and baking booths are used to color the silent covers.
spray paint
Paste sound insulation cotton with a thickness greater than 3cm on the silent cover.
paste silent cotton
BISON brand brushless AC alternator is made by ourselves
alternator assembly
Connect engine and alternator.
semi finished genset
Establish a connection between the line and the controller.
install controller
Check whether the internal wiring is intact and working.
wiring
Assembling the silent cover after cutting and painting.
soundproof producing
Every genset would be tested in the testing center.
test center
Every genset would be tested for more than 30 minutes.
genset testing
Stick BISON or OEM logo lable.
stick logo
Packed with pearl cotton and stretch film.
packing
Loading is carried out by experienced forklift workers to ensure that every machine is in good condition.
loading
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our genset. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every genset you own is rigorously tested and carefully manufactured!
※ Warranty time: 2 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by the machine its quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new genset for free→We will give you a discount in your next order corresponding to the amount of the severely damaged genset.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new genset for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new genset for free firstly→We would compensate you in batches in future orders.
OEM Service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
