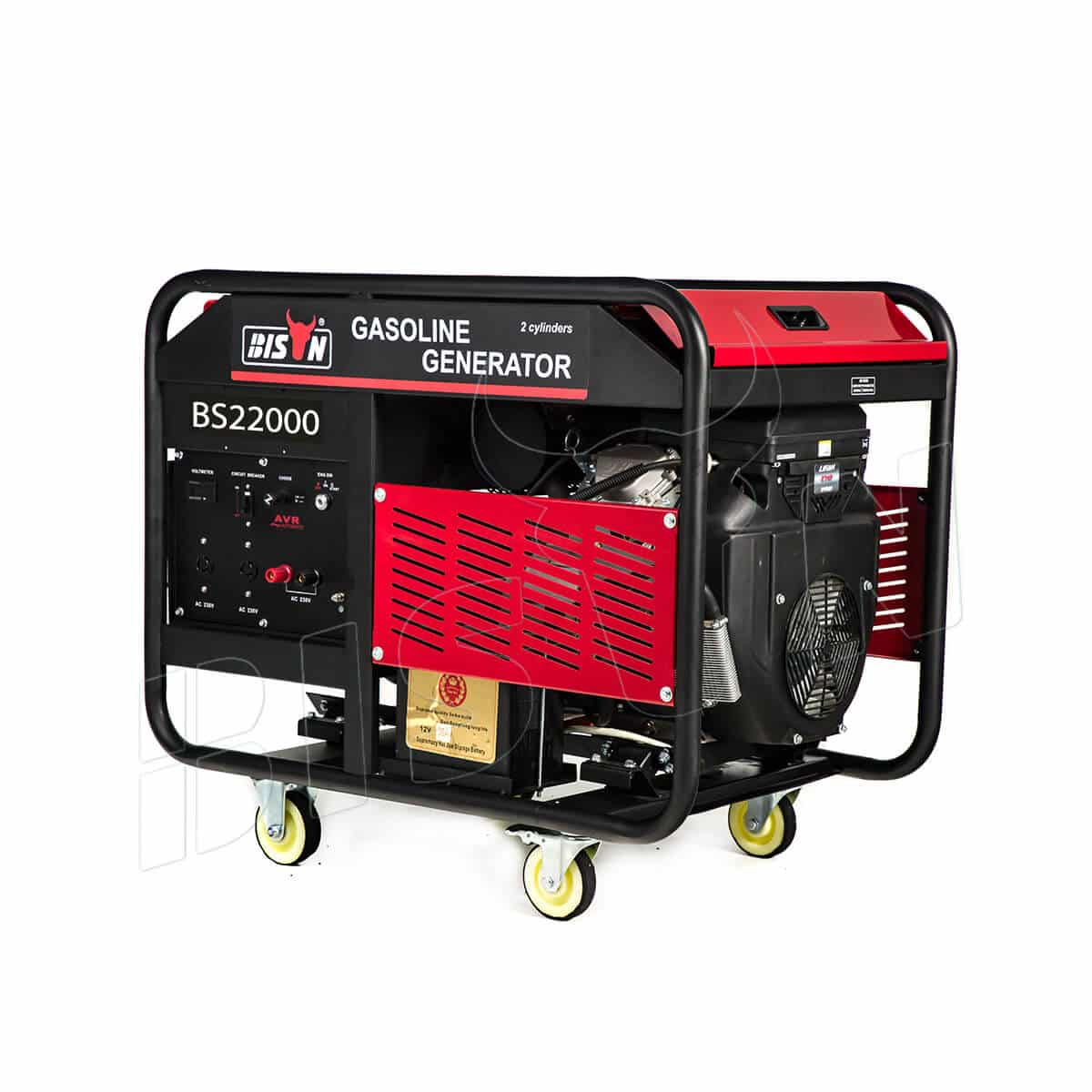

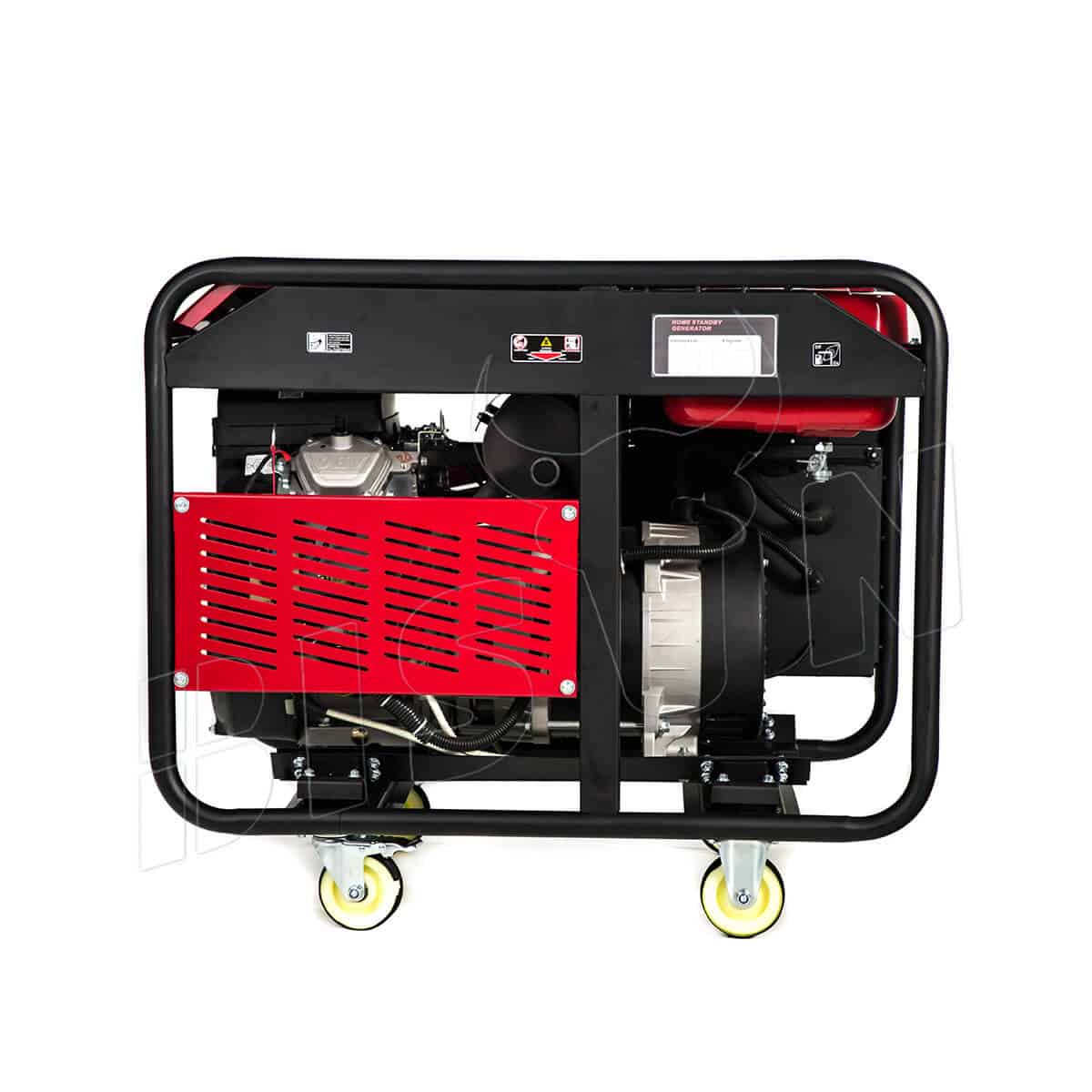

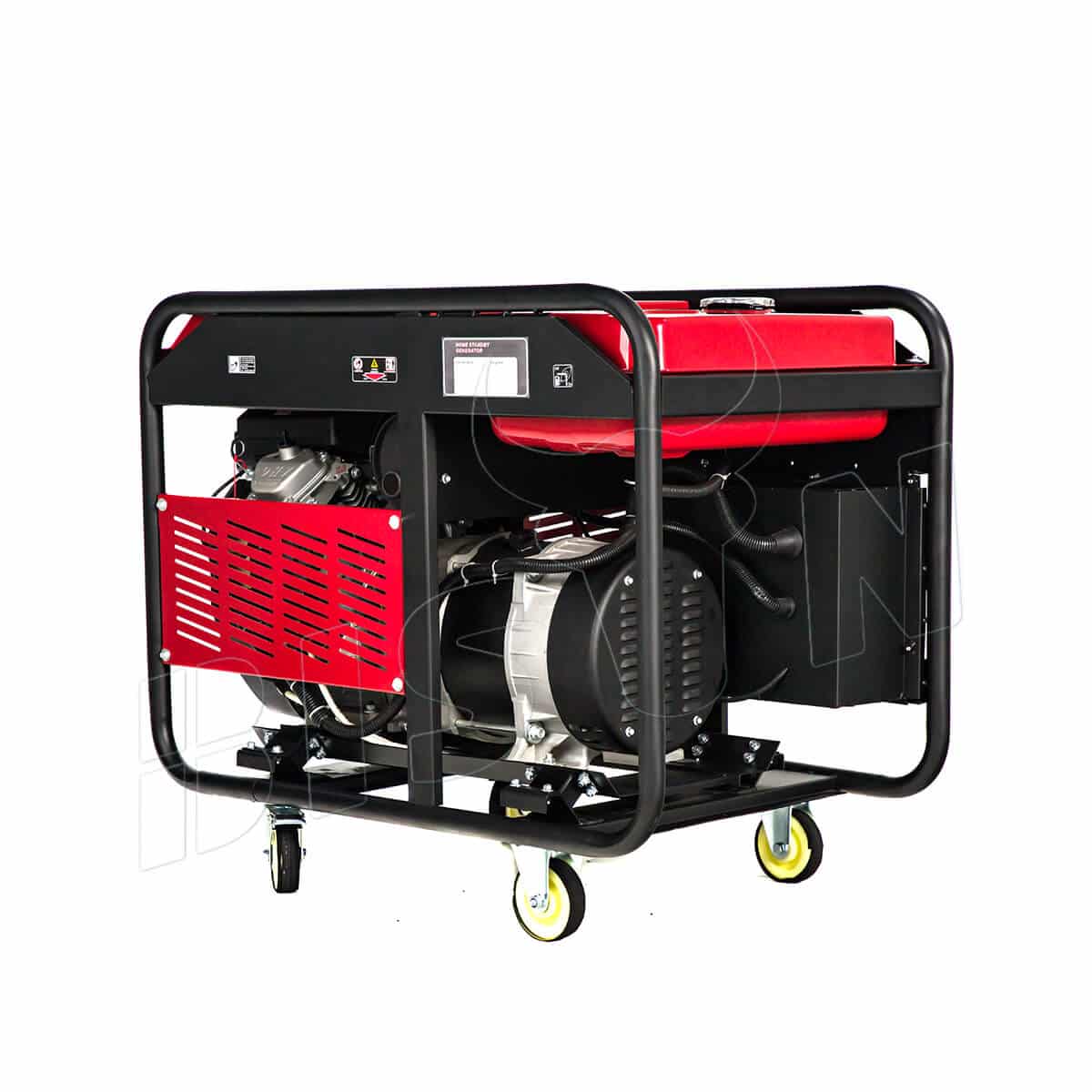

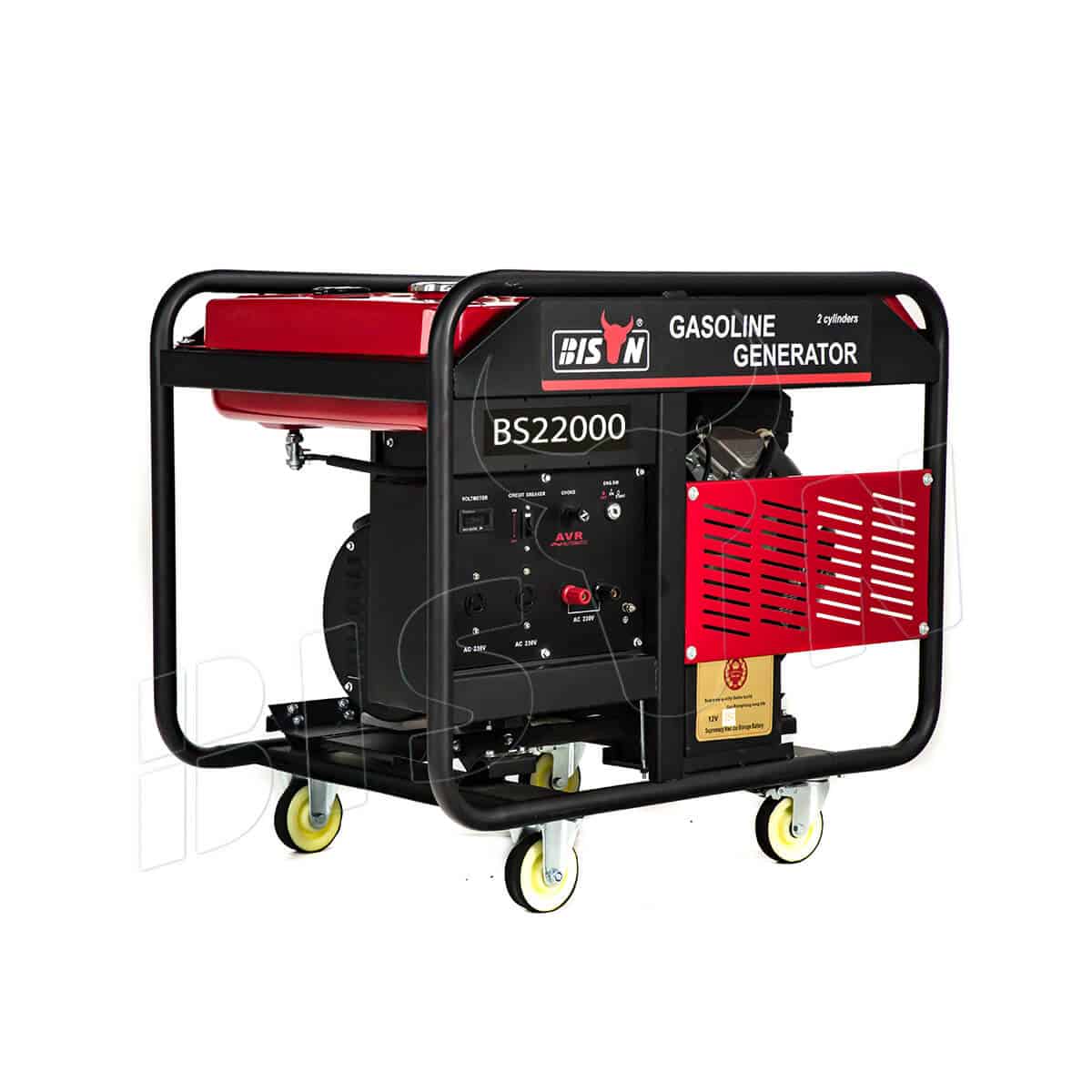

homepower generator – 16kw two-cylinder three-phase electric generator
/
model: BS22000
certificates:
TÜV rheinland
rohs compliant
epa

16kw two-cylinder three-phase electric generator

16000 watts
gasoline
commercial & industrial use
1 year warranty

within 25 days delivery time after receiving the deposit!

moq
BISON brand
20 SETS
OEM sticker
50 SETS
OEM carton
100 SETS

The BS22000 is an industrial-grade 16kw generator that delivers exceptional performance and ease of use for construction sites, industrial facilities and more.

Main features and advantages of 16kw two-cylinder three-phase generator:

  • Powerful 16 kw output: Provides enough power to operate multiple devices and power tools simultaneously.
  • Twin-cylinder engine: smooth operation and long service life.
  • electric start: Start your engine quickly and easily even in cold conditions.
  • Three-phase output: Ideal for powering three-phase motors commonly used in industry.
  • Wheels: Portable so the generator can be easily moved to different job sites.
video-background

features

two-cylinders-industrial-gasoline-generator

convenient electric start

BISON is a reputable petrol generator manufacturer dedicated to providing quality and reliable petrol generators. The BS22000 is able to withstand harsh application environments to ensure longevity and performance.

BISON two-cylinders electric generator has a solid structure. Engineered to extend service life and reduce downtime and maintenance costs.

From overload protection to low oil shutdown, the BS22000 prioritizes your operating conditions.

Two-cylinder powerhouse

The BS22000 three-phase electric generator is equipped with a powerful two-cylinder engine which enhances its durability and performance. Ensure smooth and efficient power transmission.

With its advanced design, the BISON 16kw three-phase generator ensures optimal performance, delivering consistent, reliable power to critical applications.

Remotely access key data and performance indicators and take control from anywhere with the BS22000’s remote monitoring capabilities.

13.5kw 2-cylinder power generator petrol-detail

specifications

output
rated power 15.0 KW
maximum power 16.5 KW
Phase single-phase / three-phases (optional)
AC voltage depends on your country’s voltage
single-phase AC amperage running power ÷ using voltage
three-phase AC amperage running power ÷ using voltage ÷ 1.3856
frequency 50 / 60 HZ
continuous operating time 4.5 h
engine & emission
engine type 4-stroke, OHV, air-cooled
engine model name R999
bore × stroke 2-90 × 78.5 MM (Two-Cylinders)
engine displacement 999 CC
engine speed 3000(50 Hz) / 3600(60 Hz) RPM
recoil start /
electric start yes
alternator
winding material 100% copper winding
power factor 1.0 (single-phase) / 0.8 (three-phase)
fuel system
fuel tank capacity 35 l
oil capacity 2.8 l
packaging
carton dimensions (no wheels & handles) 1020 × 680 × 910 MM
generator net weight 200 KGS
carton gross weight 212 KGS

optional

Wheels-&-handles

The open frame type gasoline generators above 5 kilowatts should choose this option.

wheels & handles

easy to move the generator

ELectric-&-remote-start

The open frame type gasoline generators above 5 kilowatts should choose this option.

electric & remote start

easy to start the generator

Digital-display

The customers who have high-end pursue of generator should choose this option.

digital display

easy to monitor the generator

Industrial-socket

The generators above 7 kilowatts or have three-phase voltage should choose this option.

industrial socket

power for industrial use

ATS

When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.

ATS

automatically start without human intervention required

factory

overview

how we test the gasoline generator

flywheel clearance

Ensure the engine better store energy and inertia.

flywheel clearance

Ensure the alternator could output current stably.

power debugging

fuel tank airtight

Ensure the stability and sealing of the fuel tank.

fuel tank airtight

motor air gap

Ensure the sealing of alternator is stable.

alternator air gap

cylinder head seal

Ensure the sealing of cylinder head is intact.

cylinder head seal

connecting rod torque

Ensure a stable connection between the connecting rod and crankshaft.

connecting rod torque

Ensure the cylinder head connection is stable.

cylinder head torque

box torque

Ensure the crankcase torque is correct and the same for each engine.

crankcase torque

Ensure the sealing of the engine is stable.

air tightness test

muffler tightening torque

Ensure the muffler connection is stable.

muffler tightening torque

comprehensive performance test

Ensure stable performance and output of the generator.

comprehensive performance test

pressure testing

Ensure the voltage of generator is stable.

voltage test

appearance final inspection

Ensure the generator has no cosmetic defects.

appearance final inspection

weighing check

Ensure we don’t miss any accessories in the carton.

weighing check

delivery-3

Well-packaged and ensure the safety of the generator.

packaging
