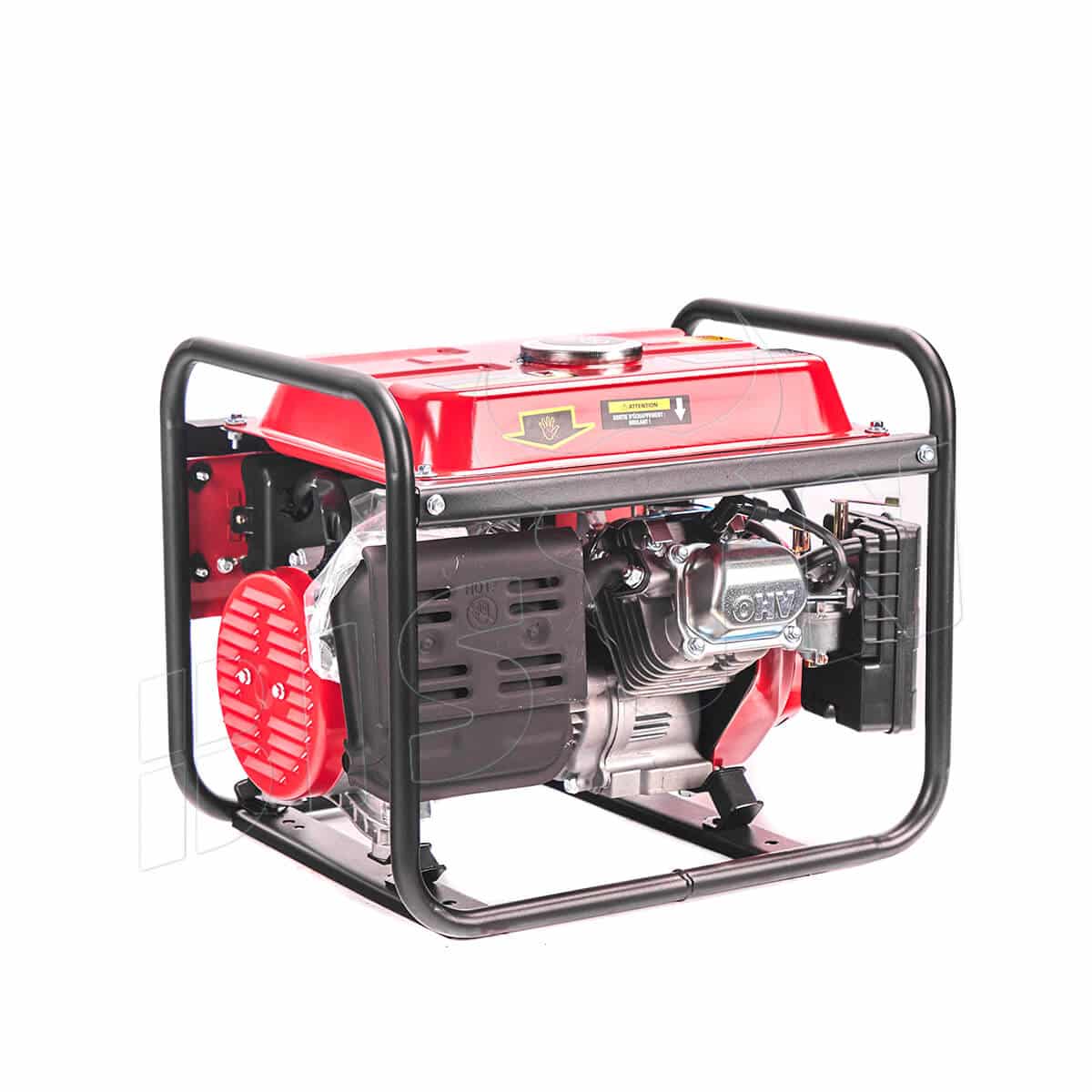

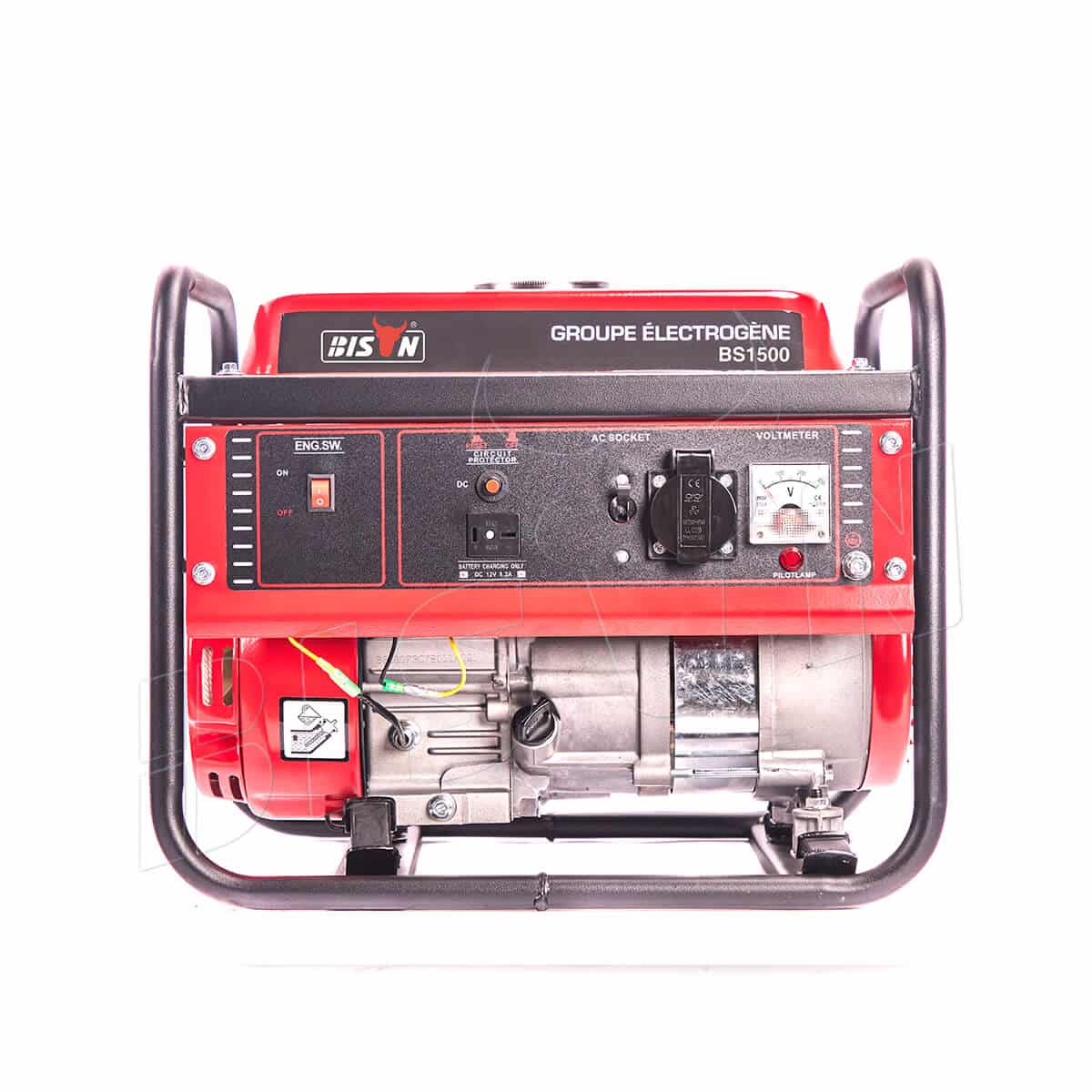

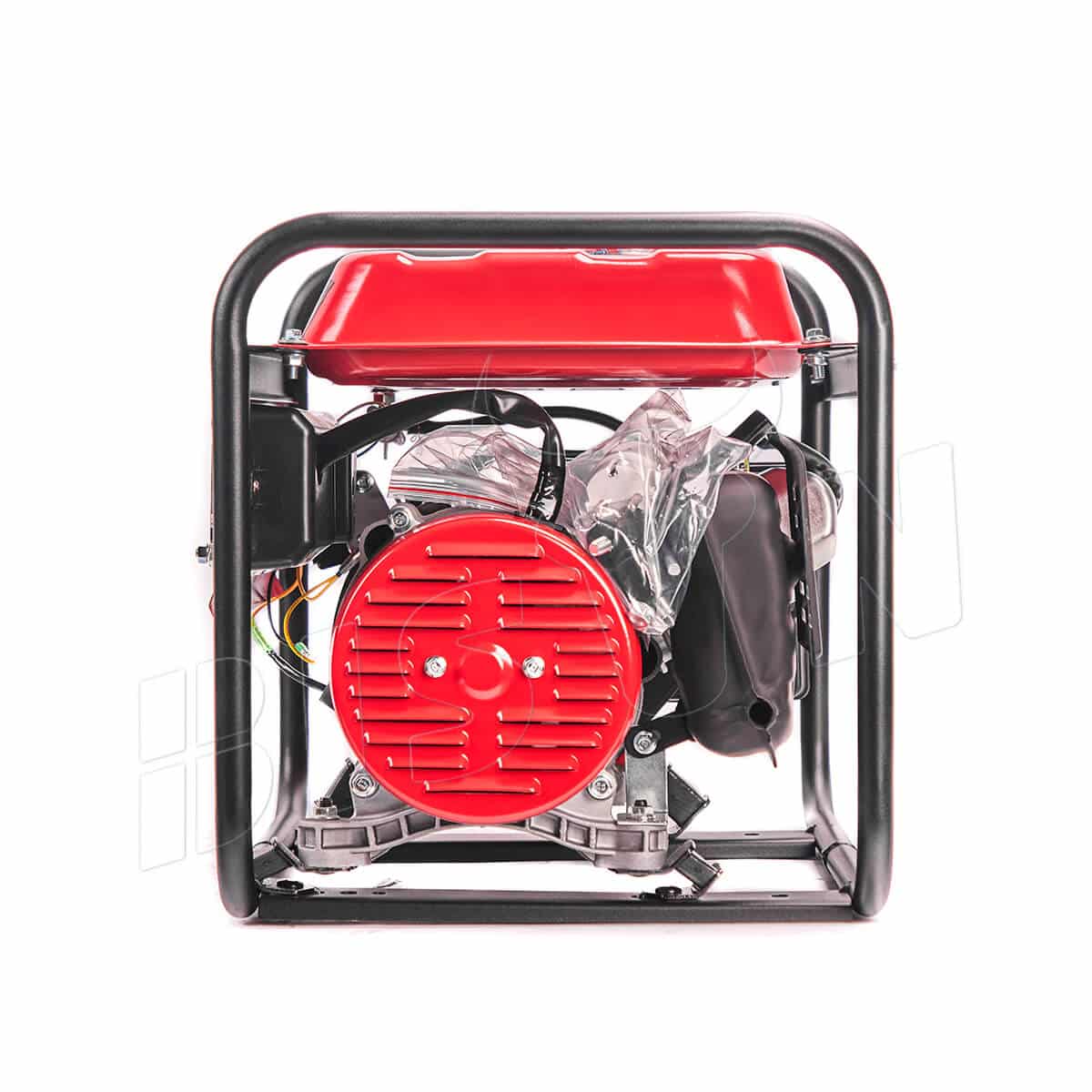

1kw small ohv gasoline generator
within 25 days delivery time after receiving the deposit！
The BISON 1kw small ohv petrol generator is a versatile and reliable petrol generator ideal for a variety of applications. Compact in size and quiet in operation, the BS1500H is ideal for homeowners, campers, RVers, construction professionals and anyone who needs portable power.
The BISON BS1500H is a compact and portable gasoline generator that is perfect for a variety of applications, including:
- Home backup power: Provide emergency power for essential appliances during a power outage.
- Camping and RVing: Power essential devices such as lights, refrigerators, and small appliances while off the grid.
- Tailgating and outdoor events: Keep your devices powered for tailgating, picnics, and other outdoor events.
- Construction and job sites: Provide portable power for tools and equipment on job sites.
features
compact and portable
BSION BS1500H 1kw small OHV petrol generator is powered by a reliable four-stroke OHV air-cooled engine that produces 1kW rated power and 1.5kW maximum power. The recoil start system is easy to start and features a 9.6L fuel tank for up to 10 hours of continuous operation at rated load.
Designed to simplify maintenance, the BS1500H has user-friendly features that make it easy to keep your generator in top condition.
BS1500H is highly fuel efficient and can run for up to 10 hours on a single tank of fuel.
powerful additional features
BISON petrol generators are synonymous with reliability and the BS1500H is no exception:
Single-phase or three-phase output (optional)
100% copper winding
Automatic voltage regulator (AVR), stable power output
Low oil level shutdown protection
Circuit breaker protection
The BS1500H operates at 58 dB, making it ideal for use in noise-sensitive areas.
BISON 1 kW small ohm petrol generator is easy to maintain, parts are readily available and the design is simple.
specifications
| output | |
|---|---|
| rated power | 1.2 KW |
| maximum power | 1.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 10 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS160F |
| bore × stroke | 60 × 40 MM |
| engine displacement | 210 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 9.6 l |
| oil capacity | 0.35 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 500 × 390 × 445 MM |
| generator net weight | 30 KGS |
| carton gross weight | 32 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the gasoline generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
