homepower generator – 230v 60hz gasoline electricity generator

/
model: BS6500EP
certificates:
TÜV rheinland
rohs compliant
epa

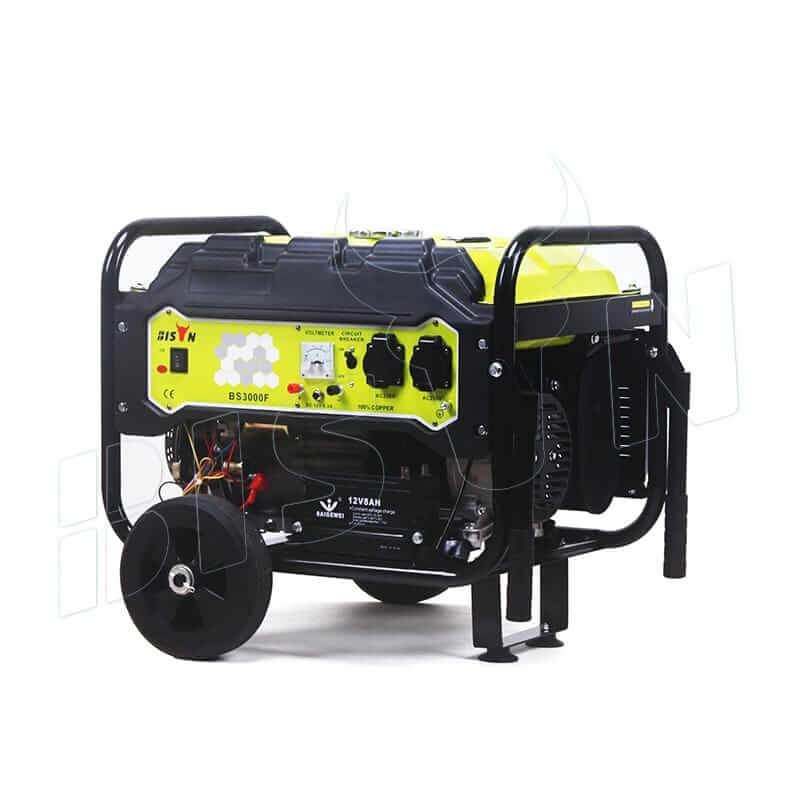

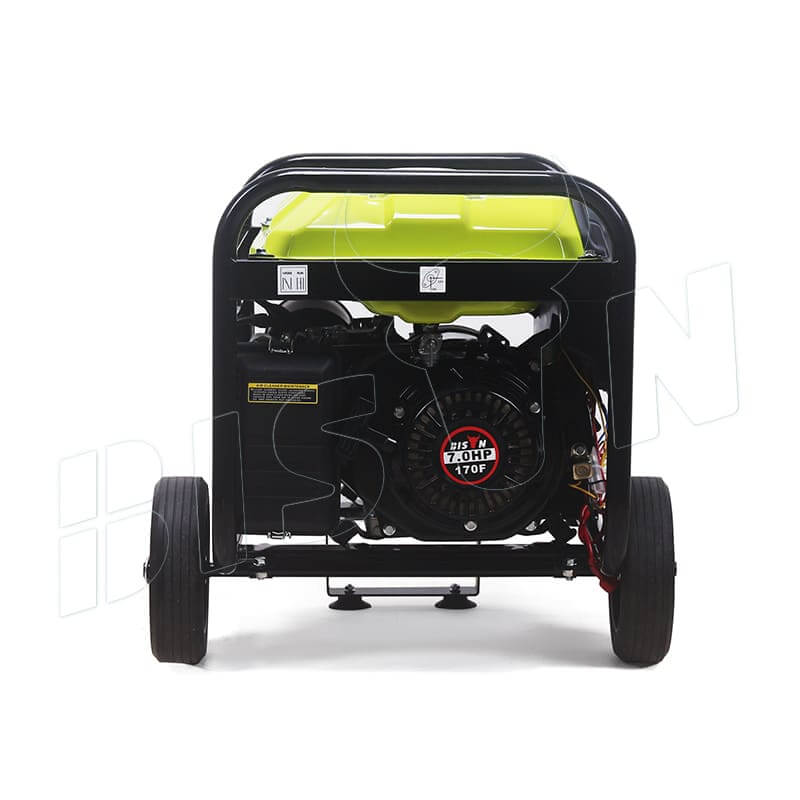

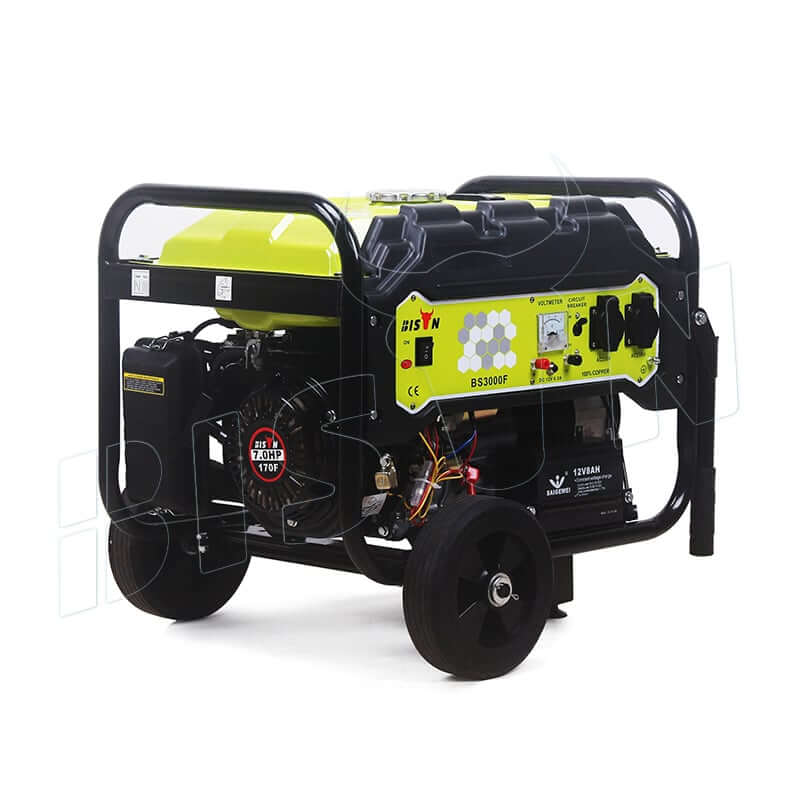

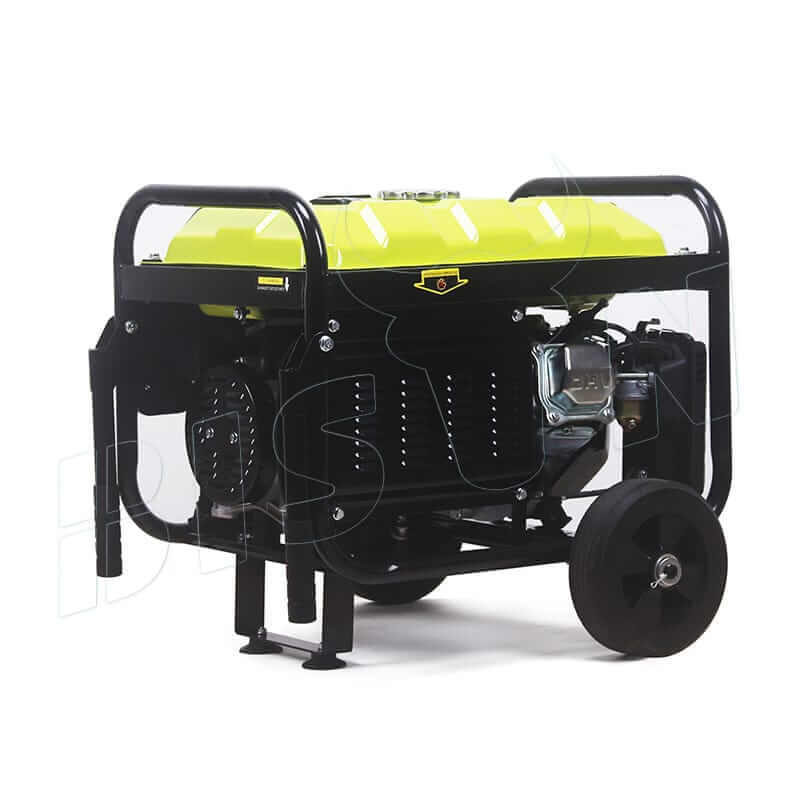

230v 60hz gasoline electricity generator

5500 watts
gasoline
power tools diy
1 year warranty

within 25 days delivery time after receiving the deposit!

moq
BISON brand
20 SETS
OEM sticker
50 SETS
OEM carton
100 SETS

The BISON 230v 60hz gasoline electricity generator is a high-performance gasoline generator built with a focus on quality, reliability and convenience, designed to meet the diverse needs of residential and commercial users.

Electric start/recoil start:

BS22000 offers the convenience of electric start and recoil start, ensuring an easy and reliable starting experience.

230V, 60Hz output:

The BISON 5000-watt gasoline generator has a stable 230V output and can adapt to a variety of appliances and tools, making it an ideal solution for a variety of applications. Operating at 60Hz ensures stable and reliable power flow, preventing interruptions in sensitive electronics.

Portability on wheels:

Sturdy wheels transform the BISON 60hz portable gasoline generator into a portable power source, allowing users to easily transport it to different locations.

features

8000 watt 18hp power petrol generator-detail

robust engine performance

The BS22000 is designed to maximize power output while minimizing fuel consumption, making it a cost-effective solution for the end user.

The BS22000 is powered by the powerful BS190F four-stroke engine, delivering consistent and reliable performance.

Its intelligent design ensures optimal fuel combustion, resulting in lower fuel costs and greener operation.

advanced safety features

What sets BISON gasoline generator supplier generators apart is their unwavering reliability. No more worrying about power interruptions, it seamlessly steps in to make sure your world runs smoothly.

Safety is a top priority, including features like AVR to protect connected devices from voltage fluctuations.

BISON 230v petrol generators incorporate advanced noise reduction technology, which reduces operating noise levels.

always use the Original spare parts​

specifications

output
rated power 5.0 KW
maximum power 5.5 KW
Phase single-phase / three-phases (optional)
AC voltage depends on your country’s voltage
single-phase AC amperage running power ÷ using voltage
three-phase AC amperage running power ÷ using voltage ÷ 1.3856
frequency 50 / 60 HZ
continuous operating time 9.5 h
engine & emission
engine type 4-stroke, OHV, air-cooled
engine model name BS190F
bore × stroke 90 × 66 MM
engine displacement 420 CC
engine speed 3000(50 Hz) / 3600(60 Hz) RPM
recoil start yes
electric start optional
alternator
winding material 100% copper winding
power factor 1.0 (single-phase) / 0.8 (three-phase)
fuel system
fuel tank capacity 25 l
oil capacity 1.1 l
packaging
carton dimensions (no wheels & handles) 690 × 530 × 555 MM
generator net weight 75 KGS
carton gross weight 82 KGS

optional

Wheels-&-handles

The open frame type gasoline generators above 5 kilowatts should choose this option.

wheels & handles

easy to move the generator

ELectric-&-remote-start

The open frame type gasoline generators above 5 kilowatts should choose this option.

electric & remote start

easy to start the generator

Digital-display

The customers who have high-end pursue of generator should choose this option.

digital display

easy to monitor the generator

Industrial-socket

The generators above 7 kilowatts or have three-phase voltage should choose this option.

industrial socket

power for industrial use

ATS

When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.

ATS

automatically start without human intervention required

factory

overview

how we test the gasoline generator

flywheel clearance

Ensure the engine better store energy and inertia.

flywheel clearance

Ensure the alternator could output current stably.

power debugging

fuel tank airtight

Ensure the stability and sealing of the fuel tank.

fuel tank airtight

motor air gap

Ensure the sealing of alternator is stable.

alternator air gap

cylinder head seal

Ensure the sealing of cylinder head is intact.

cylinder head seal

connecting rod torque

Ensure a stable connection between the connecting rod and crankshaft.

connecting rod torque

Ensure the cylinder head connection is stable.

cylinder head torque

box torque

Ensure the crankcase torque is correct and the same for each engine.

crankcase torque

Ensure the sealing of the engine is stable.

air tightness test

muffler tightening torque

Ensure the muffler connection is stable.

muffler tightening torque

comprehensive performance test

Ensure stable performance and output of the generator.

comprehensive performance test

pressure testing

Ensure the voltage of generator is stable.

voltage test

appearance final inspection

Ensure the generator has no cosmetic defects.

appearance final inspection

weighing check

Ensure we don’t miss any accessories in the carton.

weighing check

delivery-3

Well-packaged and ensure the safety of the generator.

packaging

support

warranty

※  Our commitment:

Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!

※  Warranty time: 1 year after B/L date.

※  Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.

※  How we fulfill our warranty:

Situation 1  Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.

Situation 2  Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.

Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.

Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.

OEM Service

※  Design team size: 10 designers.

※  What can we design for you: sticker, carton, logo, poster…

※  Design time required after receving your deposit

Sticker desgin: within 2 days

Carton desgin: within 2 days

Logo: within 1 day

Poster: within 1 week

……

documents

enquire today

Speak with our sales manager today for additional information or an obligation-free quote.
