50hz ac single phase portable petrol generator
within 25 days delivery time after receiving the deposit！

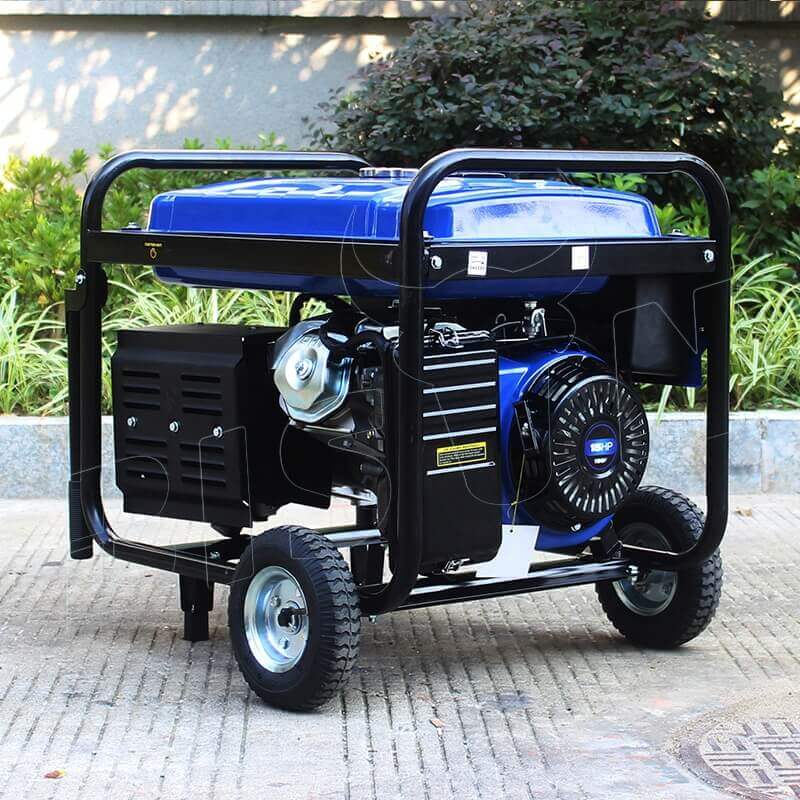

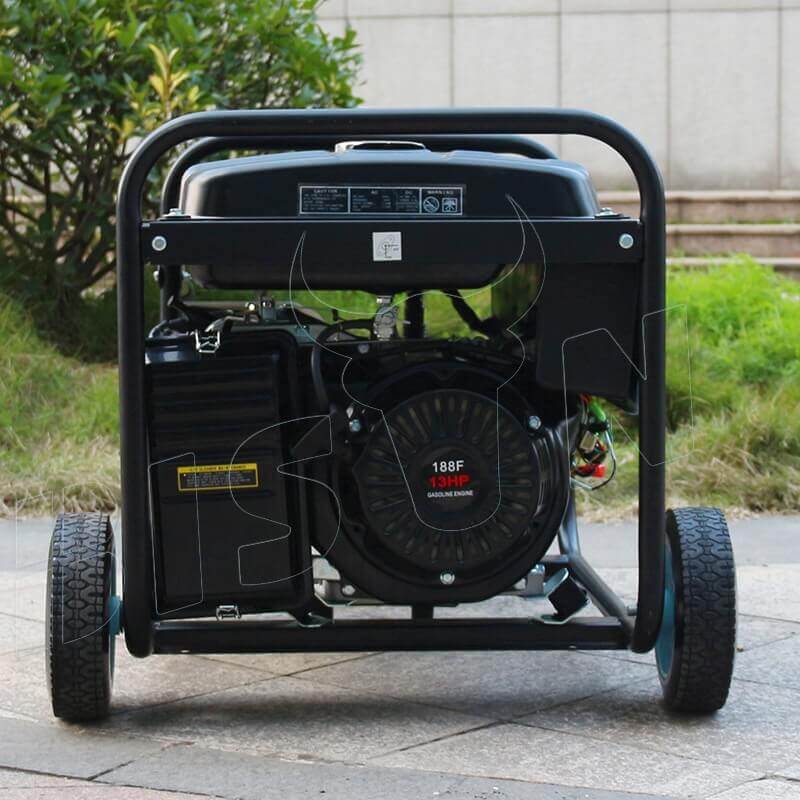

The BISON 50 Hz AC Single Phase Portable Petrol Generator is ideal for a variety of applications including home backup power, construction sites and events. The BS8500D is a 50 Hz generator, which is the standard frequency in many countries around the world, including Asia, Africa and Europe.
Here are some of the key features and benefits of the BS8500D:
Powerful 13-horsepower engine: The 50 Hz AC single-phase petrol generator is powered by a reliable 13-horsepower engine that delivers up to 7.5 kilowatts of continuous power. This is enough to power a wide range of appliances and equipment, including refrigerators, freezers, sump pumps and power tools.
Single-phase output: The BS8500D is a single-phase generator, which means it can power a single circuit. This is the most common type of household generator.
Recoil start: The 7.5 kW portable generator has a recoil start feature for easy starting. Simply pull the power cord to start the generator.
50Hz frequency: The BS8500D single-phase alternator operates at 50Hz, which is the standard frequency in many countries around the world. This makes it a versatile choice for international dealers.
features
13HP engine
BISON’s 7.5 kW single-phase petrol generators provide a reliable power solution for your business!
The 50 Hz AC single-phase portable generator is backed by BISON’s commitment to quality to ensure long-lasting performance.
With 50Hz frequency and single-phase operation, the BS8500D is capable of meeting a variety of market demands.
single phase power supply
Choose the BISON BS8500D AC single-phase portable petrol generator to upgrade your product and meet the growing market demand.
The BISON 7500w alternator is tailored to meet the specific needs of applications requiring single phase power, ensuring efficient energy distribution.
With a powerful 7.5 kW output, the BS8500D handles heavy tasks effortlessly, delivering consistent and efficient performance.
specifications
| output | |
|---|---|
| rated power | 7.0 KW |
| maximum power | 7.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 7 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS168F-1 |
| bore × stroke | 68 × 45 MM |
| engine displacement | 196 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 15 l |
| oil capacity | 0.6 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 605 × 440 × 440 MM |
| generator net weight | 35 KGS |
| carton gross weight | 37 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.

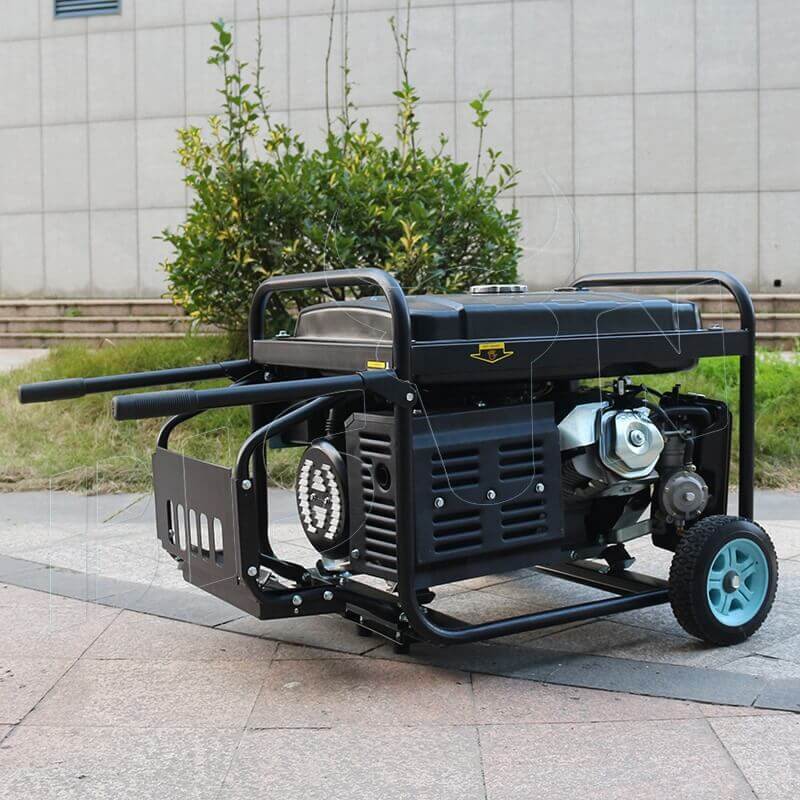

wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the gasoline generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
OEM Service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receving your deposit
Sticker desgin: within 2 days
Carton desgin: within 2 days
Logo: within 1 day
Poster: within 1 week
……
