home – power generator – open type 6kw three-phase diesel generator
model: BS7500DCE

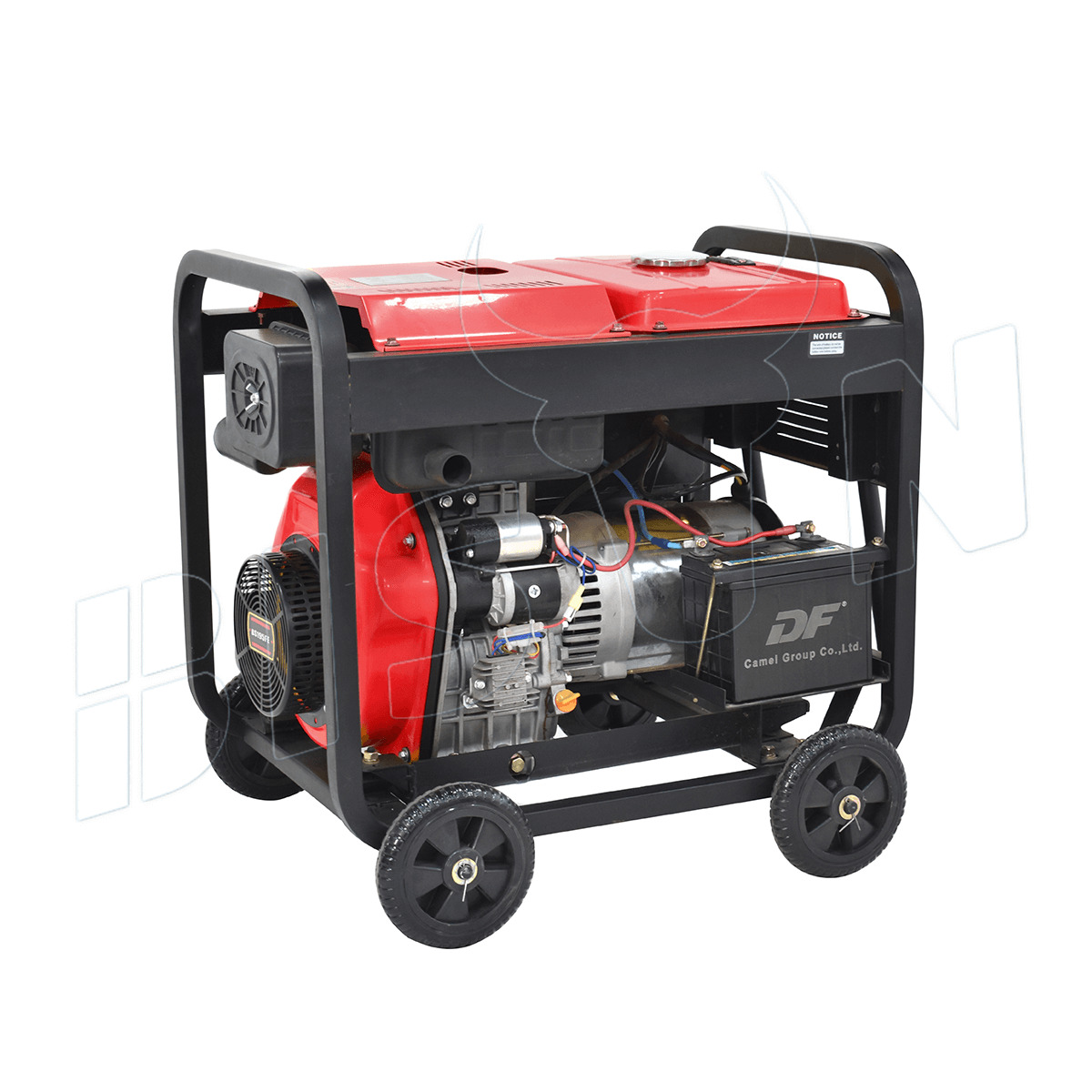

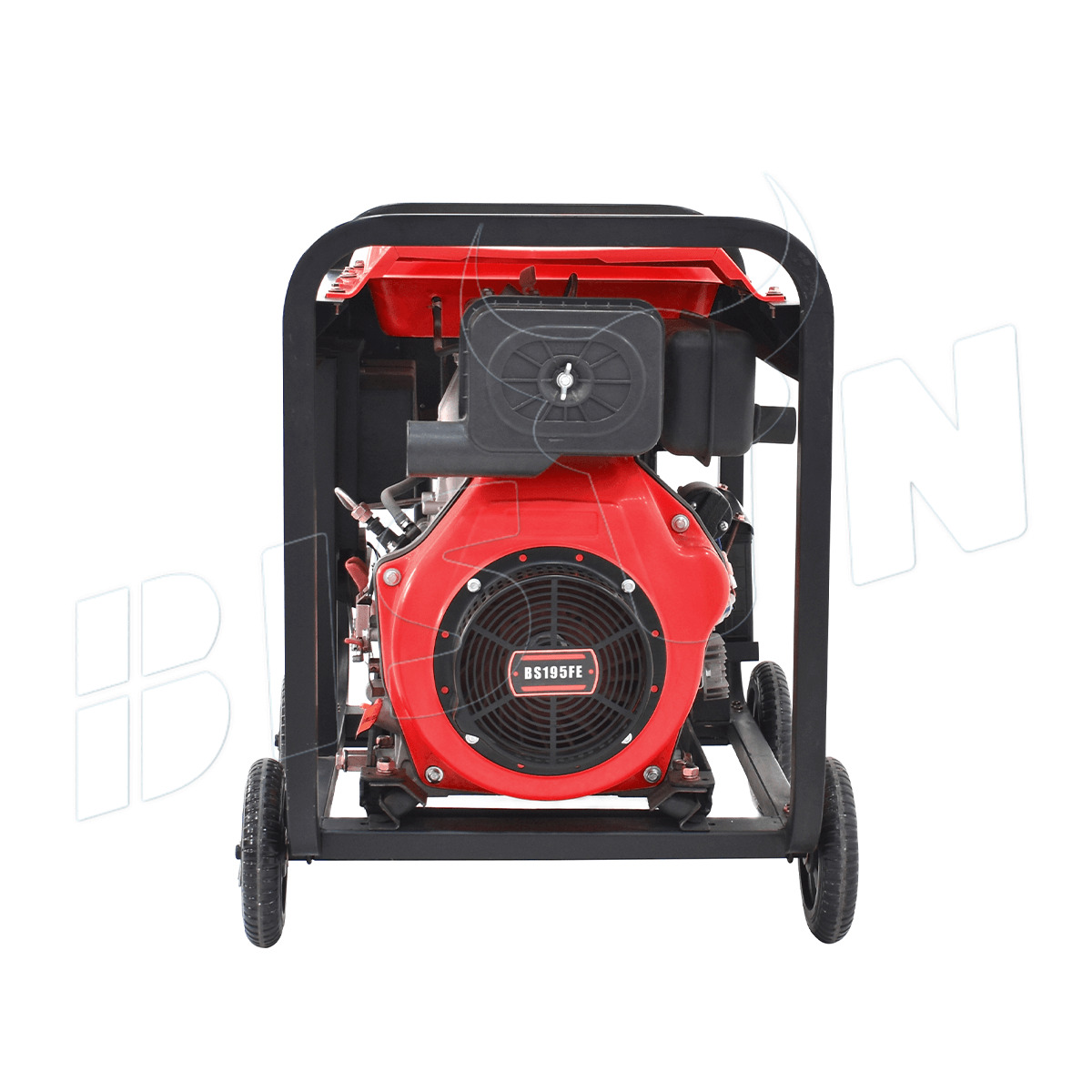

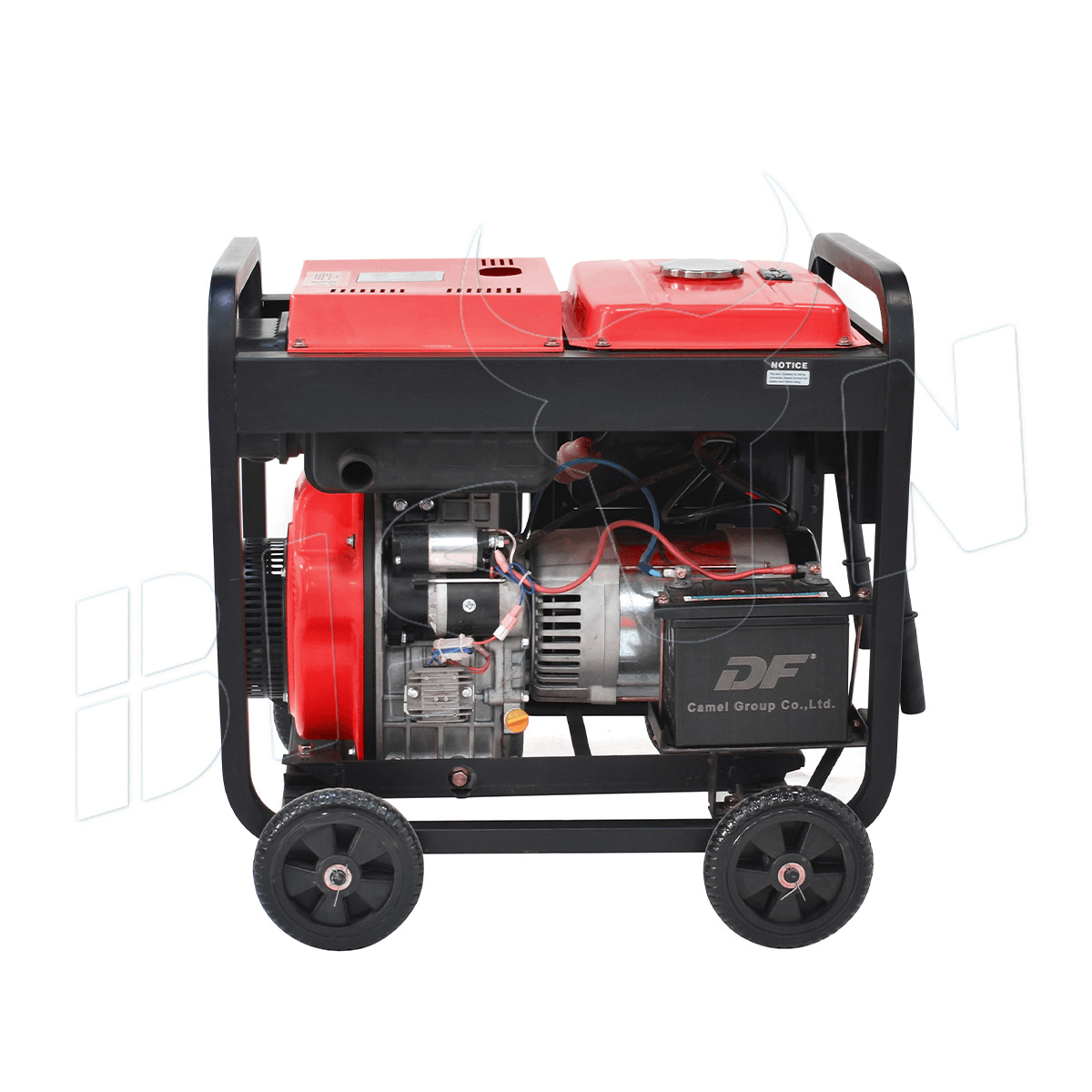

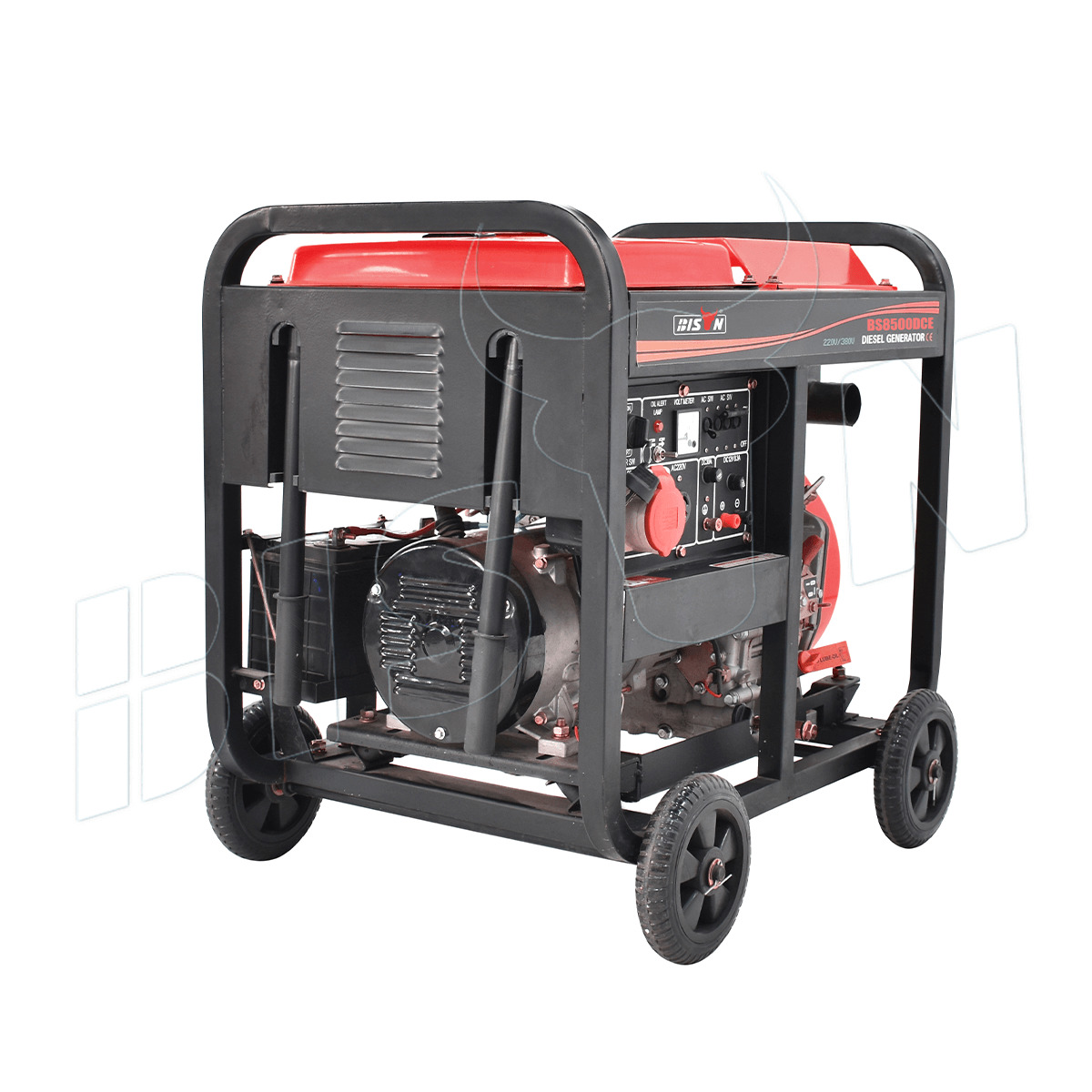

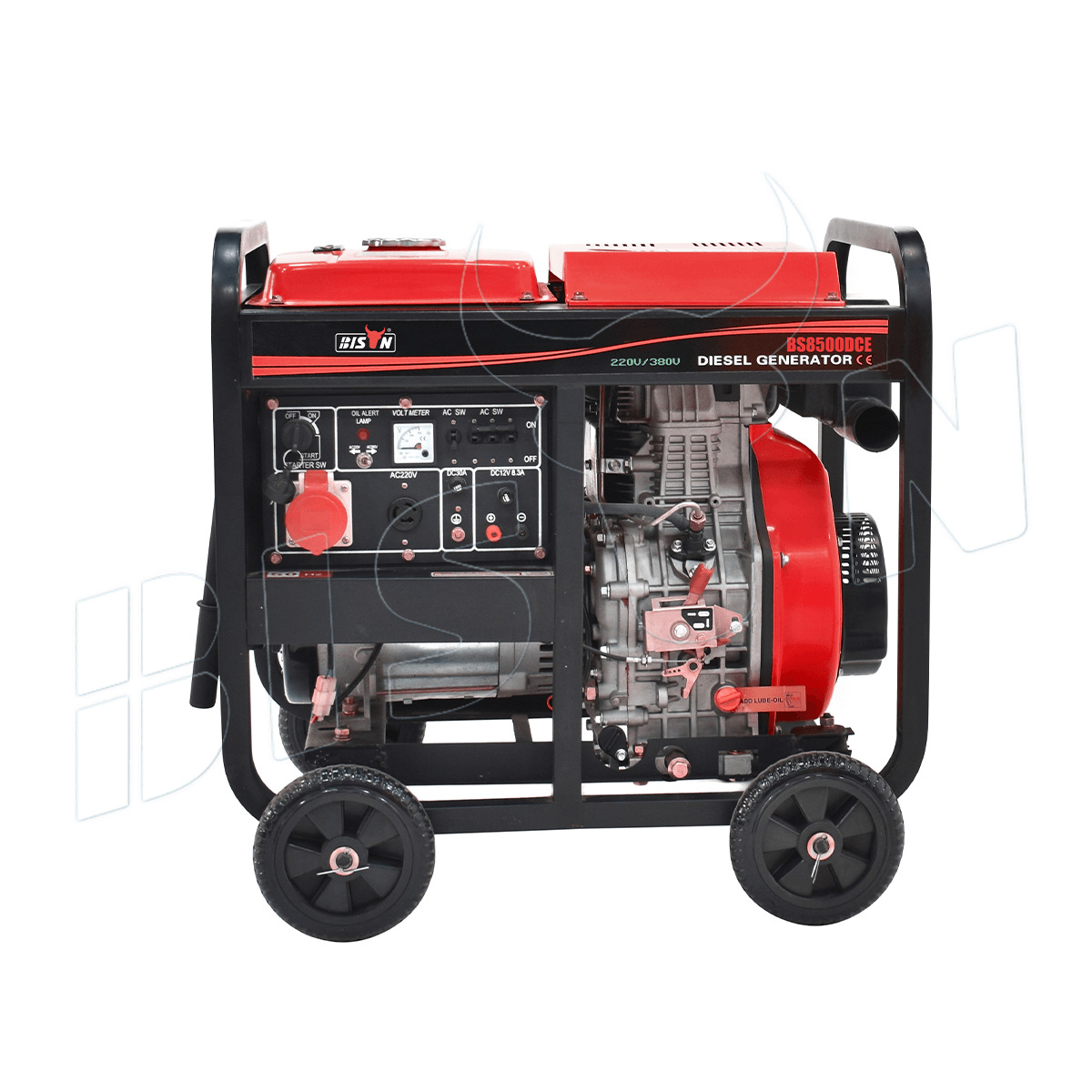

open type 6kw three-phase diesel generator
within 25 days delivery time after receiving the deposit！
BISON open type 6kw diesel generator is designed keeping in mind the stringent requirements of modern engineering. Its open design allows ventilation from all sides, ensuring essential cooling which leads to high-efficiency and longevity of the machine. This makes BS7500DCE perfect for regions with high temperatures or those requiring continuous and long-term operation.
BISON believe that power output is crucial for our dealers and your customers. With a capacity of 6kw, this BS7500DCE unit is highly versatile; it is the ideal balance between power and size, making three-phase diesel generator suitable for both residential and commercial applications including small businesses, construction sites, rural farms, and emergency backup.
The three-phase power output ensures a more steady, balanced and powerful performance, accommodating more advanced and bigger electrical equipment. At the same time, our new BISON 6kw diesel generator maintains a compact profile for easy transportation and storage, as well as quick installation.
features
legendary performance
As a trustworthy manufacturer of diesel generators, BISON carefully builds open type three-phase diesel generators to provide industry-leading efficiency.
Our open type diesel generator adheres to the stringent safety standards set by the industry, thus ensuring the safety of the operator. Its inherent three-phase design further warrants smooth and consistent power output, reducing the risk of power fluctuations or surges.
Ready to Stock Up?
Contact your BISON representative today to learn more about the BS7500DCE generator and how it can boost your sales!
As a BISON diesel generator dealer, you are our valued partner. As such, you and your customers are guaranteed comprehensive after-sales support, including product warranty and routine maintenance.
specifications
| output | |
|---|---|
| rated power | 6.0 KW |
| maximum power | 6.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 5.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS168F-1 |
| bore × stroke | 68 × 45 MM |
| engine displacement | 196 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 15 l |
| oil capacity | 0.6 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 605 × 440 × 440 MM |
| generator net weight | 35 KGS |
| carton gross weight | 37 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
If the winter temperature in your area is below 0 ℃, you should choose this option.
glow plug
help to start in low temperature
factory
overview
how we test the gasoline generator
Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.
camshaft test
Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.
cylinder head test
The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.
oil quality testing
Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.
cylinder test
Crankcase has a oil leakage test to ensure that there is no oil leakage problem.
crankcase seal test
Ensure bearing sealing and no oil leakage
bearing seal test
Makes the surface of spare parts smoother and reduces wear.
honing parts
Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.
precision boring process
Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.
torque test
Make sure the engine is running normally and stably without any abnormal noise.
engine test
After the engine test, clean the internal residue to reduce the damage of the parts.
residue cleaning
Ensure the sealing of alternator is stable.
alternator air gap
After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.
alternator 100% test
Make sure the generator can operate properly in low temperature conditions.
low temperature test
Well-packaged and ensure the safety of the generator.
packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
OEM service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
agent service
※ How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.
※ What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……
※ At the same time, enjoy the supreme VIP warranty experience and service!
customs services
※ We can find the cheapest sea shipping price for you.
※ We can find a local customs clearance agent for you.
※ In some special cases, we can save you import tariff costs.
