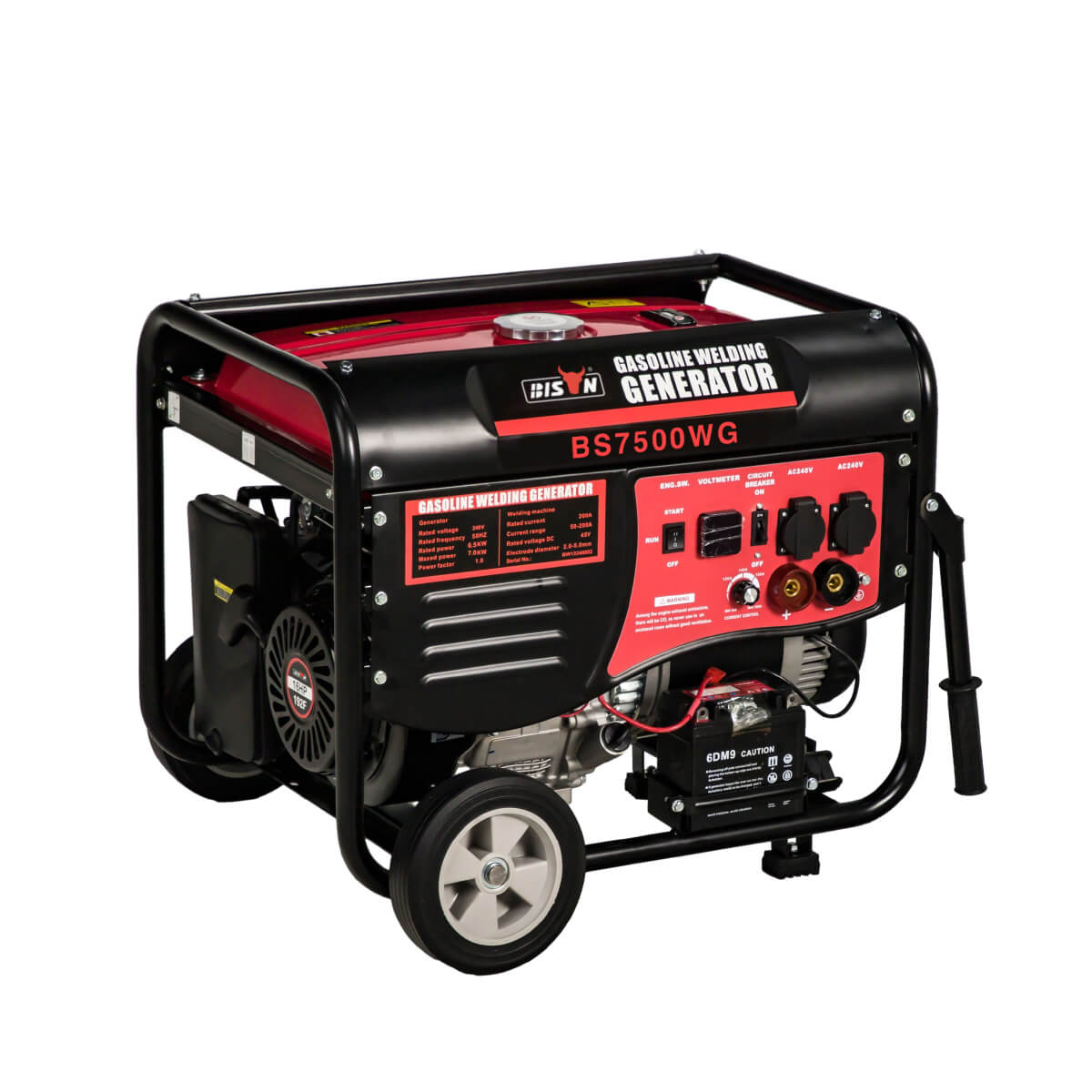

model: BS7500WG

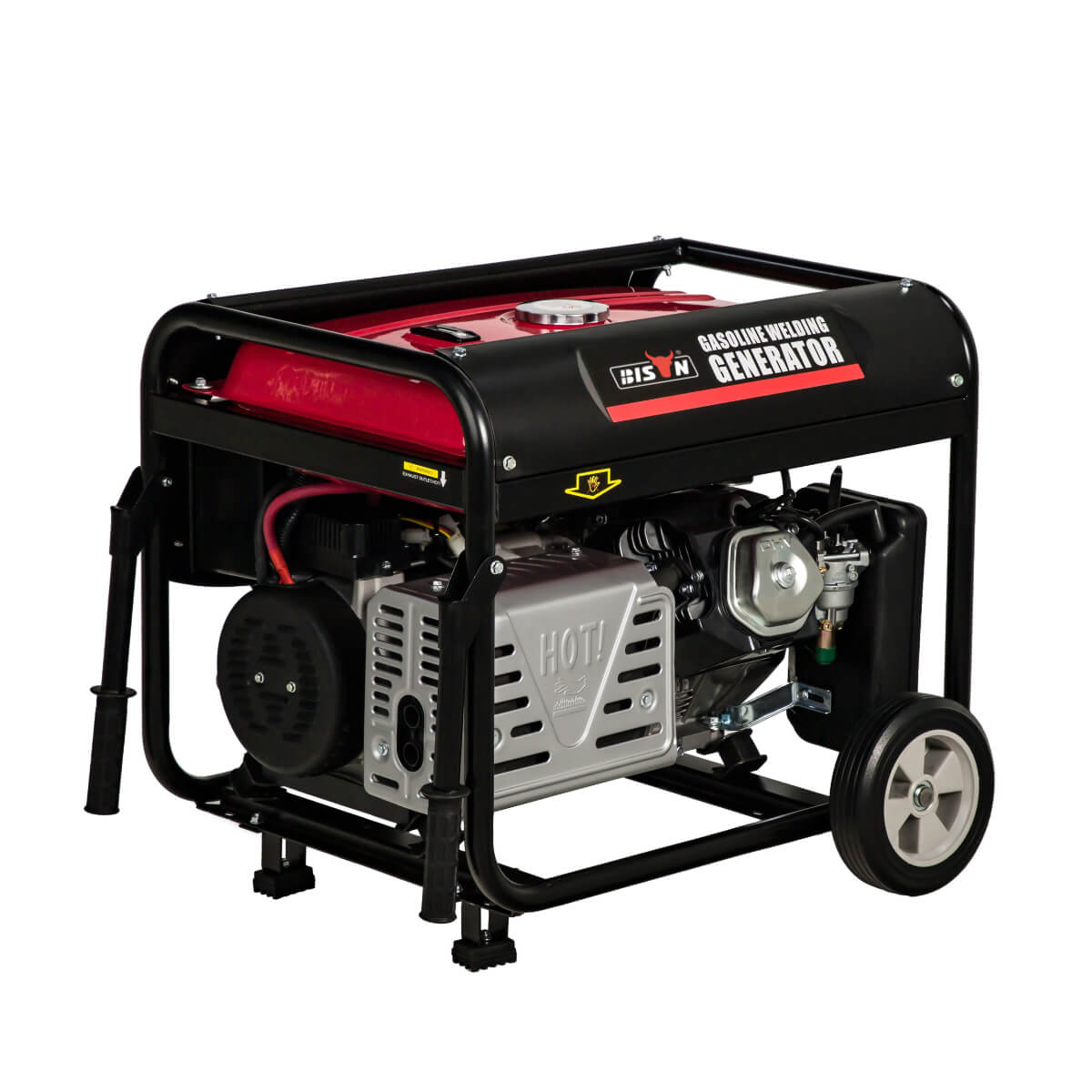

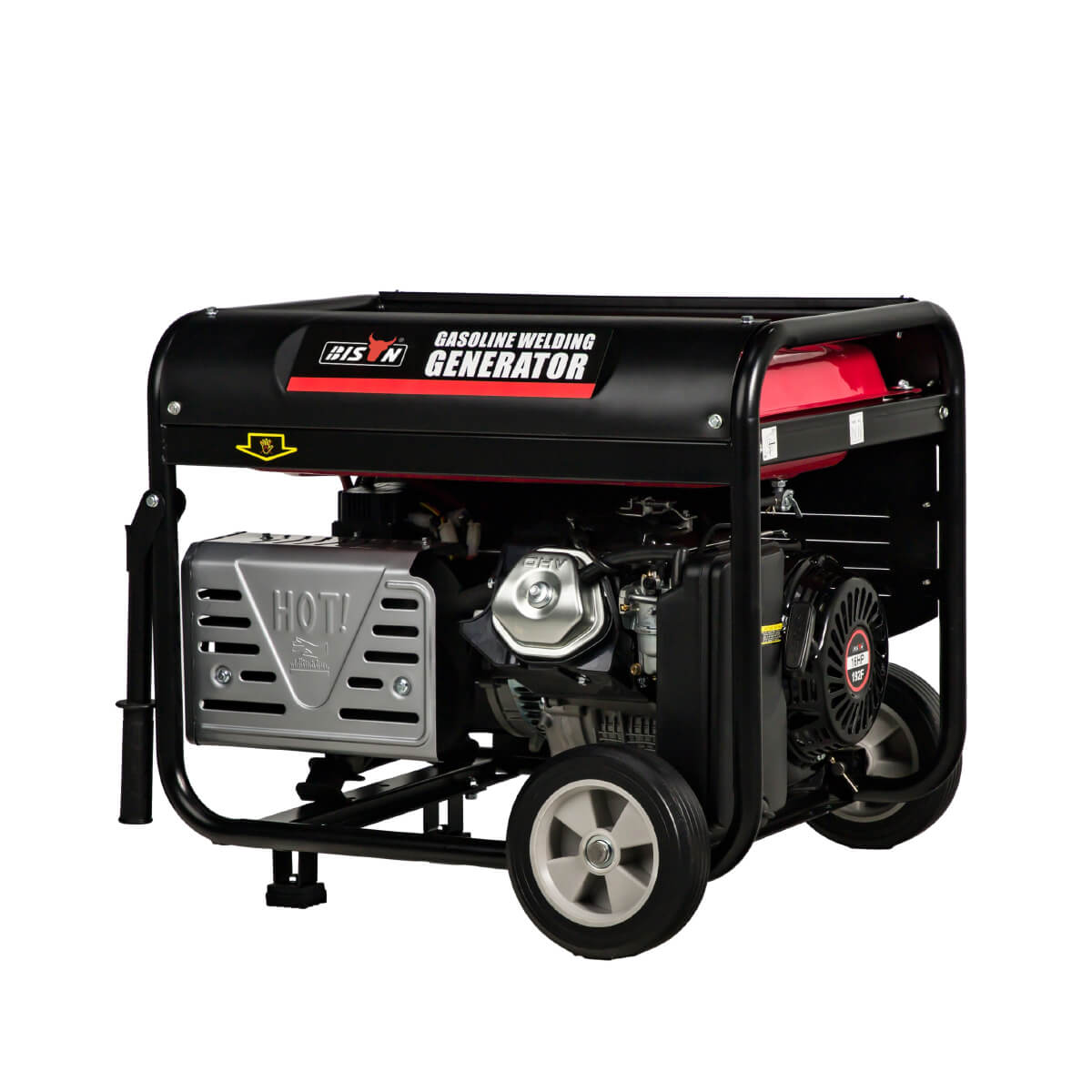

portable 7kw gasoline welder generator
within 25 days delivery time after receiving the deposit！
BISON is a professional generator supplier, providing BS7500WG, a reliable portable 7kw gasoline welder generator that meets the needs of portable carrying.
No need to worry about quality control – every machine produced in the BISON factory undergoes strict quality control to ensure durability and reliability, and this applies to the portable gasoline welder generator as well!
features
Excellent practical performance
The portable gasoline welder generator provides 7 kilowatts (kw) of power and is powered by gasoline, making it easy to handle intensive workloads. This equipment is commonly used in construction, repair, maintenance, and industrial applications, offering both electricity for tools and welding capabilities in a compact, portable design.
With a weld-rated current range of 50-200a, the 7kw gasoline welder generator handles professional welding tasks while meeting international emission standards for cleaner operation.
- Weighing 89 kg, its compact structure and rugged construction make it easy to transport to narrow job sites.
Running at 3000 rpm (50hz) or 3600 rpm (60hz) ensures efficient fuel consumption and stable output.
- For ultimate reliability, the BS7500WG is equipped with both recoil and electric start options, making ignition quick and hassle-free.
specifications
| OUTPUT | |
| Rated Power | 6.5 KW |
| Maximum Power | 7.0 KW |
| Phase | Single-Phase |
| AC Voltage | Depends On Your Country’s Voltage |
| Single-Phase AC Amperage | Running Power ÷ Using Voltage |
| Rated Welding Current | 50-200A |
| Frequency | 50 / 60 HZ |
| 100% Load Continuous Operating Time | 11.0 H |
| ENGINE & EMISSION | |
| Engine Type | 1-Cylinder, 4-Stroke, Air-cooled, Veritical |
| Engine Model Name | BS192F |
| Bore × Stroke | 92 × 69 MM |
| Engine Displacement | 439 CC |
| Engine Speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| Recoil Start | Yes |
| Electric Start | Yes |
| ALTERNATOR | |
| Winding Material | 100% Copper Winding |
| Power Factor | 1.0 (Single-Phase) |
| FUEL SYSTEM | |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 25 L |
| Oil Capacity | 1.1 L |
| PACKAGING | |
| Carton Dimensions | 720 × 550 × 560 MM |
| Generator Net Weight | 89 KGS |
| Carton Gross Weight | 91 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the welder generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
