air cooled remote start gasoline generator
within 25 days delivery time after receiving the deposit！

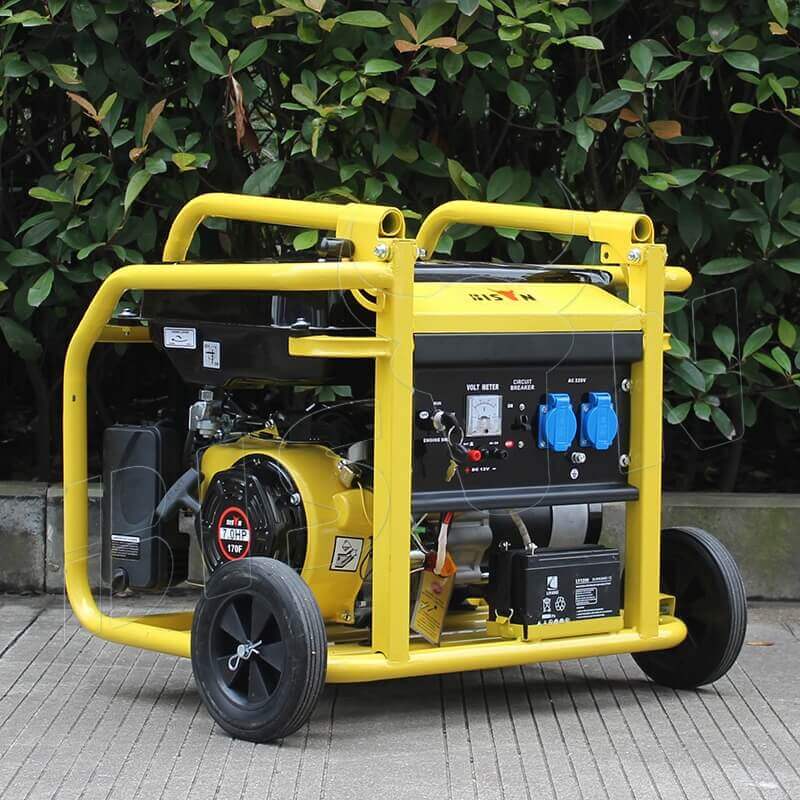

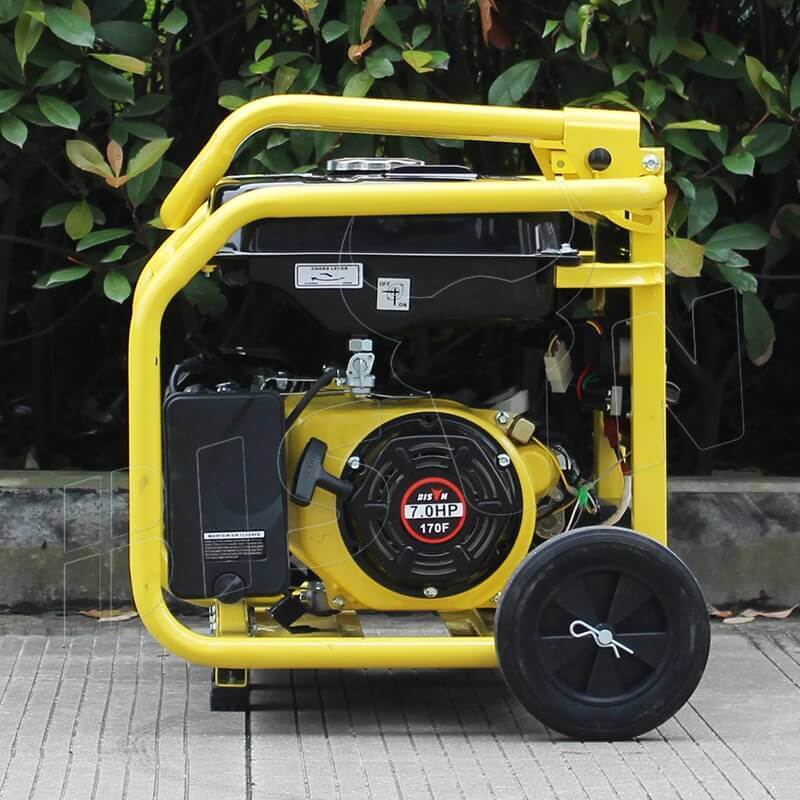

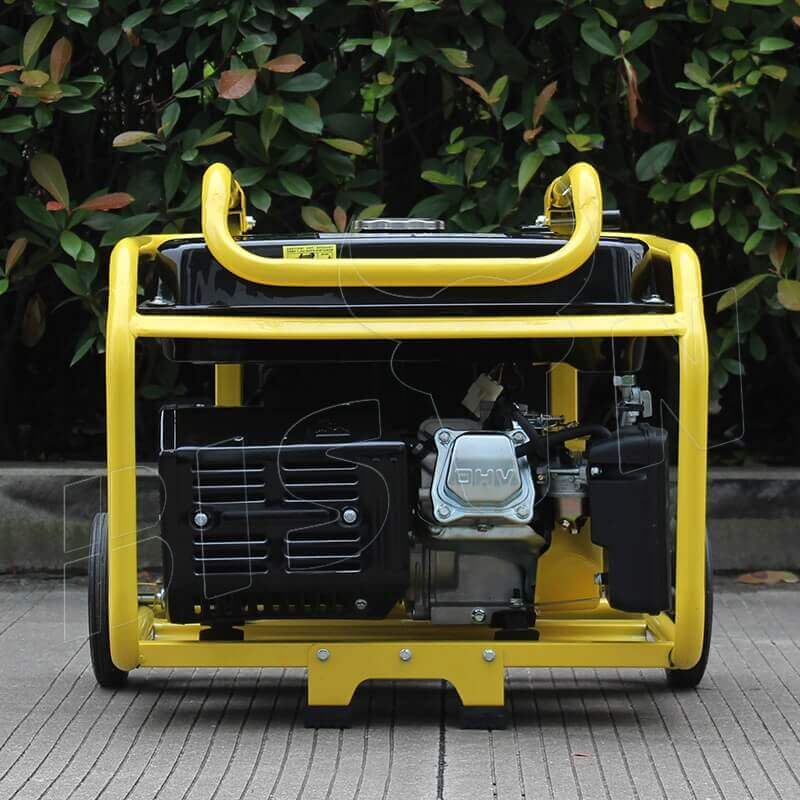

The BISON BS9500SM is a durable and reliable 7.5kw recoil-start petrol generator that is easy to use and maintain, providing plenty of power for a wide range of appliances and tools.
Additional features of the air cooled remote start gasoline generator include:
- 25 liter fuel tank for extended runtime
- 1.1 liter oil capacity
- Single-phase or three-phase output (optional)
- 50/60 Hz frequency
- 6.5 hours of continuous operation at rated load
features
Remote start and recoil start
The 7.5kw portable petrol generator also comes with a recoil start option. In situations where remote start is not feasible, traditional recoil start ensures that you do not lose power. This dual-start feature allows the BS9500SM to adapt to a variety of situations.
Compared to water-cooled generators, air-cooled generators are lighter in weight, more compact and easier to transport and store. Maintenance costs are also lower.
The BS9500SM can be remotely started using a key fob, making it easy to start the generator from a distance.
robust 7HP Engine
At the heart of the BS9500SM is a powerful BS192F 7HP engine, carefully engineered for optimum performance and fuel efficiency.
The BS192F 7 hp engine provides plenty of power to run a variety of appliances and tools.
The BS9500SM provides both AC and DC power, making it suitable for a wide range of applications.
specifications
| output | |
|---|---|
| rated power | 7.5 KW |
| maximum power | 8.0 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 6.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS192F |
| bore × stroke | 92 × 66 MM |
| engine displacement | 459 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 25 l |
| oil capacity | 1.1 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 755 × 570 × 605 MM |
| generator net weight | 88 KGS |
| carton gross weight | 95 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the gasoline generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
