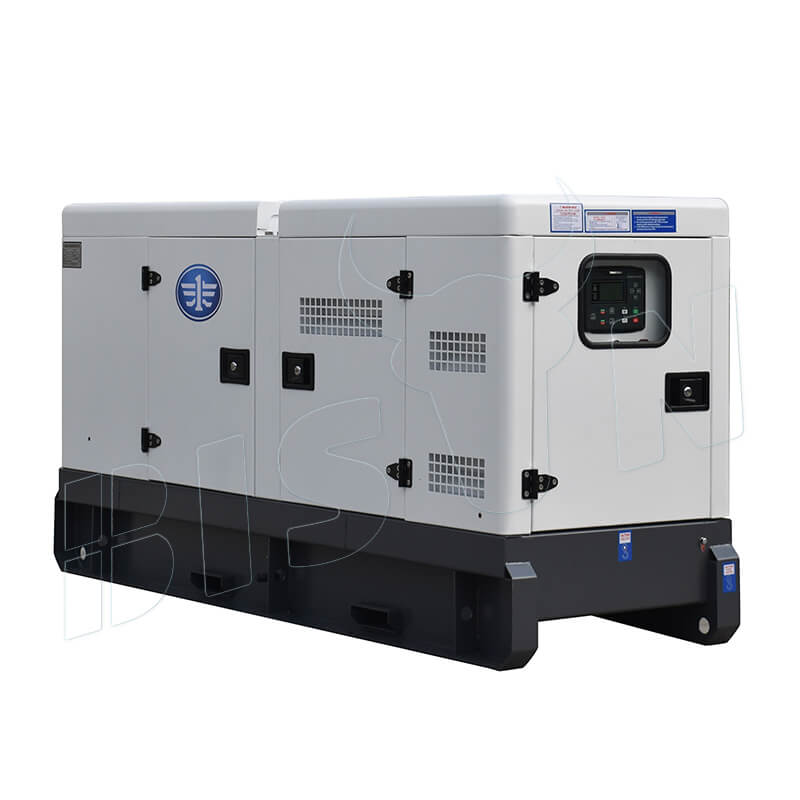

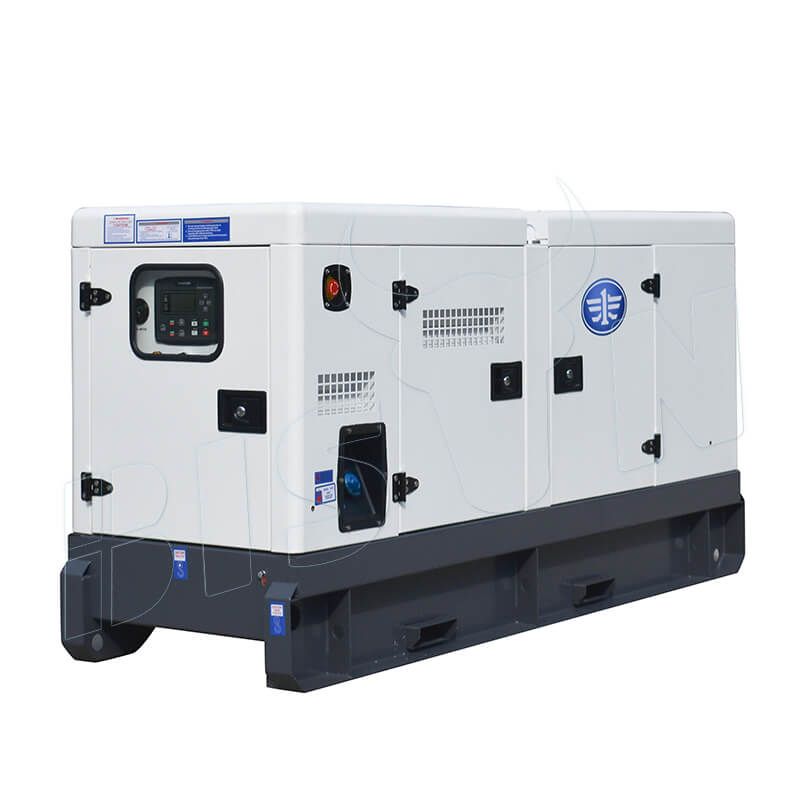

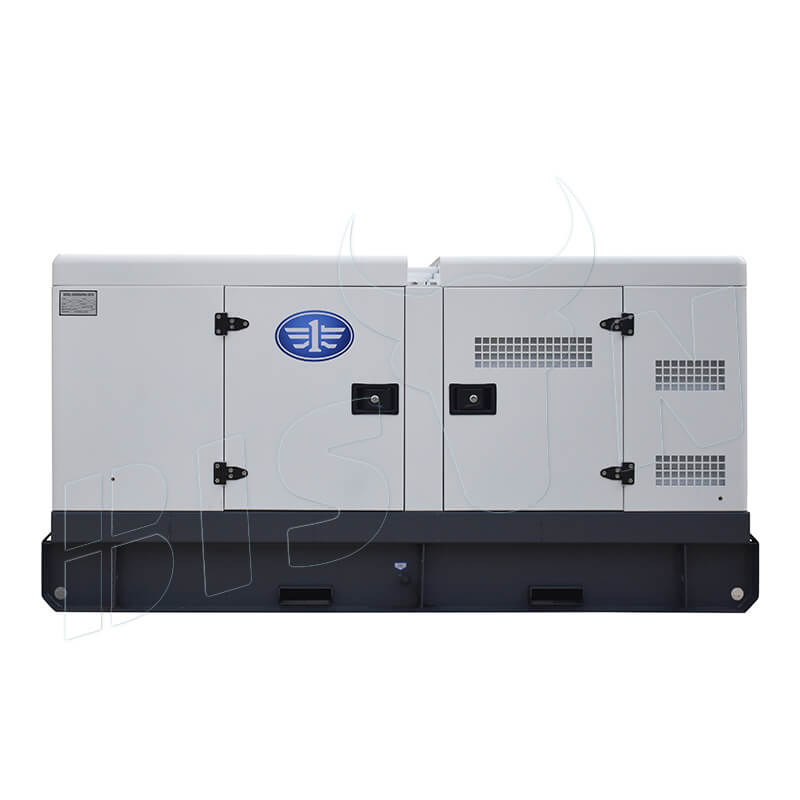

32kw / 40kva silent soundproof FAWDE diesel power genset
As a professional genset manufacturer, BISON is proud to present the BS-FS40, a premium quality 32kW/40kVA silent soundproof diesel genset. This powerful and reliable model is specifically designed to meet the needs of educational institutions.
BS-FS40 silent FAWDE diesel power genset have been carefully designed to meet the unique needs of schools, ensuring a conducive learning environment even during power outages.
By offering the BS-FS40, you can provide schools with a reliable, user-friendly backup power solution.
features
low-noise operation
The BS-FS40 uses advanced soundproofing technology for extremely low noise operation, creating a quiet learning environment. This is vital for schools where noise can be a distraction.
The 32kW/40kVA capacity provides sufficient power to meet a school’s basic electrical needs, from lighting and ventilation to IT equipment and security systems.
The soundproof diesel genset is fitted with a FAWDE diesel engine, which is known for its fuel efficiency and long service life. This reduces operating costs and maintenance requirements for schools.
the smart choice for schools
As a leading genset manufacturer in China, you can trust the BS-FS40 to exceed your expectations for quality, reliability and performance.

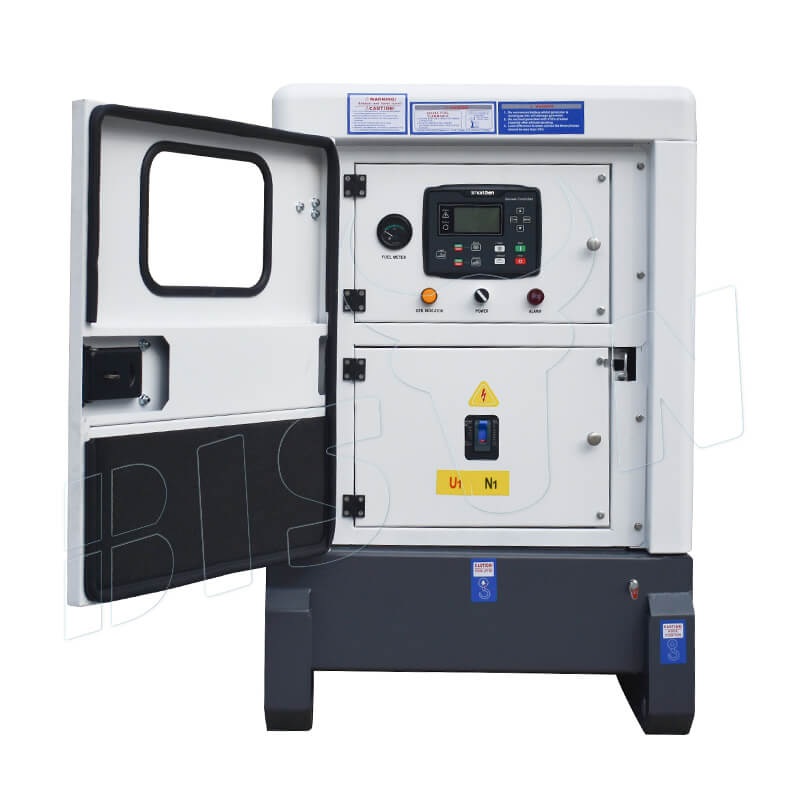

Equipped with a SMARTGEN HGM6120 controller with advanced monitoring and control capabilities, it tracks key parameters such as voltage, frequency and engine status in real time.
The FAWDE diesel genset is available in 220V/380V voltage and 50Hz frequency to ensure a stable and continuous power supply to support a wide range of electrical equipment and devices commonly found in schools.
specifications
| output | |
|---|---|
| rated power | 32 KW / 40 KVA |
| voltage | 220 V / 380 V |
| frequency | 50 HZ |
| Phase / Wire | 3 Phase / 4 Wire |
| Power Factor | 0.8 |
| engine & emission | |
|---|---|
| engine type | 4DX21-53D |
| type | Water-cooled, inline, 4-stroke, direct injection |
| prime power | 39 KW |
| intake type | Natura |
| no.cylinders | 4 |
| bore × stroke | 102 × 118 MM |
| displacement | 3.86 l |
| 100% prime power fuel consumption | 8.26 L/H |
| alternator | |
|---|---|
| brand model | BS184J |
| prime power | 32 KW / 40 KVA |
| power efficiency | 88.50% |
| voltage regulation | ≤ ±1 |
| excitation type | brushless |
| insulation class | h |
| controller | |
|---|---|
| band | SMARTGEN |
| model | HGM6120 |
| packaging | |
|---|---|
| dimension | 2450 × 950 × 1250 MM |
| weight | 1070 KGS |
optional
When you take genset as backup power, you could choose this.
ATS
automatically start without human intervention required.
You should choose this option when the lowest temperature of the year in which the gensets are used is below 0 ℃.
preheater
helps start genset in low temperature.
If you don’t have specific needs for a controller brand, we would make our recommendations.
controller brand
to control all functions of genset.
You should choose this option if you need more convenient output for a genset below 30kw.
sockets
make genset output more convenient.
If you need to use genset for more than 8 hours a day, you should choose to increase the fuel tank of genset.
larger fuel tank
increase genset’s one-time use time.
If you require more convenient use of the fuel tank, you should choose this option.
separate fuel tank
replaces the bottom fuel tank and is more convenient to use
If the fuel you are using is not of good enough quality, you should choose this option.
fuel-water-separator
remove moisture from fuel and extend engine life
factory
overview
how we test the diesel gensets
We always get genuine and original engines from regular channels.
purchase engine
We always use the most sophisticated cutting instruments to cut sheet metal.
sheet metal cutting
The welding workers have 20+ years of experience and the welding points are flawless.
welding
Professional spray and baking booths are used to color the silent covers.
spray paint
Paste sound insulation cotton with a thickness greater than 3cm on the silent cover.
paste silent cotton
BISON brand brushless AC alternator is made by ourselves
alternator assembly
Connect engine and alternator.
semi finished genset
Establish a connection between the line and the controller.
install controller
Check whether the internal wiring is intact and working.
wiring
Assembling the silent cover after cutting and painting.
soundproof producing
Every genset would be tested in the testing center.
test center
Every genset would be tested for more than 30 minutes.
genset testing
Stick BISON or OEM logo lable.
stick logo
Packed with pearl cotton and stretch film.
packing
Loading is carried out by experienced forklift workers to ensure that every machine is in good condition.
loading
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 2 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
OEM Service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
