25kva 50hz soundproof cummins diesel genset

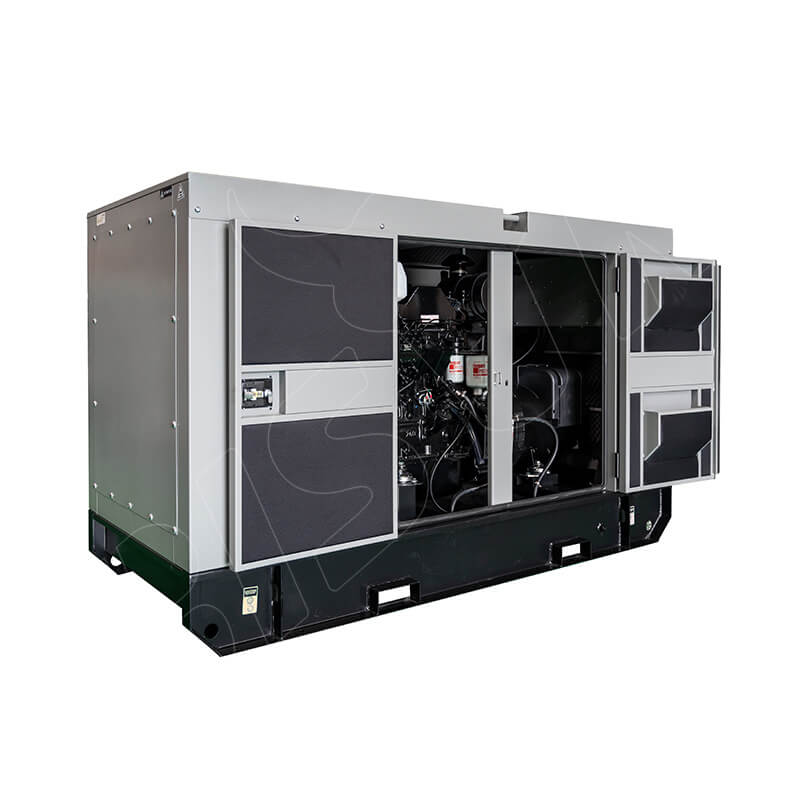

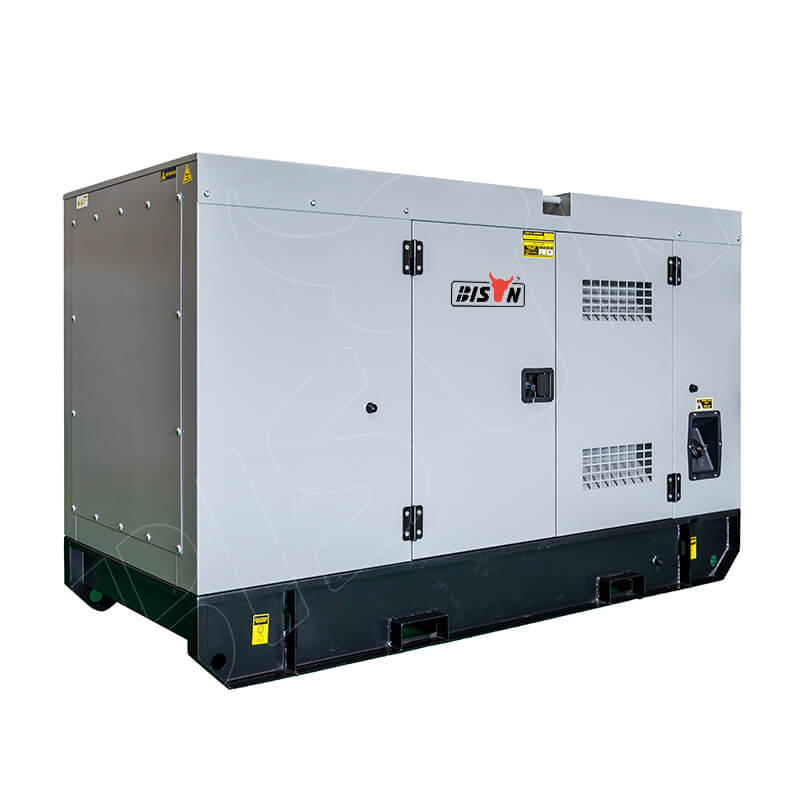

The BS-CS25 is a powerful and reliable soundproof diesel generator powered by a CUMMINS diesel engine with a maximum power of 25kVA, ideal for powering homes, businesses and construction sites.
The 25kva 50hz soundproof CUMMINS diesel genset application
- Urban areas: including real estate, hospitals, hotels, banks, construction sites, factories, oil fields, airports, mining facilities and other properties.
- Residential application: Designed for personal use, such as housing, camping, parties, etc.
- Telecommunications infrastructure, mobile towers and related facilities.
- Remote areas: suitable for areas lacking power such as islands and deserts.
- Emergency equipment tailored for natural disasters such as typhoons and earthquakes.
features
powerful 20kw power output
The CUMMINS three-phase genset delivers an impressive 20kw, ensuring stable and reliable power as it always delivers optimal performance, making it ideal for both residential and commercial use.
CUMMINS silent gensets operate at a standard 50Hz frequency to ensure stable and synchronous power output.
BS-CS25 provides flexible 220V/380V voltage selection, is compatible with different power requirements, and meets the different needs of customers.
advanced sound soundproof technology
Embrace silence without sacrificing power. The CUMMINS 25kva diesel gensets is constructed with sound-insulating materials to minimize noise levels and ensure a quiet, distraction-free environment.
The BS-CS25 comes with a user-friendly control panel that makes it easy to start, stop and monitor the generator.
The water cooling system in the CUMMINS gensets ensures efficient temperature control, improving the overall performance and service life of the genset.
specifications
| output | |
|---|---|
| rated power | 20 KW / 25 KVA |
| voltage | 220 V / 380 V |
| frequency | 50 HZ |
| Phase / Wire | 3 Phase / 4 Wire |
| Power Factor | 0.8 |
| engine & emission | |
|---|---|
| engine type | 4B3.9-G2 |
| type | Water-cooled, inline, 4-stroke, direct injection |
| prime power | 24 KW |
| intake type | Naturally Aspirated |
| no.cylinders | 4 |
| bore × stroke | 102 × 120 MM |
| displacement | 3.9 l |
| 100% prime power fuel consumption | 6.7 L/H |
| alternator | |
|---|---|
| brand model | BS184F |
| prime power | 20 KW / 25 KVA |
| power efficiency | 88.50% |
| voltage regulation | ≤ ±1 |
| excitation type | brushless |
| insulation class | h |
| controller | |
|---|---|
| band | SMARTGEN |
| model | HGM6110 |
| packaging | |
|---|---|
| dimension | 1950 × 850 × 1150 MM |
| weight | 850 KGS |
optional
When you take genset as backup power, you could choose this.
ATS
automatically start without human intervention required.
You should choose this option when the lowest temperature of the year in which the gensets are used is below 0 ℃.
preheater
helps start genset in low temperature.
If you don’t have specific needs for a controller brand, we would make our recommendations.
controller brand
to control all functions of genset.
You should choose this option if you need more convenient output for a genset below 30kw.
sockets
make genset output more convenient.
If you need to use genset for more than 8 hours a day, you should choose to increase the fuel tank of genset.
larger fuel tank
increase genset’s one-time use time.
If you require more convenient use of the fuel tank, you should choose this option.
separate fuel tank
replaces the bottom fuel tank and is more convenient to use
If the fuel you are using is not of good enough quality, you should choose this option.
fuel-water-separator
remove moisture from fuel and extend engine life
factory
overview
how we test the diesel gensets
We always get genuine and original engines from regular channels.
purchase engine
We always use the most sophisticated cutting instruments to cut sheet metal.
sheet metal cutting
The welding workers have 20+ years of experience and the welding points are flawless.
welding
Professional spray and baking booths are used to color the silent covers.
spray paint
Paste sound insulation cotton with a thickness greater than 3cm on the silent cover.
paste silent cotton
BISON brand brushless AC alternator is made by ourselves
alternator assembly
Connect engine and alternator.
semi finished genset
Establish a connection between the line and the controller.
install controller
Check whether the internal wiring is intact and working.
wiring
Assembling the silent cover after cutting and painting.
soundproof producing
Every genset would be tested in the testing center.
test center
Every genset would be tested for more than 30 minutes.
genset testing
Stick BISON or OEM logo lable.
stick logo
Packed with pearl cotton and stretch film.
packing
Loading is carried out by experienced forklift workers to ensure that every machine is in good condition.
loading
