How does a turbocharger work in a diesel generator?

How does a turbocharger work in a diesel generator? In this blog, we explain the mechanics, key components, benefits, and tips for peak performance.

July 16, 2026
BY BISON

Diesel generators are essential for delivering a continuous power supply to construction sites, factories, hospitals, remote areas, and other industrial applications. However, traditional naturally aspirated diesel engines often have limitations, such as lower power output and reduced fuel efficiency, which can affect overall performance and operating costs.

A turbocharger is an essential component that enhances the performance and efficiency of diesel generators. It is typically used in large diesel gensets with a rated power of 40 kW or higher. By compressing and forcing more air into the engine’s combustion chamber, it increases power output and improves fuel efficiency, enabling diesel generators to handle greater power demands while maintaining reliable operation.

How does a turbocharger work in a diesel generator? In this blog, we explain the mechanics, key components, benefits, and tips for peak performance.

What is a turbocharger?

Turbochargers are forced-induction devices that significantly improve diesel generator efficiency. By compressing and forcing more air into the combustion chamber, a turbocharger allows the engine to burn more fuel more efficiently, delivering higher power output without increasing engine displacement.

How turbochargers work

A turbocharger operates by using energy from the engine’s exhaust gases. As the exhaust gases leave the engine, they spin a turbine connected to a shaft. The shaft drives a compressor, which draws in fresh air, compresses it, and delivers it to the engine’s combustion chamber. In simple terms, a turbocharger helps the engine “breathe” better, making each combustion cycle more efficient.

The process operates in three phases:

Exhaust phase: After combustion, exhaust gases leave the engine cylinders and enter the turbine housing. The force of these hot, high-pressure gases causes the turbine wheel to rotate.
Compression phase: The rotating turbine drives the compressor wheel through a shaft. The compressor draws in ambient air through the air filter and compresses it.
Intake phase: The compressed air is delivered to the engine’s intake manifold under high pressure before entering the combustion chamber. It mixes with the fuel to produce a more powerful combustion, increasing engine power and efficiency.

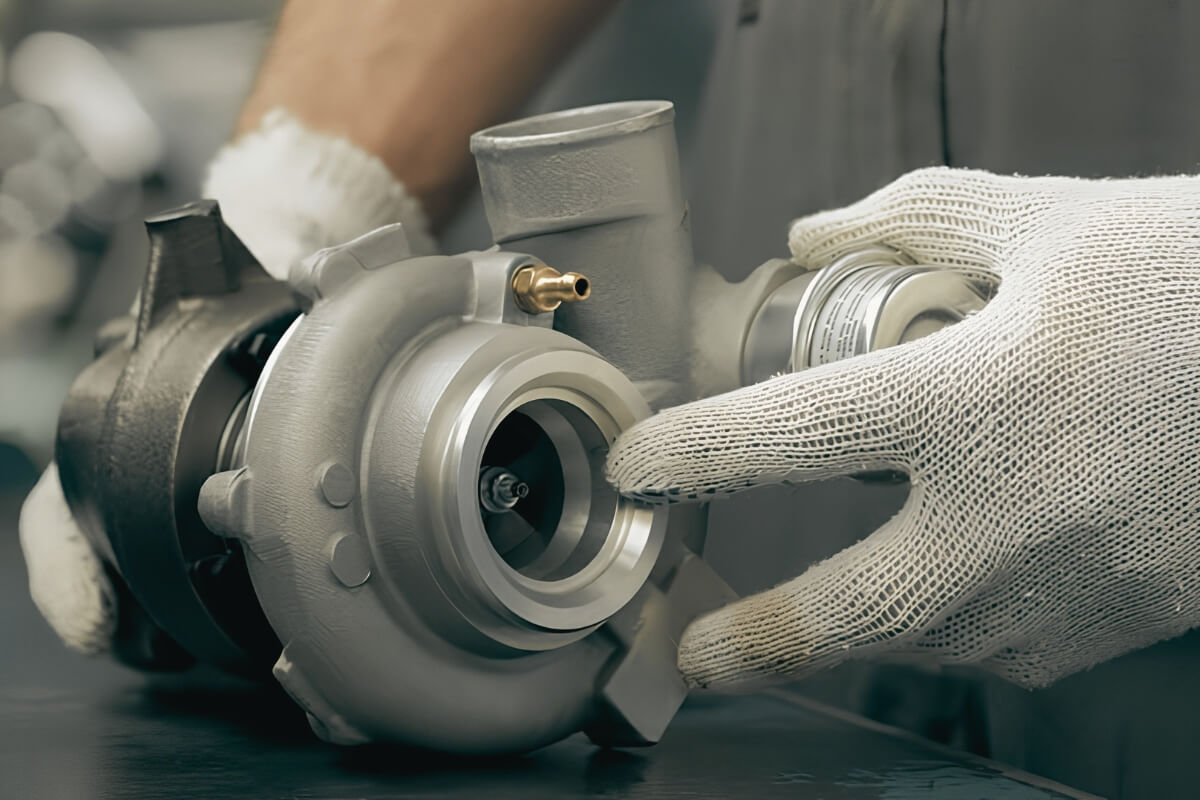

Turbocharger components

Turbine: As the exhaust gases flow through the turbine housing, they spin the turbine wheel, converting exhaust energy into rotational energy.
Compressor: The compressor is connected to the turbine through a shaft. It draws in ambient air, compresses it, and forces the compressed air into the engine’s cylinders at high pressure.
Center housing and rotating assembly (CHRA): Houses the shaft, bearings, and lubrication channels, ensuring high-speed operation with minimal friction.
Intercooler (Optional): Cools compressed air before it enters the engine, increasing air density and further boosting efficiency.

Types of turbochargers used in diesel generators

1. Single-stage turbochargers

The most common choice for diesel generators, a single-stage turbocharger uses one turbine and compressor to boost power. Its simple design ensures high reliability and easy maintenance, making it cost-effective for standard applications. However, it offers limited boosting capability and reduced efficiency under extreme engine load variations compared to more advanced systems.

2. Twin-stage (compound) turbochargers

Twin-stage systems use two turbochargers to progressively increase air pressure. Sequential setups handle varying engine speeds, while parallel configurations focus on increasing total airflow to reduce lag. Designed for high-output power generation, this complexity increases both installation costs and maintenance demands.

3. Variable geometry turbochargers (VGT)

VGTs use adjustable vanes to dynamically regulate exhaust flow based on engine speed and load. This maintains optimal boost across a wide range of conditions, significantly improving fuel economy and engine performance. While superior in efficiency, VGTs require more precise monitoring and specialized maintenance due to their complex vane control systems.

Advantages of using turbochargers in diesel generators

1. Improved power output and load handling

Turbochargers increase the amount of air entering the combustion chamber, allowing the engine to burn more fuel during each combustion cycle. This produces greater mechanical power without increasing the engine size, enabling diesel generators to handle heavier loads while maintaining stable and reliable performance. This makes them ideal for high-demand applications such as industrial operations and large-scale events.

2. Better fuel efficiency

Turbochargers improve fuel efficiency by promoting more complete combustion. With more compressed air available, the engine extracts more energy from the same amount of fuel, reducing fuel consumption while producing more power. This lowers operating costs, improves overall efficiency, and helps extend the engine’s service life.

3. Reduced emissions

By improving the combustion process, turbochargers help fuel burn more completely, reducing harmful emissions such as smoke, unburned hydrocarbons, carbon monoxide, nitrogen oxides, and particulate matter. This results in cleaner operation and helps diesel generators comply with modern environmental standards.

4. Enhanced high-altitude performance

Diesel engines naturally lose power at higher altitudes because of lower air pressure and reduced oxygen levels. Turbochargers compensate by compressing the intake air, maintaining sufficient oxygen in the combustion chamber. This allows diesel generators to deliver reliable performance and efficiency even in mountainous or elevated locations.

5. Enhanced reliability and longer service life

Turbocharged engines operate more efficiently and experience less strain while producing the same power output. This reduces wear on engine components, improving reliability and extending the generator’s service life.

6. Versatility for different applications

Turbocharged diesel generators are suitable for various applications, including:

Backup power during outages
Prime power in remote locations
High-load industrial applications, such as factories, construction sites, and mining operations

Note: Turbocharging is primarily a feature of medium and large gensets. For light-duty or occasional use, a naturally aspirated diesel generator (roughly 1.8–14 kW) may offer a simpler, more cost-effective solution.

7. Economic advantages

Higher efficiency, improved fuel economy, and longer engine life help reduce fuel consumption and maintenance costs over time. These benefits provide significant long-term savings and allow businesses to achieve a faster return on investment.

Maintenance and care of turbochargers

Importance of regular maintenance

Turbochargers operate at extremely high speeds and temperatures, making regular maintenance essential for reliable performance. Routine maintenance helps maximize engine power and fuel efficiency, extends the turbocharger and engine’s service life, and reduces the risk of costly repairs and downtime.

Maintenance and care recommendations

Perform regular inspections: Inspect the turbocharger regularly for signs of wear, damage, contamination, or leaks. Check the turbine, compressor, bearings, hoses, connections, and mounting components. Identifying potential issues early helps prevent costly repairs and unexpected downtime.
Keep the turbocharger clean and properly lubricated: Clean the air filters regularly to prevent debris from entering the turbocharger, and remove any carbon buildup that could affect turbine performance. Using clean, high-quality engine oil reduces friction, protects bearings, and helps extend the service life of the turbocharger.
Prevent excessive wear and overheating: Allow the generator to warm up before operating under full load to ensure proper lubrication. After running under heavy load, let the engine idle for a few minutes before shutting it down. This allows the turbocharger to cool gradually, preventing heat buildup, oil coking, and damage to bearings and other components.

Summary

BISON’s turbocharged diesel generators offer significant advantages, delivering not only higher power output and superior fuel economy but also reliable performance under demanding operating conditions. Their versatility makes them well-suited for industrial operations, construction sites, remote and off-grid locations, and emergency backup applications.

As a professional diesel generator and genset manufacturer in China, BISON recognizes the important role turbochargers play in improving diesel generator performance. Through continuous advancements in materials, smart controls, and hybrid integration, BISON delivers power solutions that maximize efficiency and reliability, whether you need a turbocharged diesel genset for industrial use or a portable diesel generator for lighter applications. Discover BISON’s range of turbocharged diesel generators to find a reliable power solution that meets your energy requirements.

FAQs

Can turbochargers help cool the engine?

Indirectly, yes. Turbochargers improve engine efficiency, which can help maintain more controlled combustion temperatures. Many turbocharged systems also use intercoolers to cool the compressed air before it enters the engine, helping with temperature control.

What is turbo lag, and how does it affect performance?

Turbo lag is the short delay between an increase in power demand and the turbocharger providing additional boost. This occurs because the turbocharger depends on exhaust gases to spin. Although minimal in modern turbochargers, turbo lag can affect engine response, especially during rapidly changing load conditions.

What is the difference between a supercharger and a turbocharger?

Both turbochargers and superchargers are forced induction systems. The main difference is that a supercharger is mechanically driven by the engine's crankshaft, while a turbocharger is powered by exhaust gases. Turbochargers are generally more efficient because they use energy from the engine's exhaust.
