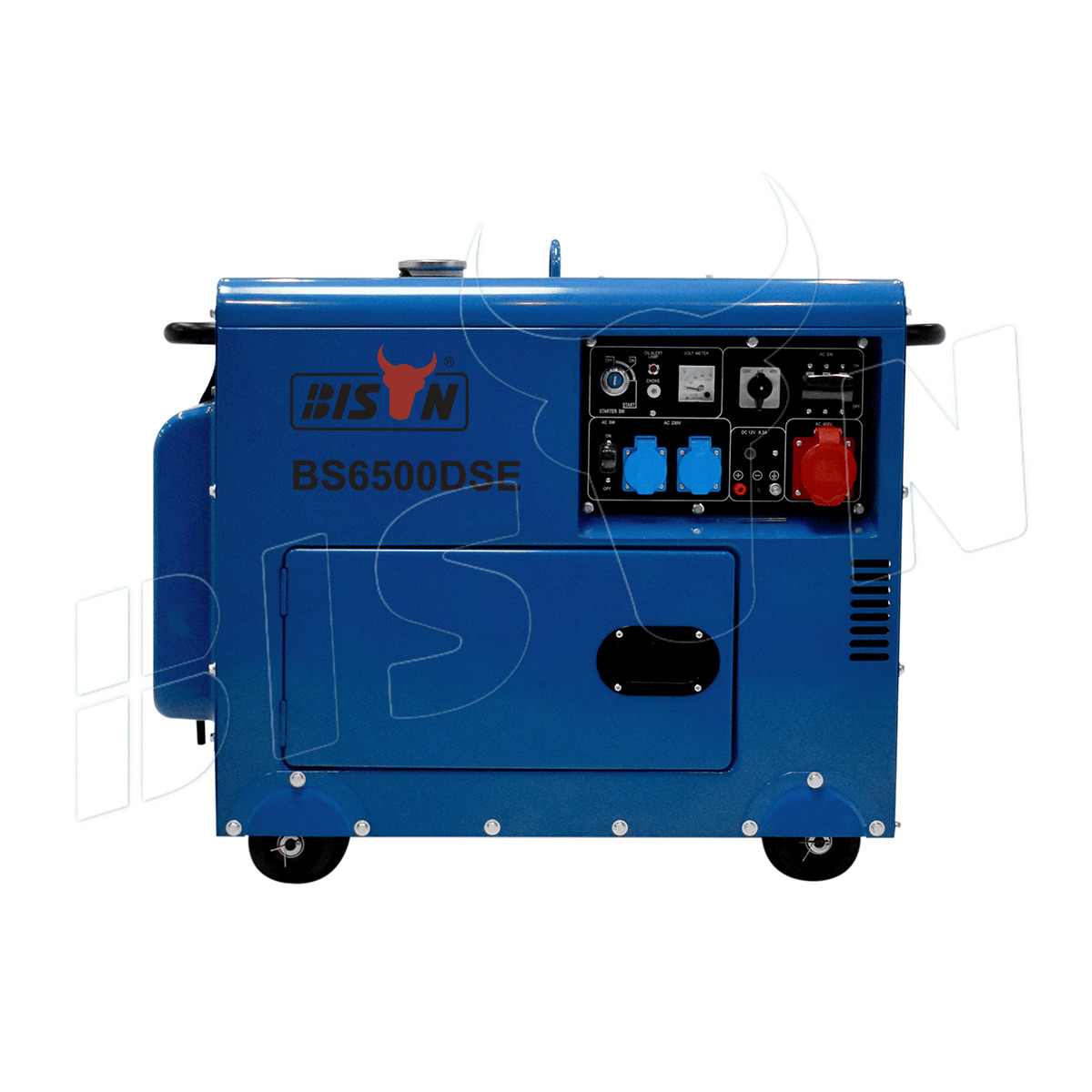

homepower generator – 5kw 3 phase ac diesel generator

/

model: BS6500DSE

certificates:
TÜV rheinland
rohs compliant
epa

5kw 3 phase ac diesel generator

5000 watts
diesel
home backup
1 year warranty

within 25 days delivery time after receiving the deposit!

moq
BISON brand
20 SETS
OEM sticker
50 SETS
OEM carton
100 SETS

BISON diesel generator supplier is known for the quality of its products and its 10hp AC diesel generator caters to both single phase and 3 phase applications. perfect for powering essential appliances, tools, or even small offices during outages.

Main features of 3 phase ac diesel generator:

Versatile power output: Capable of delivering a rated power of 5.0kw and a maximum output of 5.5kw, BISON BS6500DSE generator adapts effortlessly to both single-phase and three-phase configurations, making it extremely versatile for various electrical needs depending on the desired setup.

Tailored for various regions: The AC voltage adjustment to meet regional power standards coupled with variable frequency options of 50/60hz ensures compatibility regardless of geographical location.

Efficient and robust engine: 5kw 3 phase ac diesel generator is equipped with a high-performance 1-cylinder, 4-stroke, air-cooled BS188FA engine, this unit offers high efficiency with a displacement of 456cc and smooth operation at 3000rpm for 50hz or 3600rpm for 60hz.

BS6500DSE not only represents an excellent product, but also an important part of energy solutions. When you cooperate with BISON diesel generator suppliers, you will enjoy our high-quality service guarantee, such as:

  • Advantage profit
  • Marketing support
  • Streamlined logistics and distribution channels
  • Technician training and support
  • Warranty and service guarantees
video-background

features

5kw-3-phase-ac-diesel-generator-details
Performance expert

Tailored to meet diverse operational needs, BISON 5kw 3 phase generator combines advanced engineering with robust construction to deliver consistent power in a variety of settings.

A continuous operating time of 6.5 hours at full capacity allows for reliable and uninterrupted power.
Despite BS6500DSE‘s power, the generator maintains portability with practical carton dimensions and a manageable net weight of 148kgs.
5kw ac generator uses original accessories
BISON commit to quality at every production phase. The durable design ensures fewer returns and repair needs, driving customer satisfaction and repeat business for our dealers.
The BISON BS6500DSE generator is configured with 100% copper winding in the alternator, ensuring superior electrical conductivity and prolonged machine life.

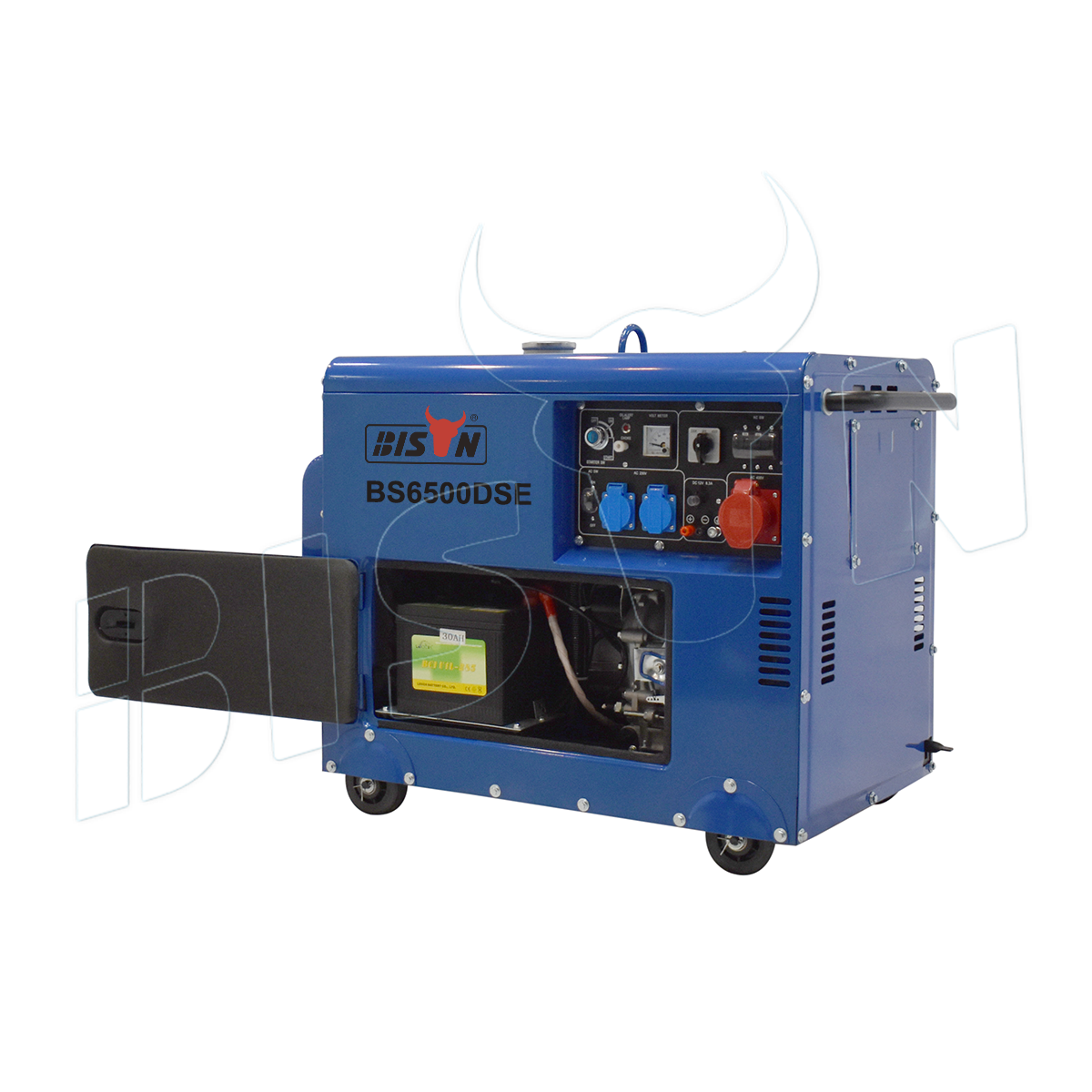

The electric start with a 32AH battery guarantees a quick and convenient power source whenever needed.
5kw-3-phase-ac-diesel-generator-details-2

specifications

output
rated power 5.0 KW
maximum power 5.5 KW
Phase single-phase / three-phases (optional)
AC voltage depends on your country’s voltage
single-phase AC amperage running power ÷ using voltage
three-phase AC amperage running power ÷ using voltage ÷ 1.3856
frequency 50 / 60 HZ
continuous operating time 6.5 h
engine & emission
engine type 4-stroke, OHV, air-cooled
engine model name BS168F-1
bore × stroke 68 × 45 MM
engine displacement 196 CC
engine speed 3000(50 Hz) / 3600(60 Hz) RPM
recoil start yes
electric start optional
alternator
winding material 100% copper winding
power factor 1.0 (single-phase) / 0.8 (three-phase)
fuel system
fuel tank capacity 15 l
oil capacity 0.6 l
packaging
carton dimensions (no wheels & handles) 605 × 440 × 440 MM
generator net weight 35 KGS
carton gross weight 37 KGS

optional

remote-start

If your customers have remote start requirements, you should choose this option.

remote start

easy to move the generator

Digital-display

The customers who have high-end pursue of generator should choose this option.

digital display

easy to monitor the generator

Industrial-socket

The generators above 7 kilowatts or have three-phase voltage should choose this option.

industrial socket

power for industrial use

ATS

When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.

ATS

automatically start without human intervention required

glow-plug

If the winter temperature in your area is below 0 ℃, you should choose this option.

glow plug

help to start in low temperature

factory

overview

how we test the gasoline generator

camshaft-test

Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.

camshaft test

cylinder-head-test

Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.

cylinder head test

oil-quality-testing

The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.

oil quality testing

cylinder-test

Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.

cylinder test

crankcase-seal-test

Crankcase has a oil leakage test to ensure that there is no oil leakage problem.

crankcase seal test

bearing-seal-test

Ensure bearing sealing and no oil leakage

bearing seal test

honing-parts

Makes the surface of spare parts smoother and reduces wear.

honing parts

precision-boring-process

Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.

precision boring process

torque-test

Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.

torque test

engine-test

Make sure the engine is running normally and stably without any abnormal noise.

engine test

residue-cleaning

After the engine test, clean the internal residue to reduce the damage of the parts.

residue cleaning

alternator-air-gap

Ensure the sealing of alternator is stable.

alternator air gap

alternator-100%-test

After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.

alternator 100% test

low-temperature-test

Make sure the generator can operate properly in low temperature conditions.

low temperature test

packaging

Well-packaged and ensure the safety of the generator.

packaging

support

warranty

※  Our commitment:

Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!

※  Warranty time: 1 year after B/L date.

※  Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.

※  How we fulfill our warranty:

Situation 1  Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.

Situation 2  Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.

Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.

Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.

OEM service

※  Design team size: 10 designers.

※  What can we design for you: sticker, carton, logo, poster…

※  Design time required after receving your deposit

Sticker design: within 2 days

Carton design: within 2 days

Logo: within 1 day

Poster: within 1 week

……

agent service

How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.

What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……

At the same time, enjoy the supreme VIP warranty experience and service!

customs services

We can find the cheapest sea shipping price for you.
We can find a local customs clearance agent for you.
In some special cases, we can save you import tariff costs.

documents

enquire today

Speak with our sales manager today for additional information or an obligation-free quote.
