homepower generator – 3 phase 4500w diesel powered generator

/

model: BS7500DSE

certificates:
tüv rheinland
ce
rohs compliant
epa

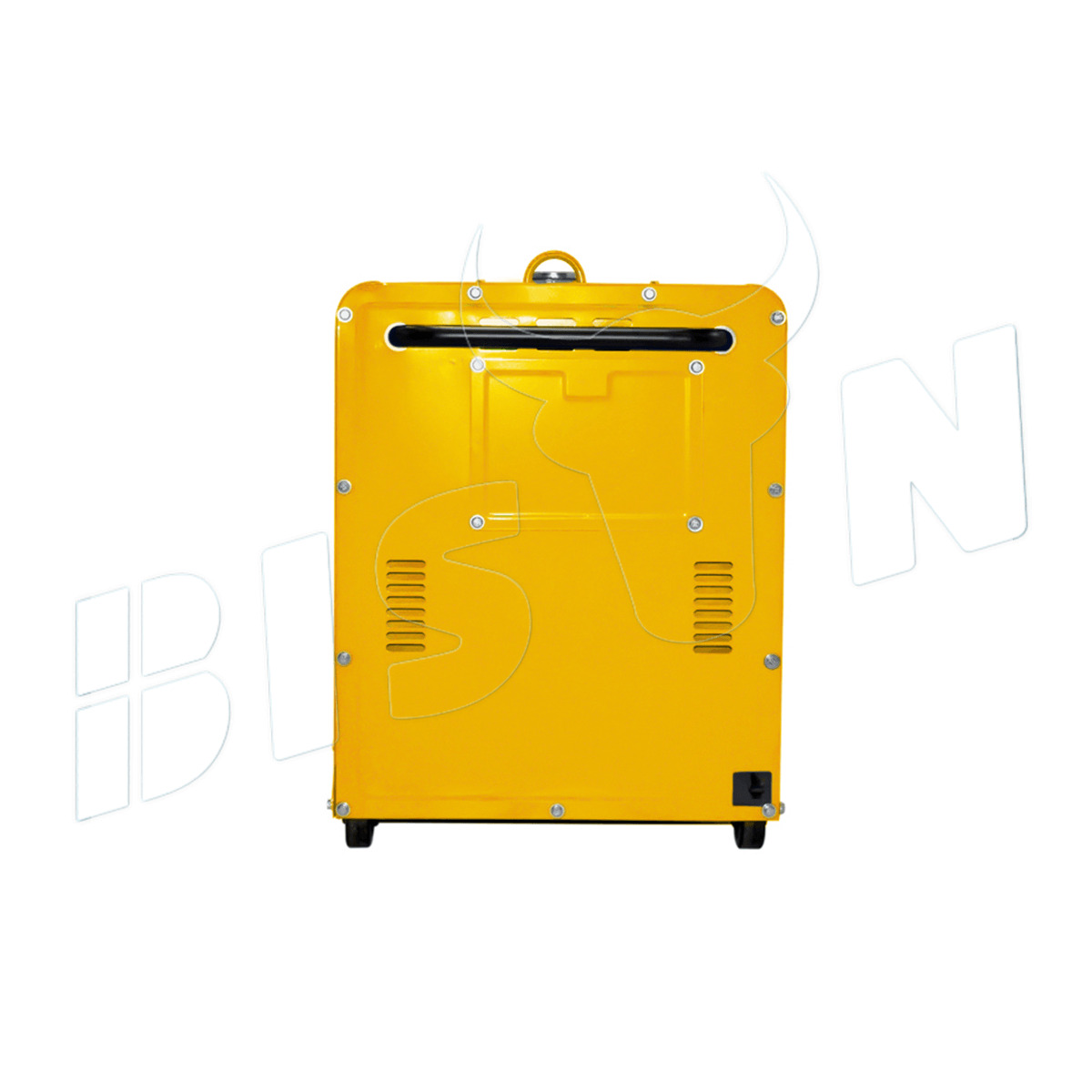

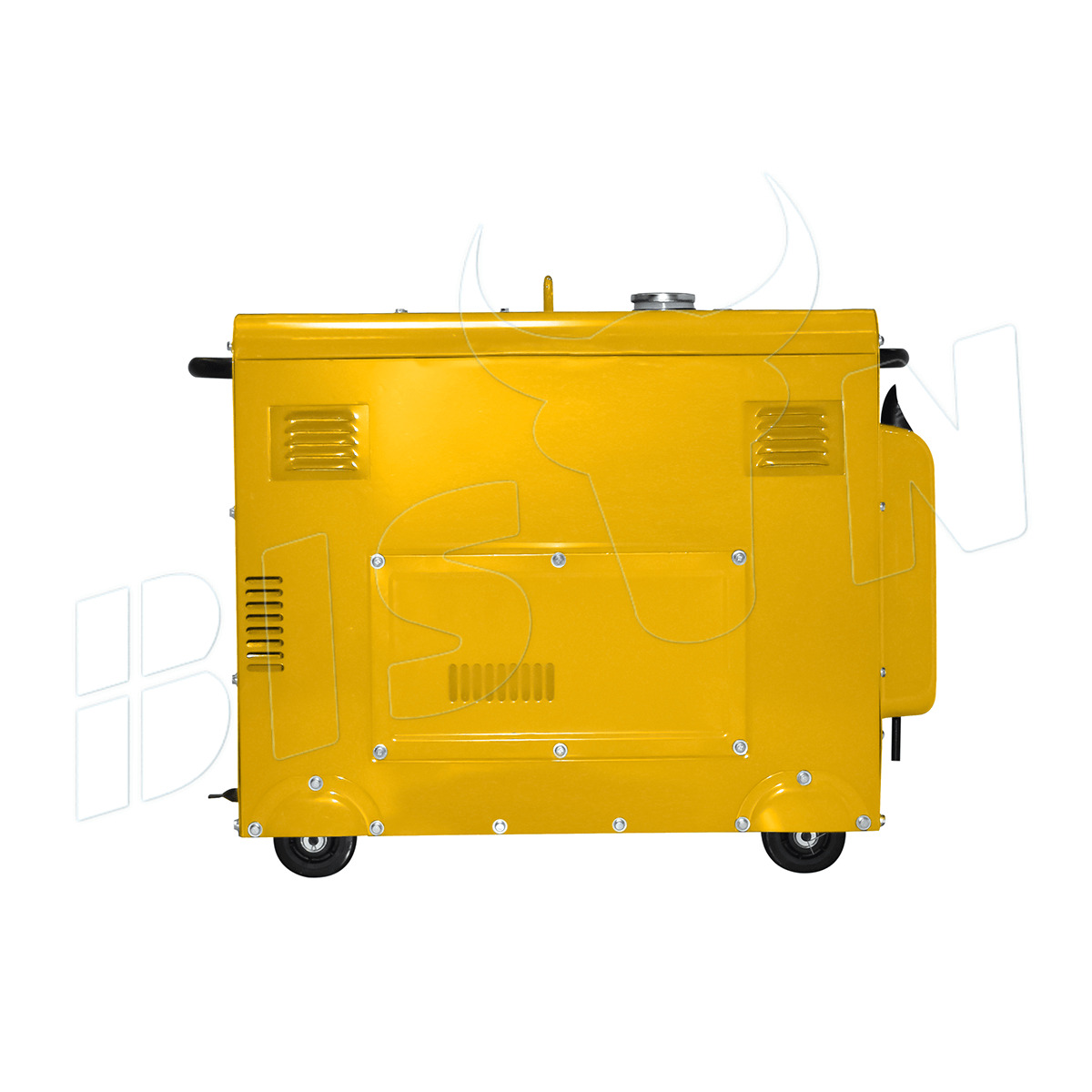

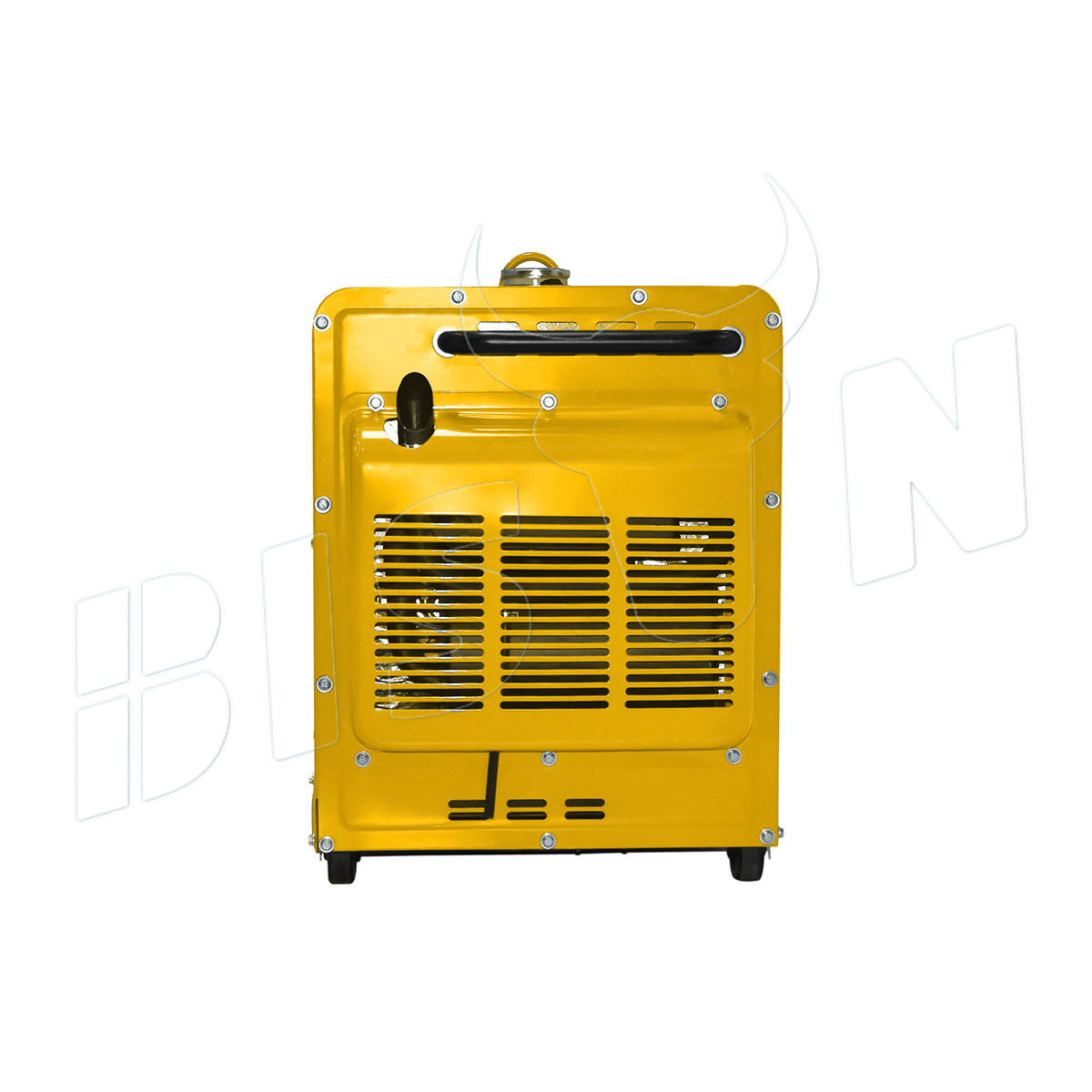

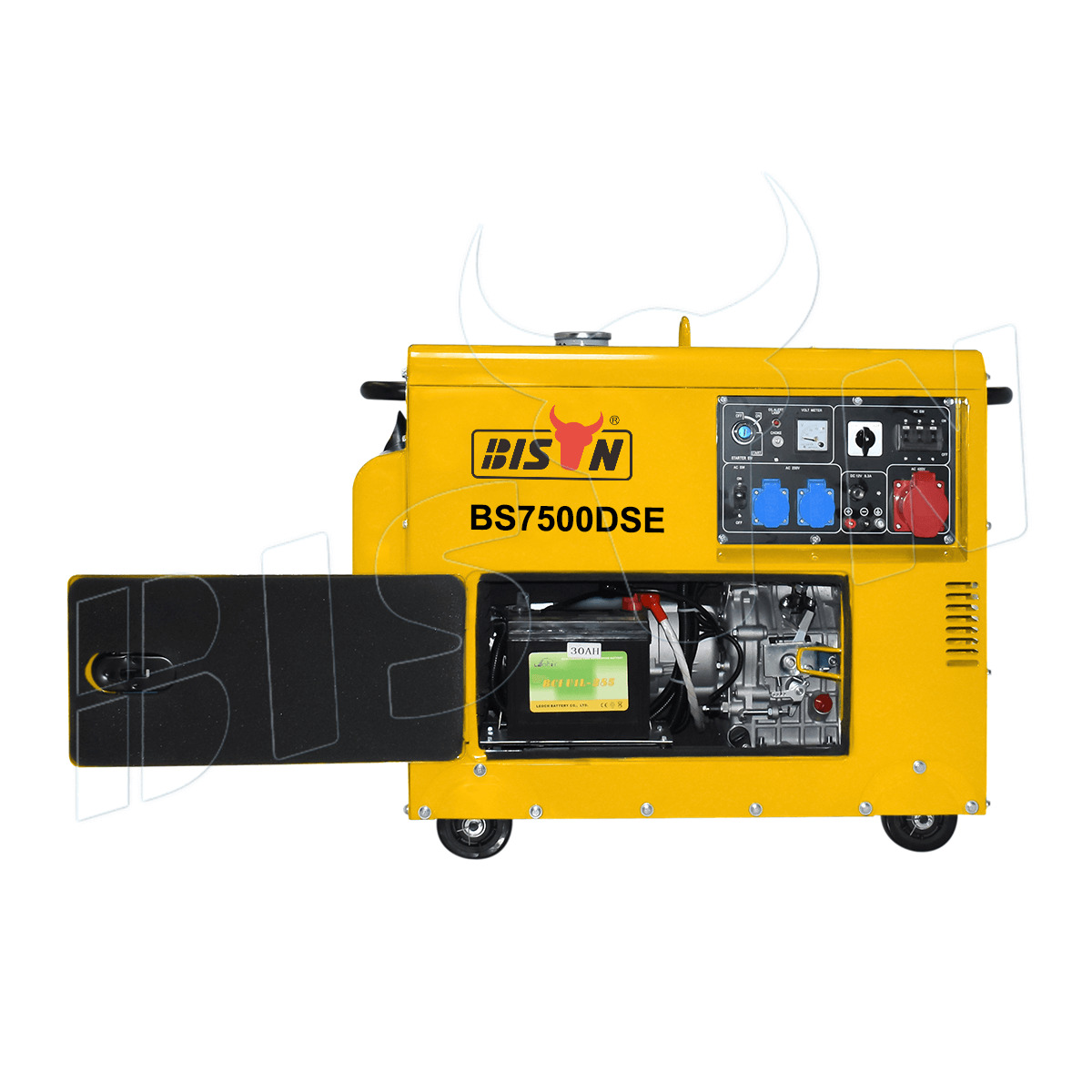

3 phase 4500w diesel powered generator

4500 watts
diesel
home backup
1 year warranty

within 25 days delivery time after receiving the deposit!

moq
BISON brand
20 SETS
OEM sticker
50 SETS
OEM carton
100 SETS

Introducing the state-of-the-art BS7500DSE from Bison diesel generator factory, the BISON 3 phase 4500w diesel generator is a rugged and reliable power source that supports medium and high demand applications in various fields.

Main features and advantages of 3 phase 4500w:

High efficiency and power output:

  • With a powerful 4500W output, BS7500DSE delivers consistent and reliable power, essential for various heavy-duty applications.
  • The 3-phase power supply ensures smoother and more efficient operation of equipment, reducing wear and tear and extending machinery life.

Fuel efficiency and cost-effective operation:

  • The advanced diesel engine is optimized for fuel efficiency, providing significant savings on fuel costs over time.
  • Lower operational costs make it an attractive option for businesses looking to maximize their return on investment.

Durable and robust construction:

  • Built with high-quality materials, this 4500w diesel powered generator is designed to withstand harsh environments and demanding conditions, ensuring long-term durability and dependability.
  • Its robust construction makes it an excellent choice for industrial sites, construction projects, and commercial operations.
video-background

features

3 phase 4500w diesel powered generator details

Additional selling points of 3 phase diesel powered generator

  • Compact design: The BS7500DSE’s compact dimensions (945×565×700MM) and manageable weight (145 KGS net) facilitate easy transportation and installation.
  • Reliable starting mechanism: Featuring an electric start and a 32 AH battery capacity, the generator offers hassle-free startup, even in challenging conditions.
  • User-friendly operation: Simple controls and clear instructions ensure ease of use for your customers.

Enhance your product lineup with the BISON 4500w 3 phase diesel generator. Contact us today to learn more about our competitive dealer pricing, comprehensive support.

Quality assurance: As a leading diesel generator factory in China, BISON is committed to delivering high-quality products that meet international standards.

Customization options: We understand the diverse needs of different markets and offer customization options to suit specific voltage and phasing requirements.

3 phase 4500w diesel powered generator details 2

specifications

output
rated power 4.5 KW
maximum power 5.0 KW
Phase single-phase / three-phases (optional)
AC voltage depends on your country’s voltage
single-phase AC amperage running power ÷ using voltage
three-phase AC amperage running power ÷ using voltage ÷ 1.3856
frequency 50 / 60 HZ
continuous operating time 7.5 h
engine & emission
engine type 4-stroke, OHV, air-cooled
engine model name BS168F-1
bore × stroke 68 × 45 MM
engine displacement 196 CC
engine speed 3000(50 Hz) / 3600(60 Hz) RPM
recoil start yes
electric start optional
alternator
winding material 100% copper winding
power factor 1.0 (single-phase) / 0.8 (three-phase)
fuel system
fuel tank capacity 15 l
oil capacity 0.6 l
packaging
carton dimensions (no wheels & handles) 605 × 440 × 440 MM
generator net weight 35 KGS
carton gross weight 37 KGS

optional

remote-start

If your customers have remote start requirements, you should choose this option.

remote start

easy to move the generator

digital-display

The customers who have high-end pursue of generator should choose this option.

digital display

easy to monitor the generator

industrial-socket

The generators above 7 kilowatts or have three-phase voltage should choose this option.

industrial socket

power for industrial use

ats

When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.

ATS

automatically start without human intervention required

glow-plug

If the winter temperature in your area is below 0 ℃, you should choose this option.

glow plug

help to start in low temperature

factory

overview

how we test the gasoline generator

camshaft-test

Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.

camshaft test

cylinder-head-test

Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.

cylinder head test

oil-quality-testing

The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.

oil quality testing

cylinder-test

Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.

cylinder test

crankcase-seal-test

Crankcase has a oil leakage test to ensure that there is no oil leakage problem.

crankcase seal test

bearing-seal-test

Ensure bearing sealing and no oil leakage

bearing seal test

honing-parts

Makes the surface of spare parts smoother and reduces wear.

honing parts

precision-boring-process

Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.

precision boring process

torque-test

Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.

torque test

engine-test

Make sure the engine is running normally and stably without any abnormal noise.

engine test

residue-cleaning

After the engine test, clean the internal residue to reduce the damage of the parts.

residue cleaning

alternator-air-gap

Ensure the sealing of alternator is stable.

alternator air gap

alternator-100%-test

After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.

alternator 100% test

low-temperature-test

Make sure the generator can operate properly in low temperature conditions.

low temperature test

packaging

Well-packaged and ensure the safety of the generator.

packaging

support

warranty

※  Our commitment:

Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!

※  Warranty time: 1 year after B/L date.

※  Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.

※  How we fulfill our warranty:

Situation 1  Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.

Situation 2  Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.

Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.

Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.

OEM service

※  Design team size: 10 designers.

※  What can we design for you: sticker, carton, logo, poster…

※  Design time required after receving your deposit

Sticker design: within 2 days

Carton design: within 2 days

Logo: within 1 day

Poster: within 1 week

……

agent service

How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.

What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……

At the same time, enjoy the supreme VIP warranty experience and service!

customs services

We can find the cheapest sea shipping price for you.
We can find a local customs clearance agent for you.
In some special cases, we can save you import tariff costs.

documents

enquire today

Speak with our sales manager today for additional information or an obligation-free quote.
