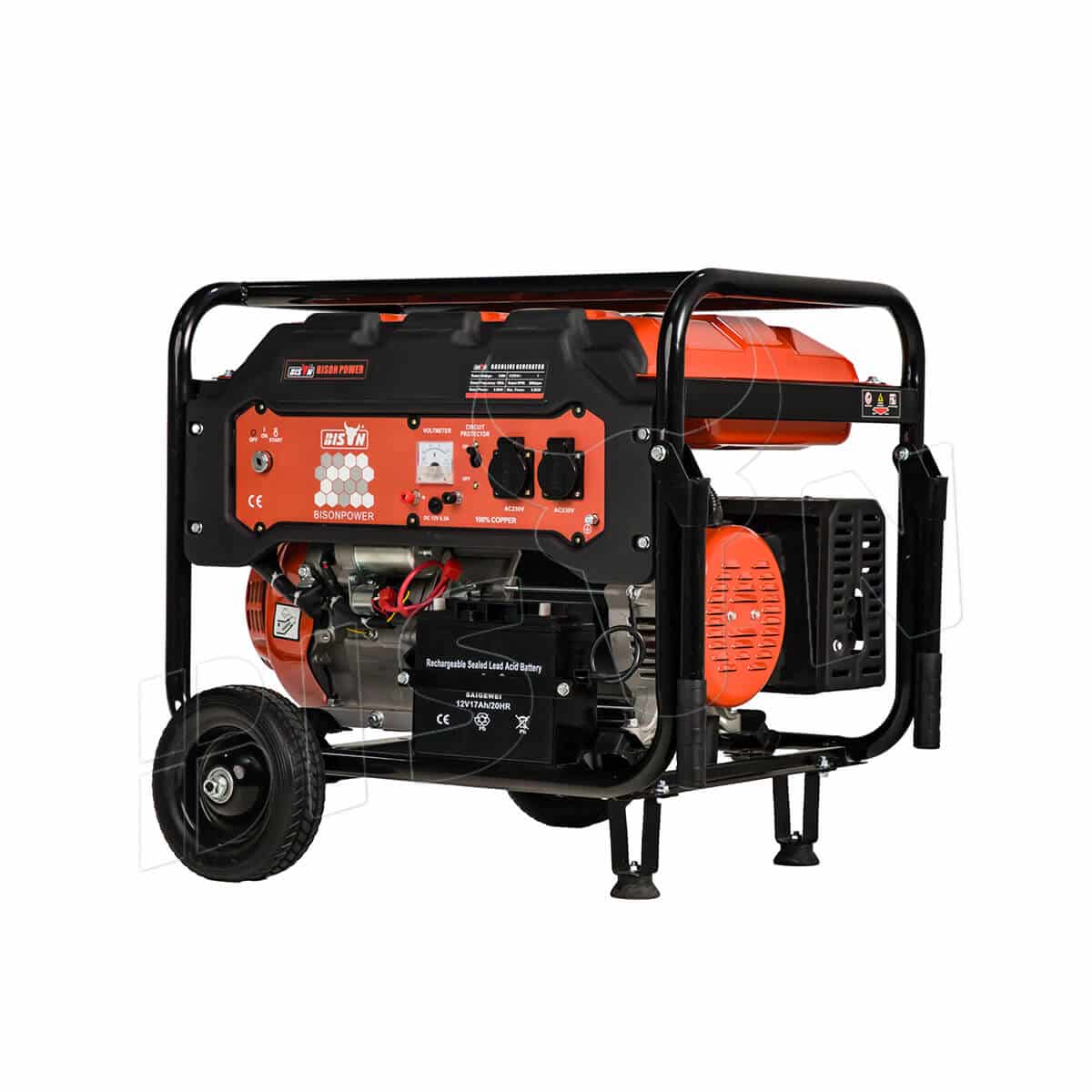

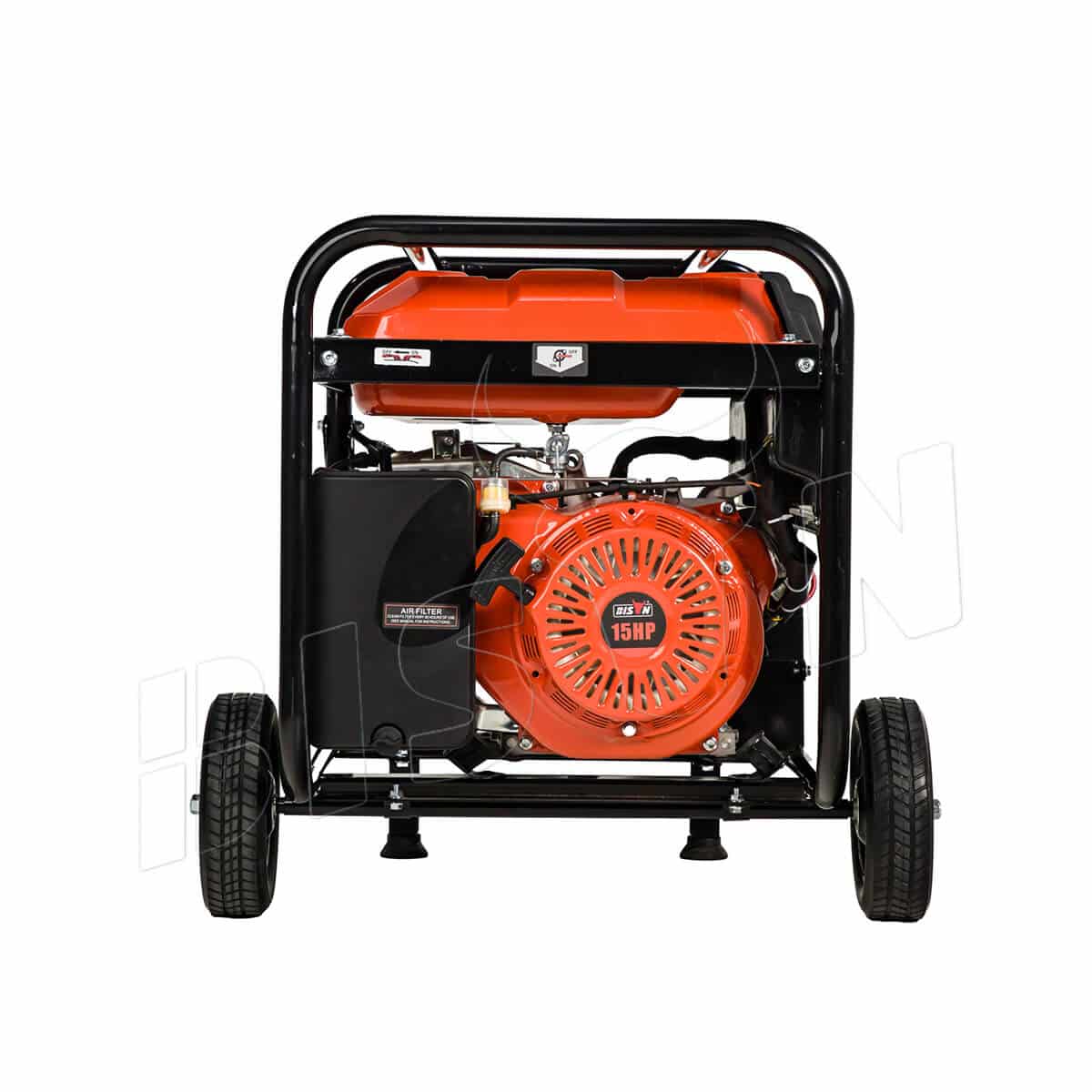

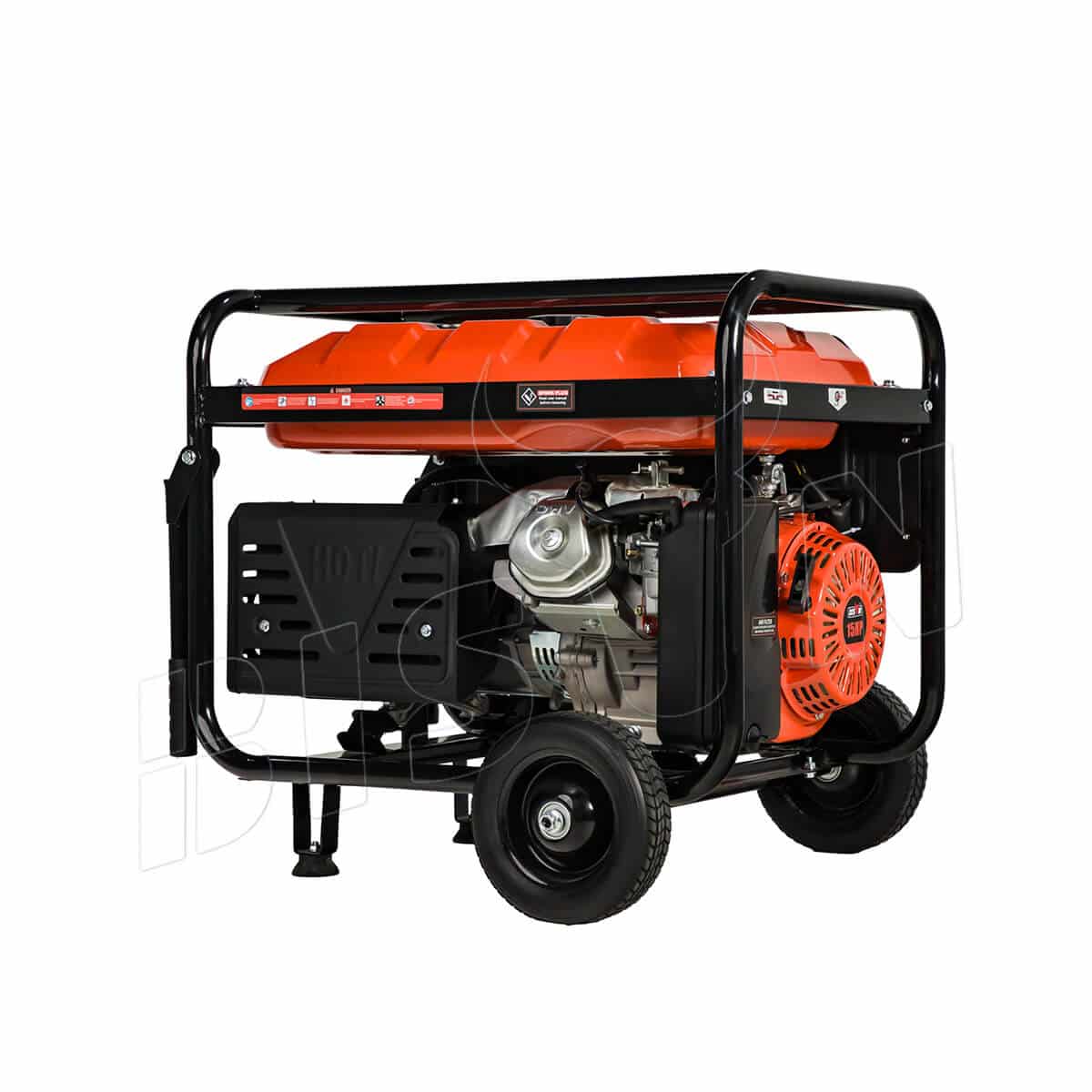

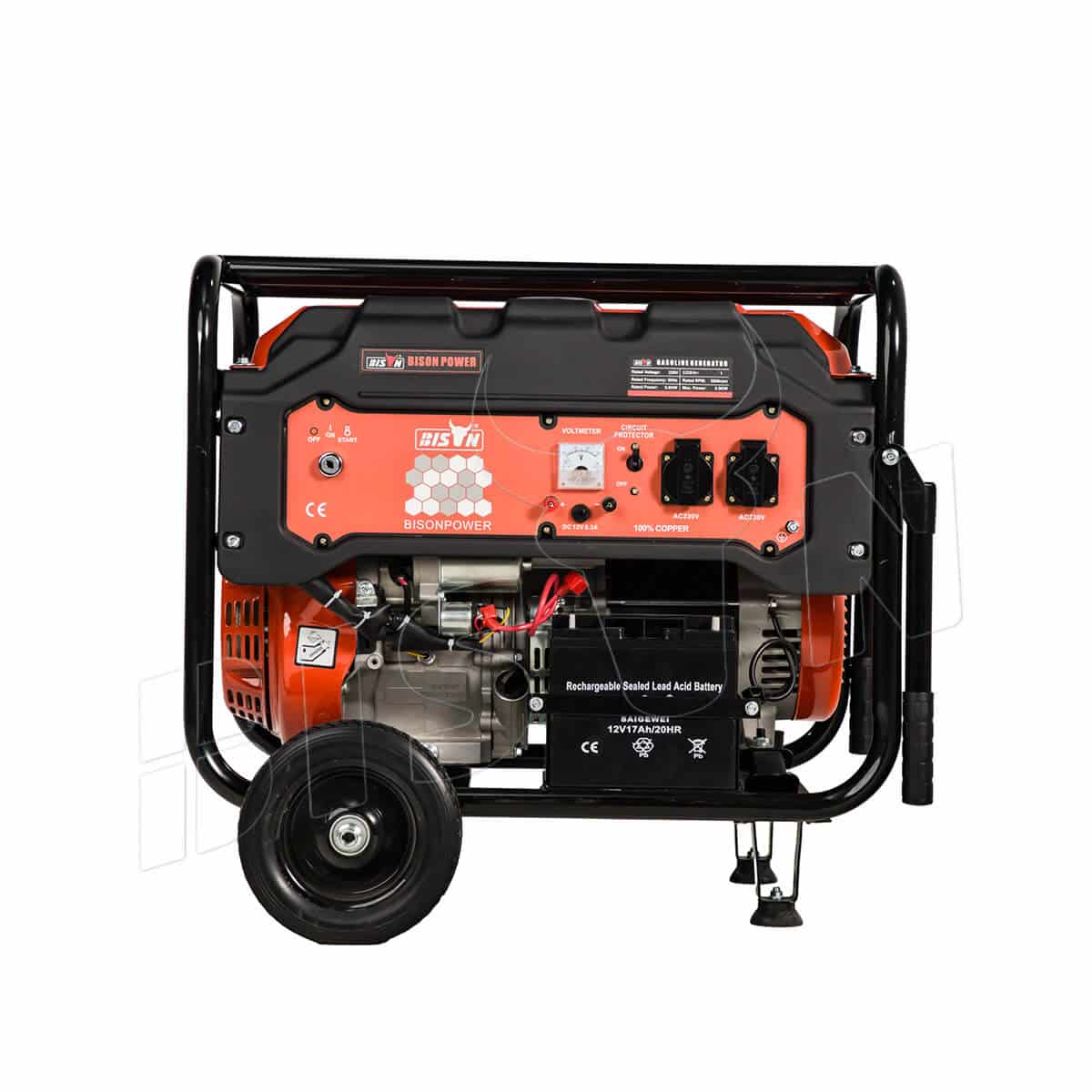

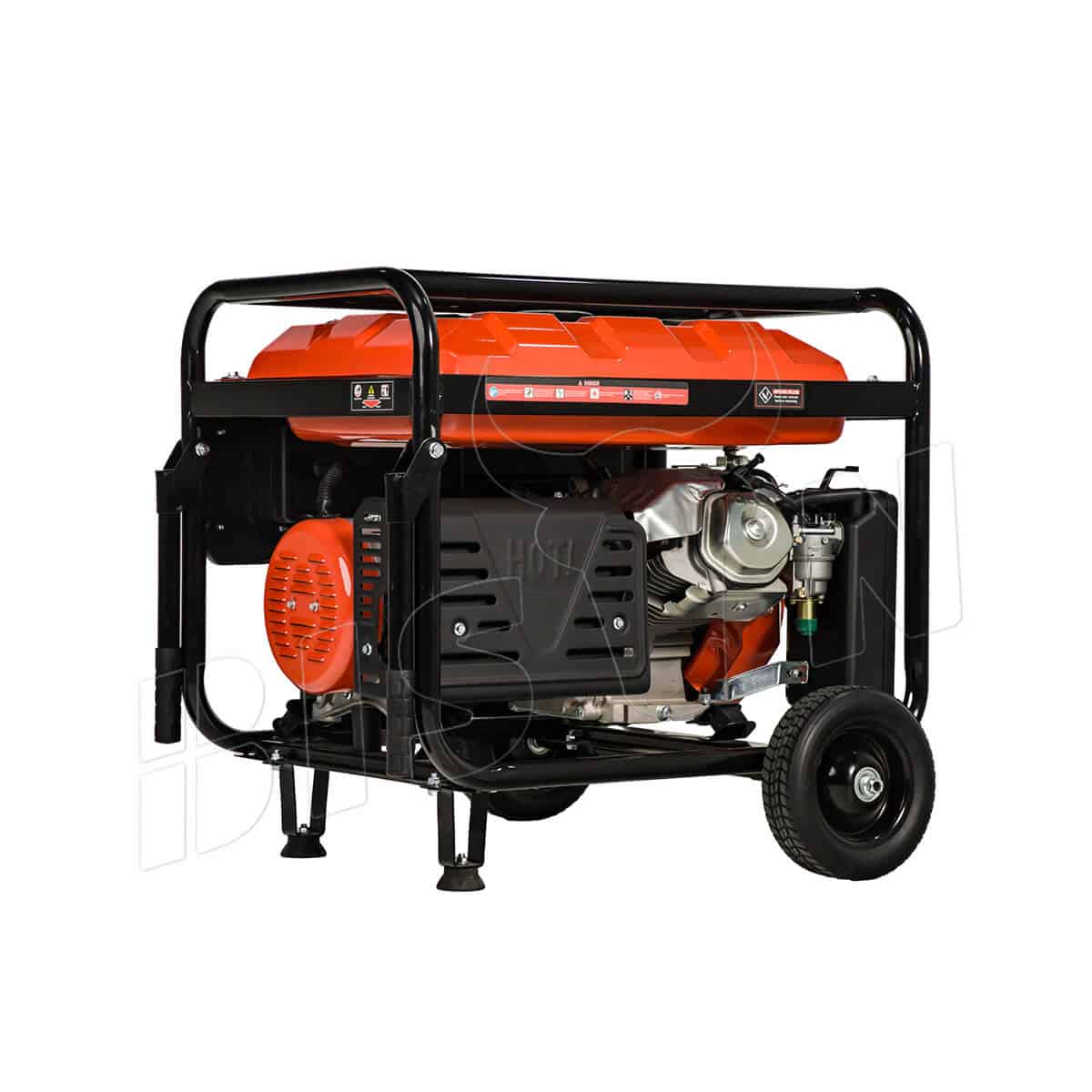

5KW electric start petrol generator
within 25 days delivery time after receiving the deposit！
Remember when you left the light on? Keep your family safe during power outages and natural disasters with the BISON 5KW electric start petrol generator.
Produces up to 4500 surge watts and 3500 rated watts using gasoline, or connects a propane tank to produce up to 5500 surge watts and 5000 running watts using LPG. BISON’s 420 four-stroke air-cooled OHV engine operates at just 60 decibels at quarter load, about as quiet as a window air conditioner or an ordinary conversation.
Features of the 5 kW electric start petrol generator:
- The CO shutdown sensor automatically shuts down the generator when dangerous levels of carbon monoxide are detected, helping to protect you and your family.
- Keyless electric start allows for quick ignition, while the included remote turns the generator on and off from up to 160 feet away, with a recoil starter as backup.
- For added safety, a CO shut-off sensor is integrated to protect you and your family by automatically shutting down the generator if dangerous levels of carbon monoxide are detected.
- It has an extra-large 25-liter fuel tank that provides up to 12 hours of half-load operation.
features
legendary performance
BISON is one of the leading 5KW electric start petrol generator manufacturers and suppliers in China, which can provide customised generator service for customers.
With more than 20 years of industry experience, BISON can meet your needs with our specialised product lines.
always use the Original spare parts
High quality spare parts ensure that our quality won’t deceive our customers.
The engines are manufactured with cutting-edge technology to ensure the high quality of the products.
The fuel tanks are made of stainless steel for corrosion resistance and durability.
specifications
| output | |
|---|---|
| rated power | 5.0 KW |
| maximum power | 5.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 9.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS190F |
| bore × stroke | 90 × 66 MM |
| engine displacement | 420 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 25 l |
| oil capacity | 1.1 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 690 × 530 × 555 MM |
| generator net weight | 75 KGS |
| carton gross weight | 82 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the gasoline generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
OEM Service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receving your deposit
Sticker desgin: within 2 days
Carton desgin: within 2 days
Logo: within 1 day
Poster: within 1 week
……
