6500w air cold petrol generator 15hp
within 25 days delivery time after receiving the deposit！
BISON is the world’s leading manufacturer of petrol generators, 6500 Watt 15 Horsepower air-cooled petrol generators are ruggedly built to meet the needs of industrial and domestic applications.
With its powerful engine, air-cooled design, recoil starting and long continuous run time, the BISON BS3500SC is a versatile and reliable petrol generator supplier ideal for a variety of applications.
BISON 6500w air-cooled petrol generator 15hp other advantages:
- 100% copper windings: 100% copper windings ensure efficient power generation and long service life.
- Large fuel tank: The 25 litre fuel tank provides plenty of runtime for long periods of use.
- Compact and portable design: The BS3500SC is compact and portable, making it easy to transport and store.
features
high-performance 15hp engine
BISON BS3500SC delivers an impressive 6500W of power, ensuring reliable and consistent energy for a variety of applications. From construction sites to outdoor activities, the 6500w air cold petrol generator is your go-to solution for powering multiple tools or equipment simultaneously.
The BISON 15 hp petrol generator can be configured for single or three phase output for a wide range of applications.

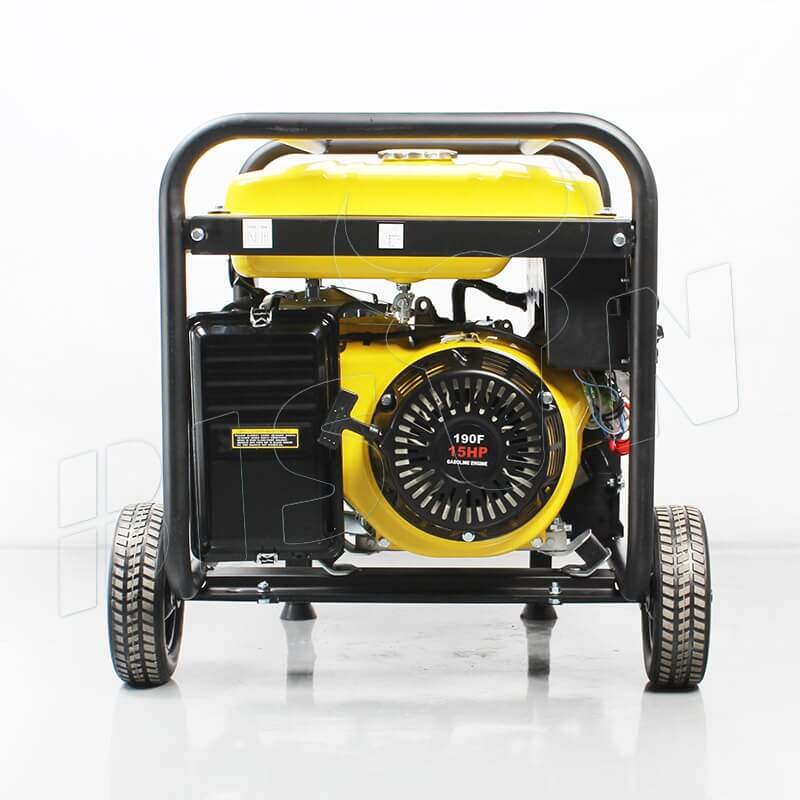

Equipped with the reliable BS190F 15 hp petrol engine, the BS3500SC delivers plenty of power even in the most demanding applications.
recoil start for quick ignition
The BS3500SC 15hp recoil start petrol generator is ruggedly constructed for frequent use in a variety of environments, making it a wise investment.
Simple and reliable recoil start makes it easy to start the generator even during power outages.
The BS3500SC can run for up to 8 hours on a single tank of fuel, making it ideal for extended use.
specifications
| output | |
|---|---|
| rated power | 6.0 KW |
| maximum power | 6.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 8 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS190F |
| bore × stroke | 90 × 66 MM |
| engine displacement | 420 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 25 l |
| oil capacity | 1.1 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 690 × 530 × 555 MM |
| generator net weight | 78 KGS |
| carton gross weight | 85 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the petrol generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
