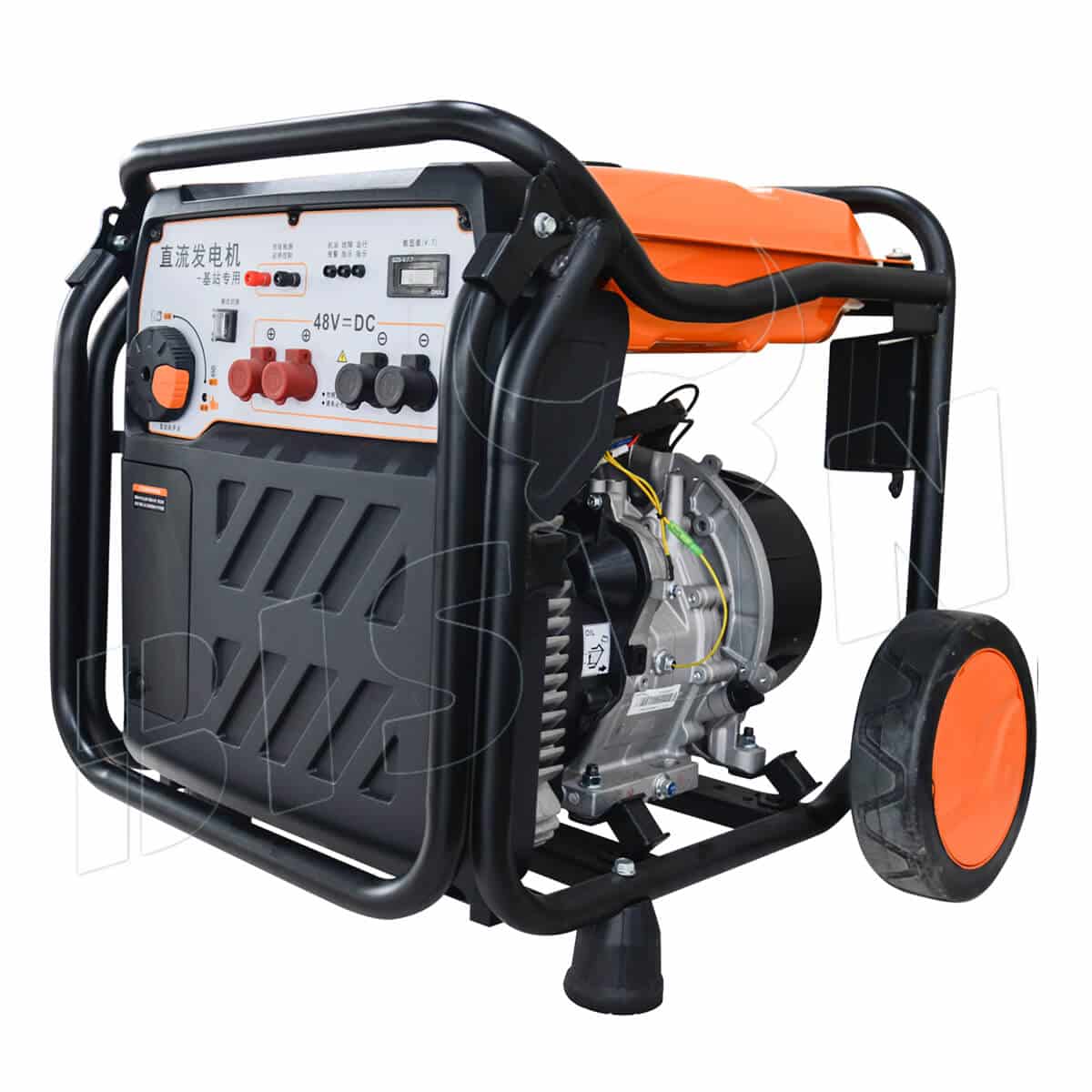

electric 48v dc petrol generator
within 25 days delivery time after receiving the deposit！
The BS4500DZ 48V DC electric petrol generator will transform your inventory by combining clean, quiet operation with the reliability of petrol power. As the preeminent petrol generator manufacturers in China, BISON prides itself on cutting-edge innovations tailored to meet modern energy needs.
Efficient start-up: The BS4500DZ is electrically powered, ensuring seamless and efficient operation without the need for manual start-ups or interruptions. Power is at your fingertips at the flick of a switch.
48V DC power supply: The BS4500DZ electric petrol generator is powered by a 48V DC power supply that provides a constant and stable power output, making it ideal for powering sensitive electronic equipment and devices. The precise DC power supply ensures optimal performance and protects your investment from voltage fluctuations and surges.
Petrol reliability: The 48-volt DC electric generator is petrol-fuelled and designed to be precise and reliable, ensuring uninterrupted power when you need it most. With BISON’s advanced engineering, your generator will provide consistent performance even in the most demanding environments.
features
legendary performance
Upgrade your product today with the BS4500DZ electric 48V DC petrol generator. Join our dealer network for innovative solutions to provide reliable power generation to your customers.
Convert petrol directly into usable DC power, saving fuel and extending your runtime!
always use the original spare parts
Even in demanding conditions, the BISON petrol generator manufacturer’s trusted BS225i engine delivers consistent power.
Our generator’s PISTON weight is 5% higher than fraternity, good for such as Oil Burning, Carbon Deposition, Piston Scuffing, and Insufficient Power.
Our generator’s CAMSHFT is made of PA66 material, it can perform mechanical reciprocating motion with a load of 100N at 900 times/min.
specifications
| output | |
|---|---|
| rated power | 2.8 KW |
| maximum power | 3.0 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 10 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS170F |
| bore × stroke | 70 × 56 MM |
| engine displacement | 210 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 15 l |
| oil capacity | 0.6 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 605 × 440 × 440 MM |
| generator net weight | 39 KGS |
| carton gross weight | 41 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the petrol generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!
※ Warranty time: 1 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.
OEM Service
※ Design team size: 10 designers.
※ What can we design for you: sticker, carton, logo, poster…
※ Design time required after receiving your deposit
Sticker design: within 2 days
Carton design: within 2 days
Logo: within 1 day
Poster: within 1 week
……
