homepower generator – strong 9kw electric start diesel generator

/

model: BS10500DSE

certificates:
tüv rheinland
ce
rohs compliant
epa

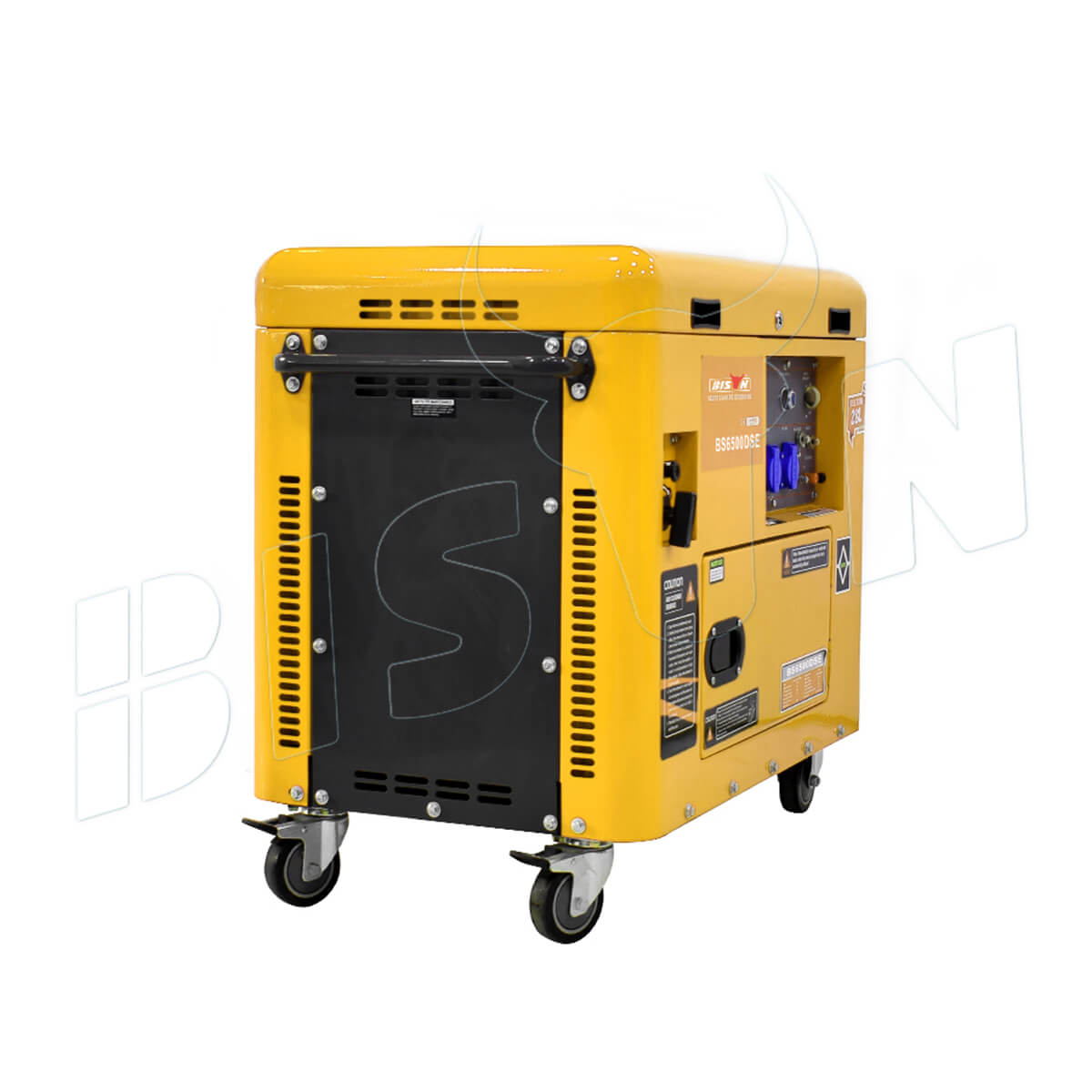

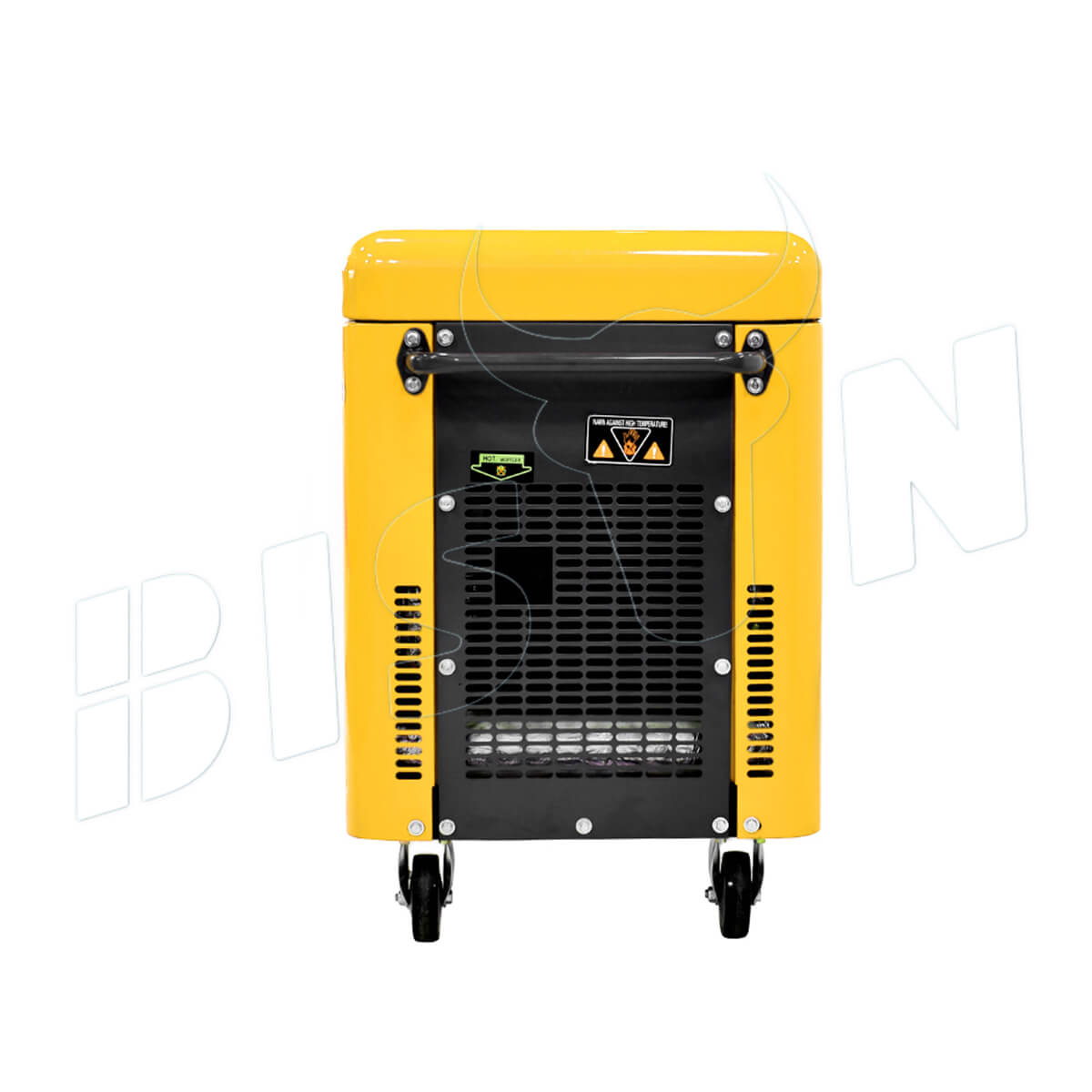

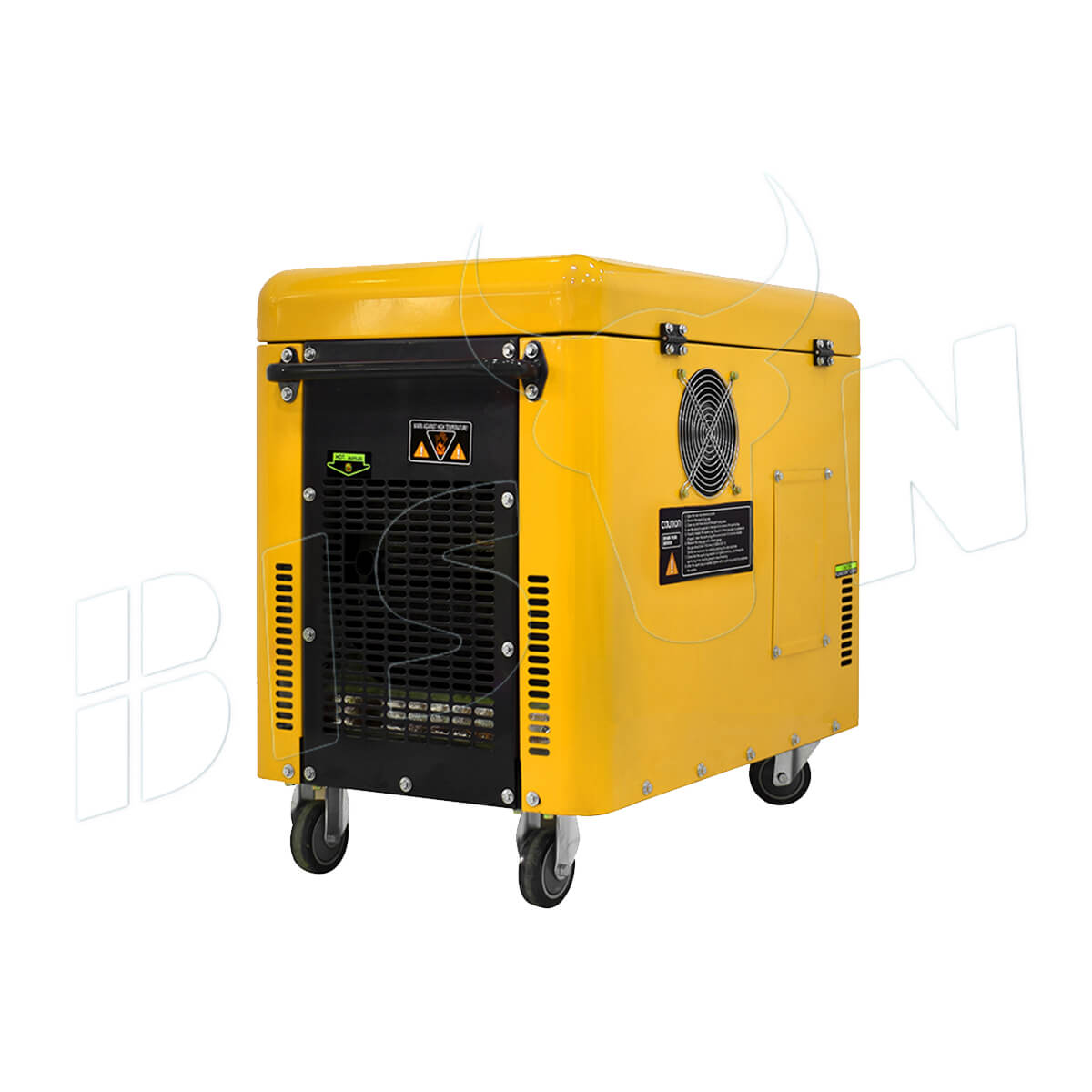

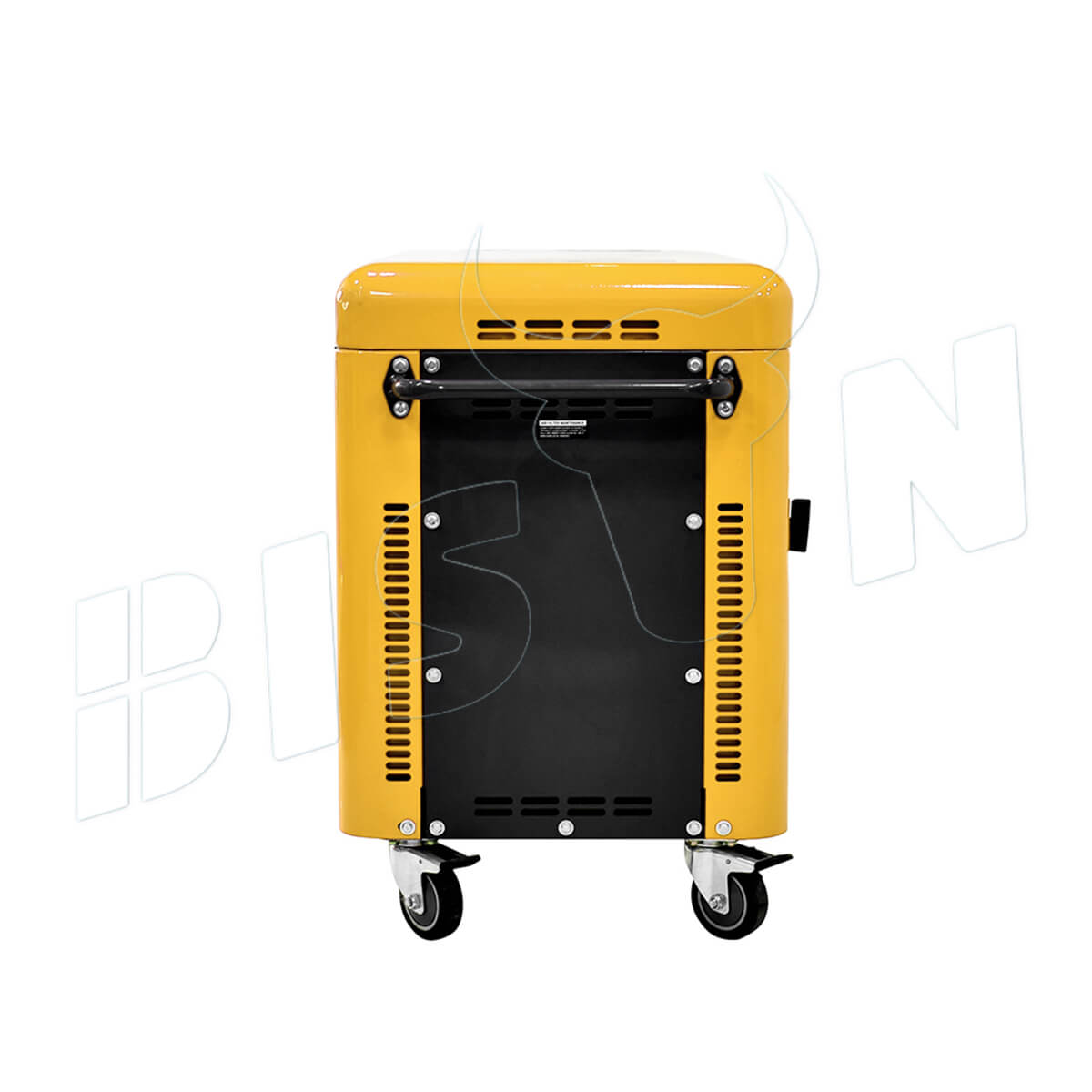

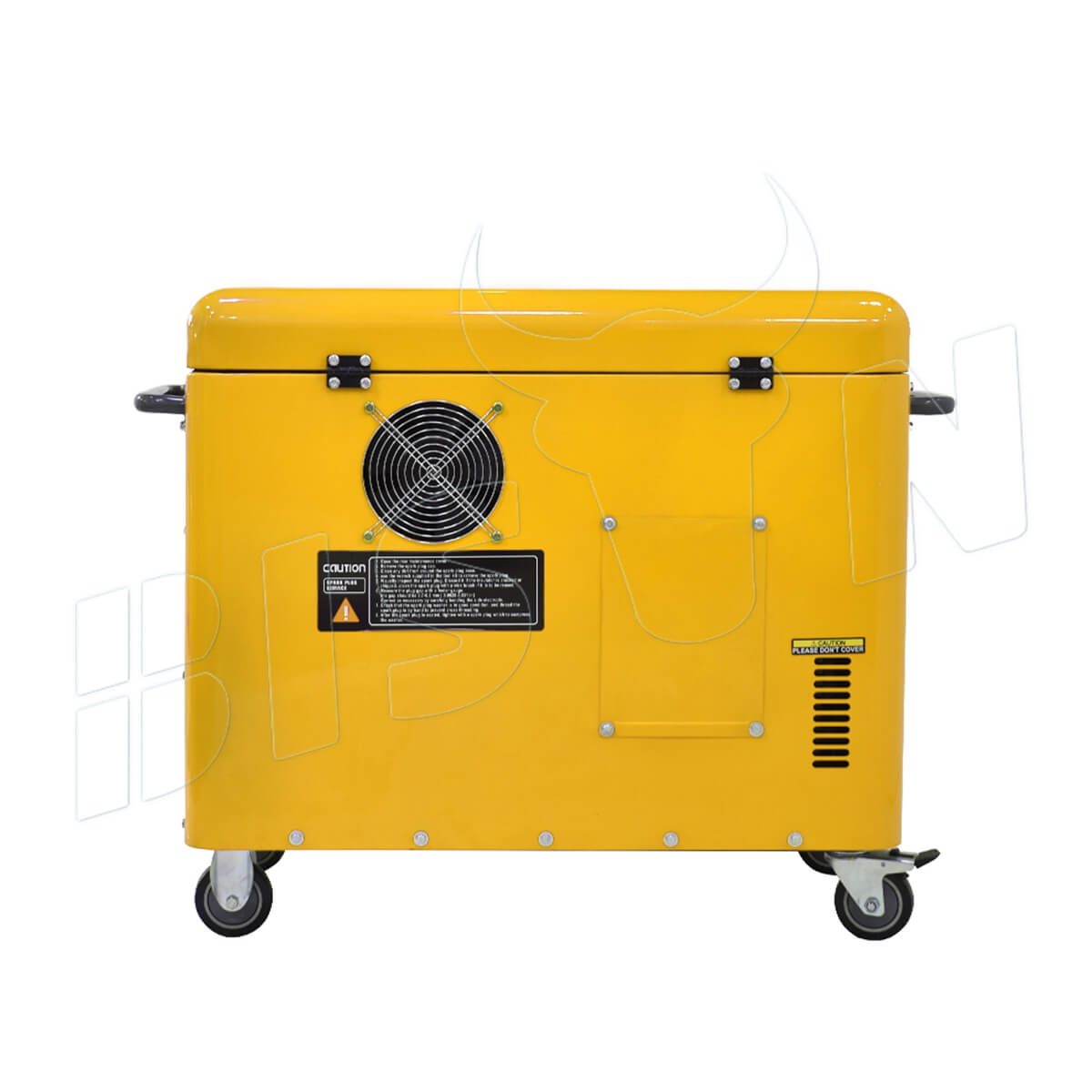

strong 9kw electric start diesel generator

9000 watts
diesel
commercial & industrial use
1 year warranty

within 25 days delivery time after receiving the deposit!

moq
BISON brand
20 SETS
OEM sticker
50 SETS
OEM carton
100 SETS

As a discerning wholesale dealer, you can empower your customers with the remarkable BISON BS10500DSE. portable electric start diesel generator is a testament to innovative engineering tailored for robust versatility and reliable power supply. Align with BISON diesel generator company to elevate your product range with a generator that redefines industry benchmarks.

Perfect for everything from bustling industrial environments to critical backup power needs in commercial spaces, the BS10500DSE offers a commanding 9kW output.

BISON BS1105FA engine model—a 1-cylinder, 4-stroke, air-cooled vertical engine—provides significant power with a displacement of 736 cc and precisely engineered dimensions (105 x 85 mm Bore x Stroke).Operating effectively at both 3000 RPM for 50 Hz and 3600 RPM for 60 Hz, this portable strong 9kw diesel generator matches robust output with resilient performance.

Combining this engine with a resilient BISON alternator with 100% copper windings further ensures reliable and efficient energy delivery.

video-background

features

portable-strong-9kw-electric-diesel-generator-detail

Intelligent design for dynamic demands

Single-phase & Three-phase options: Choose according to the need for power, with amperage calculations simplified for both configurations.

Frequency adaptability: portable 9kw electric generator features a universal design for use with both 50 Hz and 60 Hz systems, ensuring compatibility across different operating standards.

Extended run time: Exceptionally economical, featuring a generous 30-liter fuel tank that supports up to 9 hours of continuous operation without a refill.

Partner with BISON today

At BISON diesel generator companies, you can be successful not only in terms of technology, but also in terms of after-sales service. Choosing a BS10500DSE dealer will get more than just a product, but also a partnership supported by:

  • Comprehensive support: Expert technical support and comprehensive after-sales service to ensure complete satisfaction.
  • Marketing assistance: Professional marketing materials to help you promote the BISON BS10500DSE effectively.
portable strong 9kw electric diesel generator detail 2

specifications

output
rated power 9.0 KW
maximum power 9.5 KW
Phase single-phase / three-phases (optional)
AC voltage depends on your country’s voltage
single-phase AC amperage running power ÷ using voltage
three-phase AC amperage running power ÷ using voltage ÷ 1.3856
frequency 50 / 60 HZ
continuous operating time 9 h
engine & emission
engine type 4-stroke, OHV, air-cooled
engine model name BS168F-1
bore × stroke 68 × 45 MM
engine displacement 196 CC
engine speed 3000(50 Hz) / 3600(60 Hz) RPM
recoil start yes
electric start optional
alternator
winding material 100% copper winding
power factor 1.0 (single-phase) / 0.8 (three-phase)
fuel system
fuel tank capacity 15 l
oil capacity 0.6 l
packaging
carton dimensions (no wheels & handles) 605 × 440 × 440 MM
generator net weight 35 KGS
carton gross weight 37 KGS

optional

remote-start

If your customers have remote start requirements, you should choose this option.

remote start

easy to move the generator

digital-display

The customers who have high-end pursue of generator should choose this option.

digital display

easy to monitor the generator

industrial-socket

The generators above 7 kilowatts or have three-phase voltage should choose this option.

industrial socket

power for industrial use

ats

When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.

ATS

automatically start without human intervention required

glow-plug

If the winter temperature in your area is below 0 ℃, you should choose this option.

glow plug

help to start in low temperature

factory

overview

how we test the gasoline generator

camshaft-test

Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.

camshaft test

cylinder-head-test

Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.

cylinder head test

oil-quality-testing

The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.

oil quality testing

cylinder-test

Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.

cylinder test

crankcase-seal-test

Crankcase has a oil leakage test to ensure that there is no oil leakage problem.

crankcase seal test

bearing-seal-test

Ensure bearing sealing and no oil leakage

bearing seal test

honing-parts

Makes the surface of spare parts smoother and reduces wear.

honing parts

precision-boring-process

Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.

precision boring process

torque-test

Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.

torque test

engine-test

Make sure the engine is running normally and stably without any abnormal noise.

engine test

residue-cleaning

After the engine test, clean the internal residue to reduce the damage of the parts.

residue cleaning

alternator-air-gap

Ensure the sealing of alternator is stable.

alternator air gap

alternator-100%-test

After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.

alternator 100% test

low-temperature-test

Make sure the generator can operate properly in low temperature conditions.

low temperature test

packaging

Well-packaged and ensure the safety of the generator.

packaging

support

warranty

※  Our commitment:

Dear customer, many thanks for considering our generator. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every generator you own is rigorously tested and carefully manufactured!

※  Warranty time: 1 year after B/L date.

※  Warranty coverage: Non-human factors, the damage caused by machine its own quality problems.

※  How we fulfill our warranty:

Situation 1  Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.

Situation 2  Quality problem with small batches withnin warranty time: You give your customer a new generator for free→We would give you a discount in your next order corresponding to the amount of the severely damaged generator.

Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new generator for free firstly→We would send technicians to your country to repair these machines for you free of charge.

Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new generator for free firstly→We would compensate you in batches in future orders.

OEM service

※  Design team size: 10 designers.

※  What can we design for you: sticker, carton, logo, poster…

※  Design time required after receving your deposit

Sticker design: within 2 days

Carton design: within 2 days

Logo: within 1 day

Poster: within 1 week

……

agent service

How to become a BISON agent: achieve orders of more than USD 1 million of BISON brand products in one year.

What can you get after becoming an agent:
We will assist you in building a BISON supermarket store locally
Give you free display racks and display cabinets
Provide you with free decoration design services.
……

At the same time, enjoy the supreme VIP warranty experience and service!

customs services

We can find the cheapest sea shipping price for you.
We can find a local customs clearance agent for you.
In some special cases, we can save you import tariff costs.

documents
