home – power generator – outdoors diesel generator with wheel handrail
model: BS9500DCE

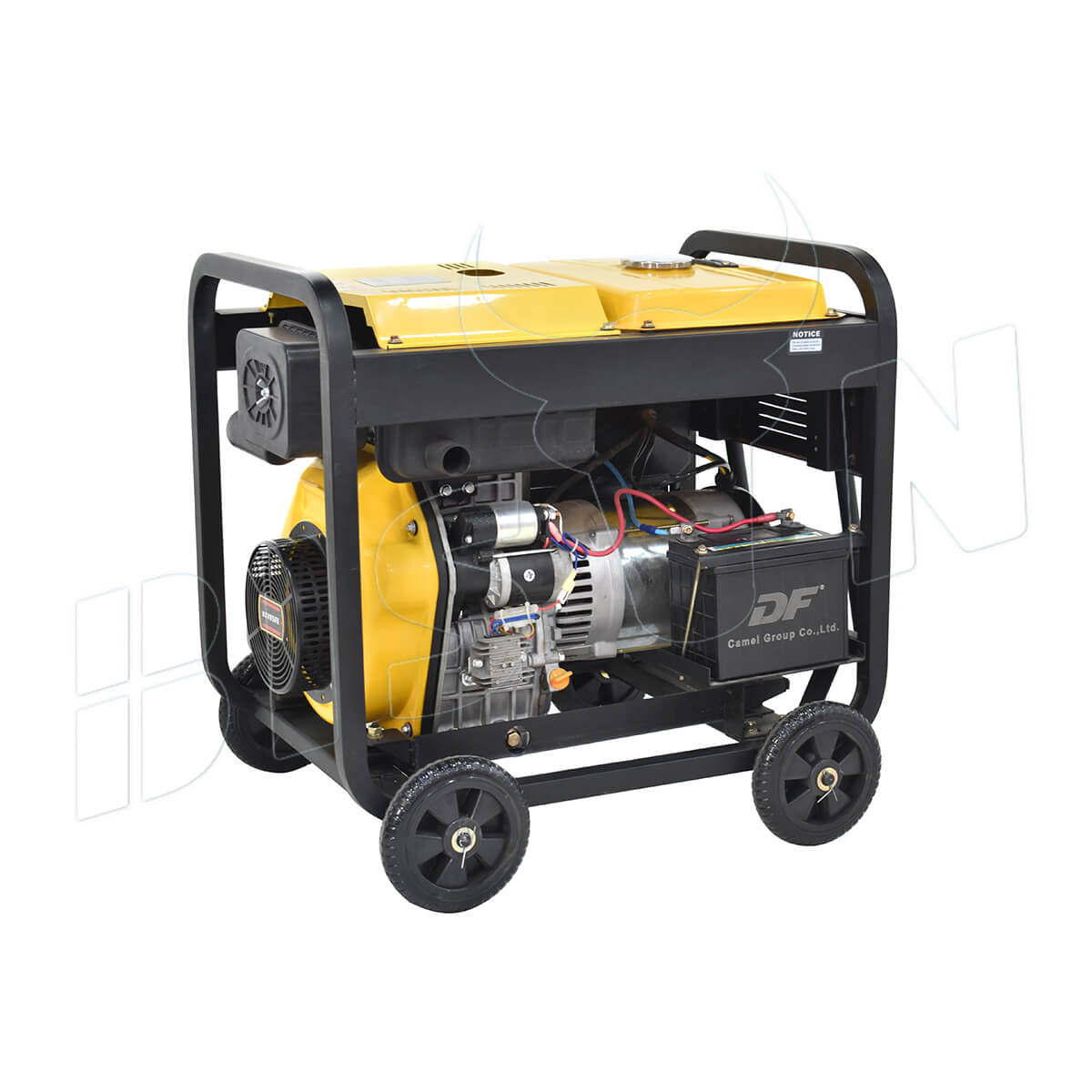

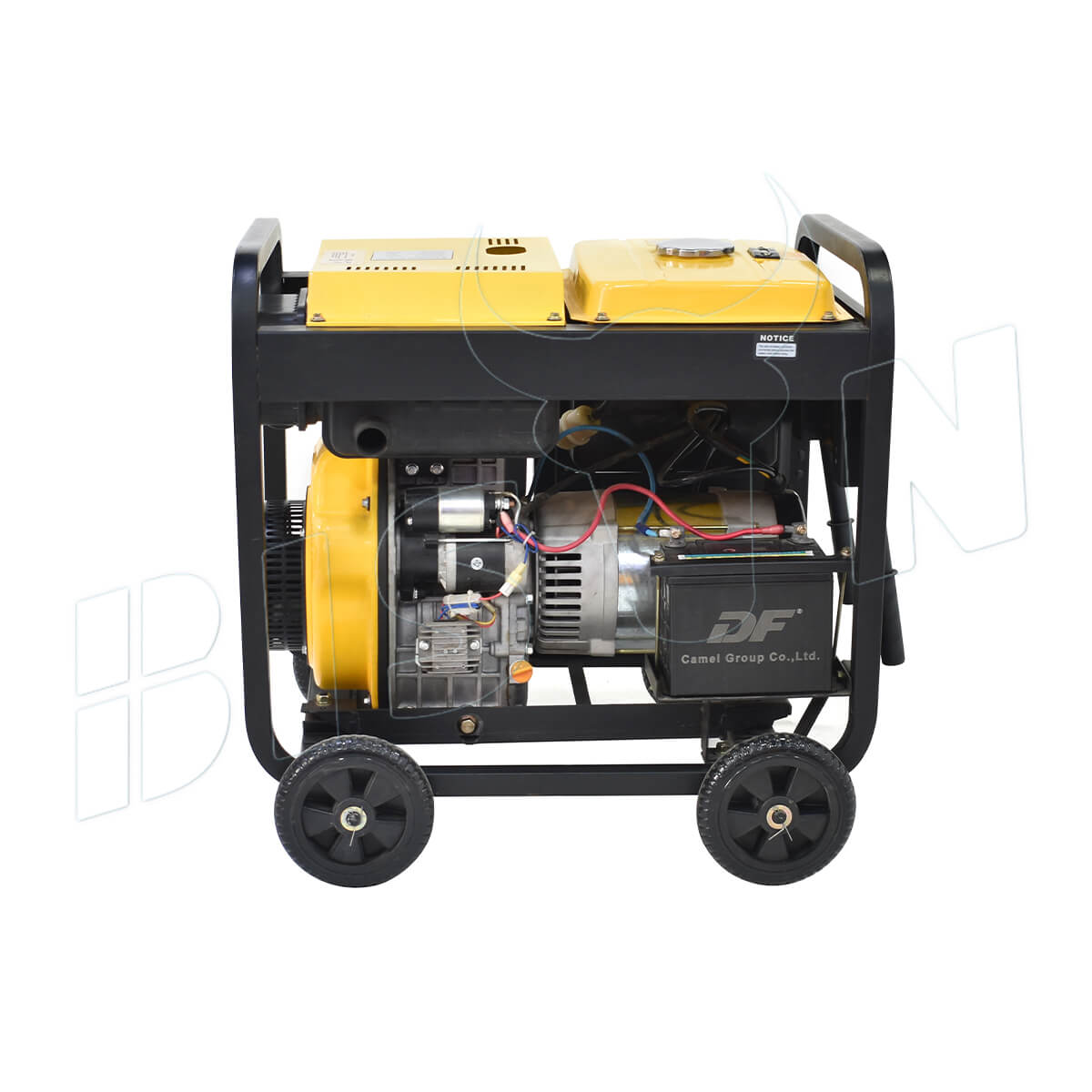

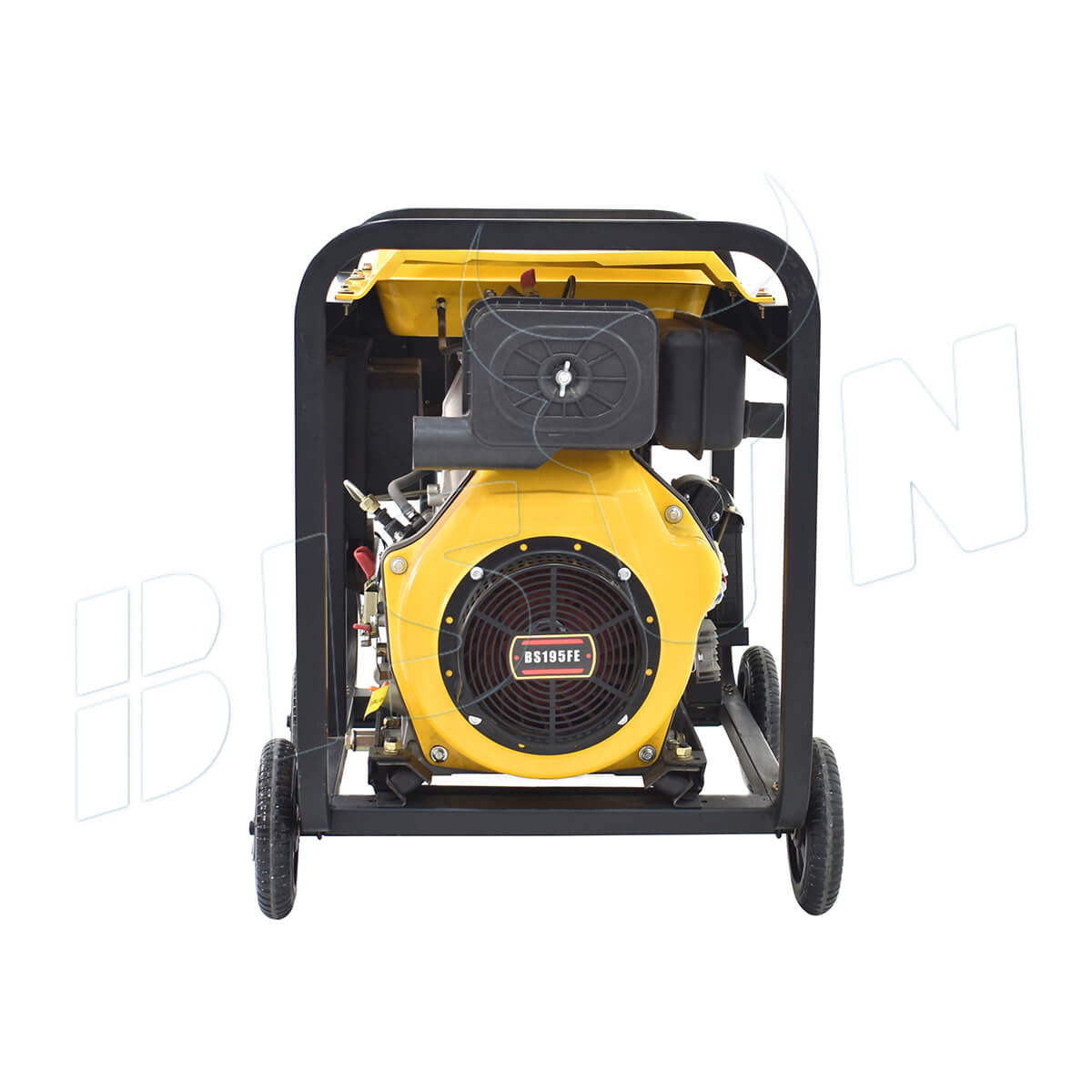

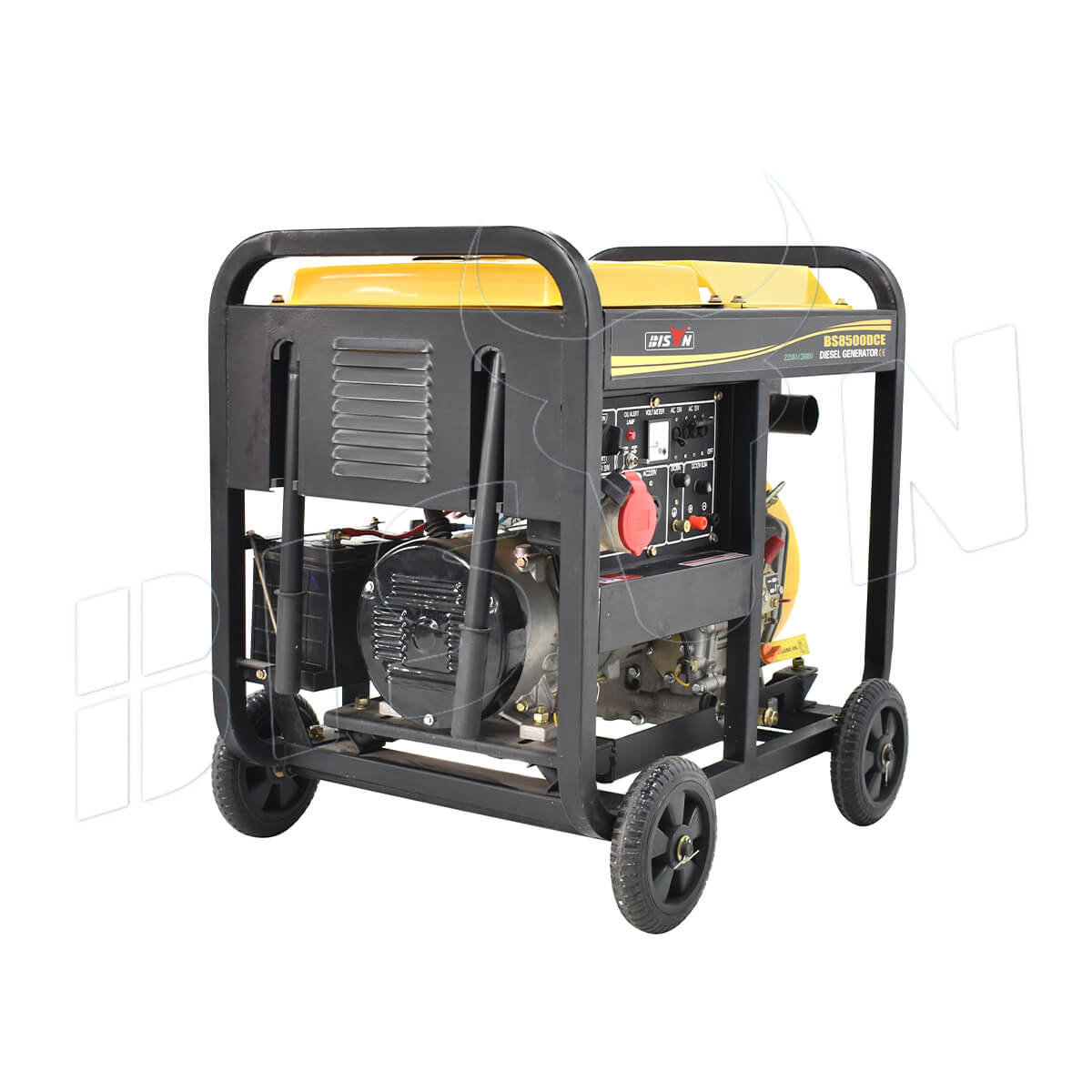

outdoors diesel generator with wheel handrail
within 25 days delivery time after receiving the deposit！
As a well-known diesel generator factory in China, BISON outdoors diesel generator adopts a wheeled handrail design to meet various outdoor use needs.
Peak power output: With a rated power of 8.0 KW and a maximum power of 8.5 KW, outdoors diesel generator ensures that you have ample power whenever you need it. Choose between single-phase or three-phase configurations to match your specific power requirements.
Durable alternator: The BS9500DCE utilizes a high-quality BISON alternator with 100% copper winding. This results in excellent conductivity and durability, translating to reliable long-term use and enhanced performance.
Country-specific AC voltage: This diesel generator with wheel handrail can be tailored to meet your country’s specific voltage requirements, providing seamless compatibility with local electrical systems.
Enhanced mobility: The thoughtfully designed wheel handrail makes transportation effortless. It’s built for easy maneuverability across various terrains, making it perfect for job sites, events, and emergencies.
features
Cooperate with BISON, BS9500DCE will push you to the top of sales!
With an integrated wheel handrail, transporting the generator is made significantly easier. Move it across job sites, campsites, or to storage with minimal effort, thanks to its ergonomic design. From construction sites, outdoor events, emergency backup, to remote camping, this BISON BS9500DCE’s versatile features and high power output cater to a wide array of applications.
Global appeal
Targeted for an international market,BISON outdoors generator with wheel handrail’s adaptability to different voltage standards and frequency options ensures it meets the needs of dealers and users worldwide.
The combination of electric start, intuitive controls, and easy mobility transforms the typically strenuous task of handling a generator into a seamless experience, suitable for users of all skill levels.
specifications
| output | |
|---|---|
| rated power | 8.0 KW |
| maximum power | 8.5 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 4.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS168F-1 |
| bore × stroke | 68 × 45 MM |
| engine displacement | 196 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 15 l |
| oil capacity | 0.6 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 605 × 440 × 440 MM |
| generator net weight | 35 KGS |
| carton gross weight | 37 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
If the winter temperature in your area is below 0 ℃, you should choose this option.
glow plug
help to start in low temperature
factory
overview
how we test the gasoline generator
Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.
camshaft test
Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.
cylinder head test
The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.
oil quality testing
Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.
cylinder test
Crankcase has a oil leakage test to ensure that there is no oil leakage problem.
crankcase seal test
Ensure bearing sealing and no oil leakage
bearing seal test
Makes the surface of spare parts smoother and reduces wear.
honing parts
Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.
precision boring process
Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.
torque test
Make sure the engine is running normally and stably without any abnormal noise.
engine test
After the engine test, clean the internal residue to reduce the damage of the parts.
residue cleaning
Ensure the sealing of alternator is stable.
alternator air gap
After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.
alternator 100% test
Make sure the generator can operate properly in low temperature conditions.
low temperature test
Well-packaged and ensure the safety of the generator.
packaging
