two-cylinders industrial gasoline generator
within 25 days delivery time after receiving the deposit！
Features of BISON two-cylinder industrial gasoline generator:
- Electric start for easy starting
- 30 litre fuel tank for extended running time, minimising refuelling downtime
- 1.5 litre oil capacity ensures proper lubrication and engine protection
- Choice of single-phase or three-phase operation provides flexible power for different types of equipment
- Up to 6.5 hours of continuous operation provides plenty of power for long working hours

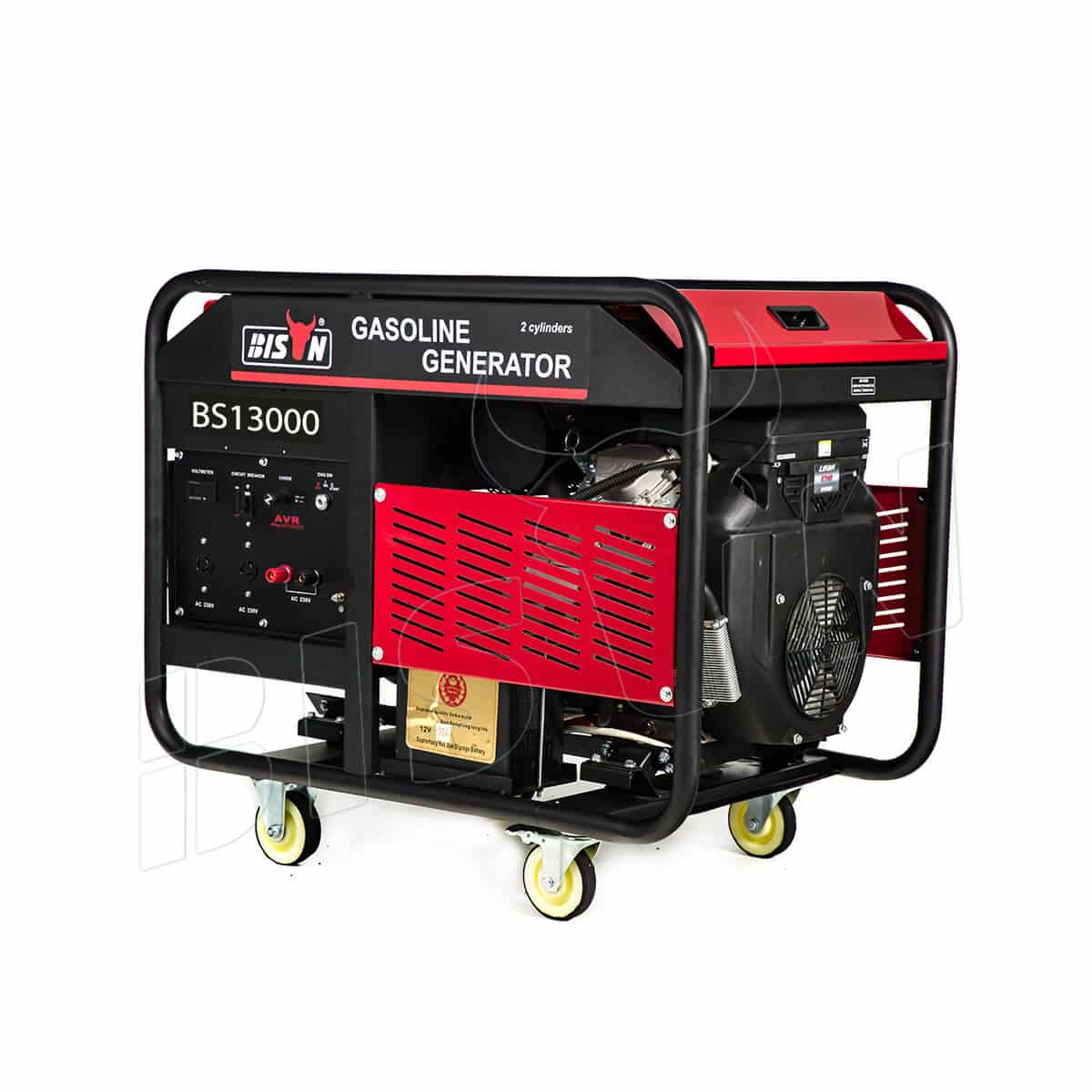

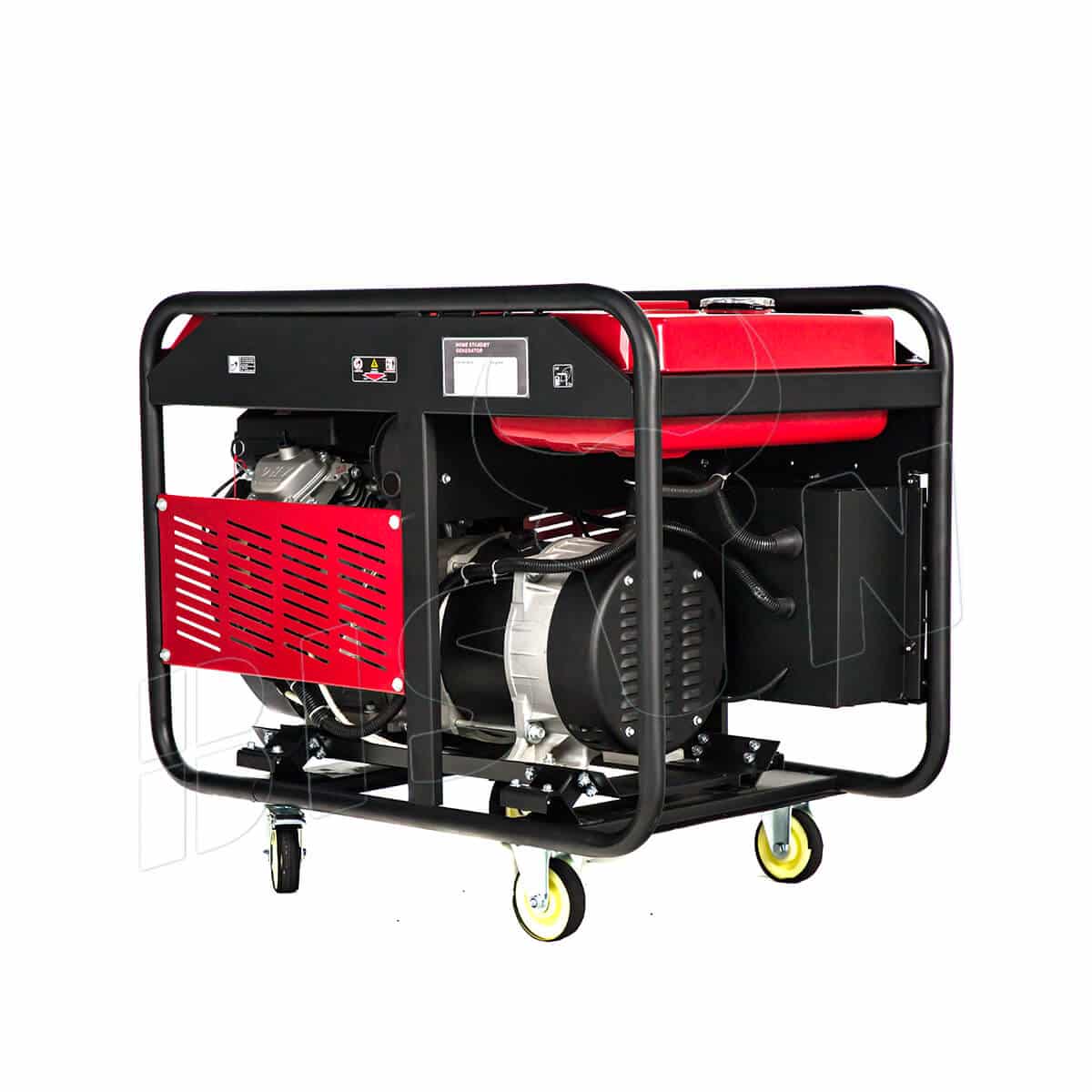

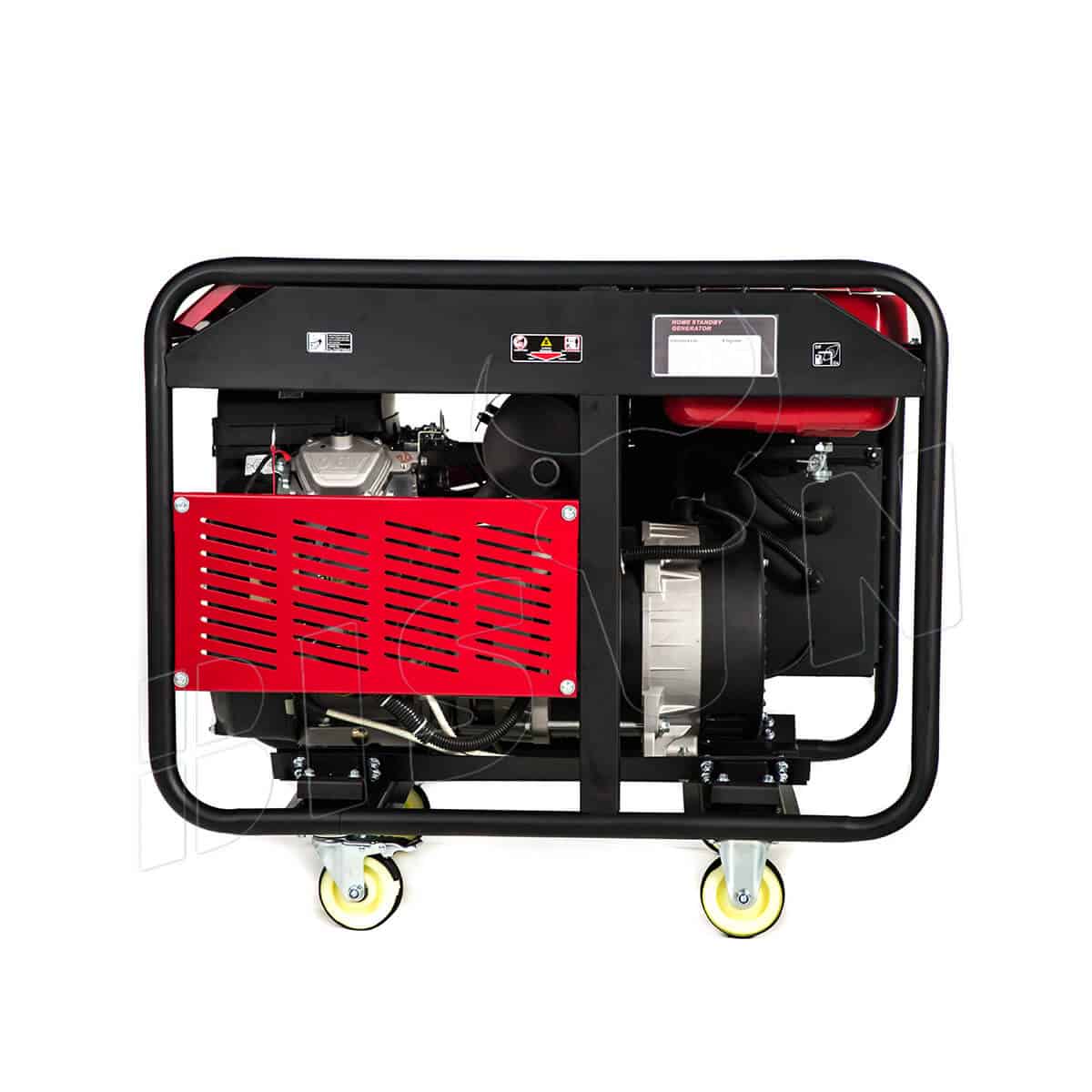

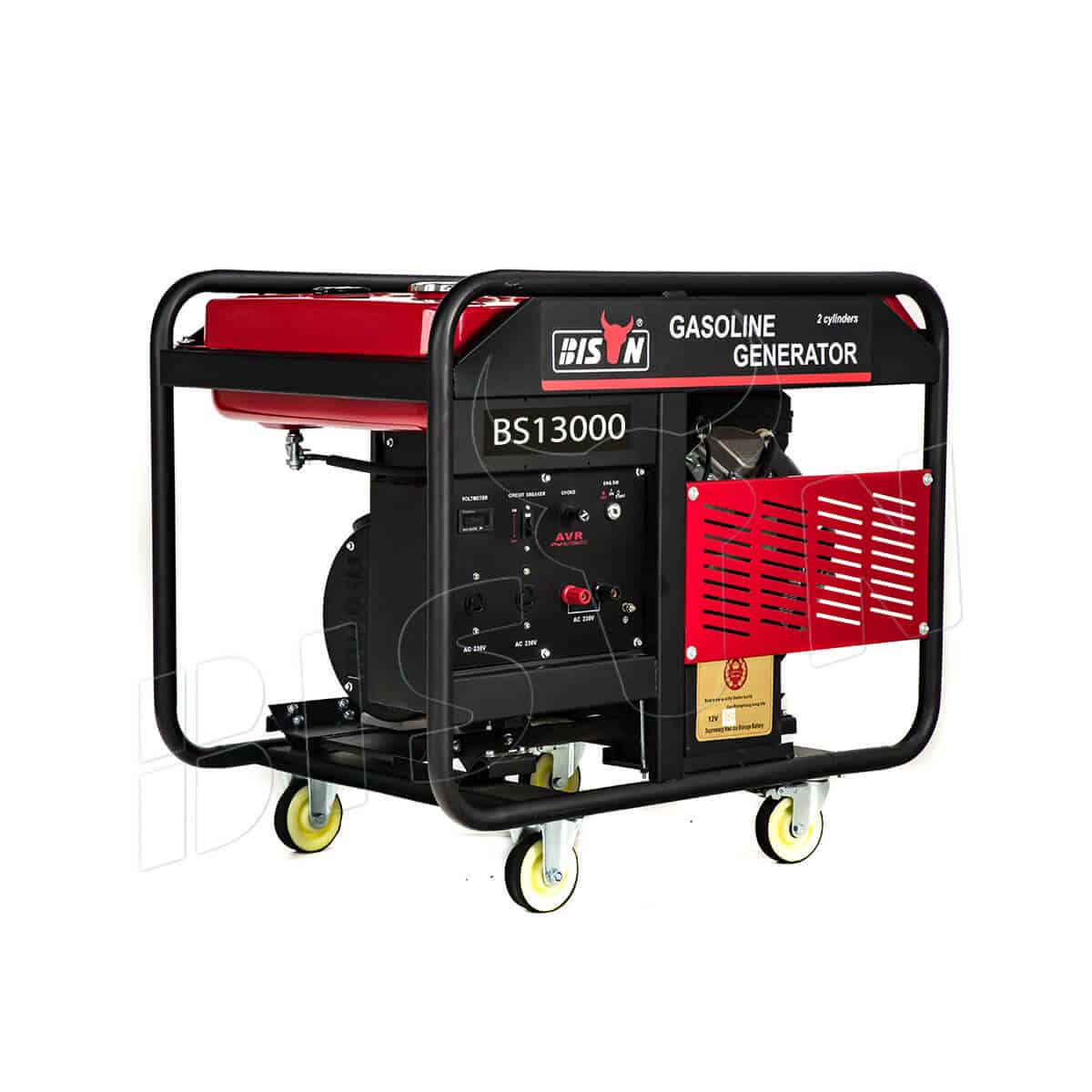

BISON BS13000 is a professional-grade industrial gasoline generator ideal for a variety of applications including construction, manufacturing and emergency backup power. It is powered by a reliable two-cylinder, four-stroke air-cooled OHV engine that delivers 10.0 kW rated power and 11.0 kW maximum power. BS13000 is also equipped with AVR to ensure stable voltage output even under load.
features
The BS13000 twin-bar gasoline generator is built with a heavy-duty steel frame and high-quality components for long hours of operation under load, ensuring it can withstand harsh industrial environments and demanding operating conditions.
The twin-cylinder design distributes the power evenly for smoother running and less vibration.
BS13000 twin-cylinder engine improves combustion efficiency and reduces fuel consumption.
stable AC power output
BISON petrol generator manufacturers provide AC power for a wide range of industrial needs, from powering lighting and electrical systems, to operating tools and equipment on construction sites and manufacturing facilities, and more.
Two-cylinders industrial gasoline generator stable AC output prevents surges and voltage dips from damaging precision electronics.
specifications
| output | |
|---|---|
| rated power | 10.0 KW |
| maximum power | 11.0 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 6.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | R670 |
| bore × stroke | 2-78 × 70 MM (Two-Cylinders) |
| engine displacement | 670 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | / |
| electric start | Yes |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 30 l |
| oil capacity | 1.5 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 960 × 630 × 830 MM |
| generator net weight | 175 KGS |
| carton gross weight | 185 KGS |
optional
The open frame type gasoline generators above 5 kilowatts should choose this option.
wheels & handles
easy to move the generator
The open frame type gasoline generators above 5 kilowatts should choose this option.
electric & remote start
easy to start the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
factory
overview
how we test the gasoline generator
Ensure the engine better store energy and inertia.
flywheel clearance
Ensure the alternator could output current stably.
power debugging
Ensure the stability and sealing of the fuel tank.
fuel tank airtight
Ensure the sealing of alternator is stable.
alternator air gap
Ensure the sealing of cylinder head is intact.
cylinder head seal
Ensure a stable connection between the connecting rod and crankshaft.
connecting rod torque
Ensure the cylinder head connection is stable.
cylinder head torque
Ensure the crankcase torque is correct and the same for each engine.
crankcase torque
Ensure the sealing of the engine is stable.
air tightness test
Ensure the muffler connection is stable.
muffler tightening torque
Ensure stable performance and output of the generator.
comprehensive performance test
Ensure the voltage of generator is stable.
voltage test
Ensure the generator has no cosmetic defects.
appearance final inspection
Ensure we don’t miss any accessories in the carton.
weighing check
Well-packaged and ensure the safety of the generator.
packaging
