Flickering lights, unusual sounds from appliances, or damaged electronics can happen if your generator is not providing the right voltage. Using the correct voltage is important to keep your devices safe, make your generator work efficiently, and prevent unnecessary problems. An uncalibrated generator voltage can damage the control panel or instrument cluster and affect voltage-sensitive equipment such as chargers, UPS, and refrigerators.
Discover how to adjust generator voltage with an AVR or engine speed. Follow our step-by-step guide to ensure safe, stable power for your equipment.
Understanding generator voltage, frequency, and the AVR
A generator voltage is like water pressure in a pipe. If the pressure is too high, it can damage appliances. If it is too low, devices may not work properly. In the same way, generator voltage needs to be at the correct level to safely power equipment. Without proper control, appliances can overheat, get damaged, or perform poorly.
Engine speed and frequency
Engine speed affects frequency, which is the number of cycles per second the generator produces. For example, 3600 RPM produces 60 Hz, while 3000 RPM produces 50 Hz. Keeping the correct frequency helps devices operate smoothly.
What is an automatic voltage regulator (AVR)?
Most generators use an Automatic Voltage Regulator (AVR), typically located near the alternator. The AVR monitors output voltage and adjusts the excitation current based on feedback signals to keep it within a set range — preventing it from rising too high, which could damage equipment or overcharge batteries, and from dropping too low, which could cause poor performance or insufficient charging.
Since the output voltage fluctuates with engine speed, the AVR corrects automatically to ensure stable operation.
Safety precautions while adjusting the generator voltage
- Read the user manual: Always read and understand the operator’s manual to follow the manufacturer’s guidelines and reduce the risk of injury.
- Disconnect all loads: Turn off and unplug all devices connected to the generator before making adjustments. Ensure the engine is off, and if it has been recently used, allow it to cool for 10 to 15 minutes.
- Work in a dry, ventilated area: Keep the generator away from water and ensure proper airflow to avoid overheating and electrical hazards. Remember that fuel-related components are a fire risk, so keep the generator away from cigarettes, sparks, hot objects, and open flames.
- Wear personal protective equipment (PPE): Always use insulated gloves and safety glasses when working on the generator.
- Use only insulated tools: Never use non-insulated metal tools, as they can conduct electricity and cause shocks. This includes small flat head screws and a 7 mm wrench.
How to adjust generator voltage
Method 1: How to adjust generator voltage with AVR (for generators with AVR)
Adjusting generator voltage with an automatic voltage regulator (AVR) is the safest and easiest way to calibrate voltage without spending extra cost.
Step 1: Prepare and start the generator
Check that all tools are insulated and ready. Start the generator and allow it to warm up for a few minutes before making adjustments.
Step 2: Measure no-load frequency

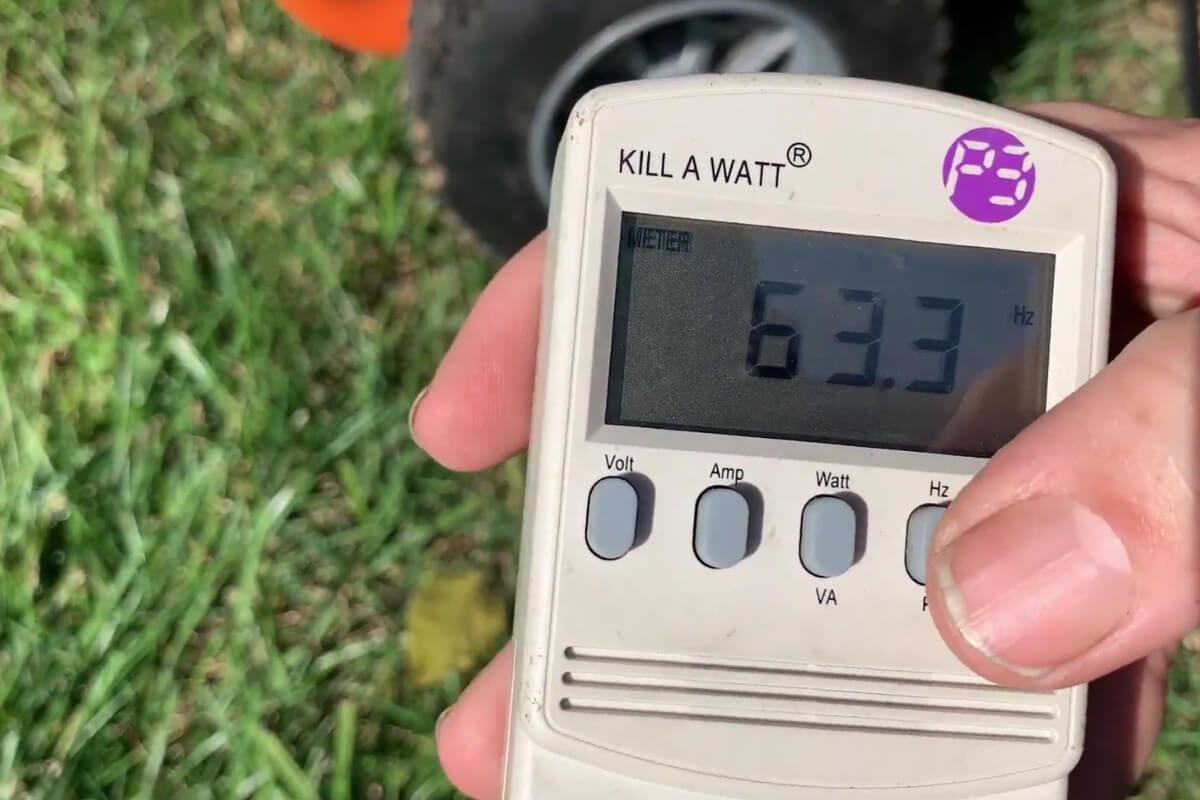

Use a digital multimeter to measure the generator’s frequency with no load connected. If the frequency is not correct (60 Hz in North America or 50 Hz in Europe), adjust the engine governor according to the user manual.
Step 3: Measure no-load voltage
Measure the voltage with no load using a multimeter. Aim for a voltage slightly higher than the nominal value (such as 125V for 120V systems or 245V for 240V systems) to compensate for the voltage drop when the load is applied.ed.
Step 4: Locate the AVR and potentiometer

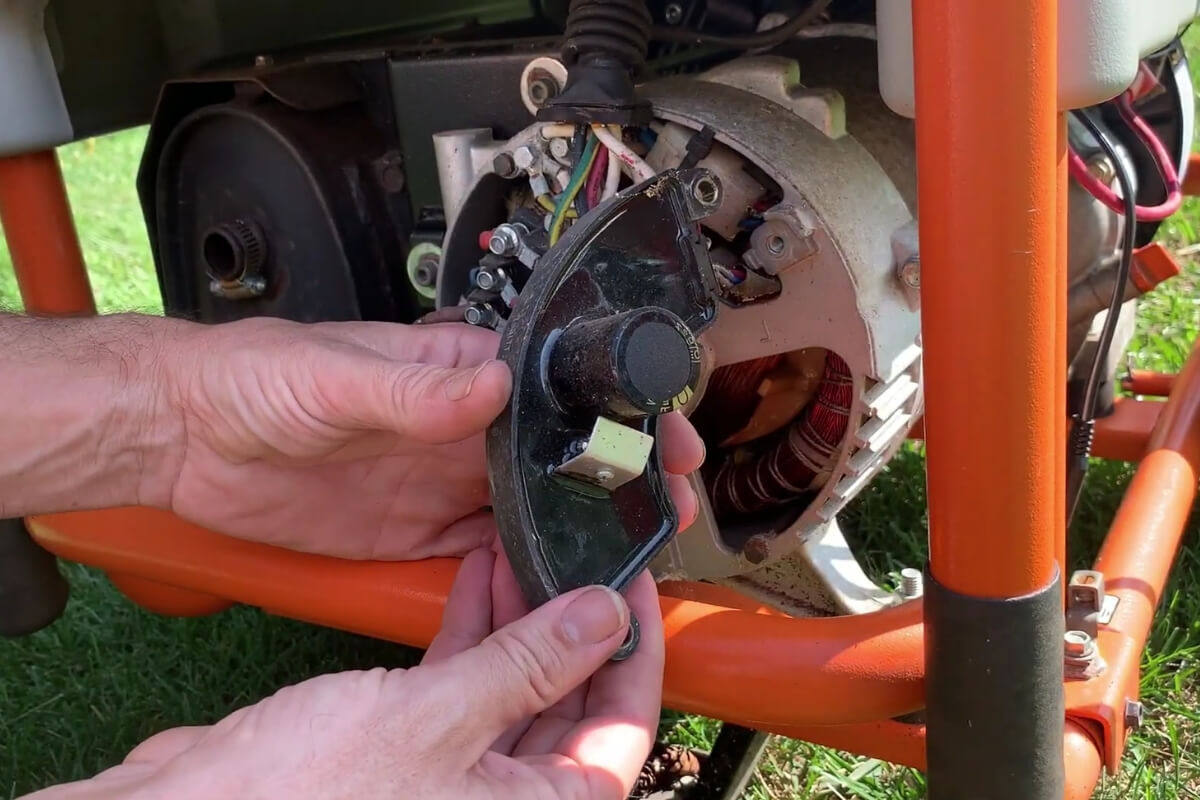

Find the automatic voltage regulator (AVR) near the alternator. It is usually kidney-shaped or rectangular, depending on the generator type.pe.
In standby or whole-house generators, it is often located on top of the alternator terminal or control box. In portable generators, it is usually inside the end or stator cover. Remove the two 7 mm bolts using a wrench to access it.
Step 5: Make small incremental adjustments
Turn the AVR potentiometer in very small steps. If the voltage is too high, reduce it by turning the adjustment clockwise. If it is too low, increase it by turning the adjustment clockwise.
Make small changes and recheck the voltage after each adjustment to avoid overcorrection. Continue until the correct no-load voltage is reached. Large adjustments can damage the generator or connected equipment.
Step 6: Test under load
Reconnect a typical load to the generator and measure the voltage again. Check for voltage drops. If the voltage drops significantly, fine-tune the AVR in small increments until the voltage remains stable under load.
Method 2: Voltage adjustment by controlling engine speed
Since voltage is directly proportional to engine speed, the output can be controlled by adjusting the engine speed.
Step 1: Start the generator
Start the generator and wait a few minutes until it reaches a steady operating speed.
Step 2: Locate the speed regulating screw
In most cases, the speed regulating screw is found on the side or top of the air filter assembly.
Step 3: Adjust the voltage
Use a screwdriver to turn the adjustment screw clockwise or counterclockwise as needed while monitoring the output voltage with a voltmeter. Engine speed can also be adjusted using the idle screw.
A professional opinion is highly advised to ensure correct voltage settings. A qualified technician can evaluate the environment, expected load requirements, input voltage, and motor load capacity before making adjustments.
Special cases of generator voltage regulation
Complex situations
Some systems support voltage changes in one direction only (e.g., 600V to 480V, but not the reverse). High-voltage generators (4160V or 13,500V) require proper technical handling, and adjustments to 3-phase high-voltage units should always be performed by a qualified technician to avoid serious damage.
Non-adjustable models
Inverter generators: Voltage is regulated internally through electronic controls and is generally not user-adjustable. Attempting to modify settings may damage the electronics or void the warranty.
Capacitor-regulated generators: These units use a capacitor instead of an AVR. Low voltage typically indicates a weak or failed capacitor — since voltage adjustment is not possible, the capacitor must be tested and replaced to restore proper output.
Troubleshooting generator voltage problems
Even with proper adjustments, voltage issues can occur. Use this guide to diagnose and fix the most common problems.
1. High voltage
Symptoms: Lights brighter than normal; appliances overheat.
- Check AVR connections for loose or damaged wires
- Measure no-load voltage with a digital multimeter
- Make small incremental AVR adjustments to reduce voltage
- Recheck voltage under load to confirm stability
2. Low voltage
Symptoms: Dimming lights; equipment runs slowly or malfunctions.
- Measure no-load voltage
- Inspect the AVR — replace if faulty
- On capacitor-regulated models, test and replace the capacitor if needed
- Adjust the AVR in small increments if applicable
3. Voltage drop under load
Symptoms: Normal voltage at no load, but drops when devices are connected.
- Verify engine speed (e.g., 3600 RPM for 60 Hz)
- Inspect connections and terminals for corrosion or looseness
- Check AVR performance under heavy load
- Test with a smaller load to isolate the issue
4. Frequency or engine speed issues
Symptoms: Incorrect frequency; unstable voltage.
- Measure frequency with a digital multimeter
- Adjust the governor per manufacturer guidelines
- Recheck voltage after frequency is stabilized
5. AVR faults
Symptoms: Voltage fluctuates randomly or stays out of range.
- Inspect AVR wiring and mounting
- Swap in a known working AVR to test
- Replace the AVR if the voltage cannot be stabilized
6. Rotor, stator, or diode issues
Symptoms: Persistent voltage problems even after AVR adjustment.
- Inspect the alternator rotor and stator for wear or damage
- Test rectifier diodes for shorts or failure
- Replace damaged components following proper safety procedures
Summary
Adjusting generator voltage is an important skill that helps keep your appliances safe and your BISON generator running efficiently. In our experience, using an AVR is the most accurate and reliable way to calibrate voltage. Although generator voltage can also be adjusted by changing engine speed using bolts or the idle screw, this method requires technical knowledge and is not recommended for beginners.
As a professional generator and generator parts supplier, BISON designs every unit with a precision-engineered AVR system that delivers consistent voltage output across all load conditions — minimizing equipment damage risks and reducing after-sales complaints. For dealers looking to offer customers reliable, stable power, partnering with BISON means giving your customers the confidence of professional-grade power protection.
FAQs
Can the generator run without an AVR?
Yes, but it is not recommended because the AVR is the main component that controls the generator's output voltage. Running a generator without an AVR can damage electrical equipment and reduce overall performance.
How often should I check and adjust generator voltage?
The frequency of voltage checks and adjustments depends on usage, environmental conditions, and generator age. After about 200 hours of operation, a thorough inspection and maintenance should be carried out.
