home – power generator – high quality 5kw diesel electricity generator
model: BS6000DSE

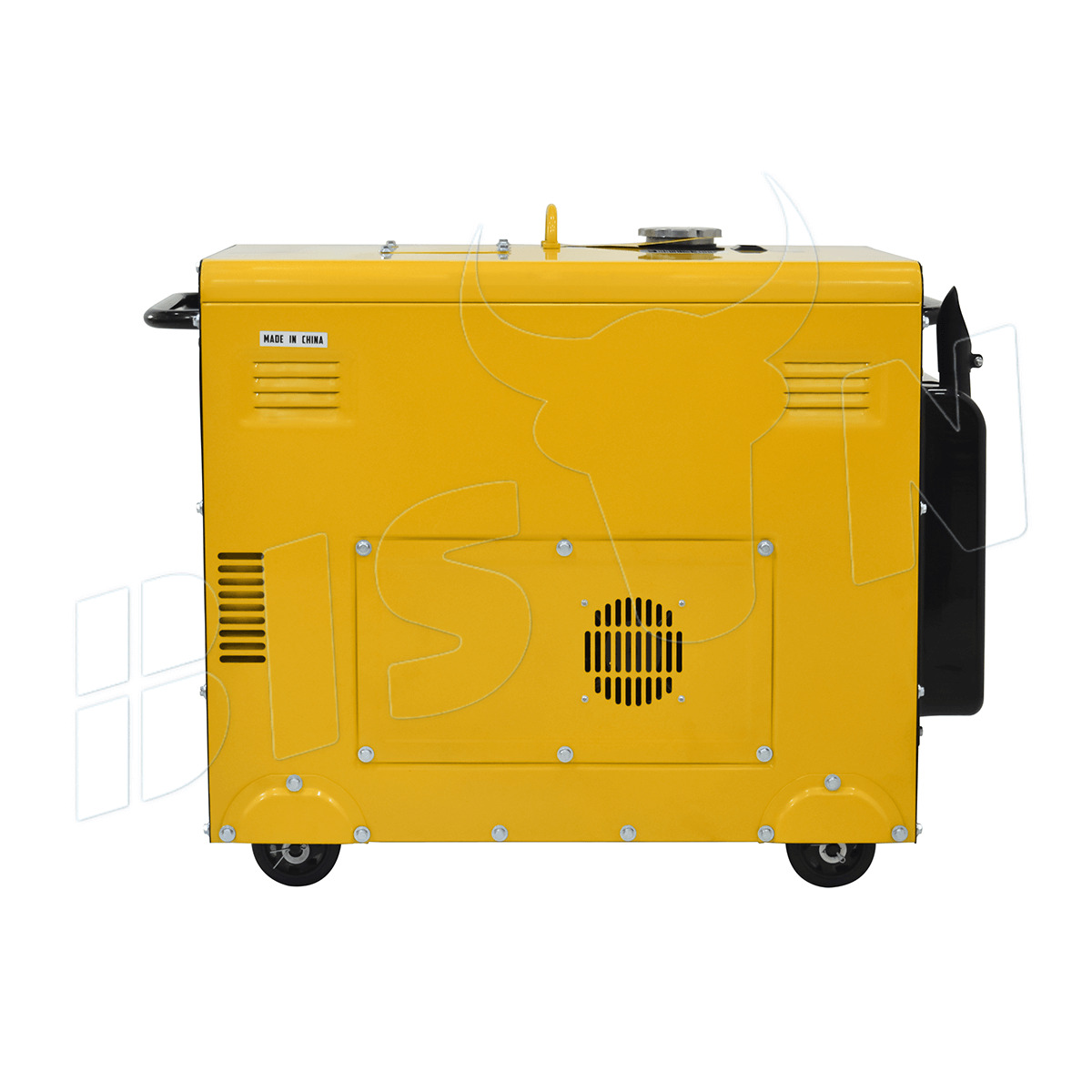

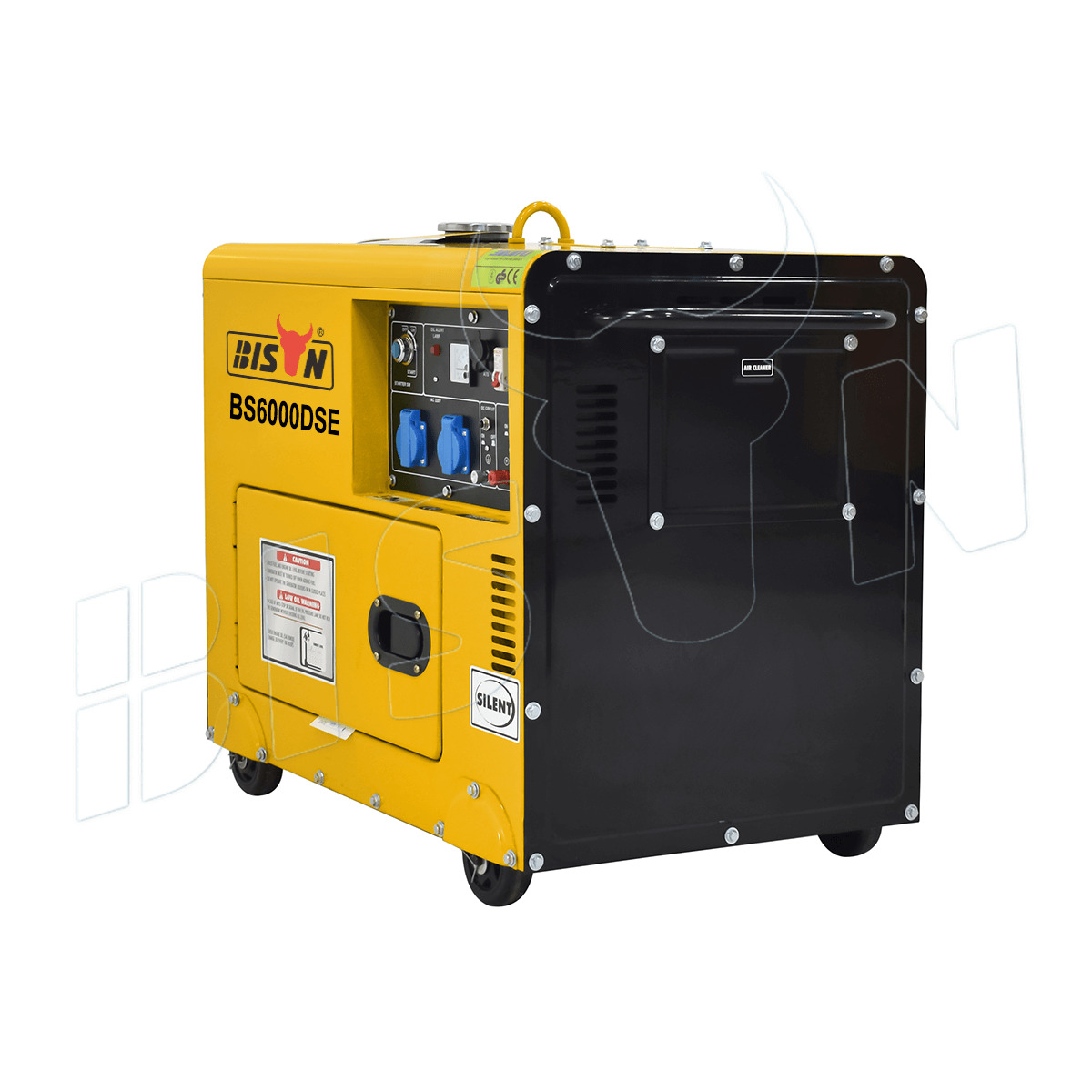

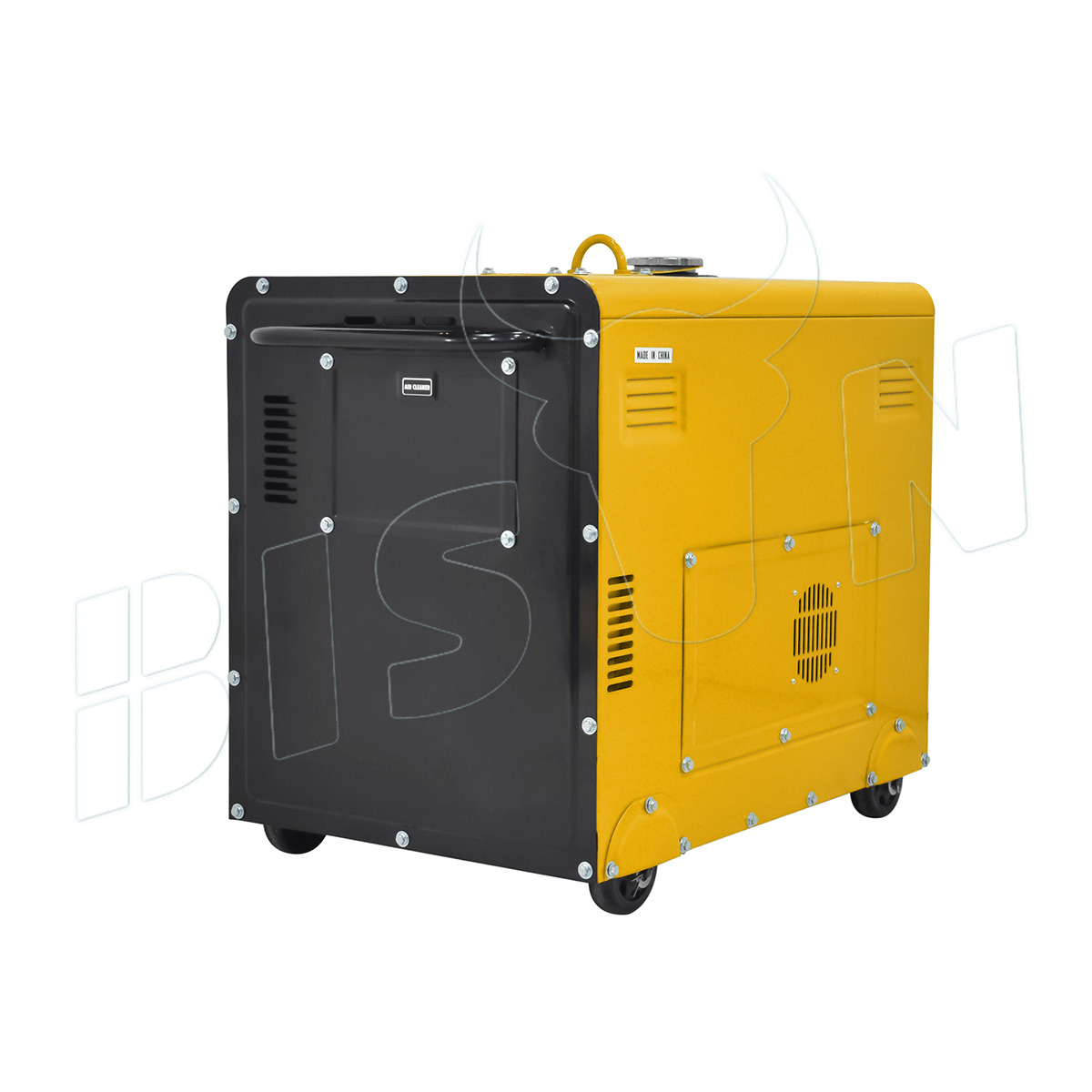

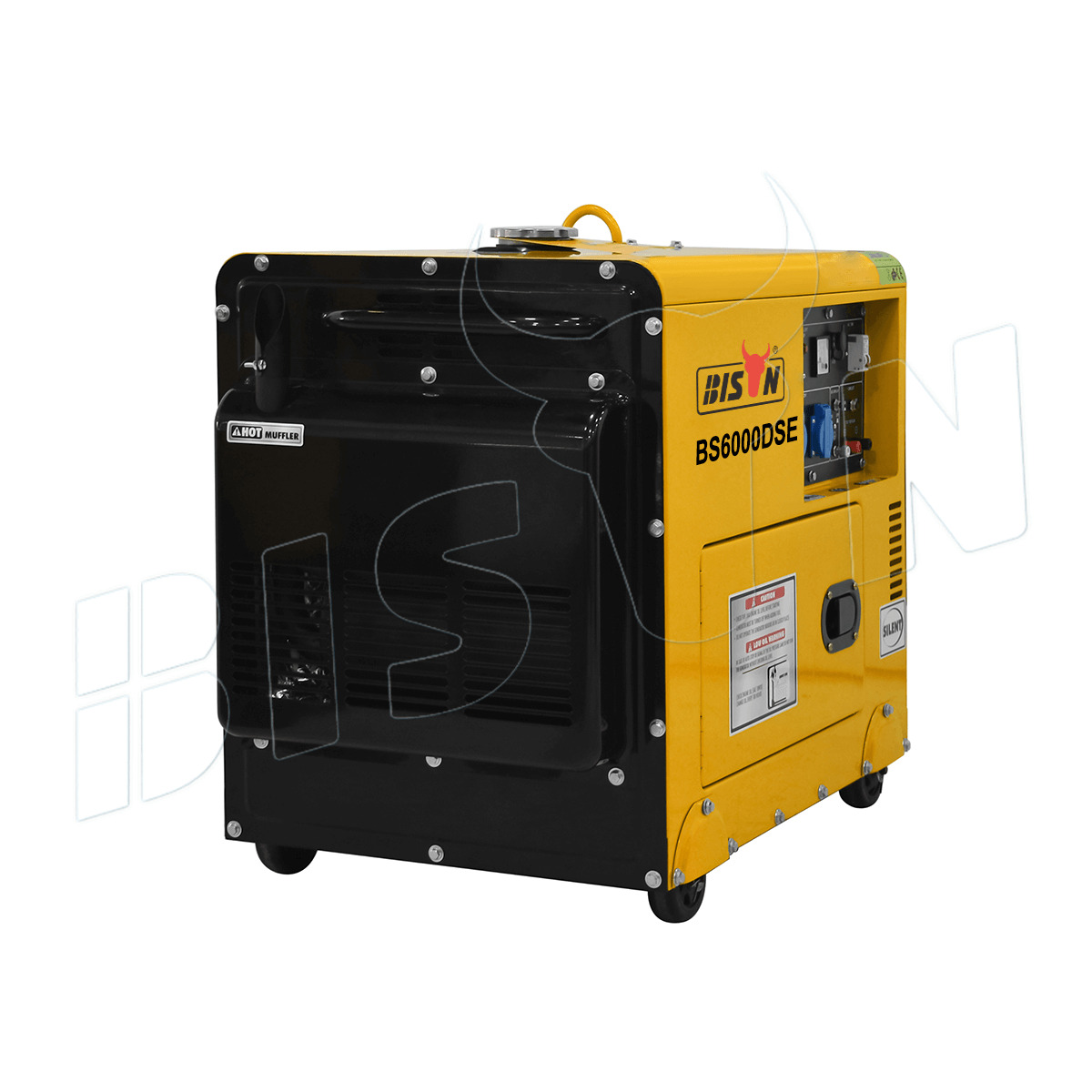

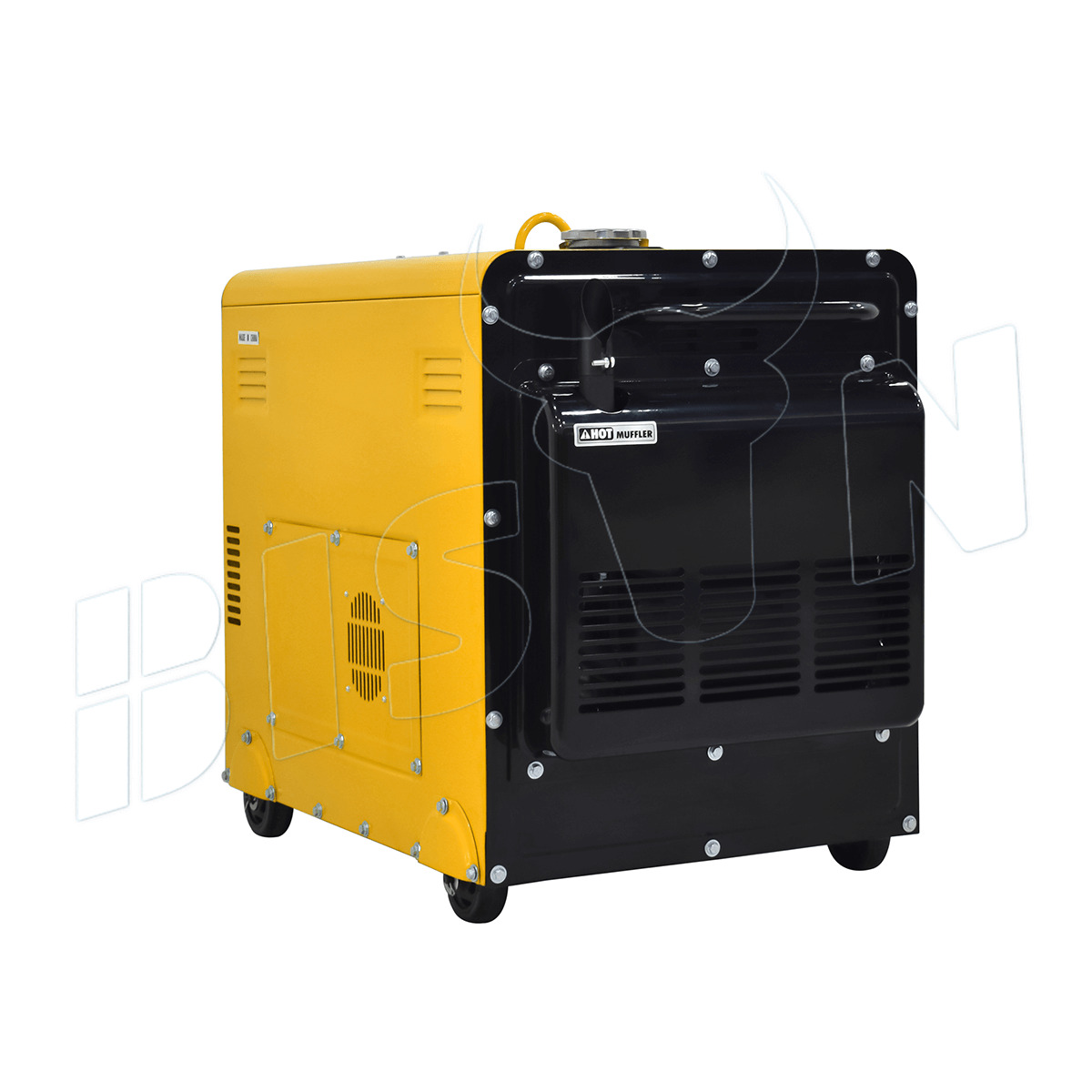

high quality 5kw diesel electricity generator
within 25 days delivery time after receiving the deposit！
Diesel generator dealers, are you looking for a high-quality, dependable 5kw diesel electricity generator to offer your customers?
Main features and advantages of high quality 5kw diesel electricity generator:
Owerful power output:Providing a stable 5kw of power, this generator is equipped with a powerful 1-cylinder, 4-stroke engine with an engine displacement of 418 cc, capable of handling a variety of electrical applications with ease.
Improve fuel efficiency:BISON’s advanced diesel engine technology maximizes output while 12.5L fuel tank capacity, 1.65L oil capacity reduces fuel consumption.
High-quality components:The entire body of the high quality diesel electricity generator is made of high-quality materials produced by BISON to withstand harsh conditions and extend its service life.
Quiet operation: Integrated noise reduction technology ensures quiet operation, and the sturdy cabinet reduces loud sounds, making it suitable for noise-sensitive environments.
Compact and mobile:BS6000DSE is equipped with four flexible tires. Considering the convenience of movement, BISON is equipped with push-pull armrests on both sides of the box, which is very suitable for carrying to various occasions.
features
Choose BISON manufacturer’s 5kw diesel generator, the BS6000DSE utilizes a powerful diesel engine for power and delivers reliable 5kw power output. Whether it’s extreme cold, extreme heat or high altitude, our generators start consistently, thanks to the strong BISON engineering team and high-quality material selection.
With a power factor of 1.0 for single-phase operation and 0.8 for three-phase operation, it delivers consistent performance that exceeds expectations.
From the 100% copper-wound alternator to the rugged construction, every component is crafted to stand up to the rigors.
Leading products and services
Over the years, BISON has been a leading manufacturer of high-performance diesel generators suppliers. By partnering with BISON, you get access to our best-selling high quality 5kw generator – the BS6000DSE model. We provide for your cooperation:
- Competitive distributor programs
- Comprehensive marketing support
- Detailed customer service
specifications
| output | |
|---|---|
| rated power | 4.5 KW |
| maximum power | 5.0 KW |
| Phase | single-phase / three-phases (optional) |
| AC voltage | depends on your country’s voltage |
| single-phase AC amperage | running power ÷ using voltage |
| three-phase AC amperage | running power ÷ using voltage ÷ 1.3856 |
| frequency | 50 / 60 HZ |
| continuous operating time | 7.5 h |
| engine & emission | |
|---|---|
| engine type | 4-stroke, OHV, air-cooled |
| engine model name | BS168F-1 |
| bore × stroke | 68 × 45 MM |
| engine displacement | 196 CC |
| engine speed | 3000(50 Hz) / 3600(60 Hz) RPM |
| recoil start | yes |
| electric start | optional |
| alternator | |
|---|---|
| winding material | 100% copper winding |
| power factor | 1.0 (single-phase) / 0.8 (three-phase) |
| fuel system | |
|---|---|
| fuel tank capacity | 15 l |
| oil capacity | 0.6 l |
| packaging | |
|---|---|
| carton dimensions (no wheels & handles) | 605 × 440 × 440 MM |
| generator net weight | 35 KGS |
| carton gross weight | 37 KGS |
optional
If your customers have remote start requirements, you should choose this option.
remote start
easy to move the generator
The customers who have high-end pursue of generator should choose this option.
digital display
easy to monitor the generator
The generators above 7 kilowatts or have three-phase voltage should choose this option.
industrial socket
power for industrial use
When you take generators as backup power, you could choose this. ATS is not necessary for small kilowatts.
ATS
automatically start without human intervention required
If the winter temperature in your area is below 0 ℃, you should choose this option.
glow plug
help to start in low temperature
factory
overview
how we test the gasoline generator
Improve the lift of the camshaft, determine the trajectory curve, and better analyze the state of the fuel injection pump and fuel injector.
camshaft test
Ensure that the gas tightness of the cylinder head meets the requirements and improves the performance stability of the generator.
cylinder head test
The oil central processor, all oil must be filtered and then used, reducing the wear of the parts.
oil quality testing
Make sure that all data indicators of the cylinder are normal and can meet the assembly requirements of the engine.
cylinder test
Crankcase has a oil leakage test to ensure that there is no oil leakage problem.
crankcase seal test
Ensure bearing sealing and no oil leakage
bearing seal test
Makes the surface of spare parts smoother and reduces wear.
honing parts
Correct the axis offset, skew, and other defects of the processed hole to ensure the position accuracy of the hole, while also obtaining the required hole diameter tolerance and surface roughness.
precision boring process
Make sure the connection between the cylinder head and the box is firm and there is no possibility of air or water leakage.
torque test
Make sure the engine is running normally and stably without any abnormal noise.
engine test
After the engine test, clean the internal residue to reduce the damage of the parts.
residue cleaning
Ensure the sealing of alternator is stable.
alternator air gap
After the alternator supplier’s first test, we would test it ourselves again to ensure alternator don’t have quality problem.
alternator 100% test
Make sure the generator can operate properly in low temperature conditions.
low temperature test
Well-packaged and ensure the safety of the generator.
packaging
