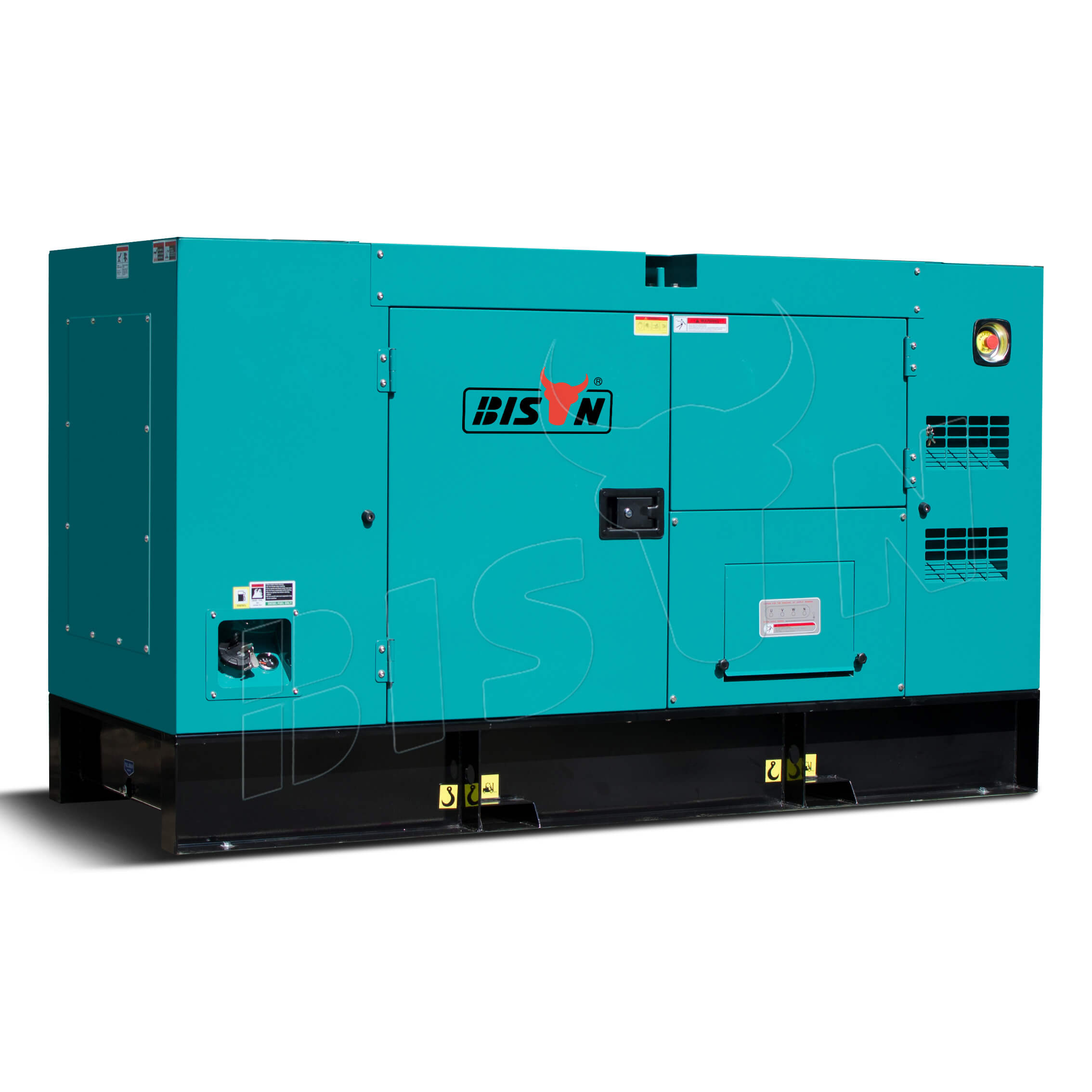

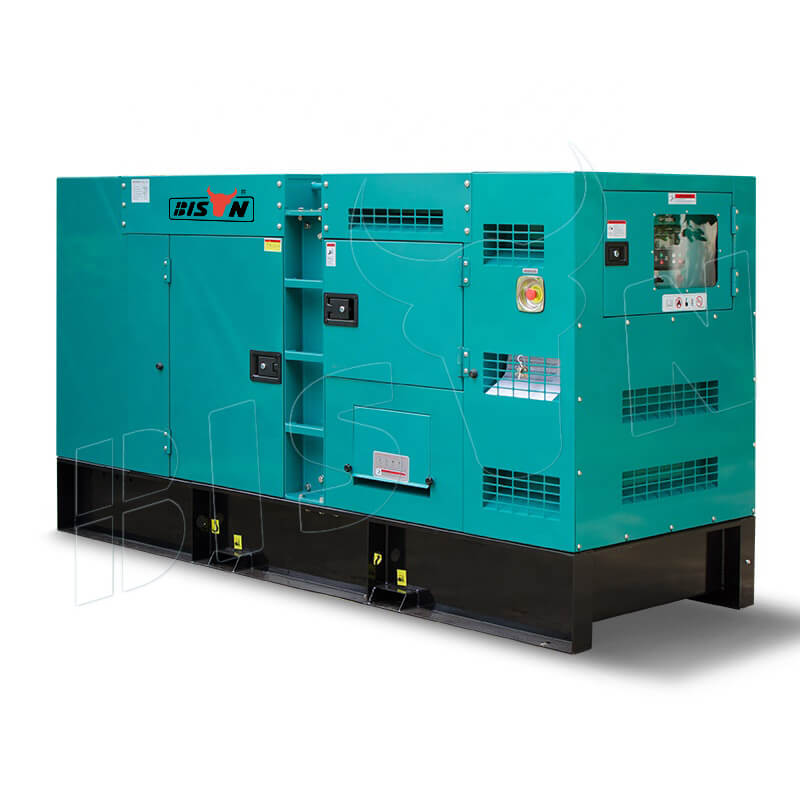

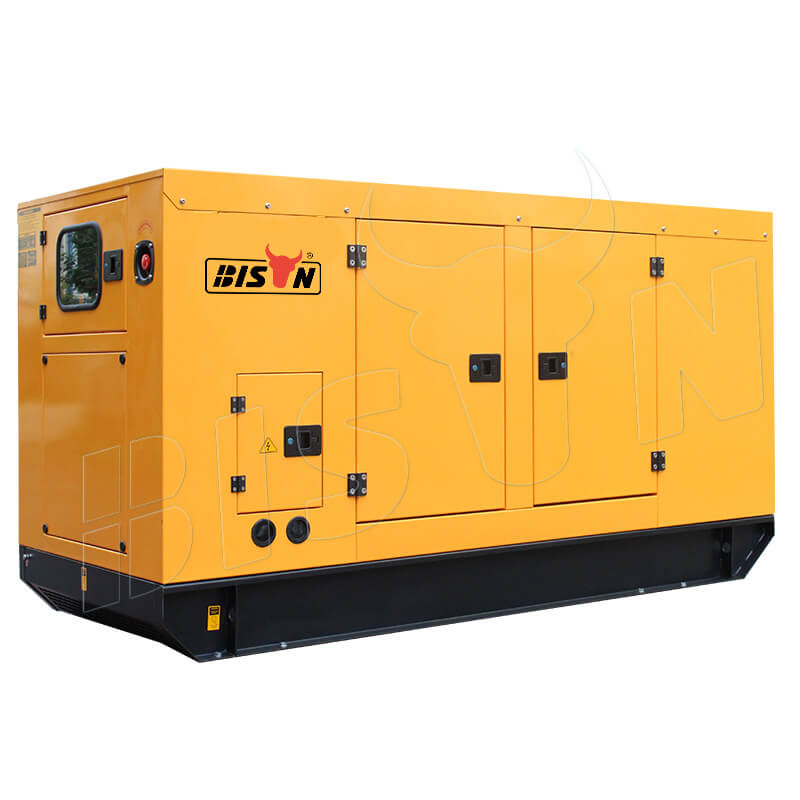

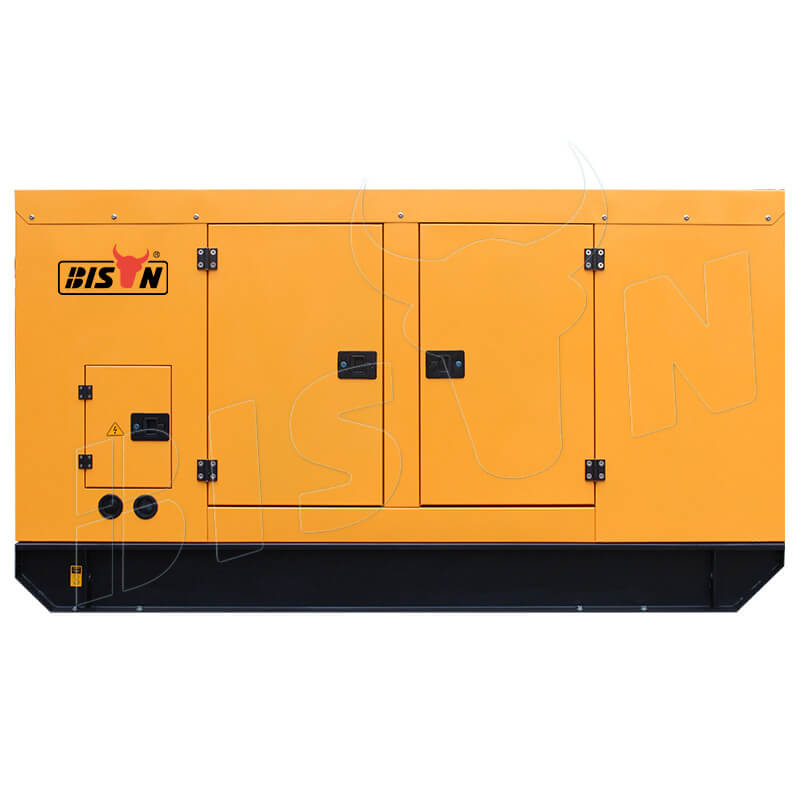

super silent continuous 80kva PERKINS diesel genset
Unleash uninterrupted primary power with unparalleled noise reduction. BISON super quiet 80kva PERKINS diesel genset that delivers consistent, reliable performance in even the most demanding applications.
A super silent continuous 80 kva Perkins diesel genset is a high-performance generator designed to deliver reliable, uninterrupted power with minimal noise. The “super silent” feature refers to advanced soundproofing technology that significantly reduces operational noise, ensuring quiet performance even in noise-sensitive environments.
features
The BISON BS-PS80 is a powerhouse of reliability and efficiency. At its core is the world-renowned Perkins engine, delivering steady power that’s perfect for sensitive and critical applications.
The efficient water-cooling system keeps the engine running at optimal temperatures, enhancing its performance and lifespan. Built to last, the BS-PS80 features a robust and durable design that can withstand tough conditions, promising a long service life with minimal maintenance.
One of the key advantages of the BS-PS80 is its stable electricity output, which protects valuable equipment from voltage fluctuations. This genset incorporates advanced technology for improved efficiency and reduced fuel consumption, translating to lower operational costs. It’s built to comply with international standards, ensuring safety and easy integration into existing systems. The user-friendly control panel makes monitoring and management a breeze, while customizable options allow for tailored solutions to meet specific needs.
specifications
| output | |
|---|---|
| rated power | 64 KW / 80 KVA |
| voltage | 220 V / 380 V |
| frequency | 50 HZ |
| Phase / Wire | 3 Phase / 4 Wire |
| Power Factor | 0.8 |
| engine & emission | |
|---|---|
| engine type | 1104A-44TG2 |
| type | Water-cooled, inline, 4-stroke, direct injection |
| prime power | 73.4 KW |
| intake type | Turbocharged |
| no.cylinders | 4 |
| bore × stroke | 105 × 127 MM |
| displacement | 4.4 L |
| 100% prime power fuel consumption | 18.7 L/H |
| alternator | |
|---|---|
| brand model | UCI224G |
| prime power | 64 KW / 80 KVA |
| power efficiency | 88.50% |
| voltage regulation | ≤ ±1 |
| excitation type | brushless |
| insulation class | h |
| controller | |
|---|---|
| band | SMARTGEN |
| model | HGM6110 |
| packaging | |
|---|---|
| dimension | 1900 × 850 × 1300 MM |
| weight | 1000 KGS |
optional
When you take genset as backup power, you could choose this.
ATS
automatically start without human intervention required.
You should choose this option when the lowest temperature of the year in which the gensets are used is below 0 ℃.
preheater
helps start genset in low temperature.
If you don’t have specific needs for a controller brand, we would make our recommendations.
controller brand
to control all functions of genset.
You should choose this option if you need more convenient output for a genset below 30kw.
sockets
make genset output more convenient.
If you need to use genset for more than 8 hours a day, you should choose to increase the fuel tank of genset.
larger fuel tank
increase genset’s one-time use time.
If you require more convenient use of the fuel tank, you should choose this option.
separate fuel tank
replaces the bottom fuel tank and is more convenient to use
If the fuel you are using is not of good enough quality, you should choose this option.
fuel-water-separator
remove moisture from fuel and extend engine life
factory
overview
how we test the diesel gensets
We always get genuine and original engines from regular channels.
purchase engine
We always use the most sophisticated cutting instruments to cut sheet metal.
sheet metal cutting
The welding workers have 20+ years of experience and the welding points are flawless.
welding
Professional spray and baking booths are used to color the silent covers.
spray paint
Paste sound insulation cotton with a thickness greater than 3cm on the silent cover.
paste silent cotton
BISON brand brushless AC alternator is made by ourselves
alternator assembly
Connect engine and alternator.
semi finished genset
Establish a connection between the line and the controller.
install controller
Check whether the internal wiring is intact and working.
wiring
Assembling the silent cover after cutting and painting.
soundproof producing
Every genset would be tested in the testing center.
test center
Every genset would be tested for more than 30 minutes.
genset testing
Stick BISON or OEM logo lable.
stick logo
Packed with pearl cotton and stretch film.
packing
Loading is carried out by experienced forklift workers to ensure that every machine is in good condition.
loading
support
warranty
※ Our commitment:
Dear customer, many thanks for considering our genset. We have firm confidence in the quality and performance of our products, so our warranty is more than just an oral promise or a document, it is our commitment to quality. We will work tirelessly to ensure that every genset you own is rigorously tested and carefully manufactured!
※ Warranty time: 2 year after B/L date.
※ Warranty coverage: Non-human factors, the damage caused by machine its quality problems.
※ How we fulfill our warranty:
Situation 1 Conveniently replaceable spare parts are damaged within warranty time→We provide new spare parts free of charge and ship them with your next order.
Situation 2 Quality problem with small batches within warranty time: You give your customer a new genset for free→We would give you a discount in your next order corresponding to the amount of the severely damaged genset.
Situation 3 Quality problem with big batches if you buy Bison brand within warranty time: You give your customer a new genset for free firstly→We would send technicians to your country to repair these machines for you free of charge.
Situation 4 Quality problem with big batches if you buy your own brand within warranty time: You give your customer a new genset for free firstly→We would compensate you in batches in future orders.
Why BISON is the right choice for you
※ BISON is a leading manufacturer in the power generation industry and the BS-PS80 ultra-quiet 80 kva Perkins diesel generator set reflects our commitment to quality. The BS-PS80 also comes with comprehensive after-sales support including technical assistance, spare parts supply, and operator training. BISON’s expertise and customization options ensure this generator set can be tailored to your needs.
